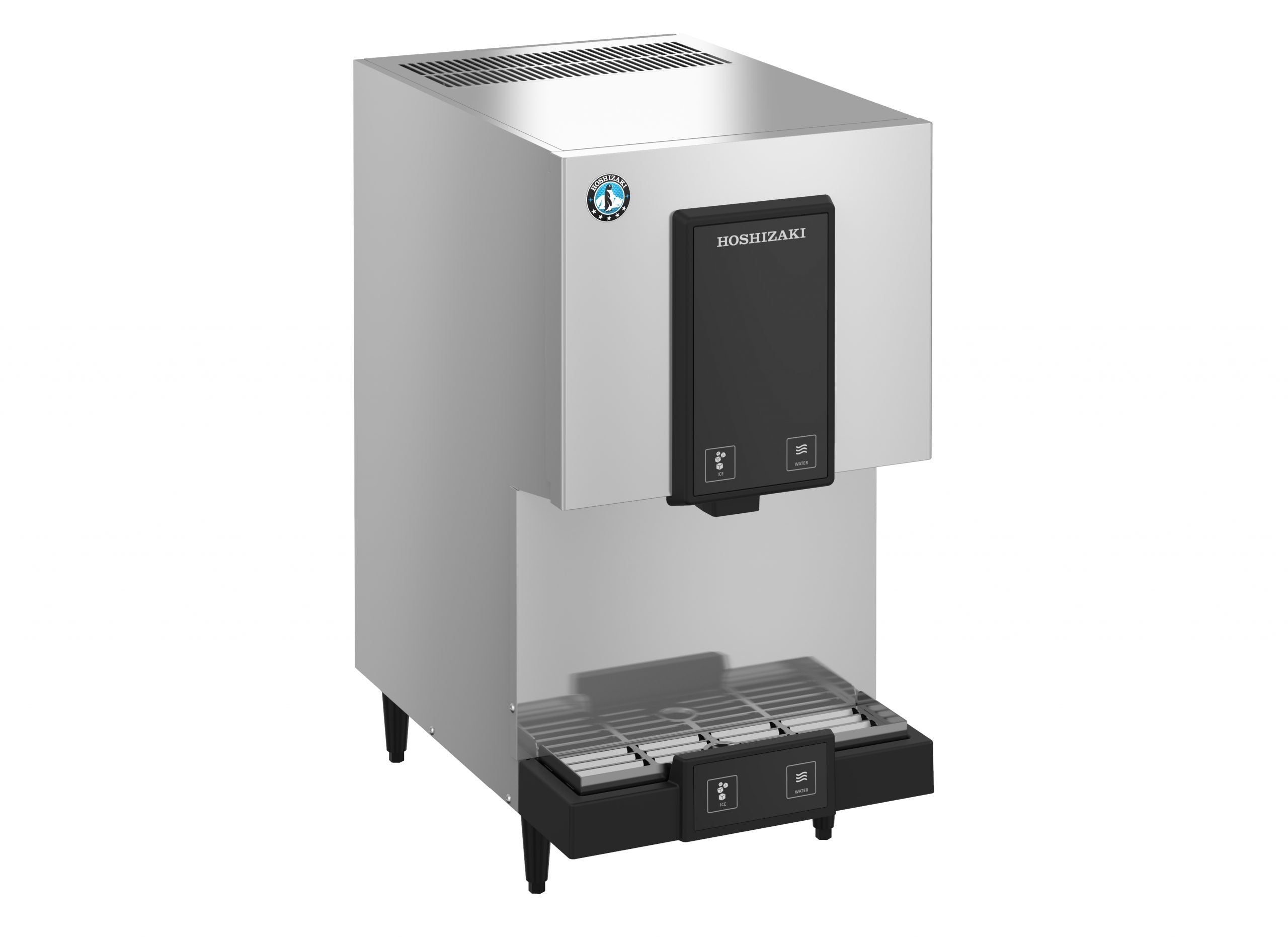

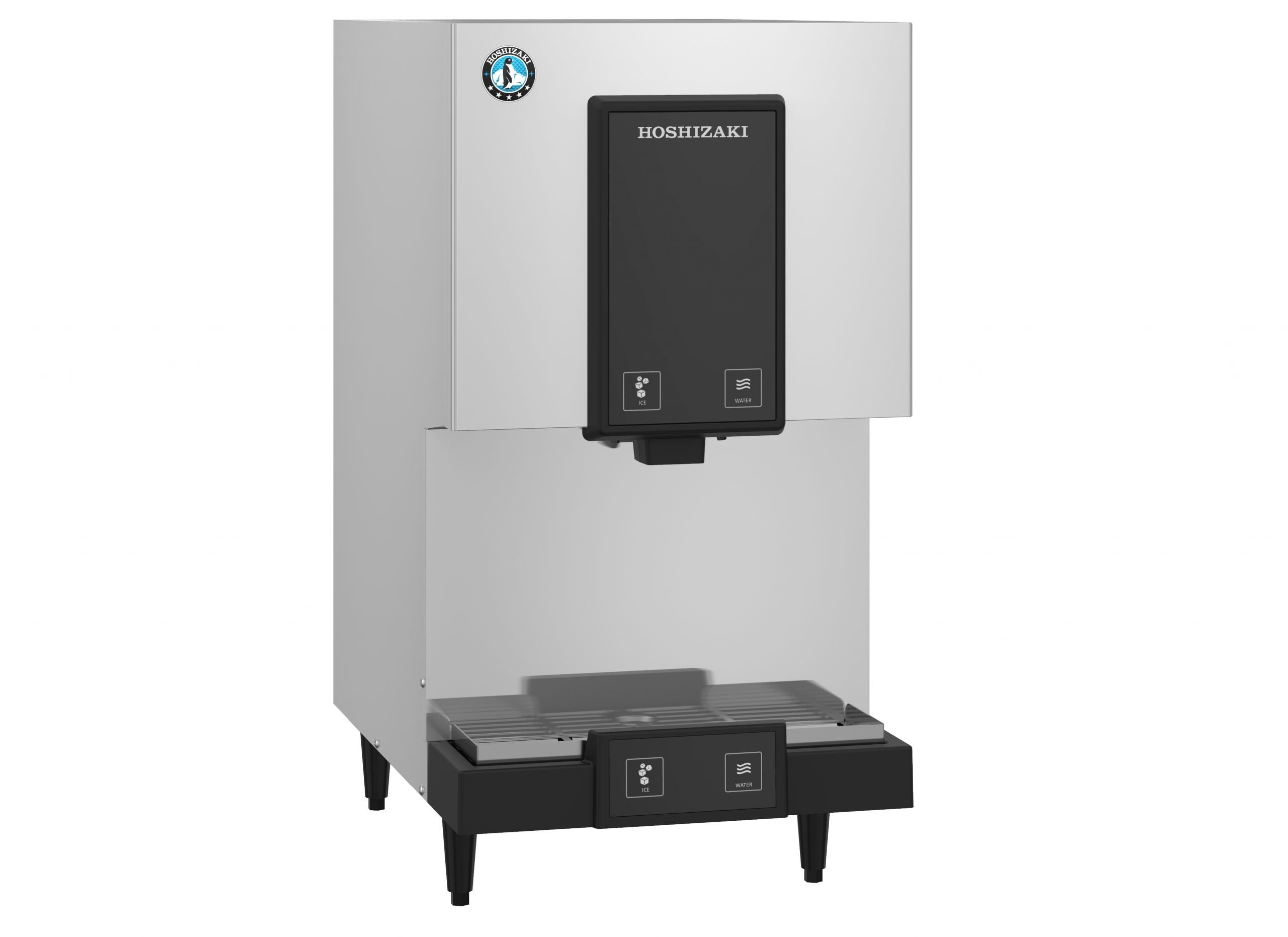

Hoshizaki DCM-271BAH | 17" Wide Air-Cooled Mini Cubelet Ice & Water Dispenser w/ Built-In Storage Bin - DCM-271BAH
The DCM-271BAH is capable of producing approximately 257 lbs of Cubelet nugget-style ice cubes per day, The built-in storage bin will hold up to 10 lbs of ice* at a time. This Air-cooled icemaker has an Push button operation that dispenses ice or water. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows easy to chew, cubelet ice to be dispensed with a simple push of a button. This model features Advanced CleanCycle24 design – it performs a 2 second purge every hour to clean itself and it is Protected by H-GUARD Plus Antimicrobial Agent. The sanitary dispenser design keeps ice fully contained until it is needed, minimizing the opportunity for cross-contamination and keeping your ice clean. Keep your kitchen running smoothly with this Cubelet Ice and Water Dispenser. Stand not included.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.
Features
- Dimensions: 16-5/8 ” W x 24-1/4″ D x 31-3/4 ” H
- Up to 257 lbs of ice produced per 24 hours
- Up to 10 lbs of built-in storage capacity (0.3ft3)

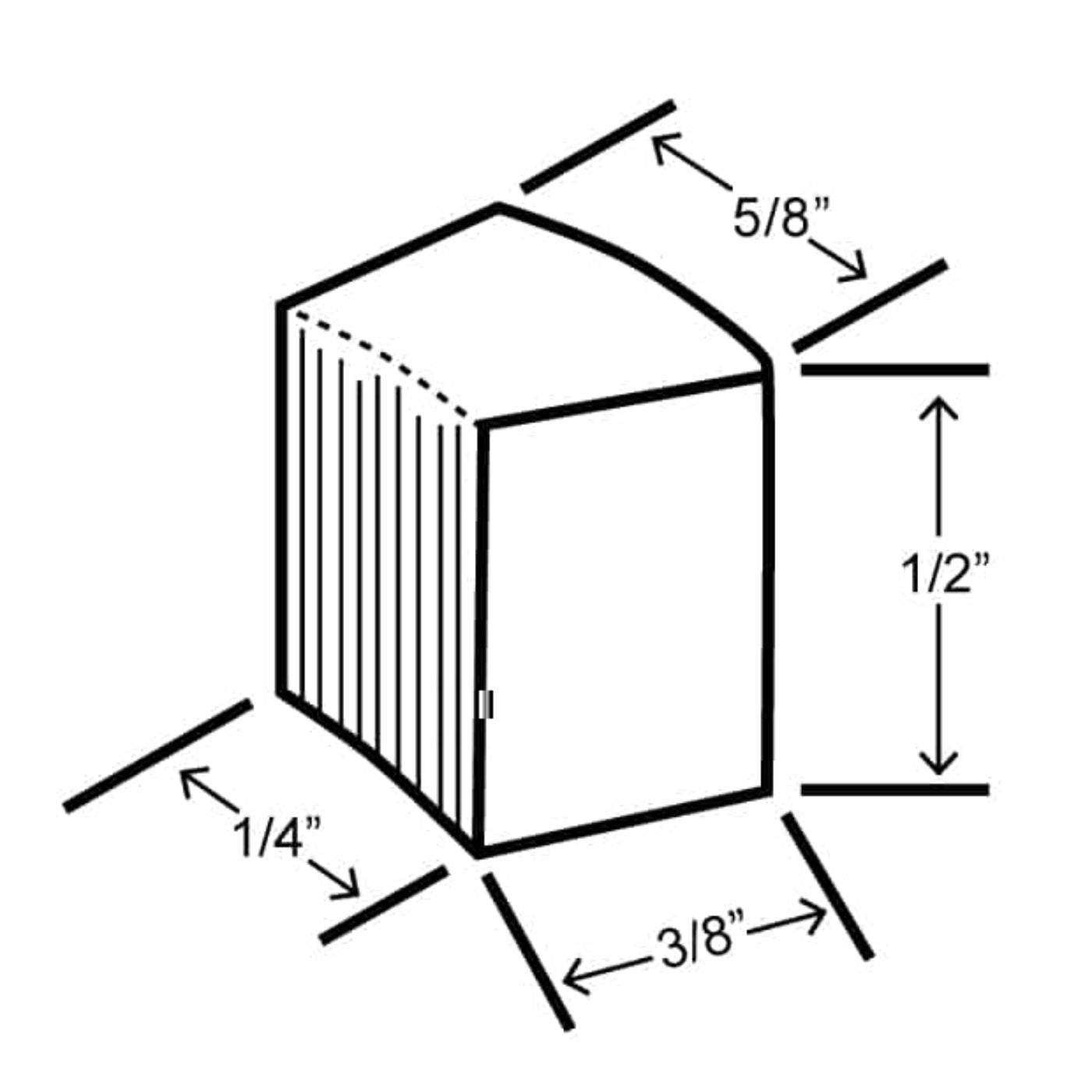

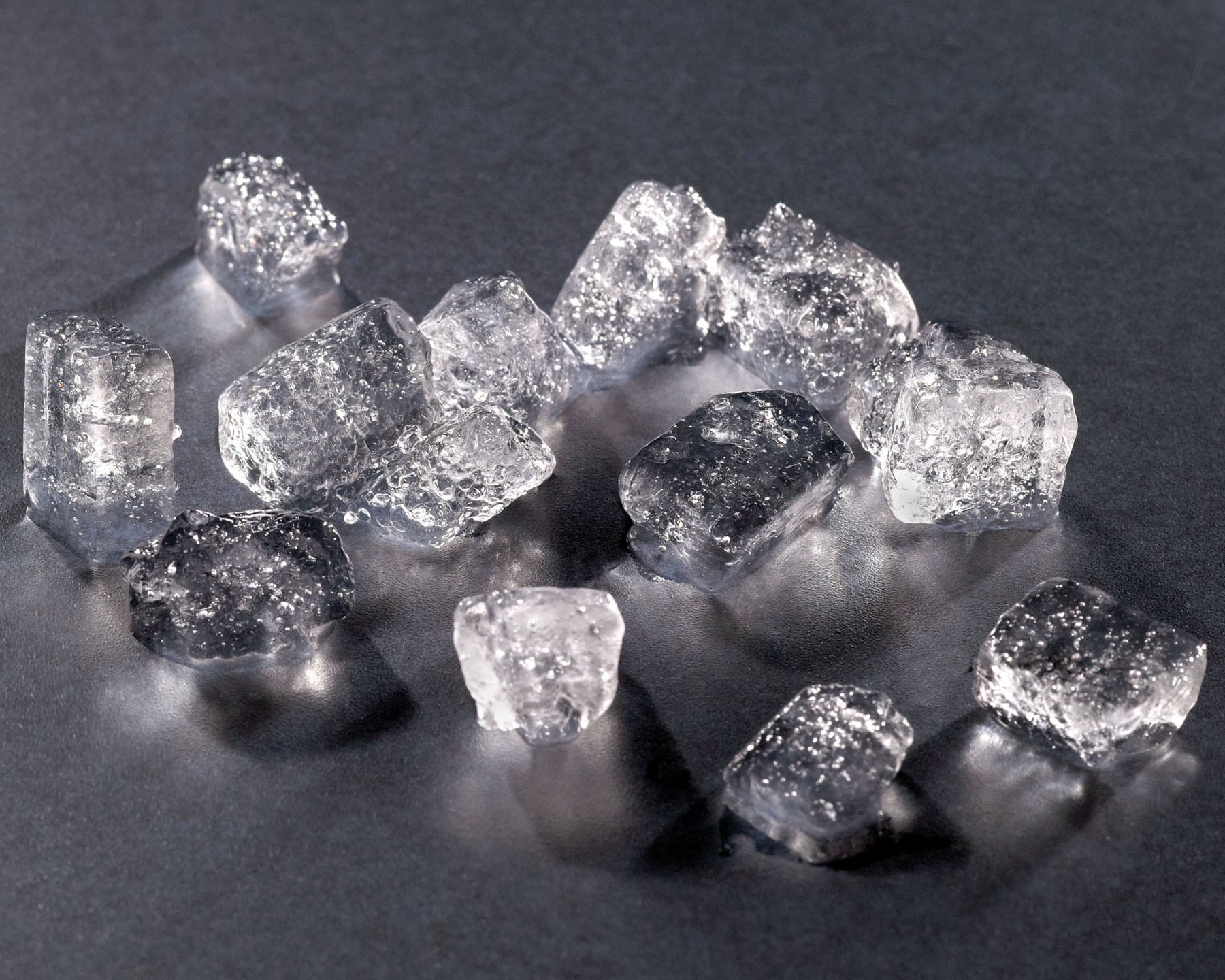

- Produces mini cubelet nugget-style ice
- Durable stainless steel exterior

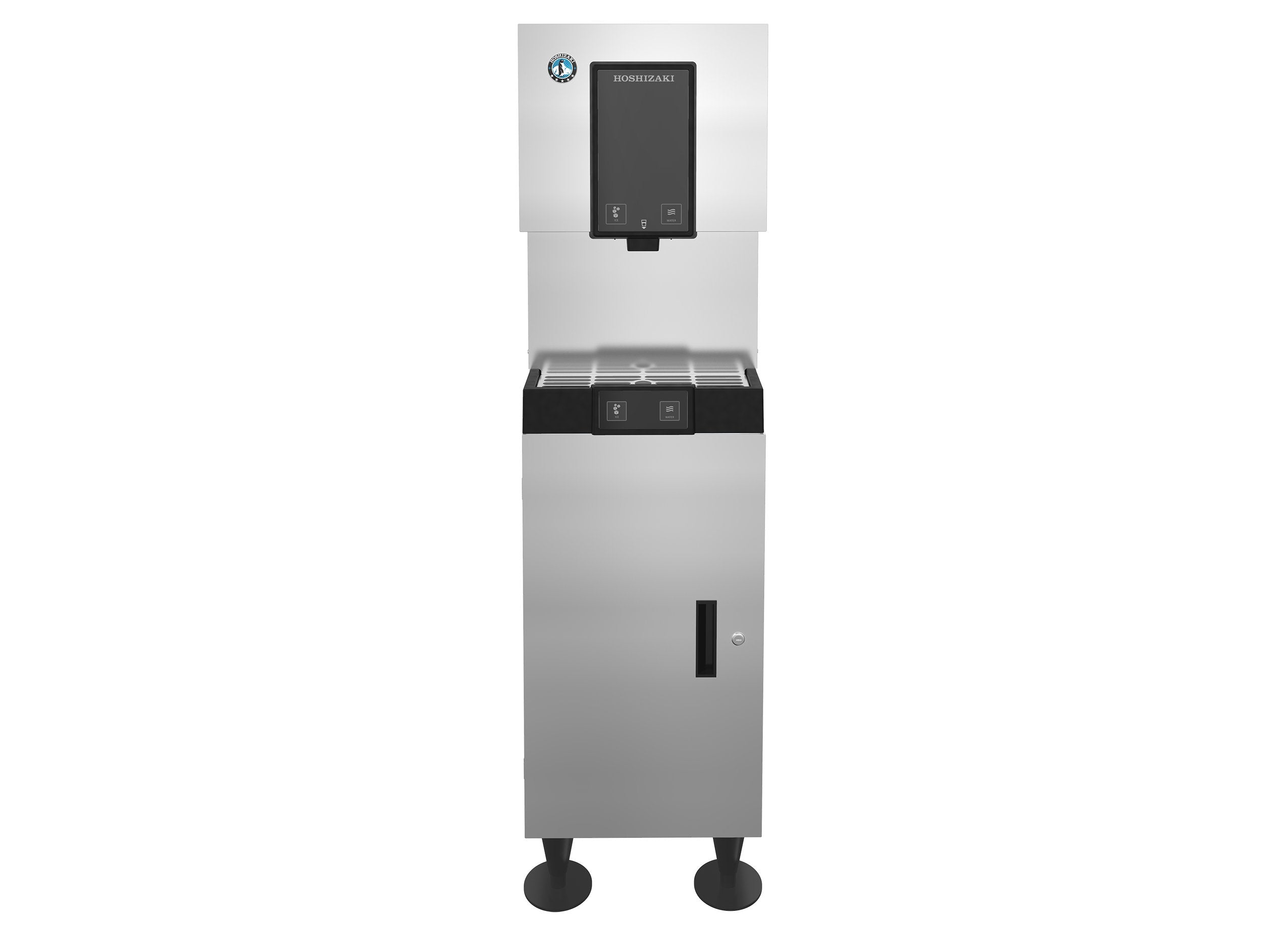

- Place on countertop or optional stand: SD-271
- Push button operation that dispenses ice or water
- Advanced CleanCycle24 design – it performs a 2 second purge every hour to clean itself
- Protected by H-GUARD Plus Antimicrobial Agent
- R-404A refrigerant (14.8 oz. / 420 g)
- Heat Rejection:3300 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 8.5 amps (15 Amp Max fuse)
- 6.9 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1 6 ft. cord with a NEMA 5-15 plug
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
Specifications
| Brand |
Hoshizaki |
| Model Number |
DCM-271BAH |
| Weight |
154 lbs |
| Width |
16.63" |
| Depth |
24.25" |
| Height |
31.75" |
| Installation Type |
countertop |
| Cooling |
air-cooled |
| Ice Type |
nugget ice |
| Refrigeration |
self-contained refrigeration |
| Dispenser Type |
push button |
| Dispenses |
Ice & Water |
| Production per 24 hr (Lbs) |
257 |
| Bin storage capacity (Lbs) |
10 |
| Voltage |
115 |
| Phase |
1 |
| Certifications |
ADA Compliant, AHRI, NSF, UL |
What our Experts Think
-
Compact Yet Powerful: At only 17″ wide, this unit produces up to 257 lbs of chewable cubelet ice daily—ideal for small spaces with steady demand.
-
Built-In Storage: Includes a 10 lb internal bin, ensuring immediate access to ice during peak hours.
-
Sanitary Operation: Features CleanCycle24 automatic hourly purging and H-GUARD Plus antimicrobial protection for cleaner, safer ice.
-
Simple Dispensing: Easy-to-use push-button interface for both ice and water, with a sanitary enclosed dispensing system.
-
Durable Design: Air-cooled, stainless steel construction, suitable for countertops or optional stand installation.
-
Energy Efficient: Uses just 6.9 kWh per 100 lbs of ice, with standard 115V power compatibility.
Q&A
Q: What is the ice production capacity of the Hoshizaki DCM-271BAH?
A: Produces up to 257 lbs of cubelet ice per 24 hours.
Q: What are the unit’s dimensions?
A: Compact 17" wide design, ideal for countertops or tight spaces.
Q: What type of ice does it produce?
A: Produces soft, chewable mini cubelet ice, perfect for beverages and healthcare use.
Q: Does it dispense both ice and water?
A: Yes, it dispenses both ice and water for added convenience.
Q: Is there a built-in storage bin?
A: Yes, includes a built-in bin that stores up to 10 lbs of ice.
Q: What type of cooling system does it use?
A: Air-cooled system for energy-efficient operation.
Q: What materials are used?
A: Durable stainless steel construction with easy-to-clean surfaces.
Maintenance Tips
-
Sanitize the ice/water dispenser and bin regularly to prevent microbial growth.
-
Clean and descale the ice-making system per manufacturer guidelines.
-
Wipe exterior surfaces daily to maintain cleanliness and appearance.
-
Inspect and clean air filters and condenser coils monthly for optimal airflow.
-
Replace water filters as recommended to ensure ice and water quality.
