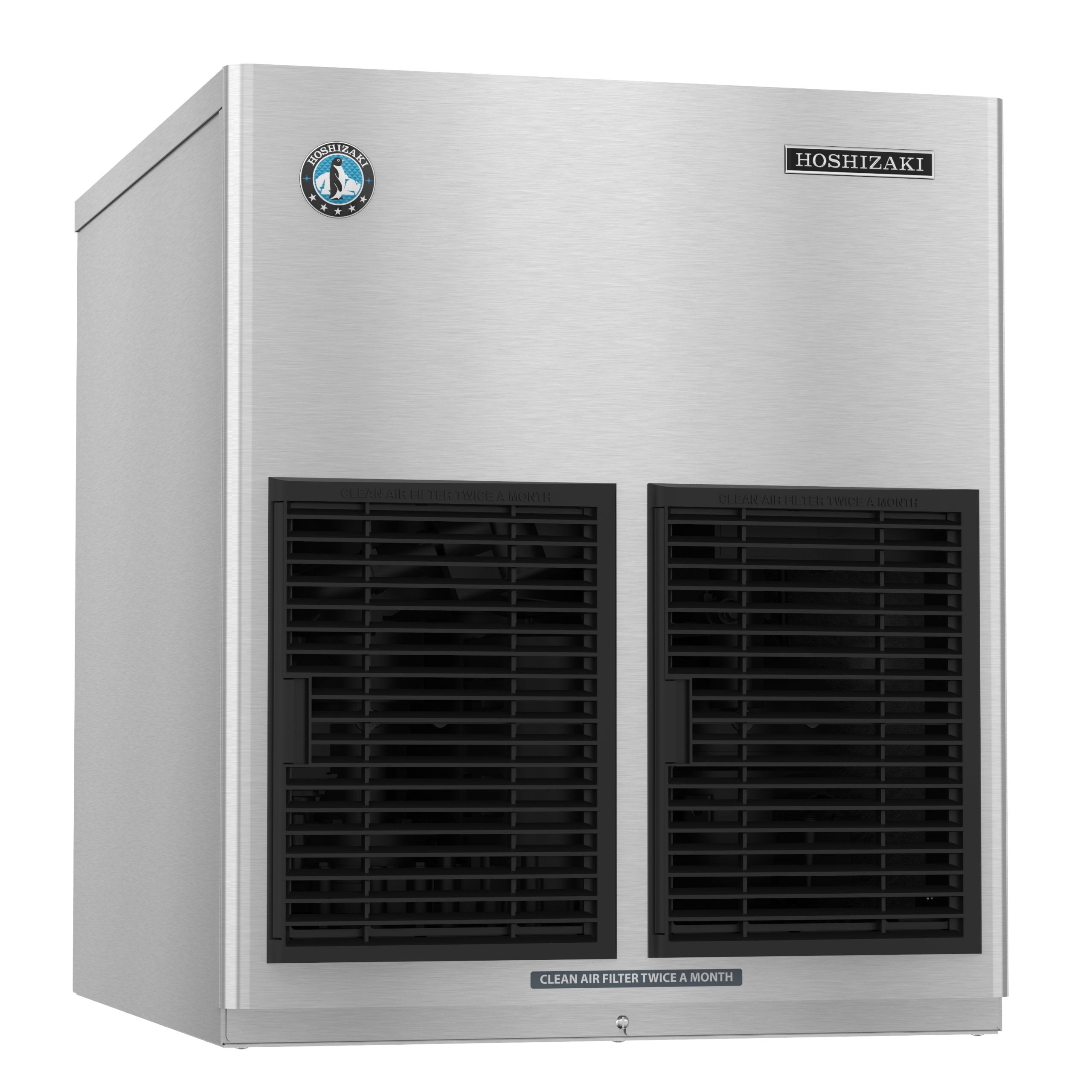

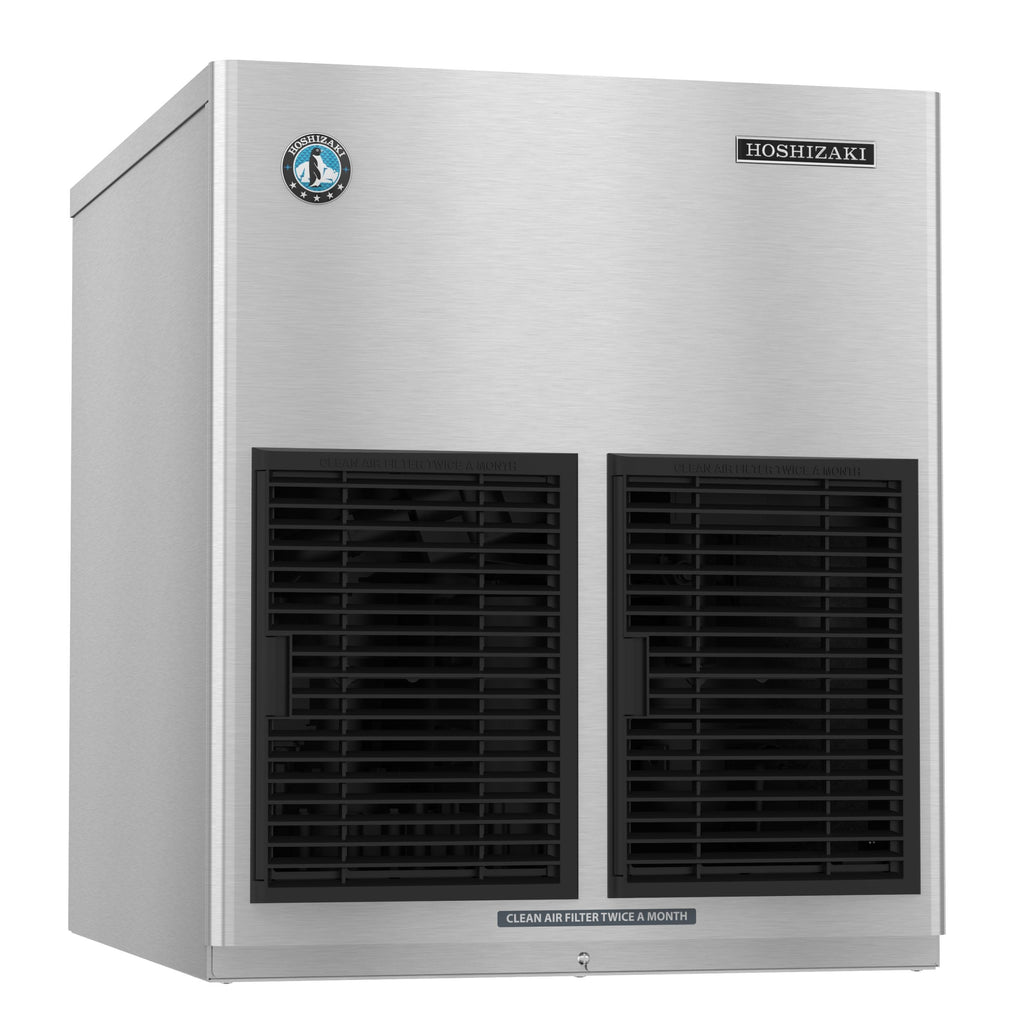

Hoshizaki F-801MAJ | 22" Wide Air-Cooled Flaker Ice Maker (Bin Sold Separately) - F-801MAJ
The F-801MAJ is capable of producing approximately 751 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Air-cooled, Slim Line Modular icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-801MAJ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1150, B-1300, B-1500, B-1650. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details.
Features
- Dimensions: 22″ W x 27-3/8″ D x 26″ H
- Up to 751 lbs of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production
- Produces flaked ice
- Durable stainless steel exterior
- Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1150, B-1300, B-1500, B-1650
- 2 second rinse every hour to remove sediment for cleaner ice
- Advanced CleanCycle24™ design
- Infrared bin control for easy cleaning and reliability
- R-404A refrigerant (1 lbs. 12 oz. / 790 g)
- Heat Rejection: BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 11.8 amps (15 Amp Max fuse)
- 4.5 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
- ENERGY STAR® qualified
- Three Years: Parts & Labor warranty on entire machine.
Specifications
| Brand |
Hoshizaki |
| Model Number |
F-801MAJ |
| Weight |
200 lbs |
| Width |
22" |
| Depth |
27.38" |
| Height |
26" |
| Compatible With |
ice storage bin |
| Cooling |
air-cooled |
| Ice Type |
flake ice |
| Refrigeration |
self-contained refrigeration |
| Energy Efficiency |
ENERGY STAR® |
| Production per 24 hr (Lbs) |
751 |
| Voltage |
115 |
| Phase |
1 |
| Drain Type |
gravity drain |
What our Experts Think
-
Compact Powerhouse: At just 22" wide, produces up to 751 lbs of soft, chewable flake ice daily—ideal for food displays and healthcare.
-
Air-Cooled Efficiency: Reduces water usage and simplifies installation compared to water-cooled units.
-
Durable Stainless Steel: Built for demanding commercial environments with easy maintenance.
-
Flexible Storage: Bin sold separately, allowing customization to fit your space and storage needs.
Q&A
Q: What is the ice production capacity of the Hoshizaki F-801MAJ?
A: Produces up to 751 lbs of flake ice per 24 hours.
Q: What are the dimensions of this unit?
A: Compact 22" wide design, ideal for tight commercial spaces.
Q: What type of cooling system does it use?
A: Air-cooled system for energy-efficient and low-maintenance operation.
Q: What type of ice does it produce?
A: Produces soft, moldable flake ice—perfect for food displays, healthcare, and seafood preservation.
Q: Does it include an ice storage bin?
A: No, the bin is sold separately for flexible storage configuration.
Q: What materials is it made from?
A: Features a durable stainless steel exterior for long-lasting performance and easy cleaning.
Maintenance Tips
-
Clean & Sanitize Monthly: Use Hoshizaki-approved cleaner to remove scale and biofilm from internal components.
-
Replace Water Filters Regularly: Ensure clean water supply for high-quality ice and machine longevity.
-
Clean Condenser Coils Monthly: Clear dust and debris to maintain efficient air-cooled operation.
-
Check Drain Lines: Keep lines free of blockages to prevent water backups and contamination.
-
Monitor Ice Output: Watch for reduced production or unusual sounds—signs that maintenance is needed.
