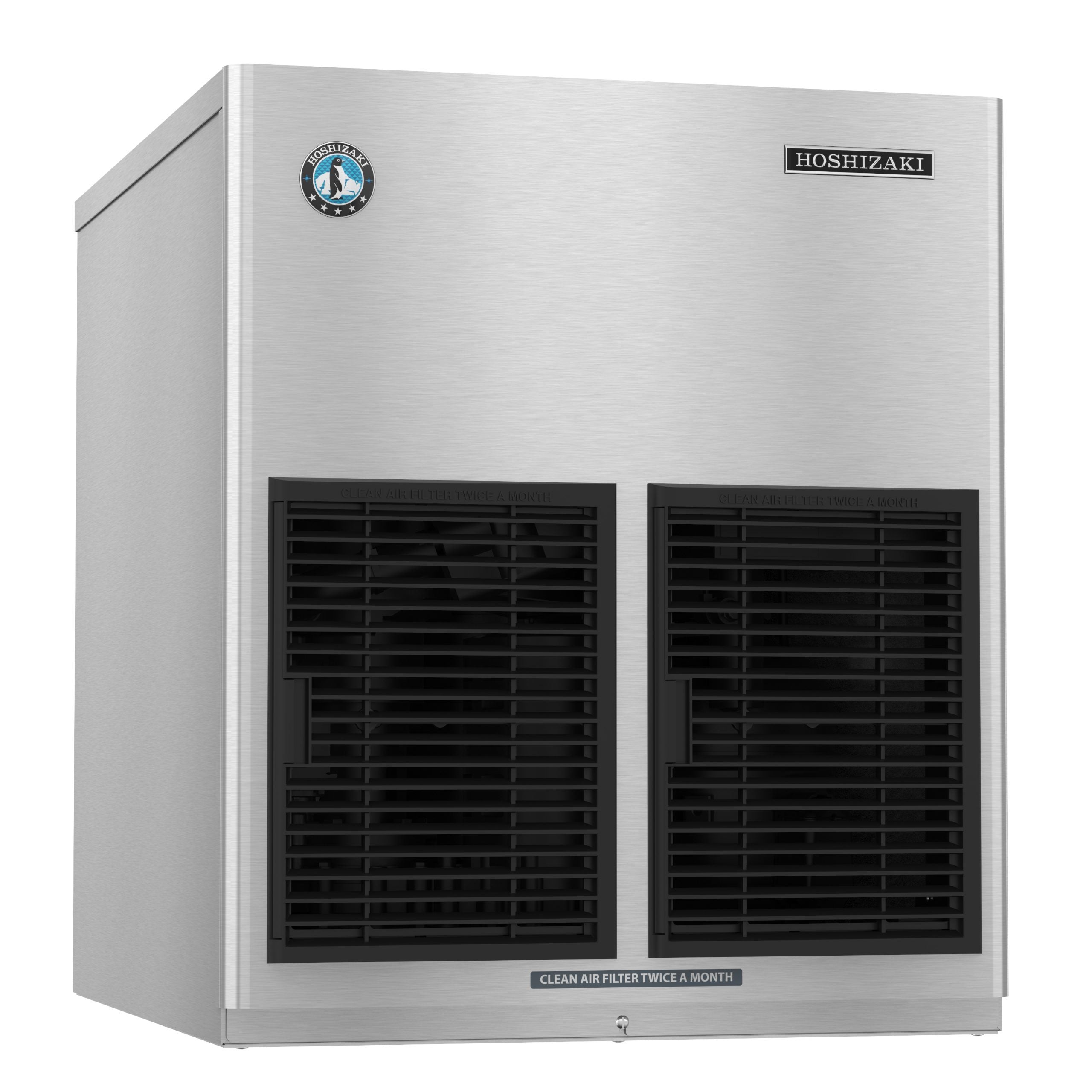

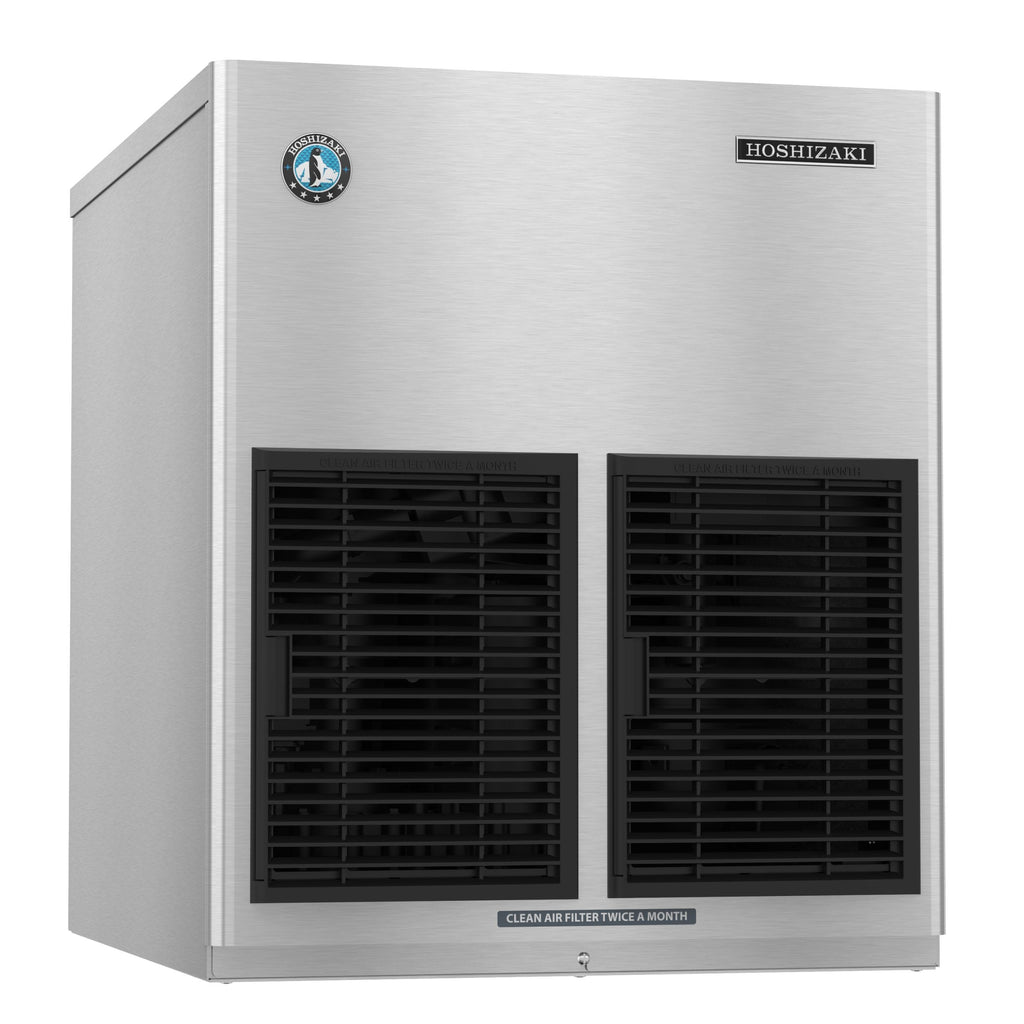

Hoshizaki F-1002MWJ | 22" Wide Water-Cooled Flaker Ice Maker (Bin Sold Separately) - F-1002MWJ

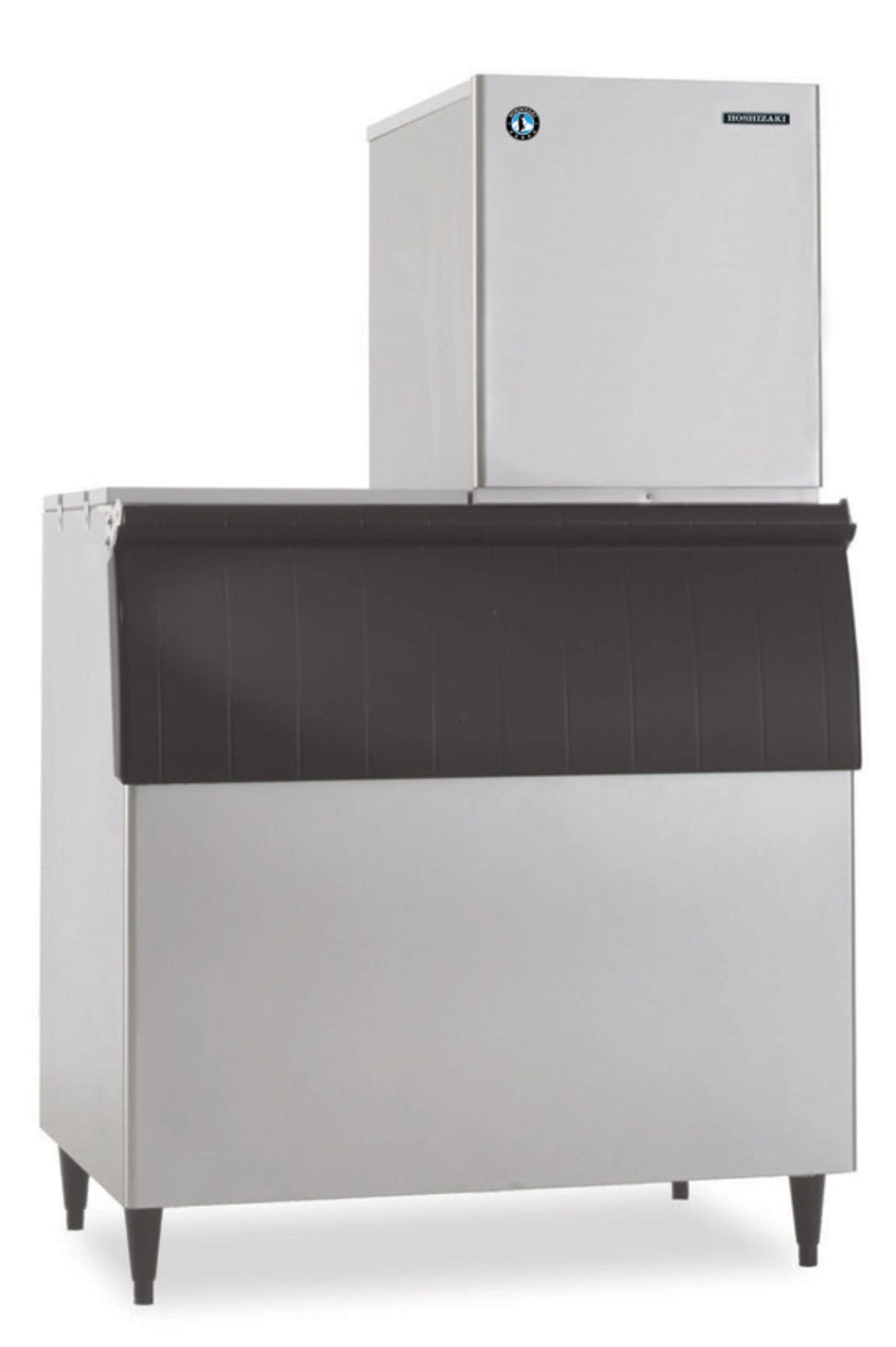

The F-1002MWJ is capable of producing approximately 955 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Water-cooled, Slim Line Modular icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-1002MWJ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500SS, B-1650SS, B-1150, B-1300, B-1500SS, B-1650SS. Please consult the Specification Sheet for additional details.
Features
- Dimensions: 22″ W x 27-3/8″ D x 25-15/16″ H
- Up to 955 lbs of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production
- Produces flaked ice
- Durable stainless steel exterior
- Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500SS, B-1650SS, B-1150, B-1300, B-1500SS, B-1650SS
- 2 second rinse every hour to remove sediment
- Advanced CleanCycle24™ design
- Protected by H-GUARD Plus Antimicrobial Agent
- R-404A refrigerant (12.3 oz. / 350 g)
- Heat Rejection:8200 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 13.73 amps (20 Amp Max fuse)
- 3.57 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine.
Specifications
| Brand |
Hoshizaki |
| Model Number |
F-1002MWJ |
| Weight |
205 lbs |
| Width |
22" |
| Depth |
27.38" |
| Height |
26" |
| Compatible With |
ice storage bin |
| Cooling |
water-cooled |
| Ice Type |
flake ice |
| Refrigeration |
self-contained refrigeration |
| Production per 24 hr (Lbs) |
955 |
| Voltage |
115 |
| Phase |
1 |
| Drain Type |
gravity drain |
