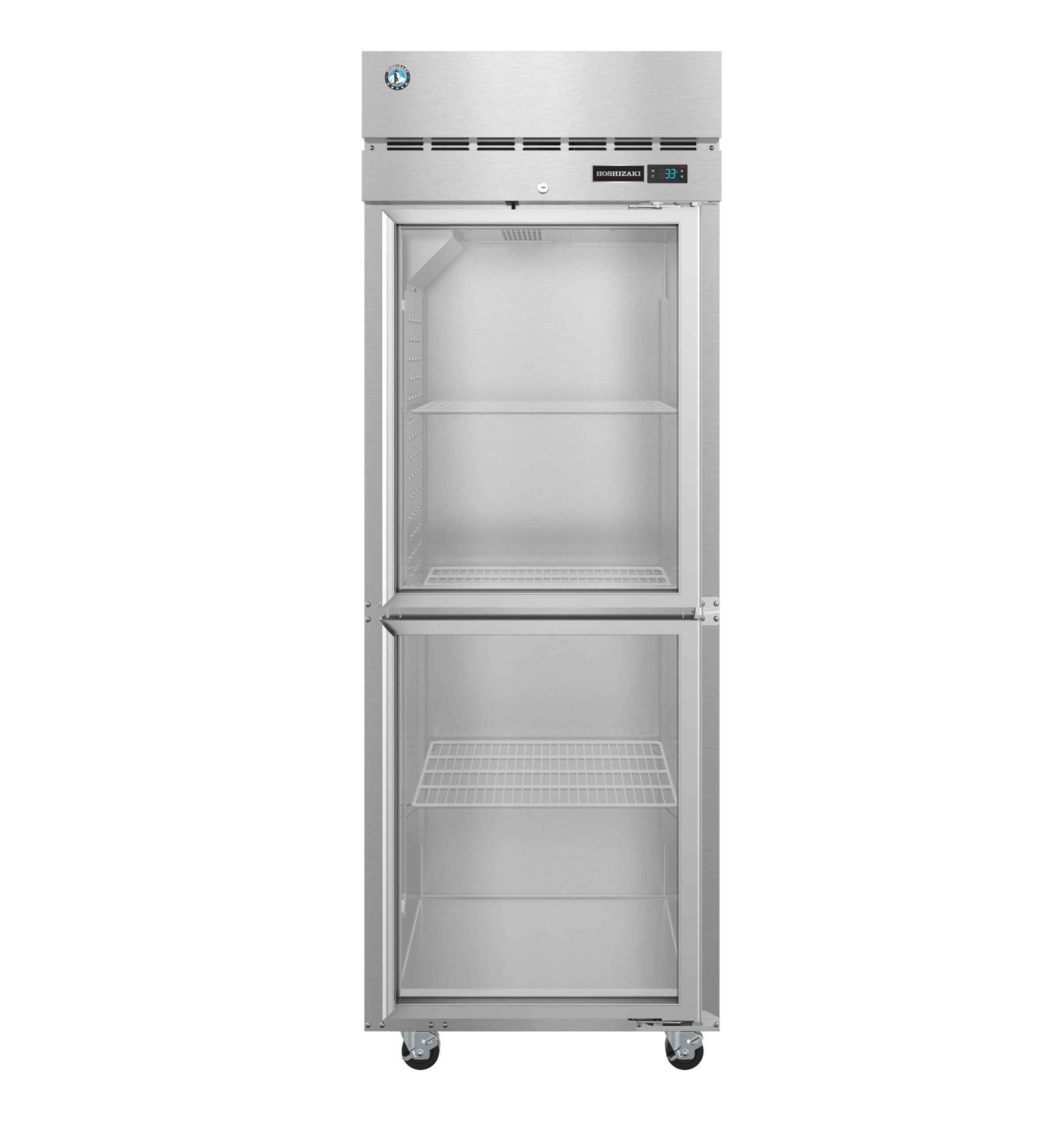

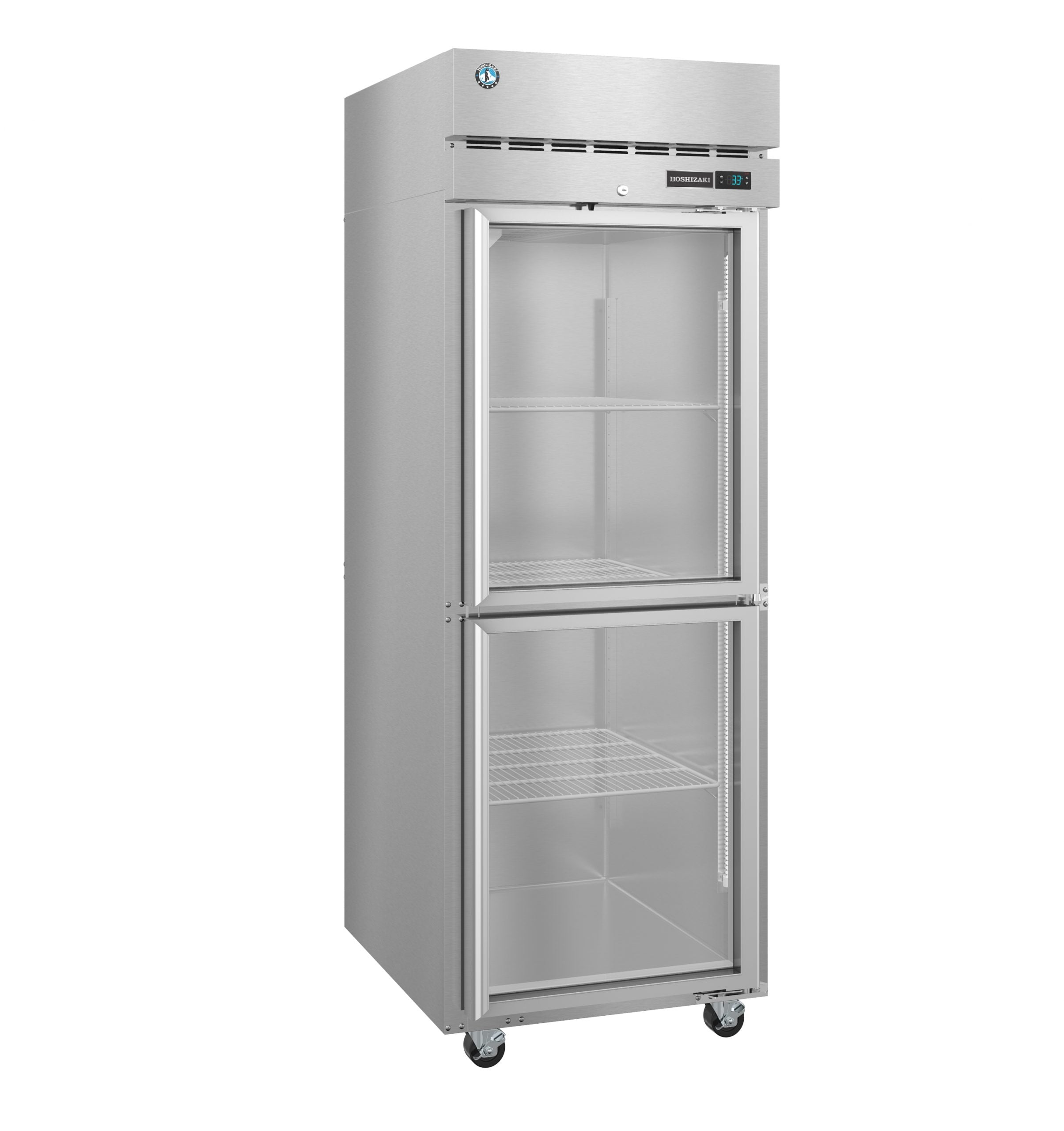

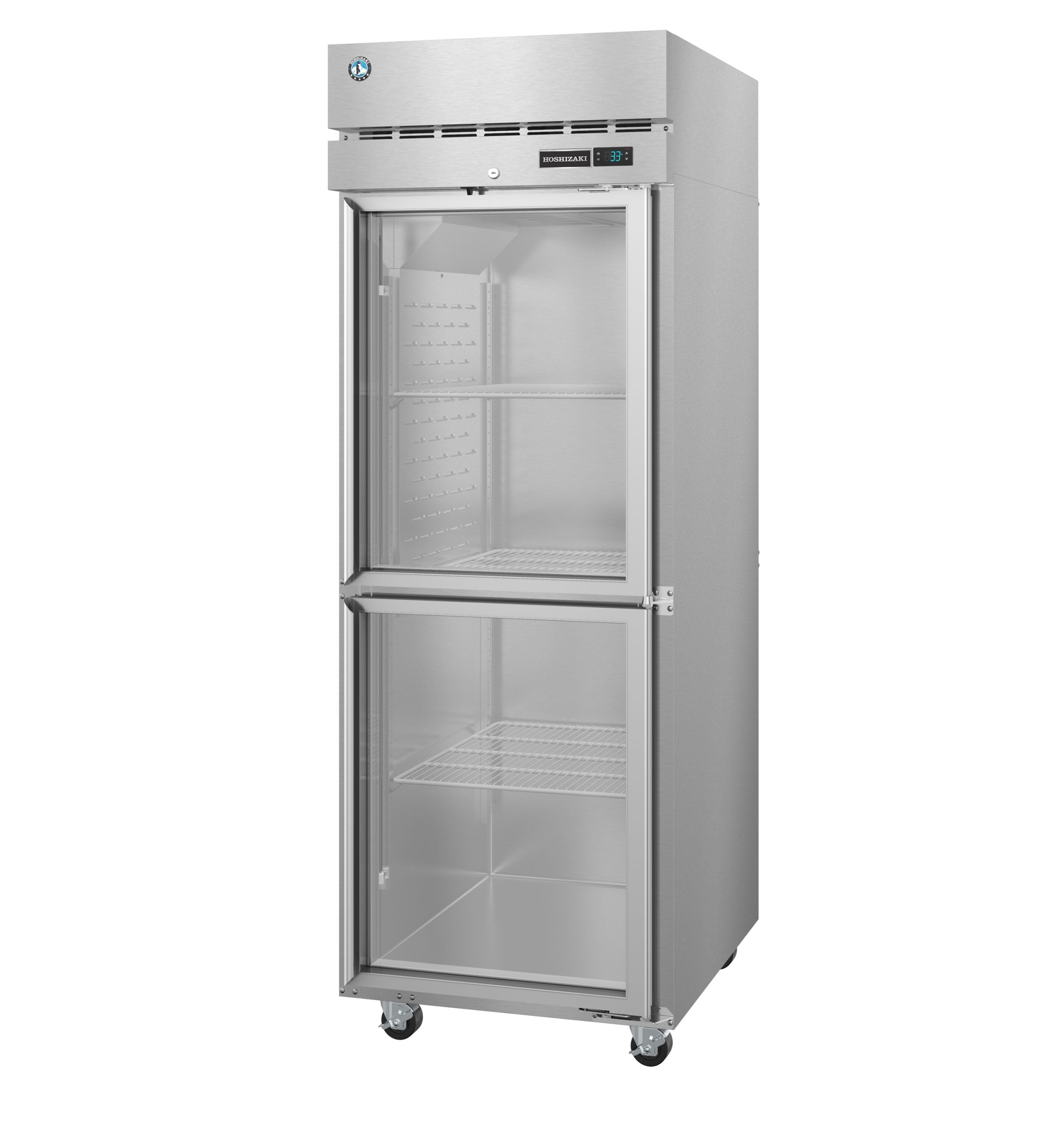

Hoshizaki F1A-HG | 28" Wide 2 Glass Door Top Mount
Reach-In Freezer - F1A-HG
The F1A-HG Steelheart Series Upright single section freezer with a stainless door is a space saving workhorse. Solid state control system with temperature alarms and LED display (°F or °C). With a net capacity of 23.1 cubic feet this efficient upright freezer and front air flow design is perfect for hot/tight kitchens. The F1A-HG is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The F1A-HG also includes Interior LED light bars are vertically mounted on each wall, (4) 4″ stem casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 7.73 kWh/day at 8.5 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter. The unit is ETL Safety (US & C) Listed, ETL Sanitation and includes a six years parts warranty, five years labor warranty, and seven years compressor warranty.
Features
- Dimensions: 27.5″ W x 34.5″ D x 79.5″ H
- Net capacity of 23.1 cubic feet

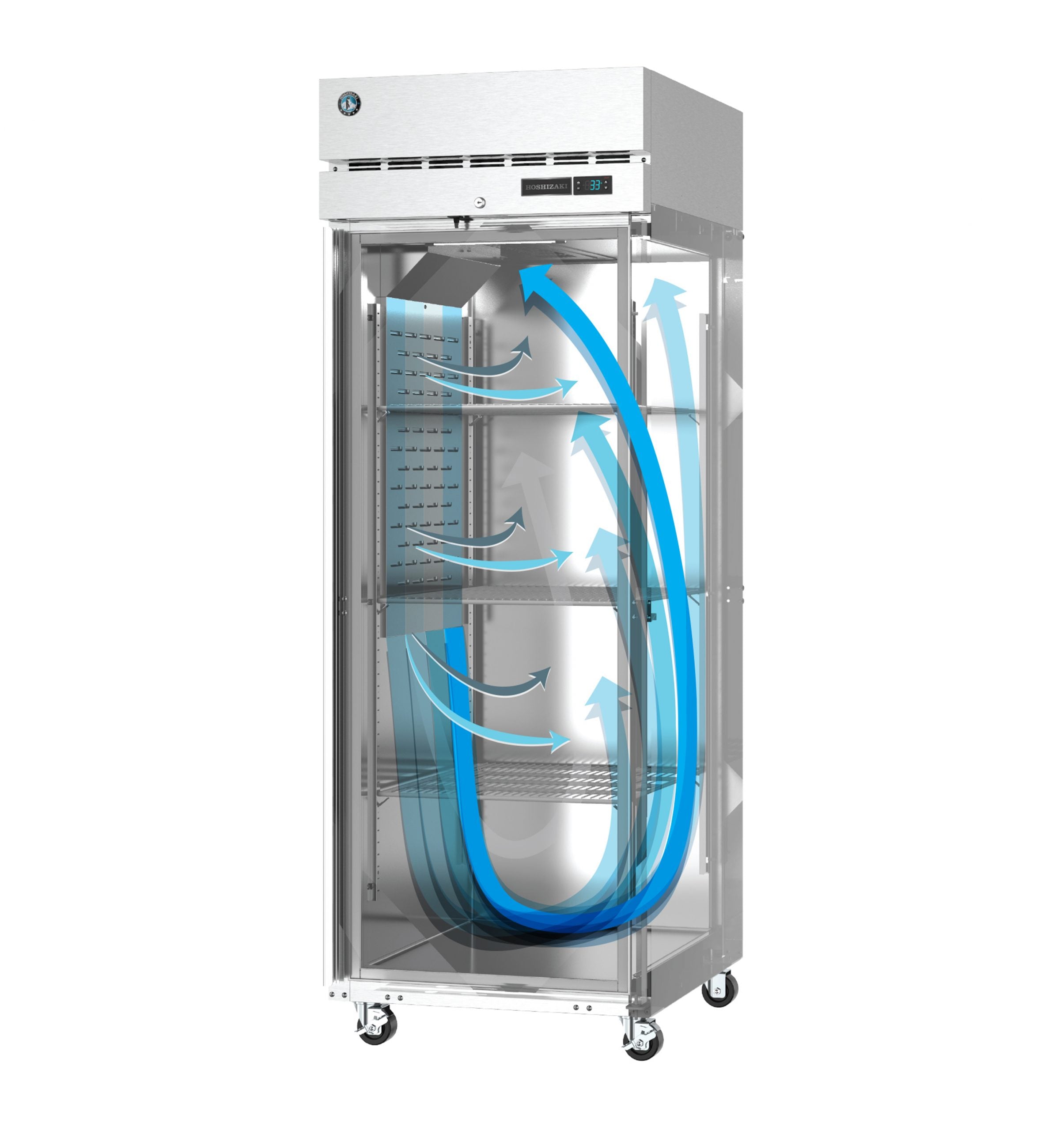

- Unique “ducted” air distribution system
- Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
- Stainless steel exterior (front, sides, top) and a stainless steel interior
- Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
- One piece, full door length, chrome handle
- Lockable Stainless Door
- Glass doors are energy efficient triple pane, argon filled with low-e non reflective coating and locks

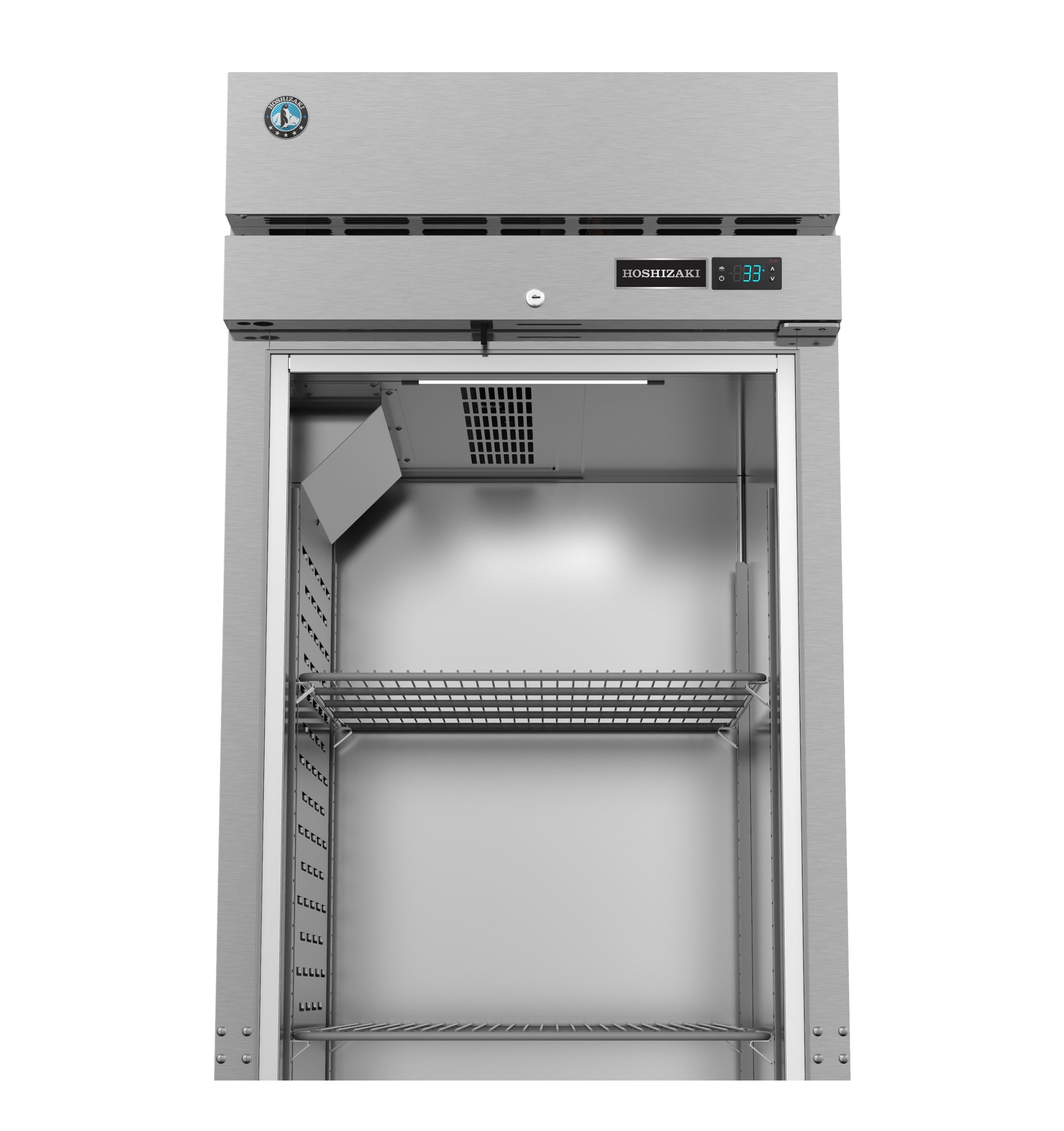

- Interior LED light bars are vertically mounted on each wall
- Solid state control system with temperature alarms and LED display (°F or °C)
- R290 refrigerant
- (4) 4″ Stem Casters (2 with brakes) are standard

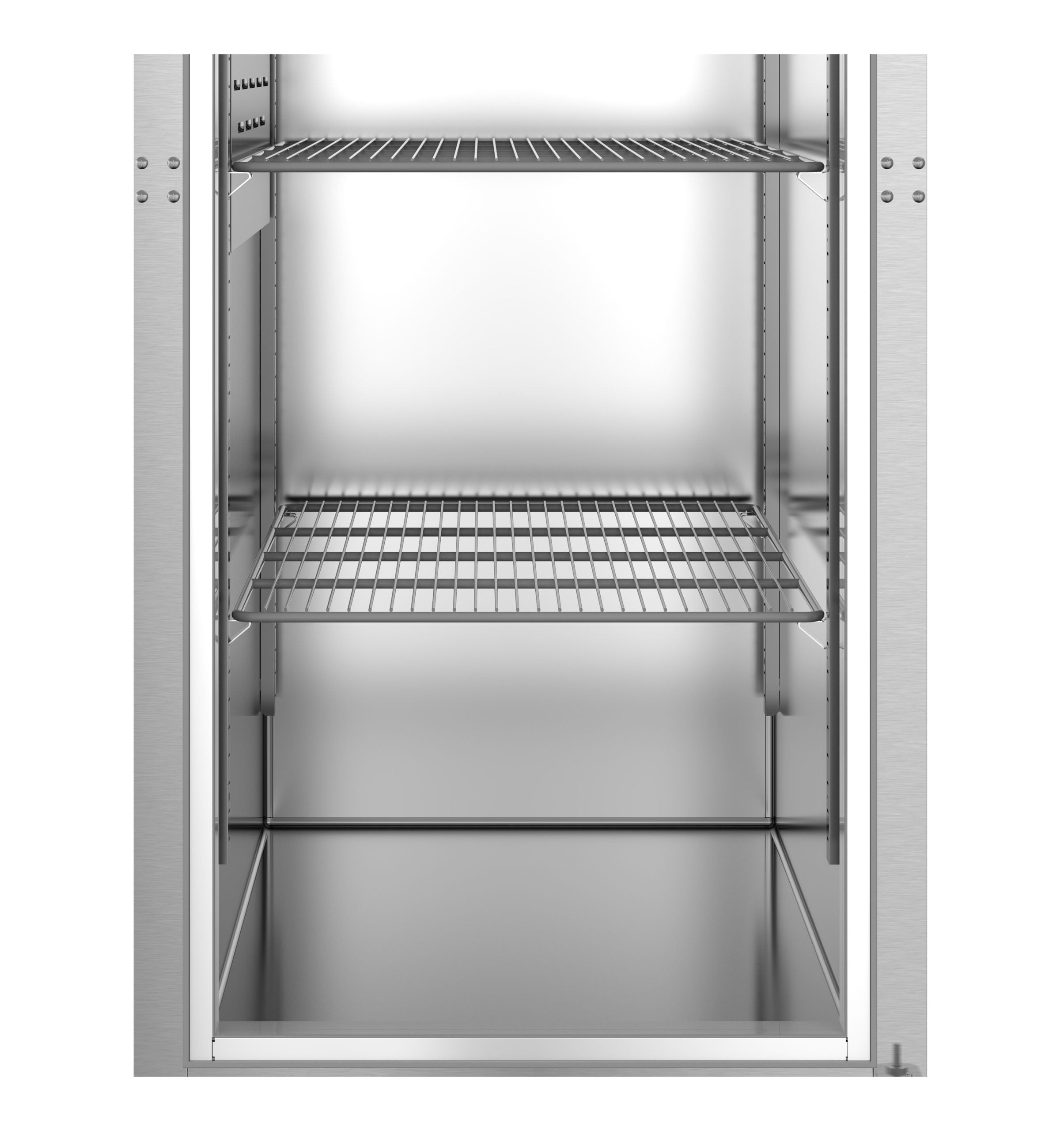

- Includes 3 epoxy coated wire coated wire shelves adjustable in 1″ increments on stainless steel supports

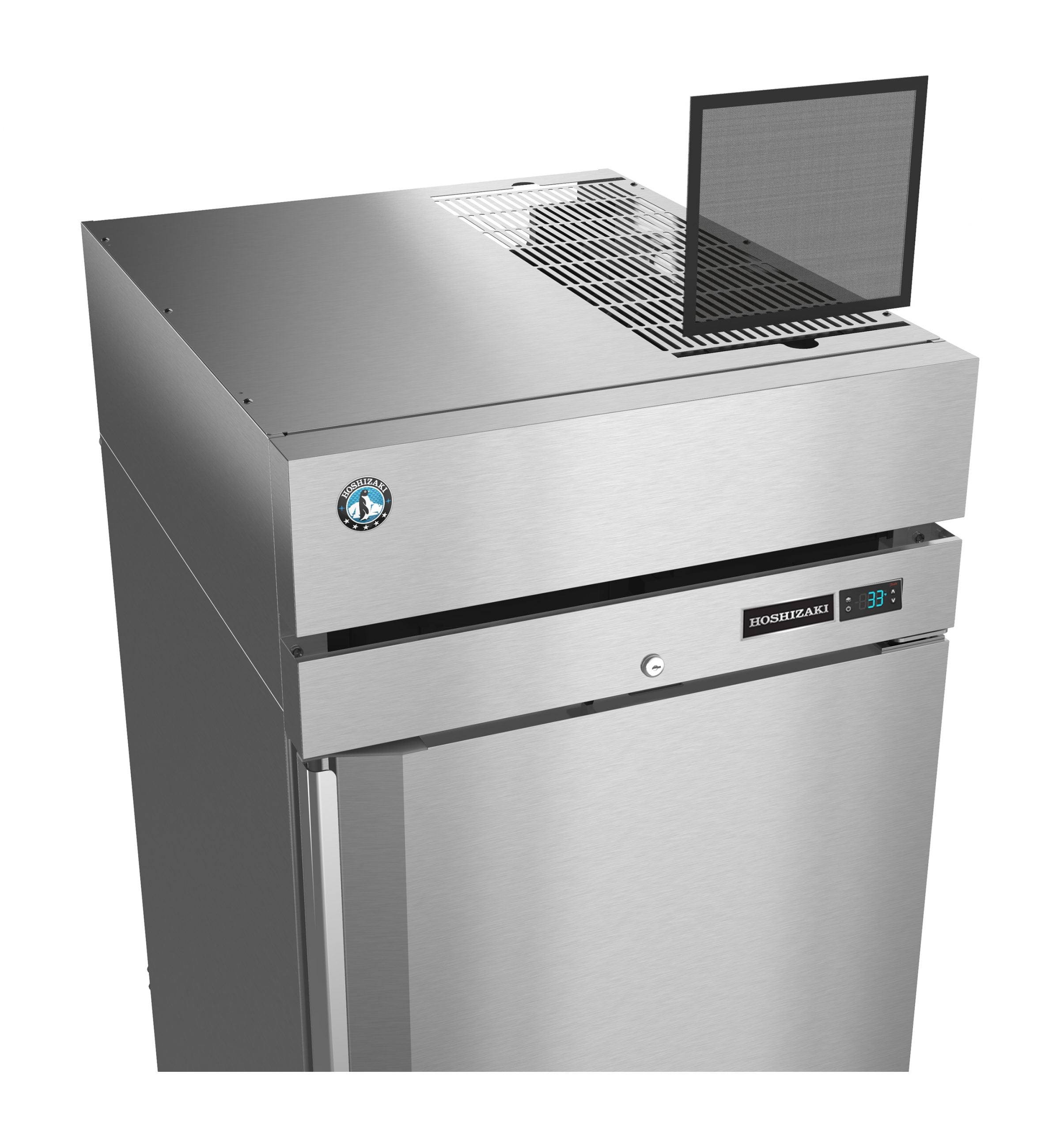

- Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter
- Nominal Compres. of 1425 BTU/hr at 3/4 HP
- 115v/60/1, 10 ft. cord and plug
- Shipping Crate: 36″ L x 31.5″ D x 81″ H at 380 lbs
- Top mounted energy efficient non-electric evaporation syste
Specifications
| Brand |
Hoshizaki |
| Model Number |
F1A-HG |
| Weight |
380 lbs |
| Width |
27.5" |
| Depth |
34.5" |
| Height |
79.5" |
| Door Type |
glass |
| Size |
1 section |
| Exterior Finish |
stainless steel |
| Compressor HP |
3/4 HP |
| Compressor Location |
top mounted |
| Refrigerator Type |
Reach-In |
| Door Quantity |
2 |
| Interior Finish |
stainless steel |
| Capacity (Cu. Ft.) |
23 |
| Door Style |
half hinged |
| Hinge Location |
right |
What our Experts Think
-
Compact Design: At just 28" wide, the F1A-HG is ideal for kitchens with limited space, offering a net capacity of 23.1 cu. ft.
-
Enhanced Visibility: Equipped with two half-height glass doors, allowing quick inventory checks while maintaining cold temperatures.
-
Efficient Cooling: Features a top-mounted 3/4 HP compressor with R290 refrigerant, ensuring consistent temperatures between -10°F and +12°F.
-
Durable Construction: Built with stainless steel interior and exterior, resistant to rust and easy to clean.
-
User-Friendly Features: Includes self-closing, field-reversible doors with a stay-open feature, LED interior lighting, and four 4" stem casters (two with brakes) for mobility.
Q&A
Q: What are the dimensions of the Hoshizaki F1A-HG?
A: It is 28" wide, perfect for compact frozen storage needs.
Q: How many doors does it have?
A: Features two tempered glass doors for easy product visibility.
Q: What type of refrigeration system is used?
A: Top-mounted refrigeration for efficient cooling and easy maintenance.
Q: Is the unit ENERGY STAR® certified?
A: Yes, it meets ENERGY STAR® standards for energy efficiency.
Q: What materials are used?
A: Stainless steel exterior and interior for durability and easy cleaning.
Q: Does it include shelving?
A: Yes, adjustable wire shelves for flexible storage.
Maintenance Tips
-
Clean condenser coils monthly to boost cooling efficiency.
-
Defrost regularly to avoid ice buildup and maintain performance.
-
Wipe door gaskets to ensure airtight seals and energy savings.
-
Sanitize interior surfaces to maintain food safety.
-
Promptly repair or replace worn parts to prevent breakdowns
