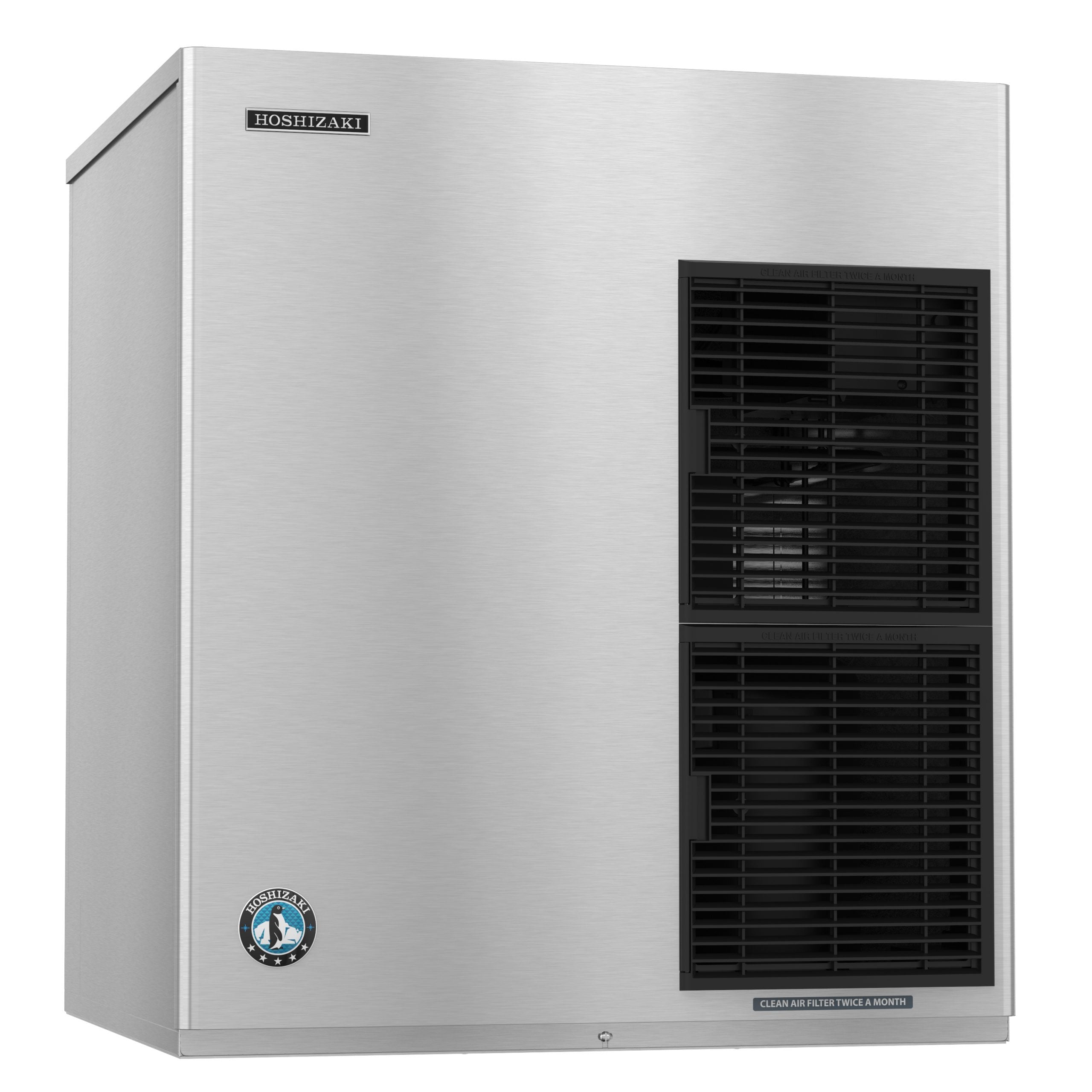

Hoshizaki F-1501MAJ-C | 30" Wide Air-Cooled Medium Cubelet Ice Maker (Bin Sold Separately) - F-1501MAJ-C
The F-1501MAJ-C is capable of producing approximately 1327 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Air-cooled, Modular icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-1501MAJ-C requires a Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.
Features
- Dimensions: 30″ W x 27-3/8″ D x 34-7/16″ H
- Up to 1327 lbs of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production
- Produces medium cubelet nugget-style ice
- Durable stainless steel exterior

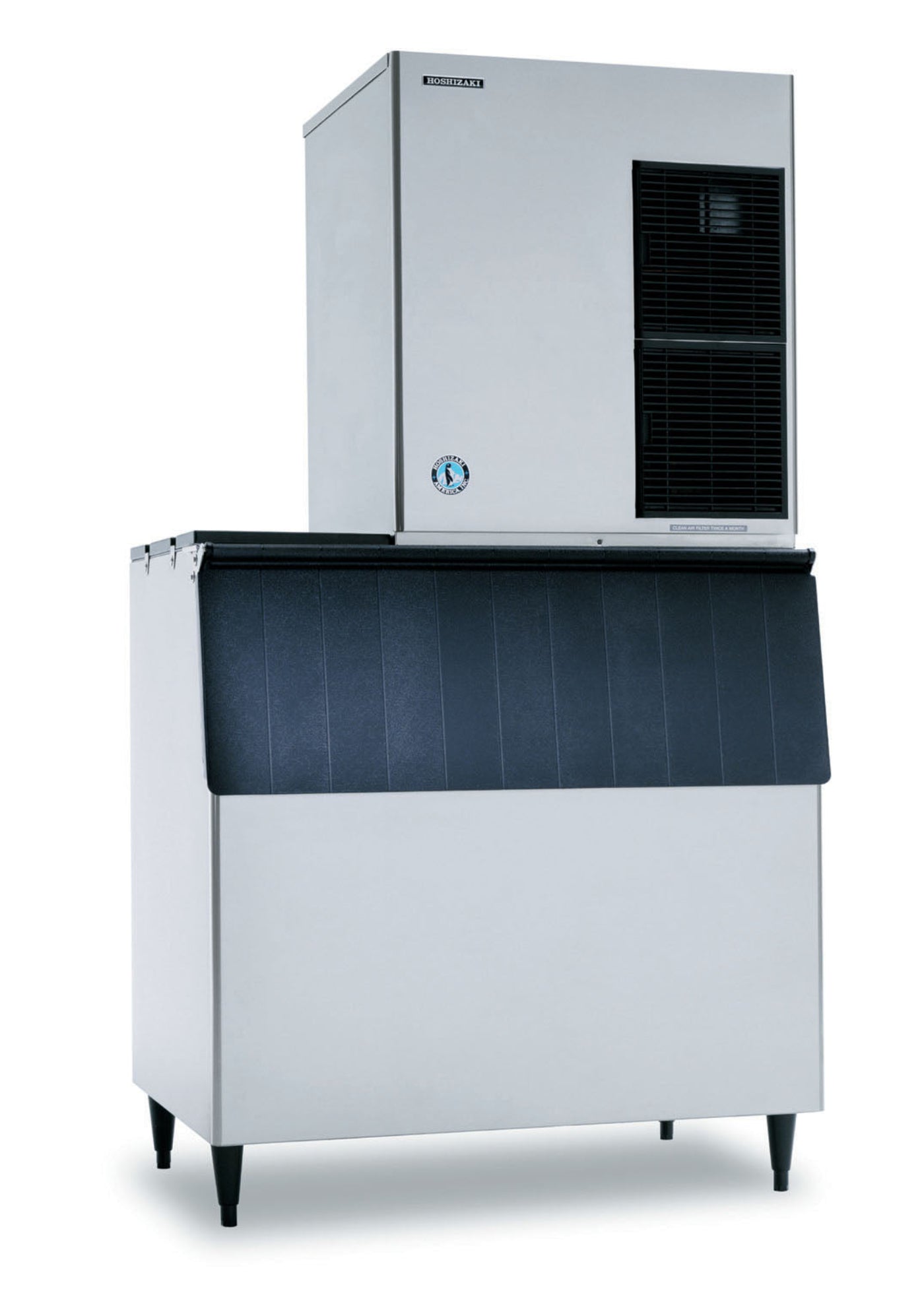

- Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1300, B-1500, B-1650
- 2 second rinse every hour to remove sediment
- Advanced CleanCycle24™ design
- Infrared bin control for easy cleaning and reliability
- R-404A refrigerant (2 lbs. 5 oz. / 1050 g)
- Heat Rejection:12300 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 187 – 253V
- 15.9 amps (20 Amp Max fuse)
- 4.61 kwh/100 lbs.@ 90/70
- Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
Specifications
| Brand |
Hoshizaki |
| Model Number |
F-1501MAJ-C |
| Weight |
325 lbs |
| Width |
30" |
| Depth |
27.38" |
| Height |
34.44" |
| Compatible With |
ice storage bin |
| Cooling |
air-cooled |
| Ice Type |
nugget ice |
| Refrigeration |
self-contained refrigeration |
| Production per 24 hr (Lbs) |
1327 |
| Voltage |
208/230 |
| Phase |
1 |
| Drain Type |
gravity drain |
What our Experts Think
-
High Capacity: Produces up to 1,327 lbs of medium cubelet (nugget-style) ice daily, suitable for high-demand environments.
-
Space-Efficient Design: The 30" wide modular unit allows for stacking, doubling ice production without additional floor space.
-
Energy Efficient: Operates at 4.61 kWh per 100 lbs of ice at 90°F ambient and 70°F water temperatures, earning ENERGY STAR® qualification.
-
Advanced Maintenance Features: Equipped with EverCheck™ alert system and CleanCycle24™ design for automatic hourly rinsing, reducing sediment buildup.
-
Durable Construction: Stainless steel exterior and R-404A refrigerant ensure longevity and reliability.
-
Flexible Compatibility: Pairs with various Hoshizaki bins and dispensers (sold separately), including B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, and B-1650.
-
Warranty Assurance: Comes with a 3-year parts and labor warranty on the entire machine and a 5-year warranty on the compressor and air-cooled condenser coil.
Q&A
Q: What is the Hoshizaki F-1501MAJ-C?
A: A 30" wide air-cooled medium cubelet ice maker producing clear, medium-sized cubelet ice.
Q: Does it include a storage bin?
A: No, the ice bin is sold separately for customizable setups.
Q: What cooling system does it use?
A: Air-cooled system with no need for external water cooling.
Q: What type of ice does it produce?
A: Medium cubelet ice, ideal for cocktails, beverages, and food service.
Q: Is it energy and water efficient?
A: Yes, designed for efficient energy and water use.
Q: Where is it best suited?
A: Perfect for bars, restaurants, and cafés needing reliable, quality ice production
Maintenance Tips
-
Clean condenser coils monthly to prevent overheating.
-
Regularly sanitize the ice bin and machine interior.
-
Use filtered water to reduce scale buildup.
-
Replace water filters every 6 months.
-
Keep drain lines clear to avoid clogs.
-
Schedule yearly professional maintenance.
