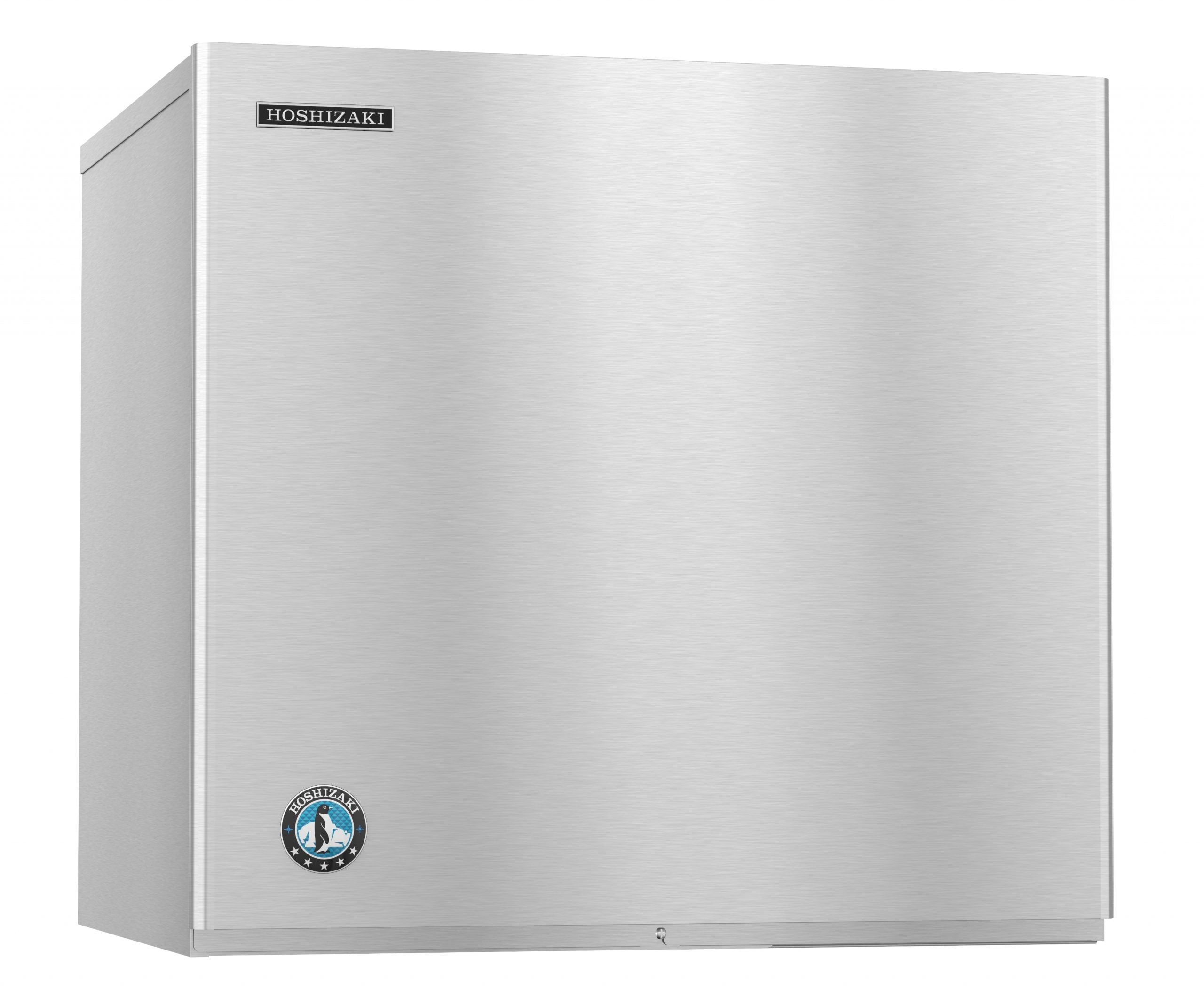

Hoshizaki KMD-860MWJ | 30" Wide Water-Cooled Crescent Cuber Ice Maker - KMD-860MWJ
The KMD-860MWJ is capable of producing approximately 940 lbs of crescent cubed ice. The energy efficient KMEdge design incorporates a dual-sided stainless steel evaporator. Its ice on beverage design makes it ideal for use in busy self-serve areas, fast food restaurants, employee break rooms and more. This Water-cooled, Modular icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMD-860MWJ requires a Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, BD-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details. Replaces KMD-901MWH & KMD-850MRH.
Features
- Dimensions: 30″ W x 24-5/8″ D x 28″ H
- Up to 940 lbs of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production
- Produces crescent shaped ice cubes
- Durable stainless steel exterior
- Compatible bins & dispensers, sold separately: B-250, BD-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
- EverCheck™ alert system
- CycleSaver™ design
- Protected by H-GUARD Plus Antimicrobial Agent
- R-404A refrigerant (1 lbs. 12.2 oz. / 800 g)
- Heat Rejection:11000 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 187 – 253V
- 8.5 amps (20 Amp Max fuse)
- 3.9 kwh/100 lbs.@ 90/70
- Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine.
Specifications
| Brand |
Hoshizaki |
| Model Number |
KMD-860MWJ |
| Weight |
240 lbs |
| Width |
30" |
| Depth |
24.63" |
| Height |
28" |
| Compatible With |
ice storage bin |
| Cooling |
water-cooled |
| Ice Type |
crescent cubes |
| Refrigeration |
self-contained refrigeration |
| Production per 24 hr (Lbs) |
940 |
| Voltage |
208/230 |
| Phase |
1 |
| Drain Type |
gravity drain |
What our Experts Think
-
Compact Undercounter Design: 27" wide glass door provides easy access in tight commercial spaces.
-
Reliable Freezing: Maintains consistent low temperatures for food safety and quality.
-
Durable Construction: Stainless steel interior and exterior ensure long-lasting performance.
-
Energy Efficient: Optimized to reduce operating costs while delivering dependable freezing.
-
Perfect for Small Kitchens: Ideal for cafes, bars, and restaurants needing accessible undercounter freezer storage.
Q&A
Q: What is the Hoshizaki UF27B-GLP01 Undercounter Freezer?
A: A 27-inch wide, single glass-door undercounter freezer designed for compact commercial or residential frozen storage.
Q: What makes it unique?
A: Its glass door provides easy product visibility, while the undercounter design saves space without sacrificing freezing capacity.
Q: Where can it be used?
A: Ideal for bars, cafés, restaurants, and small commercial kitchens where space efficiency and visibility are essential.
Q: What style of work does it suit?
A: Frozen food storage, prep station support, and beverage or ingredient display.
Q: What materials is it made from?
A: Durable stainless steel interior and exterior with energy-efficient insulated glass door construction.
Maintenance Tips
-
lean interior and glass door regularly with mild soap and warm water; avoid abrasive cleaners.
-
Wipe down stainless steel exterior frequently to maintain finish.
-
Inspect and clean condenser coils monthly to ensure optimal freezing performance.
-
Check and clean door gaskets regularly to maintain a tight seal and prevent frost buildup.
-
Keep airflow around the freezer unobstructed for consistent operation.
-
Schedule annual professional maintenance to ensure long-term reliability.
