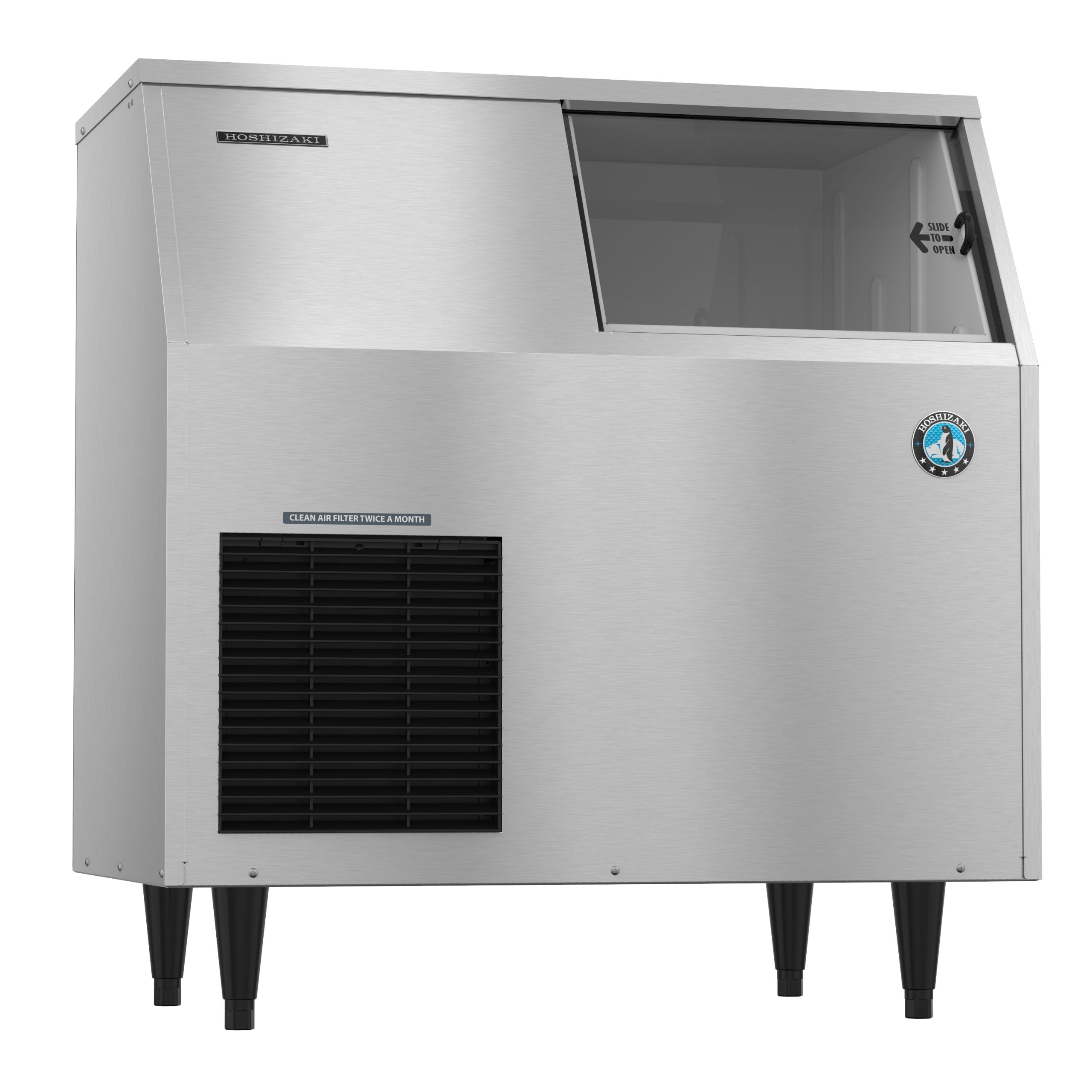

Hoshizaki F-300BAJ | 36" Wide Air-Cooled Undercounter Flaker Ice Maker w/ Built-In Storage Bin - F-300BAJ
The F-300BAJ is capable of producing approximately 353 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Air-cooled, Self Contained, Built in Storage Bin icemaker stores up to 100 lbs of ice*. It features an Automatic system flush when bin control is activated plus a greaseless bearing auger construction making it simple to maintain. The F-300BAJ requires a Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug electrical connection. Front in, front out airflow. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.
Features
- Dimensions: 36″ W x 24-1/4″ D x 39-1/4″ H
- Up to 353 lbs of ice produced per 24 hours
- Up to 100 lbs of built-in storage capacity (3.7ft3)
- Produces flaked ice
- Durable stainless steel exterior
- Front in, front out airflow
- Gear motor protected from overload
- Automatic system flush when bin control is activated
- Designed for long life dependability
- R-404A refrigerant (9.2 oz. / 260 g)
- Heat Rejection:2300 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 7.8 amps (15 Amp Max fuse)
- 6.14 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine.
Specifications
| Brand |
Hoshizaki |
| Model Number |
F-300BAJ |
| Weight |
200 lbs |
| Width |
36" |
| Depth |
24.25" |
| Height |
39.25" |
| Installation Type |
undercounter |
| Cooling |
air-cooled |
| Ice Type |
flake ice |
| Refrigeration |
self-contained refrigeration |
| Finish |
stainless steel |
| Production per 24 hr (Lbs) |
353 |
| Bin storage capacity (Lbs) |
110 |
| Voltage |
115 |
| Phase |
1 |
| Drain Type |
gravity drain |
What our Experts Think
-
Efficient Flake Ice Production: Delivers up to 308 lbs of soft, dense flake ice daily—ideal for food service, healthcare, and retail applications.
-
Compact Undercounter Design: Fits neatly in tight spaces with a 36" width, maximizing workspace without sacrificing capacity.
-
Built-In Storage Bin: Integrated 90 lbs storage keeps ice accessible and hygienic, reducing waste and operational delays.
-
Air-Cooled Reliability: Durable air-cooled condenser ensures consistent performance and easier maintenance.
-
Energy & Water Efficient: Meets high standards for energy savings, reducing utility costs over time.
-
User-Friendly Features: Easy-to-clean components and intuitive controls simplify operation and upkeep.
-
Trusted Brand Quality: Hoshizaki is renowned for durable, long-lasting commercial ice machines backed by strong service support.
Q&A
Q: What is the Hoshizaki F-300BAJ?
A: A 36" wide air-cooled undercounter flaker ice maker with built-in storage, producing up to 320 lbs of soft flake ice daily.
Q: What type of ice does it produce?
A: Produces soft, chewable flake ice ideal for healthcare, seafood, and food display.
Q: Does it include ice storage?
A: Yes, it features a built-in storage bin for easy ice access.
Q: What cooling system does it use?
A: Air-cooled design eliminates the need for external water supply.
Q: Where is it best used?
A: Perfect for small kitchens, bars, medical facilities, and retail spaces needing compact ice solutions.
Q: Is it energy efficient?
A: Yes, engineered for energy efficiency and low water consumption
Maintenance Tips
-
Clean and descale ice-making components regularly to prevent scale buildup.
-
Sanitize the built-in storage bin frequently to ensure ice safety.
-
Clean condenser coils monthly for efficient cooling.
-
Replace water filters as recommended to maintain ice quality.
-
Schedule routine professional maintenance to maximize performance and lifespan.
