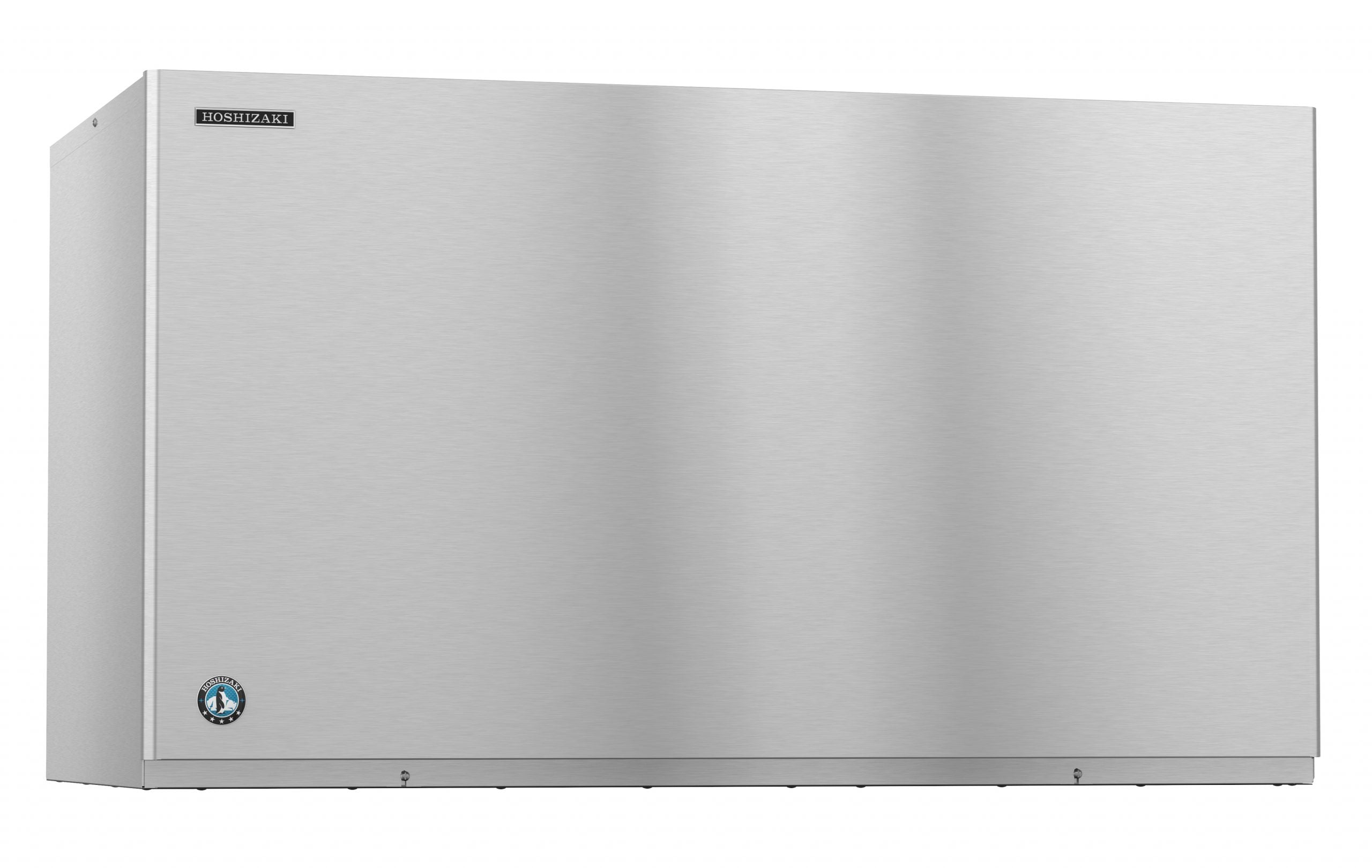

Hoshizaki KM-1601SWJ | 48" Wide Water-Cooled Crescent Cuber Ice Maker - KM-1601SWJ
The KM-1601SWJ is capable of producing approximately 1660 lbs of crescent cubed ice, Stack 2 units for 2x the ice production in the same floor space! Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Water-cooled, Stackable icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-1601SWJ requires a Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included. If neutral is not available transformer kit (HS-5030) is required electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details. Replaces KM-1601MWH
Features
- Dimensions: 48″ W x 27-3/8″ D x 27-3/8″ H
- Up to 1660 lbs of ice produced per 24 hours
- Stack 2 units for 2x the ice production
- Produces crescent shaped ice cubes
- Durable stainless steel exterior
- Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
- EverCheck™ alert system
- CycleSaver™ design
- Protected by H-GUARD Plus Antimicrobial Agent
- R-404A refrigerant (2 lbs. 10.3 oz. / 1200 g)
- Heat Rejection:21300 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 187 – 253V
- 13.6 amps (20 Amp Max fuse)
- 3.3 kwh/100 lbs.@ 90/70
- Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included. If neutral is not available transformer kit (HS-5030) is required
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor on entire machine.
Specifications
| Brand |
Hoshizaki |
| Model Number |
KM-1601SWJ |
| Weight |
335 lbs |
| Width |
48" |
| Depth |
27.38" |
| Height |
27.38" |
| Compatible With |
ice storage bin |
| Cooling |
water-cooled |
| Ice Type |
crescent cubes |
| Refrigeration |
self-contained refrigeration |
| Production per 24 hr (Lbs) |
1660 |
| Voltage |
208/230 |
| Phase |
1 |
| Drain Type |
gravity drain |
