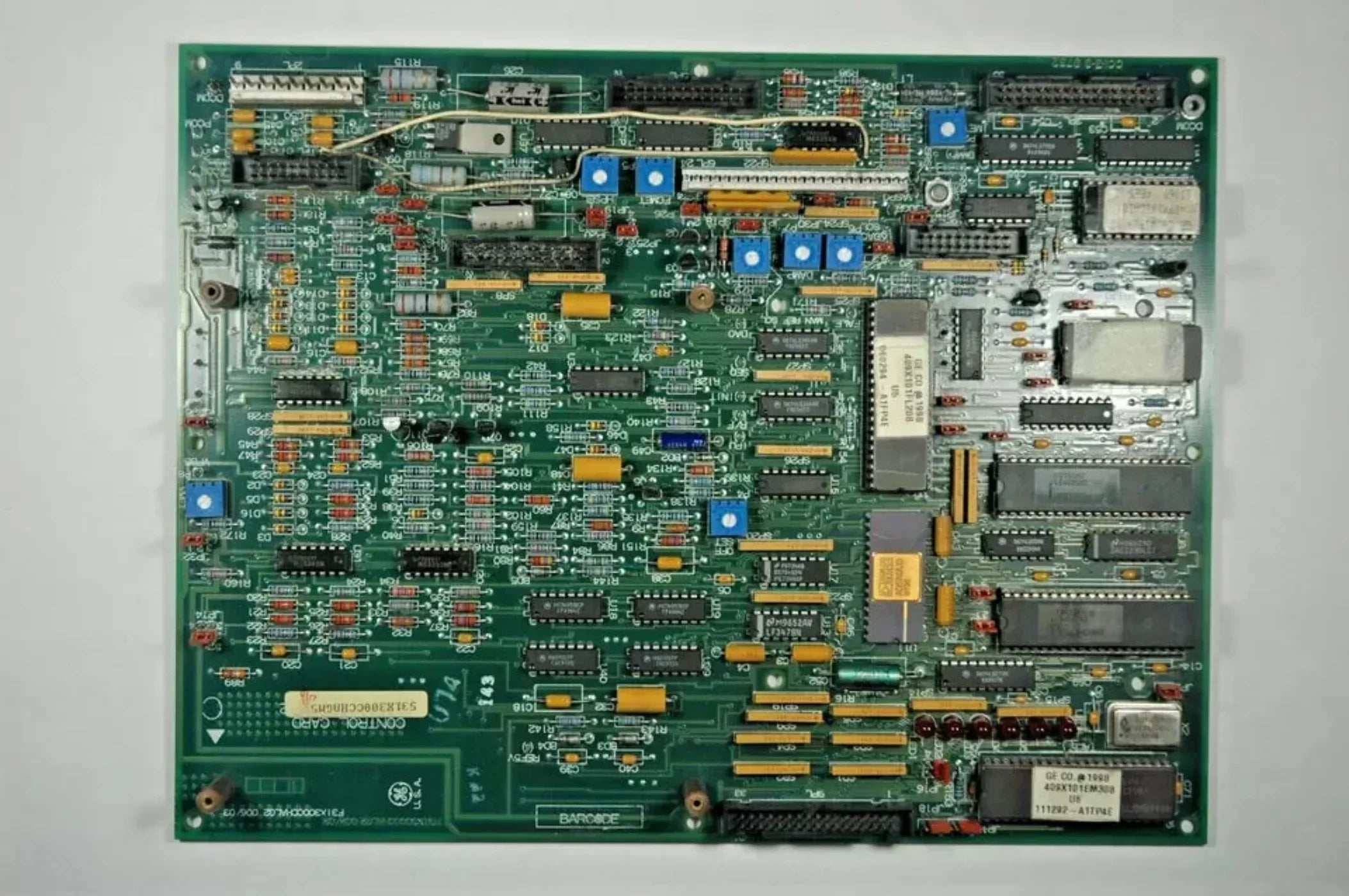

Fanuc Corporation | GE FANUC Control Card - 531X300CCHAGM5
The 531X300CCHAGM5 serves as a Control Card designed for use in General Electric's general-purpose drives, notably compatible with the DC-300 system. These drives are versatile and robust, tailored for a wide range of industrial applications. They are available in various sizes and ratings, supporting both AC and DC power inputs depending on specific operational requirements. Compatibility details can be found in the system's user guide or manual, specifically addressing integration with the 531X series of cards.
The 531X300CCHAGM5 serves as a Control Card designed by General Electric for general purpose drives, notably compatible with the DC-300 system. These drives are versatile solutions tailored for diverse industrial applications, featuring varying sizes and ratings, such as heavy duty or light duty, and supporting both AC and DC power inputs. Compatibility specifics can be found in the system’s user guide or manual, particularly regarding the 531X series cards.
Structurally, the 531X300CCHAGM5 incorporates eight pre-installed board standoffs facilitating the attachment of up to two auxiliary boards via screw connections. Communication between these auxiliaries and the motherboard is facilitated through six vertical pin (male) cable connectors, supplemented by two header connectors for additional functionality.
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
Specifications
Part Number |
531X300CCHAGM5 |
Category |
Drives |
Subcategory |
Drive Board |
Weight |
1.00 lbs |
Manufacturer |
General Electric |
Compatible Systems |
DC-300 system |
Applications |
Various industrial applications |
Board Standoffs |
8 installed, for adding 2 auxiliary boards |
Auxiliary Board Connection |
Screw connections to standoffs, vertical pin (male) cable connectors |
Connectors |
6 vertical pin connectors, 2 header connectors |
Components |
8 potentiometers, 25 resistor network arrays, 1 press button switch |
Voltage Regulator |
Lower right corner of the board, with surface wiring |
Additional Components |
30 jumper switches, 11 transistors, capacitors, resistors, diodes |
Test Points |
Multiple TP test points |
LED Indicators |
6 red LEDs |
What Our Experts Think
-
Critical Control Functions: Handles essential control processes for automation and drive systems.
-
Reliable Performance: Ensures stable, high-quality control in complex industrial operations.
-
Built for Durability: Designed to withstand harsh environments with long-lasting reliability.
-
Seamless Compatibility: Fully integrates with GE FANUC systems, making installation quick and efficient.
-
Enhanced Efficiency: Optimizes system performance by ensuring precise control and operation.
-
GE FANUC Engineering: Backed by GE’s commitment to quality, precision, and minimal downtime.
Q&A
Q: What is the 531X300CCHAGM5 Control Card?
A: It’s a GE Fanuc control card designed for managing industrial automation processes, handling signal processing and communication within control systems.
Q: What systems is it compatible with?
A: This control card is compatible with GE Fanuc series control systems, commonly used in industrial applications such as turbine and motor control systems.
Q: What does the control card do?
A: It processes and manages control signals, enabling the system to perform real-time data processing and facilitate smooth operation in complex industrial environments.
Q: Why choose the 531X300CCHAGM5?
A: It ensures high performance, reliability, and seamless integration, making it ideal for mission-critical systems requiring precise control and continuous operation.
Q: Is this an OEM product?
A: Yes, it’s a genuine GE Fanuc part, ensuring full compatibility, top-tier reliability, and long-lasting performance in demanding industrial settings.
Maintenance Tips
-
Visual Inspection: Regularly inspect for physical damage such as burnt components, cracked traces, or damaged connectors, particularly around power input and control circuits.
-
Clean the Card: Use dry compressed air or an anti-static brush to remove dust and debris. Avoid liquid cleaners or solvents that could damage the components or short-circuit the board.
-
Check Solder Joints: Inspect solder joints for any cracks, corrosion, or cold soldering issues that could lead to intermittent or unreliable connections.
-
Inspect Connectors and Terminals: Ensure that all connectors, input/output terminals, and jumper pins are securely fastened and free from oxidation or corrosion.
-
Verify Power Supply: Ensure the card is receiving the correct voltage from the power supply and that there are no fluctuations. Voltage instability can cause errors or damage to the control circuits.
-
Test Control Functions: Regularly test the control card’s functions to ensure it’s processing inputs and controlling outputs as expected. Monitor for signs of erratic behavior or delays.
-
Run Diagnostics: Use diagnostic software to check the status of the control card, verify proper operation, and identify any potential issues or error codes.
-
Monitor Temperature: Ensure the control card operates within its specified temperature range. Overheating can cause component damage or system malfunctions.
-
ESD Protection: Always use electrostatic discharge (ESD) protection, such as wrist straps and anti-static mats, when handling the card to avoid damaging sensitive components.
-
Secure Mounting: Ensure the control card is securely mounted and properly connected within its system to avoid physical stress, vibrations, or disconnections.
