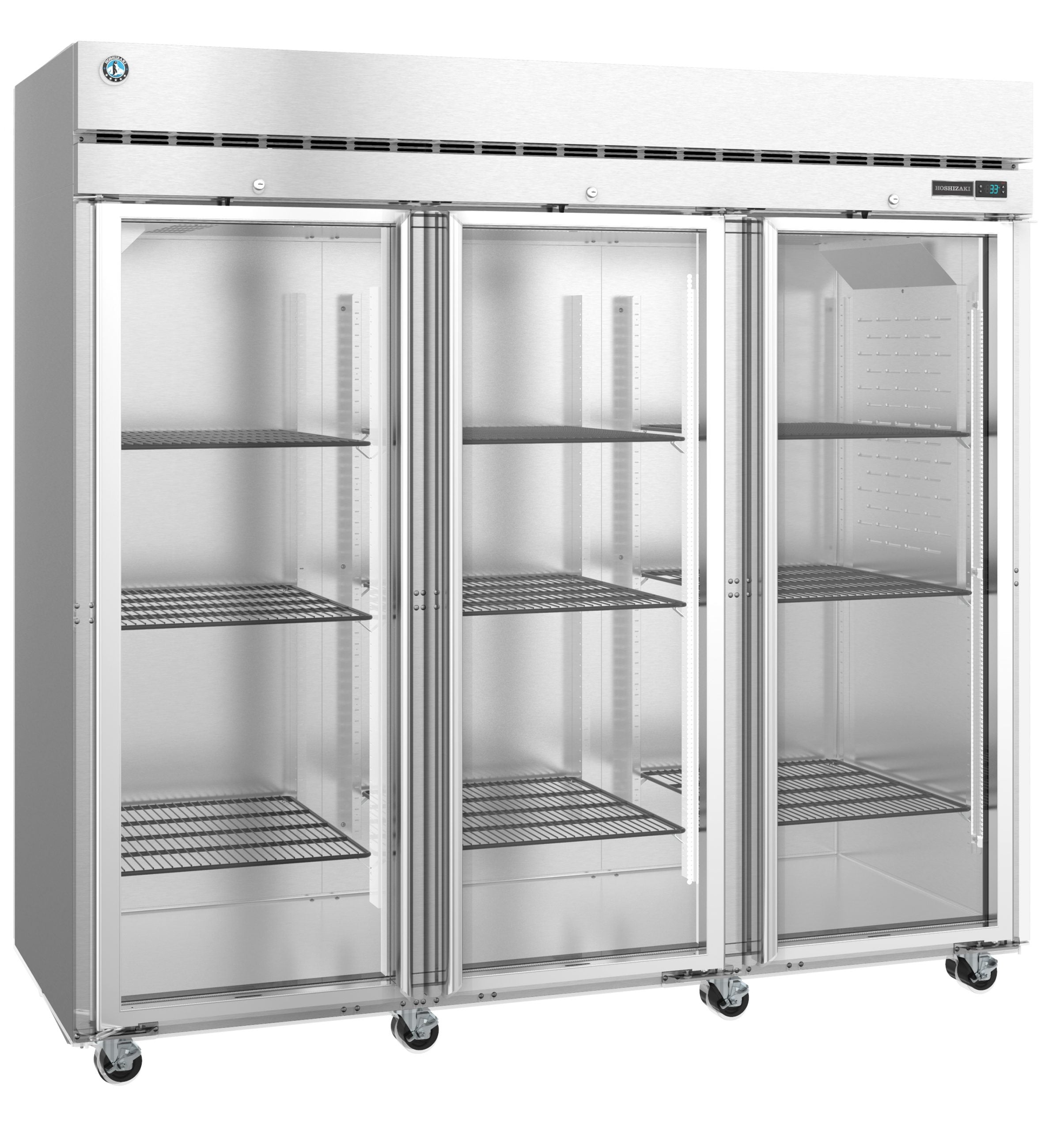

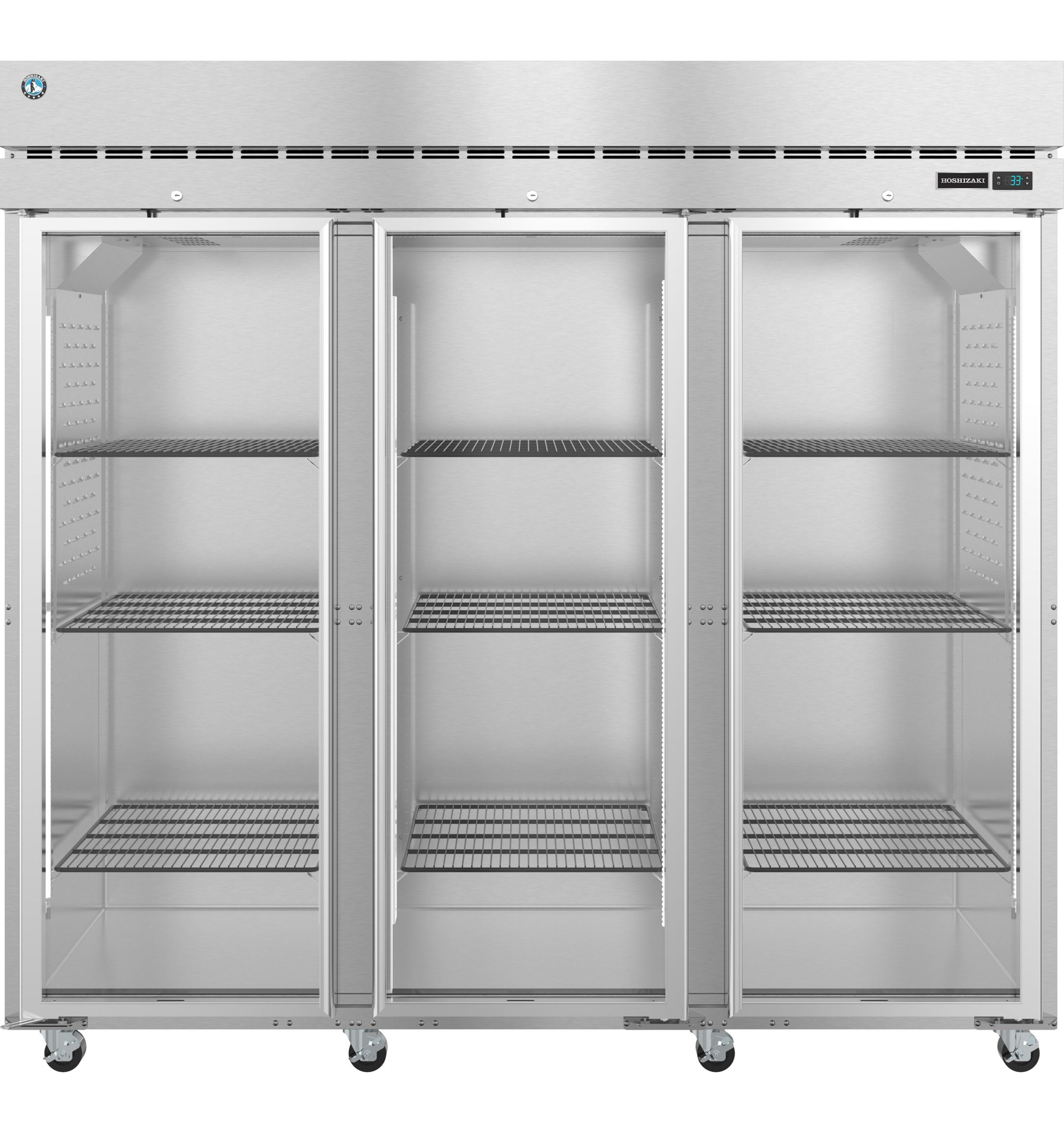

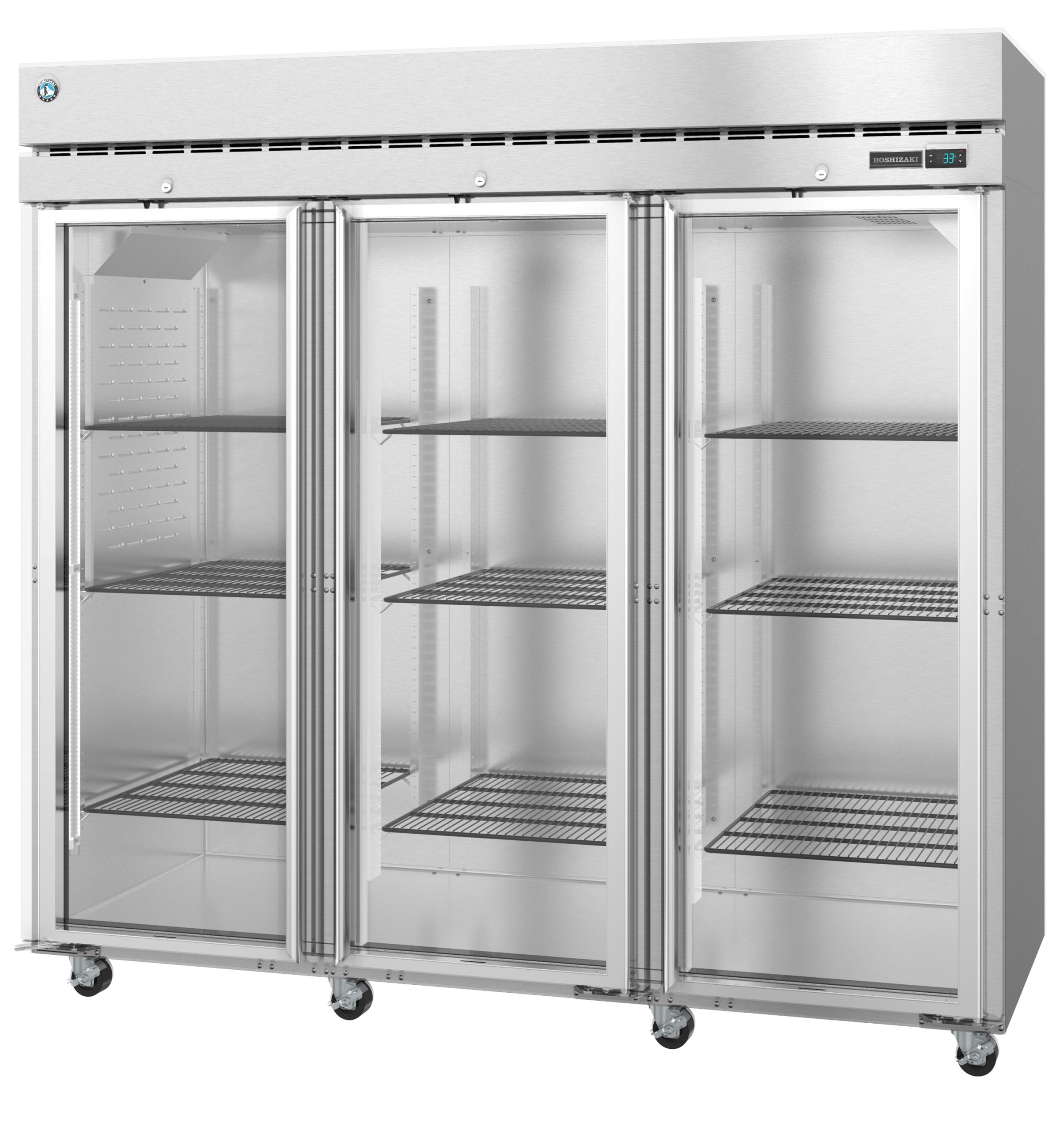

Hoshizaki R3A-FG | 83" Wide 3 Glass Door Top Mount Reach-In Refrigerator - R3A-FG
The R3A-FG Steelheart Series Upright three section refrigerator with full glass doors is a space saving workhorse. Solid state control system with temperature alarms and LED display (°F or °C). With a net capacity of 79.03 cubic feet this efficient upright refrigerator and front air flow design is perfect for hot/tight kitchens. The R3A-FG is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The R3A-FG also includes Interior LED light bars are vertically mounted on each wall, (8) 4″ stem casters (4 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 6.5 kWh/day at 9.5 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter. The unit is ETL Safety (US & C) Listed, ETL Sanitation, ENERGY STAR® Qualified and includes a six years parts warranty, five years labor warranty, and seven years compressor warranty.
Features
- Dimensions: 82.5″ W x 34.5″ D x 79.5″ H
- Net capacity of 79.03 cubic feet
- Unique “ducted” air distribution system
- Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
- Glass door front, stainless steel exterior (sides, top) and a stainless steel interior
- Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
- One piece, full door length, chrome door handle
- Lockable Full Glass Doors
- Glass doors are energy efficient triple pane, argon filled with low-e non reflective coating and locks
- Interior LED light bars are vertically mounted on each wall
- Solid state control system with temperature alarms and LED display (°F or °C)
- R290 refrigerant
- (8) 4″ Stem Casters (4 with brakes) are standard
- Includes 9 epoxy coated wire coated wire shelves adjustable in 1″ increments on stainless steel supports
- Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter
- Nominal Compres. of 770 BTU/hr at 1/4 HP
- 115v/60/1, 10 ft. cord and plug
- Shipping Crate: 86″ L x 37.875″ D x 81″ H at 826 lbs
- ENERGY STAR® Qualified
Specifications
| Brand |
Hoshizaki |
| Model Number |
R3A-FG |
| Weight |
826 lbs |
| Width |
82.5" |
| Depth |
34.5" |
| Height |
79.5" |
| Door Type |
glass |
| Refrigerator Type |
Reach-In |
| Size |
3 section |
| Door Quantity |
3 |
| Exterior Finish |
stainless steel front & sides |
| Compressor HP |
(2) 1/4 HP |
| Energy Efficiency |
ENERGY STAR® |
| Compressor Location |
bottom mounted |
| Interior Finish |
all stainless steel interior |
| Supports |
casters |
| Capacity (Cu. Ft.) |
79 |
| Hinge Location |
left / right |
| Door Style |
swing / full |
What our Experts Think
-
Spacious Storage: Offers a net capacity of 79.03 cubic feet, accommodating a variety of food items with ease.
-
Energy-Efficient Design: Utilizes R290 refrigerant and features an epoxy electrocoated (E-Coat) evaporator coil to enhance energy efficiency and reduce environmental impact.
-
Durable Construction: Constructed with stainless steel interior and exterior, ensuring longevity and ease of maintenance.
-
Advanced Air Distribution: Equipped with a unique ducted air distribution system for uniform cooling throughout the cabinet.
-
User-Friendly Features: Includes self-closing doors with a stay-open feature, LED interior lighting, and a solid-state control system with temperature alarms and LED display.
-
Mobility and Accessibility: Comes standard with 8" stem casters (4 with brakes) for easy movement and placement.
-
Warranty Assurance: Backed by a 7-year warranty covering labor, parts, and compressor, providing peace of mind for commercial use.
Q&A
Q: What is the Hoshizaki R3A-FG?
A: An 83" wide reach-in refrigerator with 3 glass doors and a top-mounted refrigeration system for easy maintenance.
Q: What type of doors does it have?
A: Features durable, self-closing glass doors for clear product visibility.
Q: What is its ideal use?
A: Perfect for restaurants, grocery stores, and convenience stores needing high-capacity refrigerated display.
Q: Is it energy efficient?
A: Yes, equipped with LED lighting and designed for energy savings.
Q: Does it require professional installation?
A: Yes, professional installation is recommended for optimal performance.
Q: Is it easy to clean?
A: Yes, stainless steel interior and exterior ensure easy cleaning and durability.
Maintenance Tips
-
Clean condenser coils monthly to maintain cooling efficiency.
-
Defrost regularly to prevent ice buildup.
-
Inspect and clean door gaskets to ensure a tight seal.
-
Clean interior surfaces and shelves frequently.
-
Avoid overloading to allow proper air circulation.
-
Schedule annual professional maintenance
