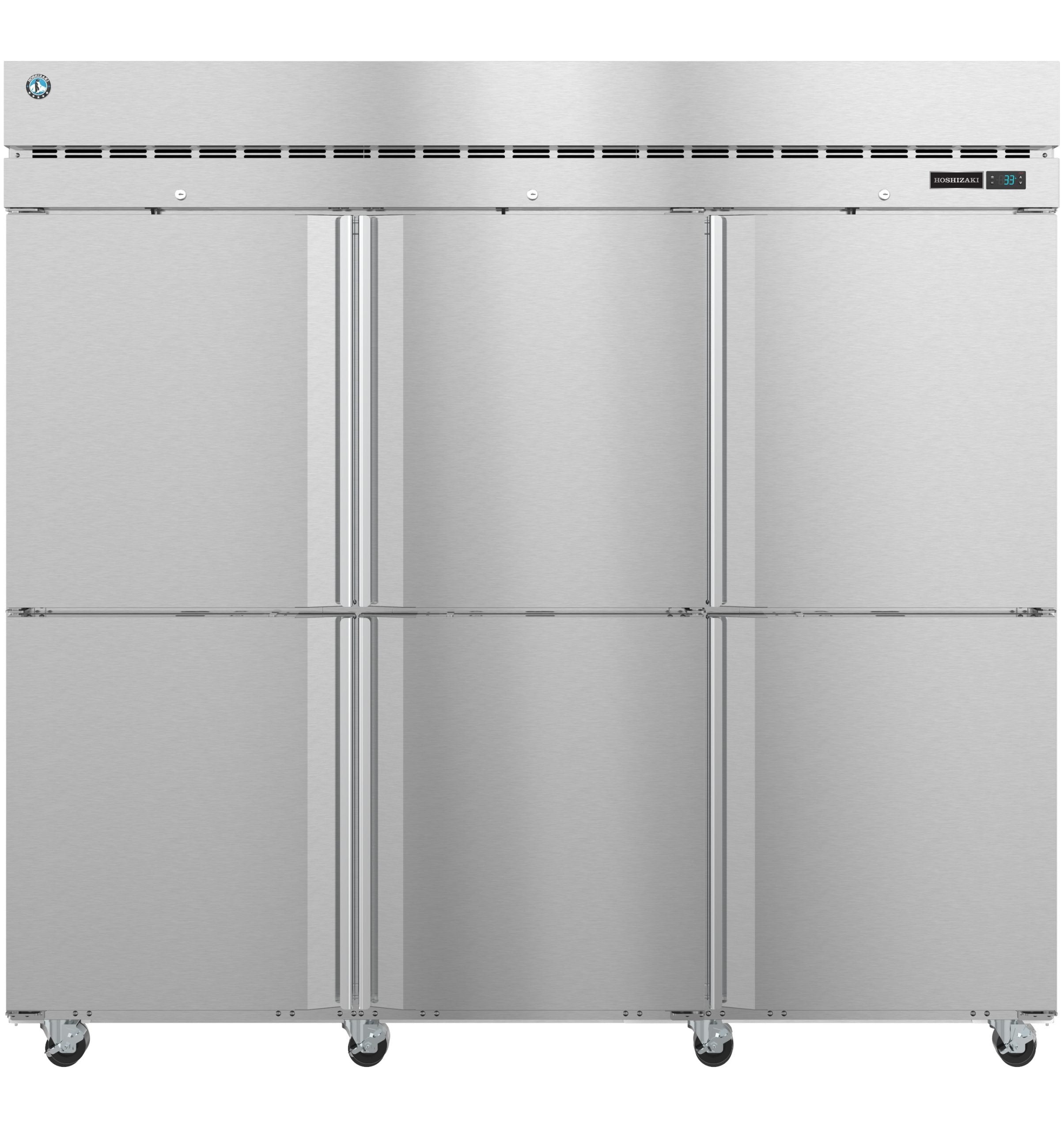

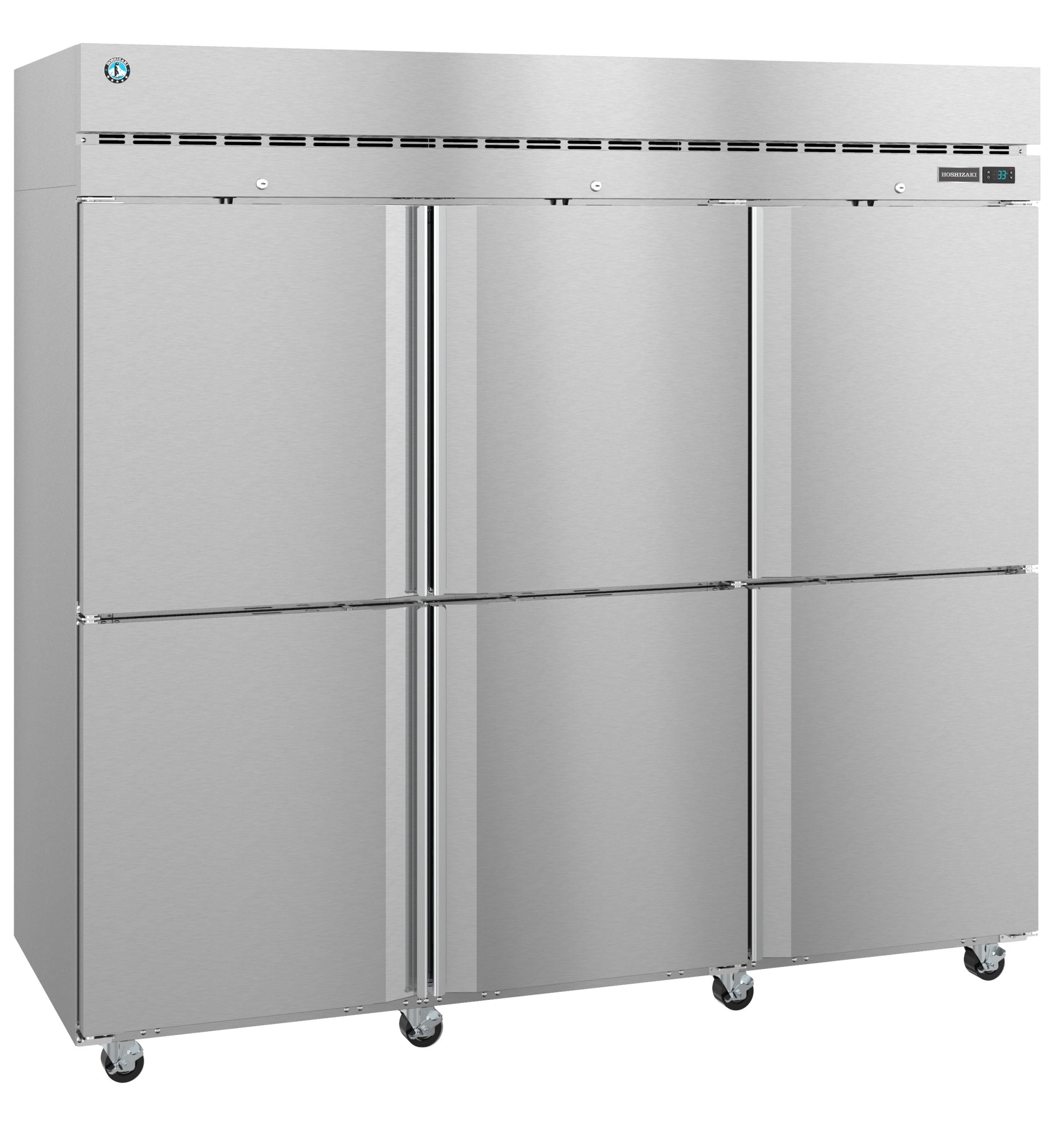

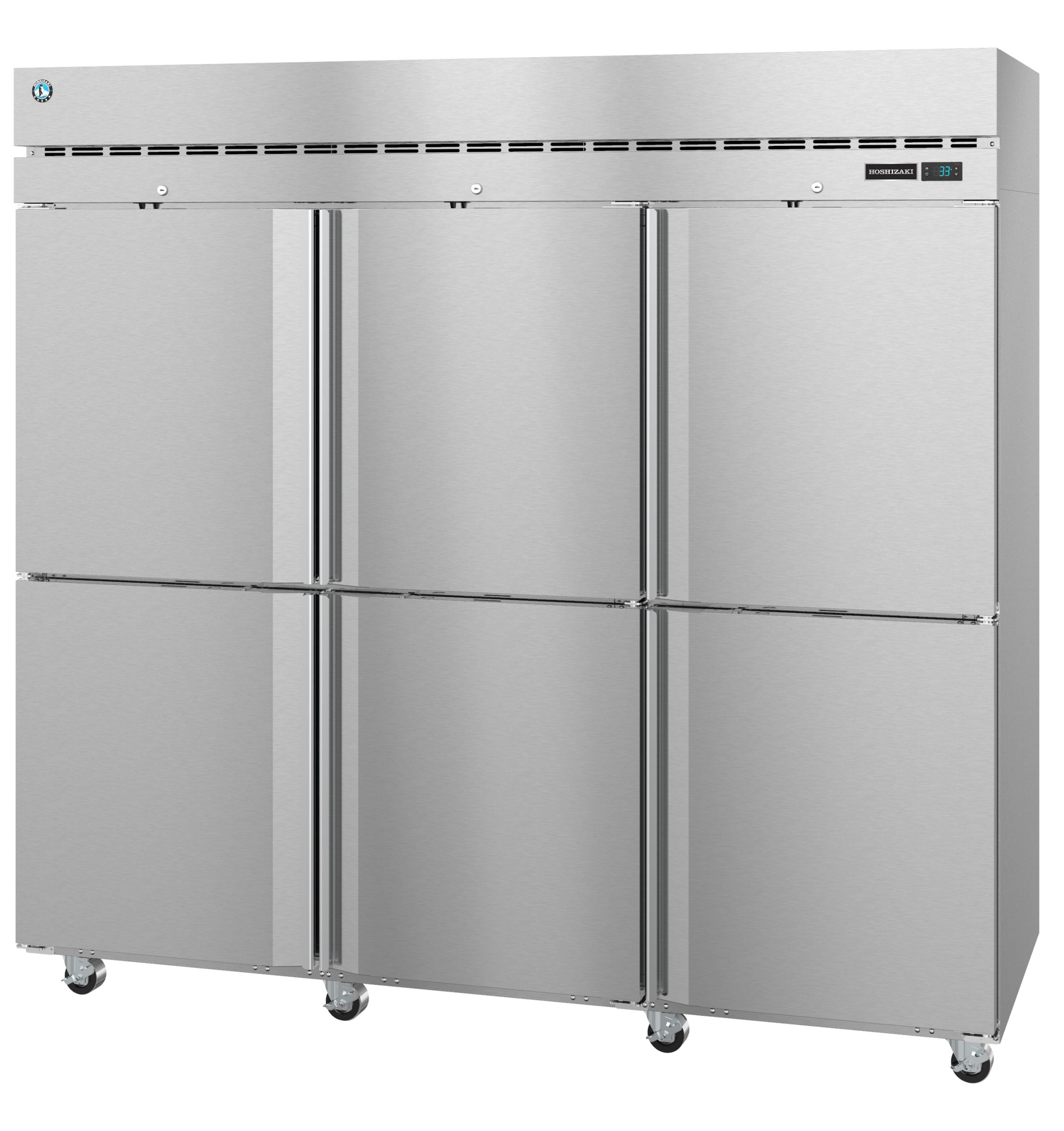

Hoshizaki R3A-HS | 83" Wide 6 Door Top Mount Reach-In Refrigerator - R3A-HS
The R3A-HS Steelheart Series Upright three section refrigerator with half stainless doors is a space saving workhorse. Solid state control system with temperature alarms and LED display (°F or °C). With a net capacity of 79.03 cubic feet this efficient upright refrigerator and front air flow design is perfect for hot/tight kitchens. The R3A-HS is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The R3A-HS also includes Interior LED light bar is mounted horizontally on the ceiling, (8) 4″ stem casters (4 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 6.5 kWh/day at 9.5 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter. The unit is ETL Safety (US & C) Listed, ETL Sanitation and includes a six years parts , five years labor , and seven years compressor .
Features
- Dimensions: 82.5″ W x 33.5″ D x 79.5″ H
- Net capacity of 79.03 cubic feet
- Unique “ducted” air distribution system
- Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
- Stainless steel exterior (front, sides, top) and a stainless steel interior
- Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
- One piece, full door length, extruded aluminum flush mount door handle
- Lockable Half Stainless Doors
- Insulated with 2 3/8″ CFC free, foamed in place polyurethane
- Interior LED light bar is mounted horizontally on the ceiling
- Solid state control system with temperature alarms and LED display (°F or °C)
- R290 refrigerant
- (8) 4″ Stem Casters (4 with brakes) are standard
- Includes 9 epoxy coated wire coated wire shelves adjustable in 1″ increments on stainless steel supports
- Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter
- Nominal Compres. of 770 BTU/hr at 1/4 HP
- 115v/60/1, 10 ft. cord and plug
- Shipping Crate: 86″ L x 37.875″ D x 81″ H at 825 lbs
- Top mounted energy efficient non-electric evaporation system
Specifications
| Brand |
Hoshizaki |
| Model Number |
R3A-HS |
| Weight |
825 lbs |
| Width |
82.5" |
| Depth |
34.5" |
| Height |
79.5" |
| Door Type |
solid |
| Refrigerator Type |
Reach-In |
| Size |
3 section |
| Door Quantity |
6 |
| Exterior Finish |
stainless steel front & sides |
| Compressor HP |
(2) 1/4 HP |
| Compressor Location |
bottom mounted |
| Interior Finish |
all stainless steel interior |
| Supports |
casters |
| Capacity (Cu. Ft.) |
79 |
| Hinge Location |
left / right |
| Door Style |
swing / half |
What our Experts Think
-
Maximum Storage: 83" wide refrigerator with 6 half-height doors for organized, high-volume cold storage.
-
Top-Mount Design: Keeps the refrigeration system away from floor debris, improving efficiency and longevity.
-
Commercial-Grade Durability: Stainless steel interior and exterior built to handle daily use in busy kitchens.
-
Energy Conscious: Reliable temperature control with reduced operating costs.
-
Professional Solution: Ideal for restaurants, hotels, and institutional kitchens requiring large-capacity refrigeration.
Q&A
Q: What is the Hoshizaki R3A-HS Reach-In Refrigerator?
A: An 83-inch wide, 6 half-door, top-mount commercial refrigerator built for high-capacity cold storage.
Q: What makes it unique?
A: Its 6 half-door design reduces cold air loss, while the top-mount refrigeration system maximizes storage and efficiency.
Q: Where can it be used?
A: Perfect for restaurants, hotels, schools, healthcare facilities, and large commercial kitchens.
Q: What style of work does it suit?
A: High-volume bulk food storage, prep support, and long-term refrigeration.
Q: What materials is it made from?
A: Heavy-duty stainless steel exterior and interior with insulated half doors for durability and efficiency.
Maintenance Tips
-
Clean interior and stainless steel exterior regularly with mild soap and warm water; avoid harsh chemicals.
-
Inspect and clean condenser coils monthly for reliable cooling.
-
Check and clean door gaskets frequently to maintain an airtight seal and energy efficiency.
-
Keep airflow around the refrigerator unobstructed for consistent performance.
-
Monitor cabinet temperature daily to ensure food safety compliance.
-
Schedule annual professional service for long-term durability.
