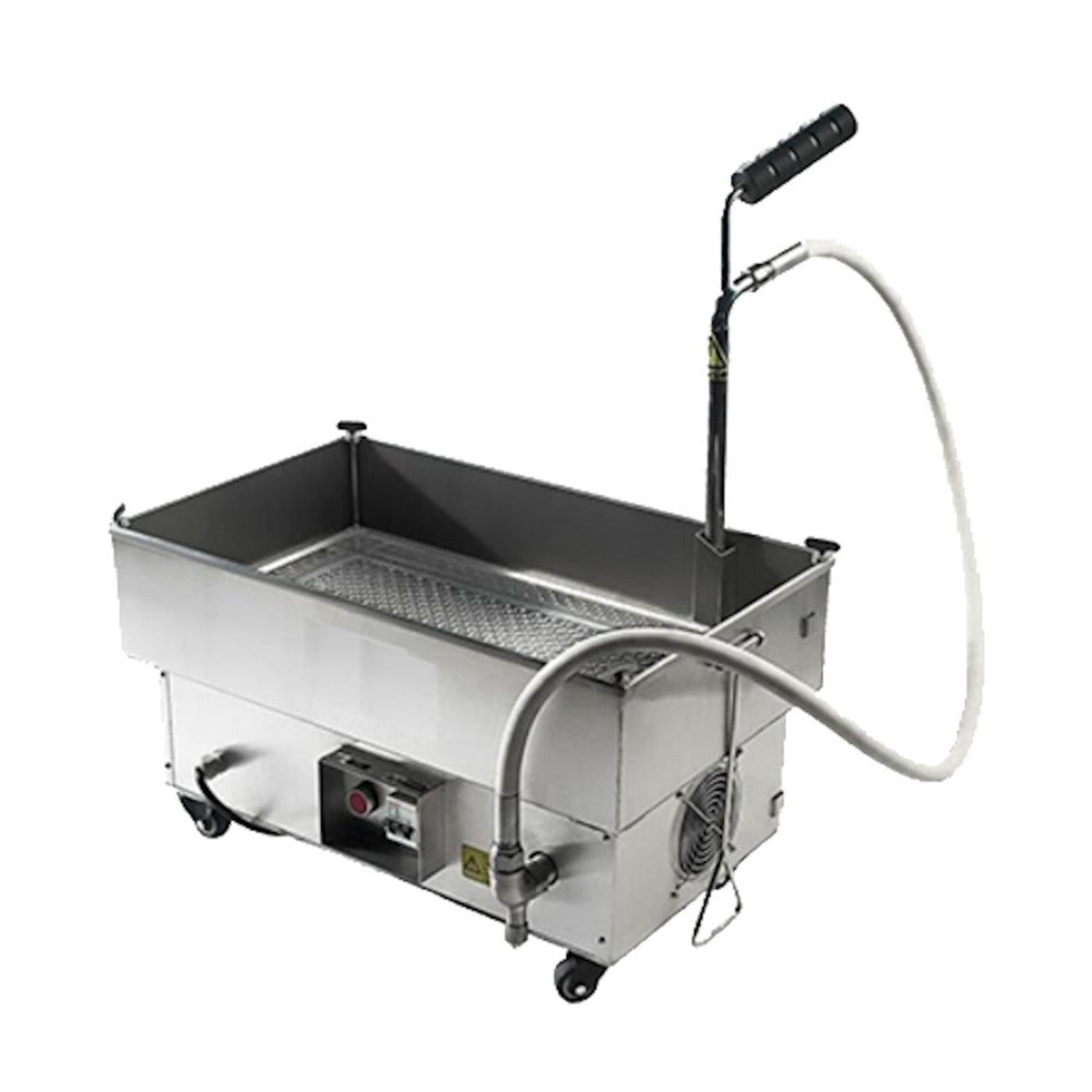

Adcraft BDOF-40 Portable Oil Filtration System - 40 lb. Capacity - BDOF-40
Adcraft has invented a low-profile, portable Oil Filtration System. This BDOF-40 has a removable, flexible filtering hose up to 5' long. This hose drains grease and oil from the fryer into its 40 lb. chamber. The hose nozzle is stainless steel and its handle is cool to the touch. The chamber is mounted on four swivel casters, making movement from one area to another easy and painless. The handles fold down for easy and safe transporting, while its stainless steel cover keeps the unit itself safe and clean. This BDOF-40 comes with its own filter papers and filter powder.
Features
- Construction
- Constructed of heavy-duty stainless steel
- Removable flexible filtering hose is 5’ long and equipped with a stainless steel nozzle and cool-to-touch handle
- Mounted on 4 (2 locking) swivel casters for easy movement
- Fold-down handle allows for safe and easy transporting
- Stainless steel cover keeps unit safe and clean while not in use
- Controls
- Separate on/off power switch
- Pump button allows for start/stop of filtering cycle
- Filter Chamber
- Large 18”x13” chamber that holds up to 40 lbs of oil
- Includes stainless steel gasket, filter mesh and rubber gasket
- Pumps up to 5 gallons of oil per minute
- Included Accessories
- Filter papers
- Filter powder
- Stainless steel cover
Specifications
| Model |
BDOF-40 |
| Oil Capacity |
40 lbs. |
| Volts |
120 |
| Hz |
60 |
| Phase |
Single |
| Watts |
200 |
| HP |
1/3 |
| Plug |
NEMA 5-15 |
| Warranty |
1-year limited |
| Dimensions |
13.75" H x 18.5" W x 13.75" D |
| Approximate Weight |
108 lbs. |
| Certifications |
CE |
What our Experts Think
-
High Oil Capacity: Holds up to 40 lbs of oil, making it ideal for high-volume commercial fryers.
-
Efficient Filtration: Pumps up to 1.32 gallons per minute with a 5.28-gallon filtering chamber for fast and effective oil purification.
-
Durable Construction: Made with heavy-duty stainless steel for long-lasting durability and easy cleaning.
-
Flexible Hose: Features a 5-foot removable hose with a stainless steel nozzle and a cool-to-touch handle for safe operation.
-
Mobility & Storage: Equipped with four swivel casters (two locking) and a fold-down handle for easy movement and compact storage.
-
User-Friendly Controls: Includes a separate on/off power switch and start/stop pump button for simple and intuitive operation.
-
Comprehensive Kit: Comes with filter papers, filter powder, stainless steel gasket, filter mesh, and rubber gasket for all your filtration needs.
Q&A
Q: What is the oil capacity of the Adcraft BDOF-40?
A: The BDOF-40 has a 40 lb oil capacity, suitable for medium to large commercial fryers.
Q: What are the dimensions of the unit?
A: It measures 18.5 inches (W) x 13.75 inches (H) x 13.75 inches (D), making it easy to place under fryer drains.
Q: How quickly does it filter oil?
A: The system can pump up to 1.32 gallons of oil per minute for efficient filtration.
Q: What type of construction does it have?
A: The unit is made of heavy-duty stainless steel, ensuring durability and easy cleaning.
Q: Is it easy to move?
A: Yes, it has four swivel casters (two locking) and a fold-down handle for portability.
Q: What electrical requirements does it have?
A: The BDOF-40 operates on 120V, 60Hz, single-phase power, with a 1/3 HP motor and 200W consumption.
Q: Does it come with accessories?
A: Yes, it includes a 5' flexible filtering hose, stainless steel nozzle, filter mesh, rubber gasket, filter papers, and filter powder.
Q: What certifications does it have?
A: The unit is CE certified, meeting European safety standards.
Maintenance Tips
-
Pre-Use Setup:
-
Ensure the filter paper is correctly installed before use.
-
Operating Temperature:
-
Maintain oil temperature between 250°F and 375°F for effective filtration.
-
Post-Use Cleaning:
-
Clean the filter pan thoroughly to remove residual oil and debris after each use.
-
Avoid Contaminants:
-
Never pump water or cleaning solutions through the filtration system while it’s connected to a fryer.
-
Regular Inspections:
-
Check O-rings regularly and replace them as needed to prevent leaks and ensure a proper seal.
-
Professional Servicing:
-
Have the system inspected periodically by a CFESA-certified technician to maintain optimal performance.
