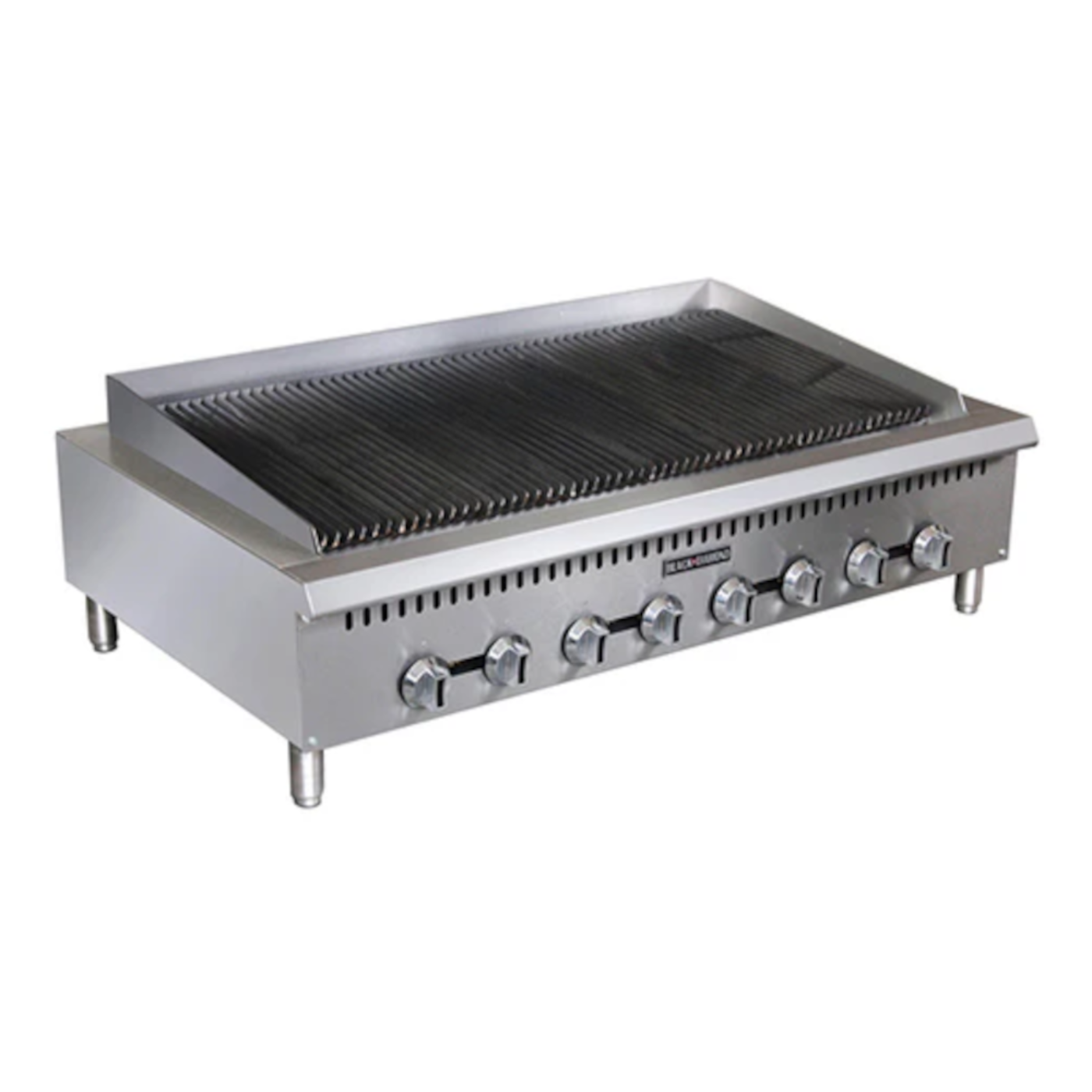

Adcraft Black Diamond Heavy Duty Gas Charbroiler 48"W - BDCTC-48
48" heavy duty radiant gas countertop charbroiler is constructed of stainless steel front and sides that are fully welded and are able to withstand the toughest of kitchen environments.Each cast iron burner puts out 20,000 BTU/hour with one cast iron burner for every 6" of grate width.Unit comes standard with 4-5" adjustable legs, separate gas valves for each burner with standing pilot lights and a 3/4" rear NPT gas inlet. Set up for use with Natural Gas (NG) and is field convertible to Liquid Propane (LPG). 1 year warranty on parts and labor. ETL Listed and ETL Sanitation.
Features
- Stainless steel front bullnose design and side construction that’s fully welded for extra durability
- 20,000 BTU per burner
- One cast iron burner every 6” grate width
- Cast iron grill grates are reversible and height adjustable
- 4”-5” adjustable legs
- Separate gas valves for each burner with standing pilot ignition system
- Removable steel drip tray for easy cleaning
- 3/4” rear NPT gas inlet
- ETL Listed and ETL Sanitation
Specifications
| Model |
BDCTC-48 |
| Total BTU |
160,000 BTU |
| Overall Dimensions (in.) |
16.25"H x 48"W x 30"D |
| Burners |
8 |
| Net Weight (lbs) |
388 lbs |
| Gross Weight (lbs) |
421 lbs |
| Drip Tray |
2 |
What Our Experts Think
-
High BTU Output: The Adcraft BDCTC-48 offers a total of 160,000 BTU, with eight burners providing 20,000 BTU each. This ensures fast heating and consistent performance, ideal for high-volume kitchens.
-
Durable Construction: Built with a stainless steel front and sides, the BDCTC-48 is designed for heavy-duty commercial use. Its fully welded construction ensures longevity and makes it easy to clean and maintain.
-
Versatile Cooking Surface: Equipped with reversible, height-adjustable cast iron grates, this charbroiler offers flexibility for different cooking techniques and food types, providing optimal grilling results.
-
User-Friendly Features: Features separate gas valves for each burner and a standing pilot ignition system, allowing precise control over heat levels. It also includes two removable stainless steel drip trays for easy cleaning.
-
Adjustable Height: The 4" to 5" adjustable legs make it adaptable to various kitchen setups, allowing for ergonomic operation and easy integration into different workspaces.
Q&A
Q: What is the Adcraft BDCTC-48?
A: The Adcraft BDCTC-48 is a 48-inch countertop gas charbroiler designed for high-volume grilling, offering a total output of 160,000 BTU..
Q: Is it suitable for commercial use?
A: Yes, the BDCTC-48 is ideal for commercial kitchens, restaurants, food trucks, and other high-demand foodservice settings.
Q: What is the price?
A: The Adcraft BDCTC-48 is priced at approximately $1,576.88.
Maintenance Tips
-
Daily Cleaning:
-
Clean the cast iron grates after each use with a wire brush to remove food particles and grease.
-
For a deeper clean, soak the grates in warm, soapy water, rinse thoroughly, and dry completely before placing them back.
-
Empty and clean the stainless steel drip trays daily to prevent grease buildup.
-
Wipe down the stainless steel exterior with a damp cloth and mild detergent.
-
Weekly Maintenance:
-
Inspect the cast iron burners for blockages or debris. Ensure that the flame is steady and blue. Clean or service the burners if necessary.
-
Test the pilot lights for each burner, ensuring they are lit. Relight them if needed following the manufacturer's instructions.
-
Check the gas valves to ensure they turn smoothly. If any valve is stiff, lubricate it or consider replacing it.
-
Monthly Maintenance:
-
Inspect the gas line for leaks or wear. Use a soapy water solution to check for leaks by applying it to the connections and looking for bubbles.
-
Check the adjustable legs for stability and ensure the unit is level.
-
Clean the exhaust hood and ventilation system to prevent grease buildup and ensure proper airflow.
-
Safety Precautions:
-
If converting from natural gas to liquid propane, follow the manufacturer’s conversion instructions carefully.
-
If experiencing issues beyond routine maintenance, contact a licensed technician for repairs to ensure safe operation.
