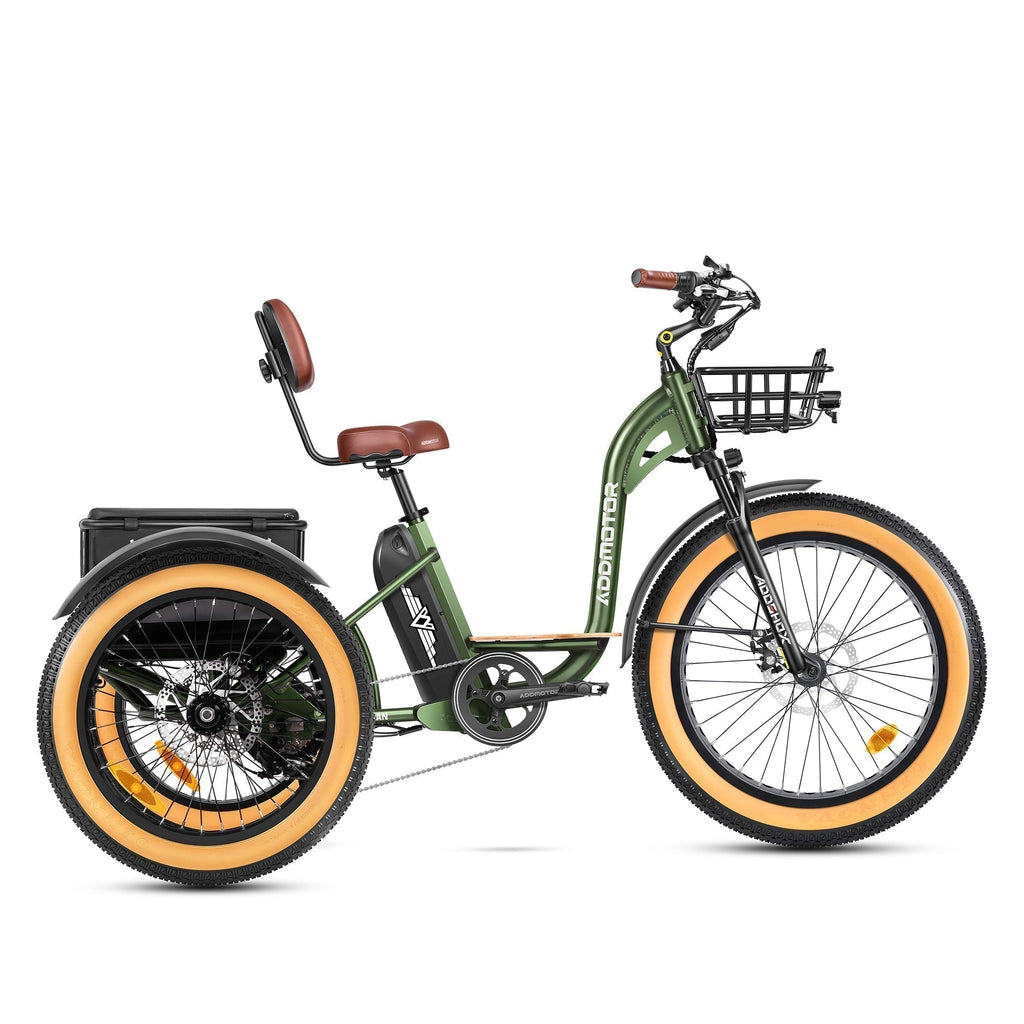

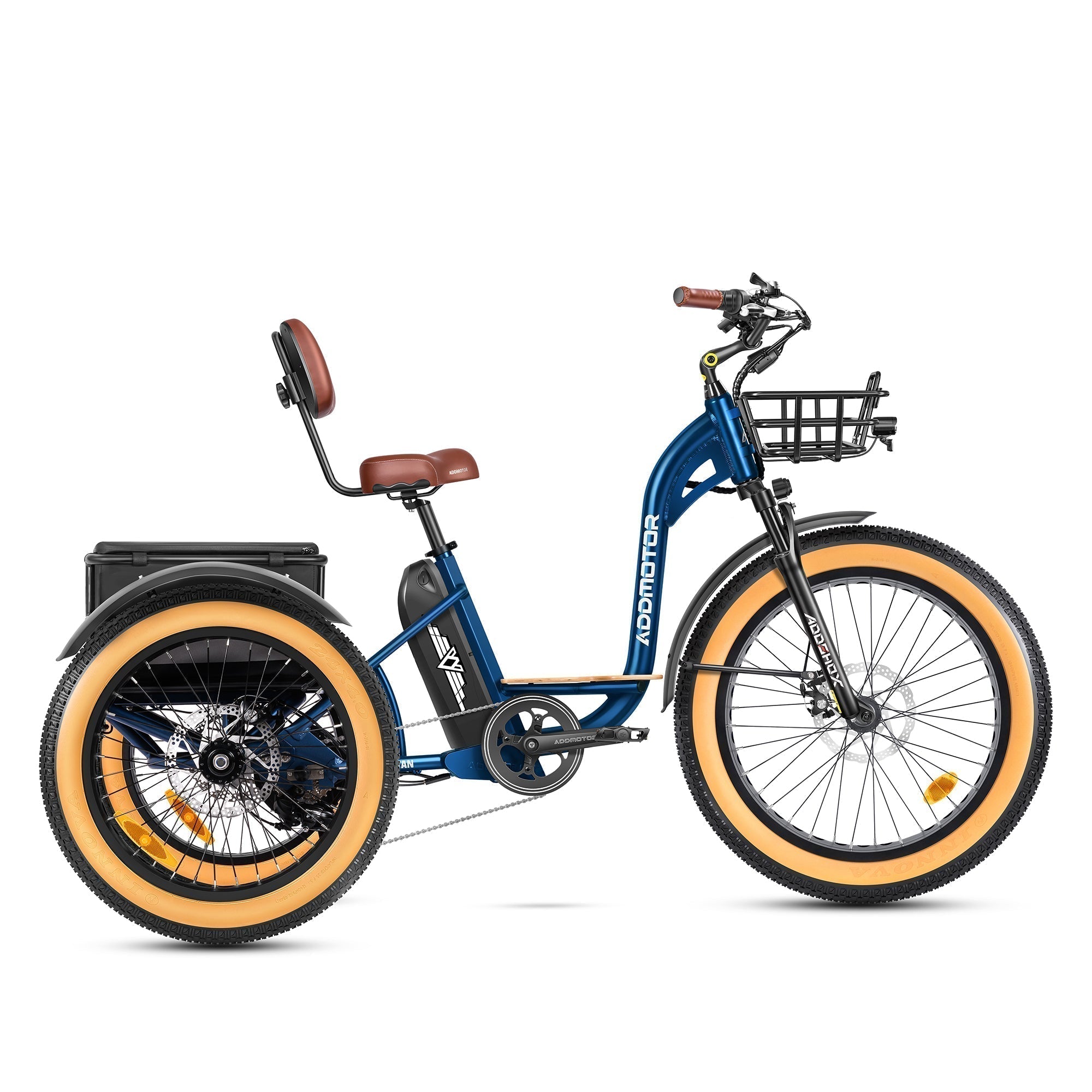

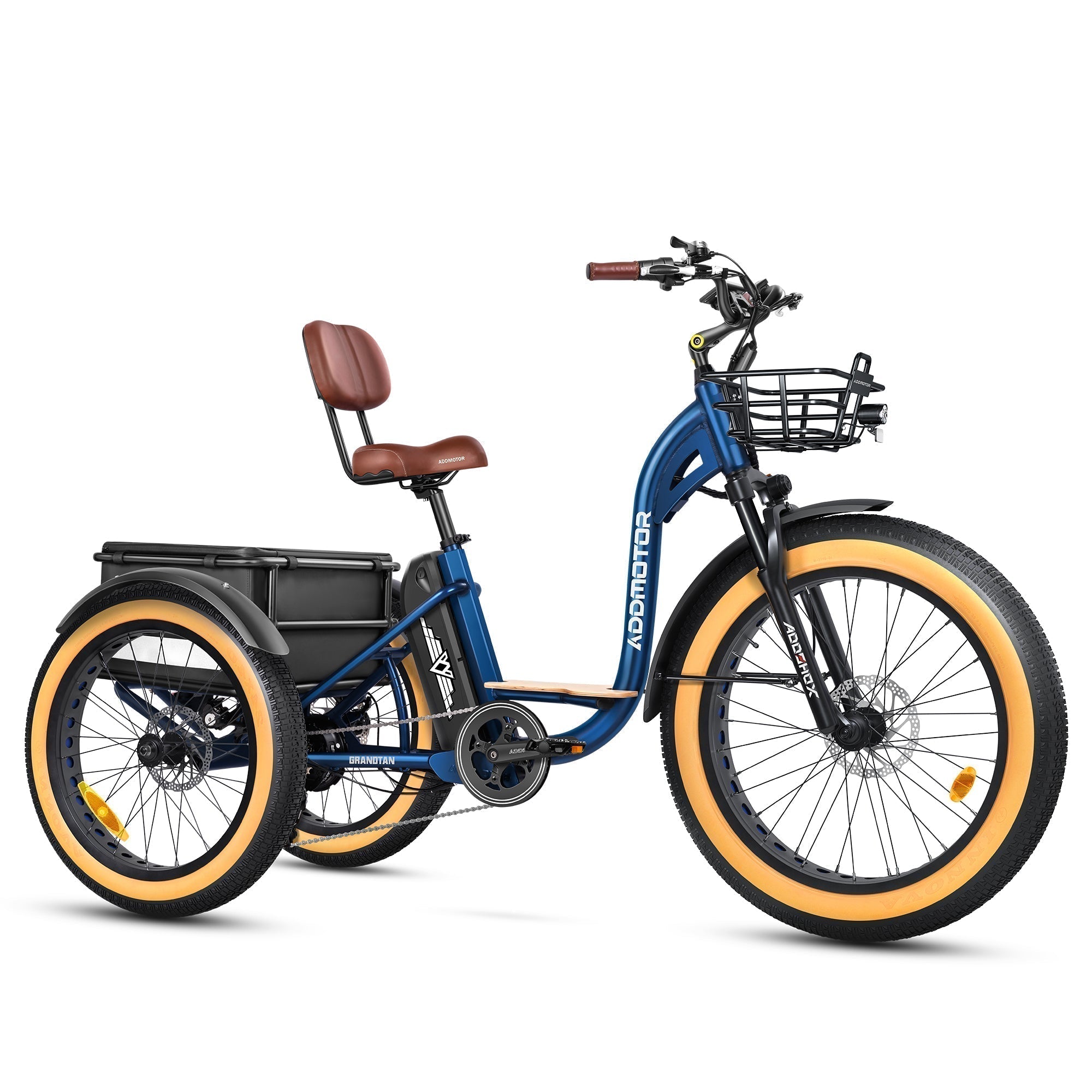

Addmotor 750W 48V Grandtan Plus II Trike Extra Fat Tire Electric Bike - EB-ADD-GTP2-NBL

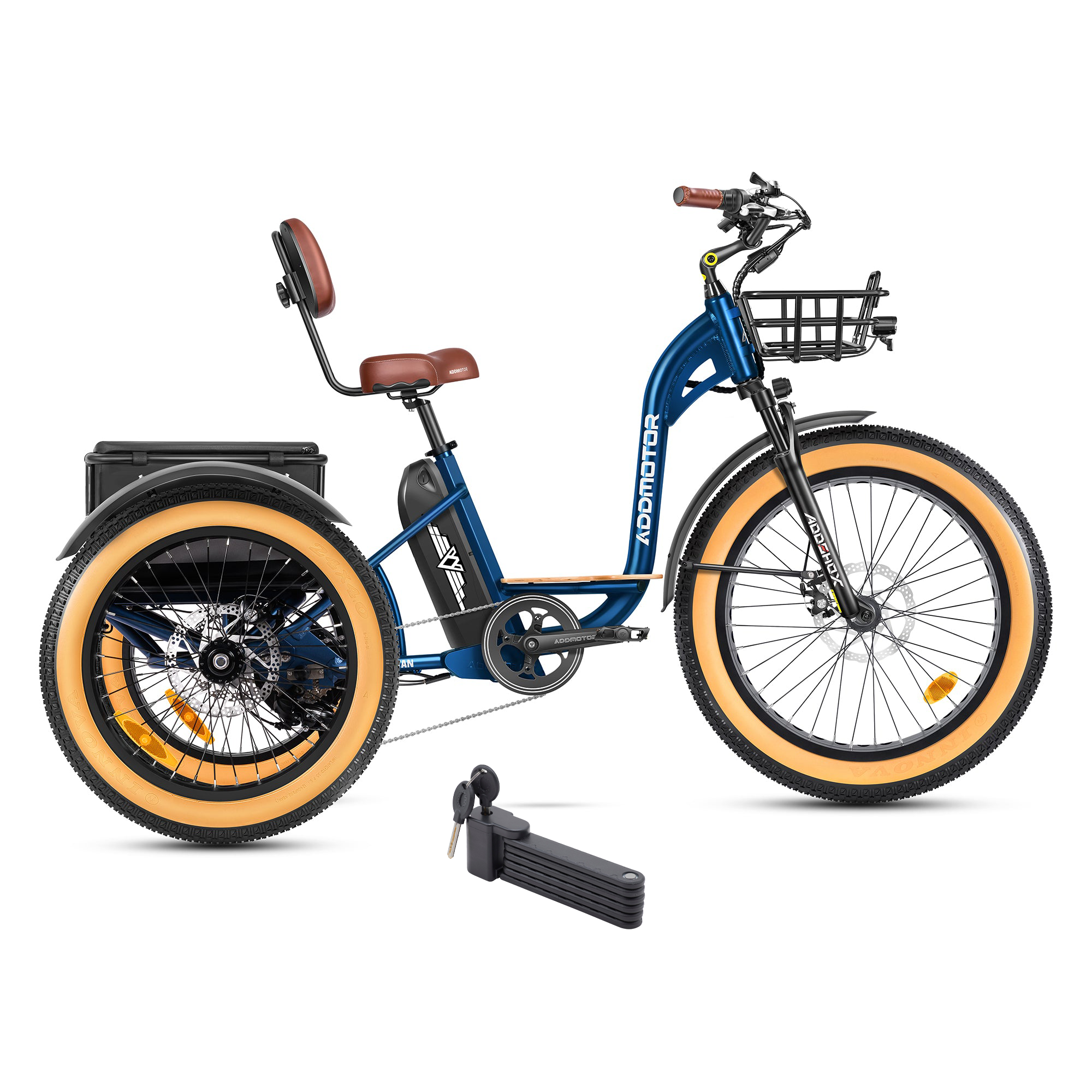

Exclusive Limited Time Offer: Bikeberry.com customers will receive a FREE Poplock bicycle lock with the purchase of the Addmotor 750W 48V Grandtan Plus II Trike Extra Fat Tire Electric Bike ($84.95 value!)
The Add Motor GRANDTAN PLUS II is a premium electric tricycle designed to offer an extraordinary riding experience with its advanced features, superior comfort, and powerful performance. Ideal for daily commutes and leisurely rides, this e-trike combines cutting-edge technology with a stylish design. The GRANDTAN PLUS II is crafted to meet the diverse needs of modern riders, ensuring every journey is both smooth and enjoyable.
Experience the ultimate in electric mobility with the Add Motor GRANDTAN PLUS II. Whether you're navigating city streets or exploring scenic routes, this electric tricycle offers unmatched performance and comfort. Elevate your riding experience with the GRANDTAN PLUS II and enjoy the freedom and excitement of electric-powered travel.
-
High-Performance Motor: The GRANDTAN PLUS II is equipped with a powerful 750W motor, delivering excellent acceleration and the capability to handle various terrains effortlessly.
-
Long-Lasting Battery: Featuring a 48V 20Ah lithium-ion battery, this electric tricycle provides an impressive range of up to 65 miles on a single charge, making long rides hassle-free.
-
Comfort-Oriented Design: With an adjustable, cushioned seat and advanced suspension system, the GRANDTAN PLUS II ensures a comfortable and smooth ride even on bumpy roads.
-
Enhanced Safety Features: The e-trike includes hydraulic disc brakes for reliable stopping power, bright LED lights for increased visibility, and a sturdy frame for added durability and safety.
Specifications
| Motor |
48V*750W Rear-Mounted Brushless Motor |
| 90 Nm Torque, 1400W Peak Power |
|
| Battery |
Addmotor EB 2.0 48V 20Ah (960Wh) Samsung Lithium-Ion |
| Rated for 1,000–1,500 Charge Cycles |
|
| Charging Time: 8–10 Hours |
|
| Display |
Addmotor EB 2.0 LCD Display |
| Controller |
Addmotor 25A Controller |
| Throttle |
Right-Hand Half Twist Throttle with Switch |
| Pedal Assist |
Intelligent 7-Level PAS with Upgraded Torque Sensor |
| Range |
85+ Miles per Charge (Estimated, PAS 1) |
| Charger |
48V 2A US Standard DC Charger (5-Pin with Auto Magnetic Suction) |
| USB Port |
Integrated in Display – 5V, 1 Amp |
| Lights |
EB 2.0 Front Headlight + 5-in-1 Taillight (Powered by Main Battery) |
| Frame |
6061 Aluminum Alloy |
| Front Fork |
Oil Spring Fork with 80mm Travel |
| Brakes |
Tektro Mechanical Disc Brakes with Motor Cut-Off Sensor |
| Brake Rotors |
Front: 180mm |
| Rear: Dual 180mm Rotors |
|
| Tires |
Front: 26" x 4.0" Fat Tire |
| Rear: 24" x 4.0" Fat Tires |
|
| Rims |
Aluminum Double Wall, 36H |
| Spokes |
Front: 12-Gauge Stainless Steel |
| Rear: 13-Gauge Stainless Steel |
|
| Stem |
Aluminum 100mm Adjustable (90° Angle) |
| Handlebar |
630mm Wide Black Aluminum, Sweep Back Design |
| Grips |
Durable Ergonomic Design |
| Seatpost |
Aluminum, 270mm x 31.6mm |
| Seatpost Clamp |
Quick Release |
| Saddle |
Addmotor Exclusive Well-Padded Saddle with Backrest |
| Pedals |
Wellgo Aluminum with Reflectors (9/16" x 20 TPI) |
| Crankset |
Prowheel Ounce, 48T Chainring, 170mm Crank Length |
| Drivetrain |
SHIMANO TOURNEY TY300 7-Speed Derailleur |
| SHIMANO Right Thumb Shifter (SIS Index) |
|
| SHIMANO SIS Index 7-Speed Freewheel (14-32T) |
|
| Chain |
KMC Rust Resistant Chain |
| Fenders |
Front & Rear Aluminum Fenders Included |
| Baskets |
Front & Rear Removable Aluminum Baskets |
| Rear Basket Capacity: 100 lbs |
|
| Wiring |
Water-Resistant Connectors and Wiring Harness |
What our Experts Think
-
Motor: 750W rear-mounted brushless motor with 90 Nm torque and 1,400W peak power.
-
Battery: 48V 20Ah (960Wh) Samsung lithium-ion battery, offering a range of up to 65 miles per charge.
-

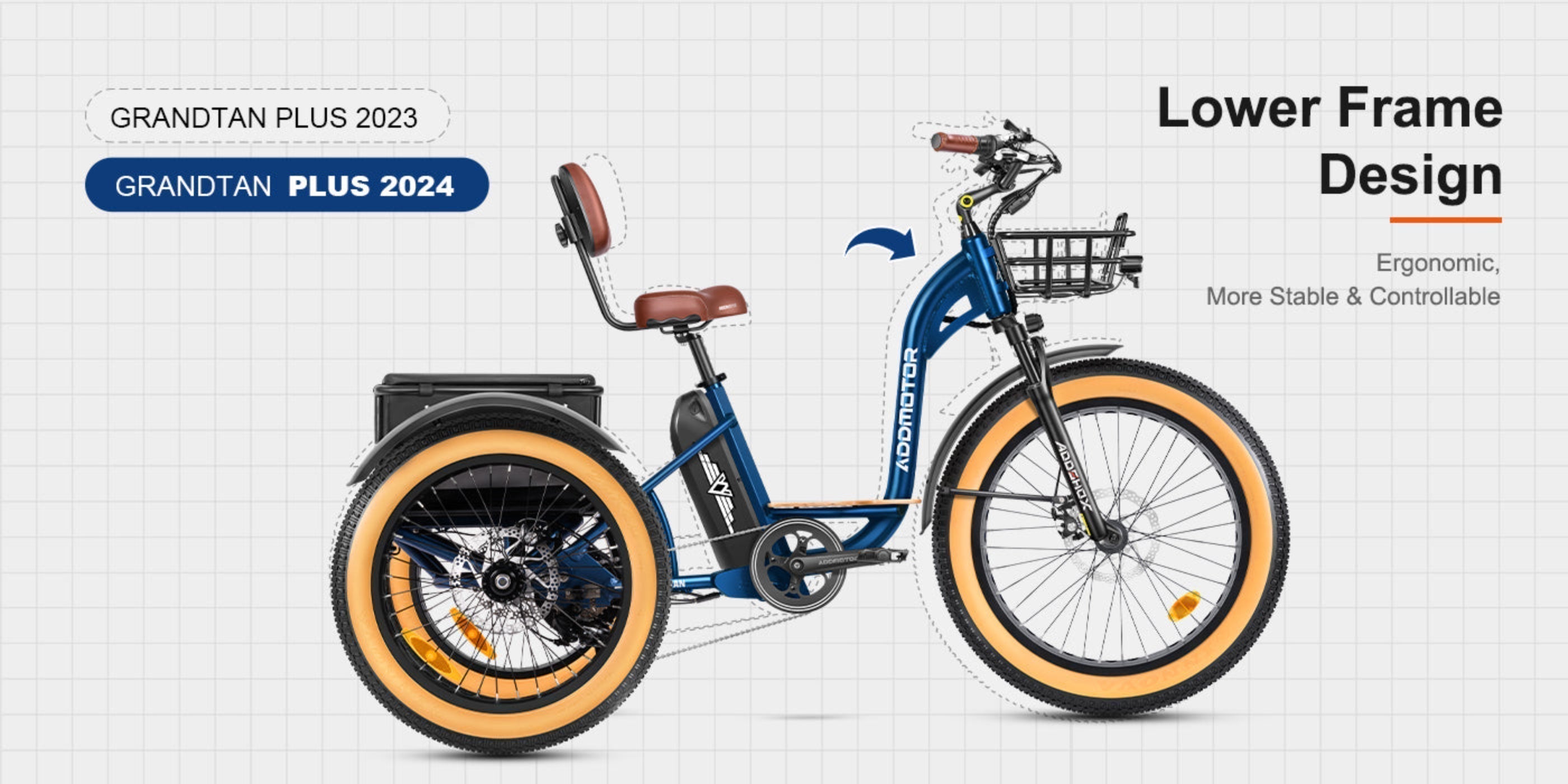

Frame: Durable step-through aluminum alloy frame with a low standover height for easy mounting and dismounting.
-
Tires: 26" x 4" fat tires, providing excellent traction and stability on various terrains.
-
Brakes: Hydraulic disc brakes for reliable stopping power.
-
Lighting: Integrated front light and 5-in-1 taillight for enhanced visibility.
-
Display: Addmotor EB 2.0 LCD display with USB port for device charging
-
Throttle: Right-hand half twist throttle with switch
-
Controller: Addmotor 25A controller.
-
Wiring: Water-resistant connectors and wiring harness.
Q&A
Q: What makes the Grandtan Plus II Trike stand out?
A: With a powerful 750W motor, extra fat 26"x4" tires, and a stable three-wheel design, the Grandtan Plus II is perfect for all-terrain adventures, comfort, and ease of use.
Q: How far can I ride on a single charge?
A: The 48V 20Ah battery offers up to 70 miles of range with pedal assist—ideal for extended rides or errands.
Q: Is it comfortable for long rides?
A: Yes! The trike features a comfortable, wide saddle, front suspension, and ergonomic seating, providing a smooth and relaxed ride on all surfaces.
Q: Who is this e-trike designed for?

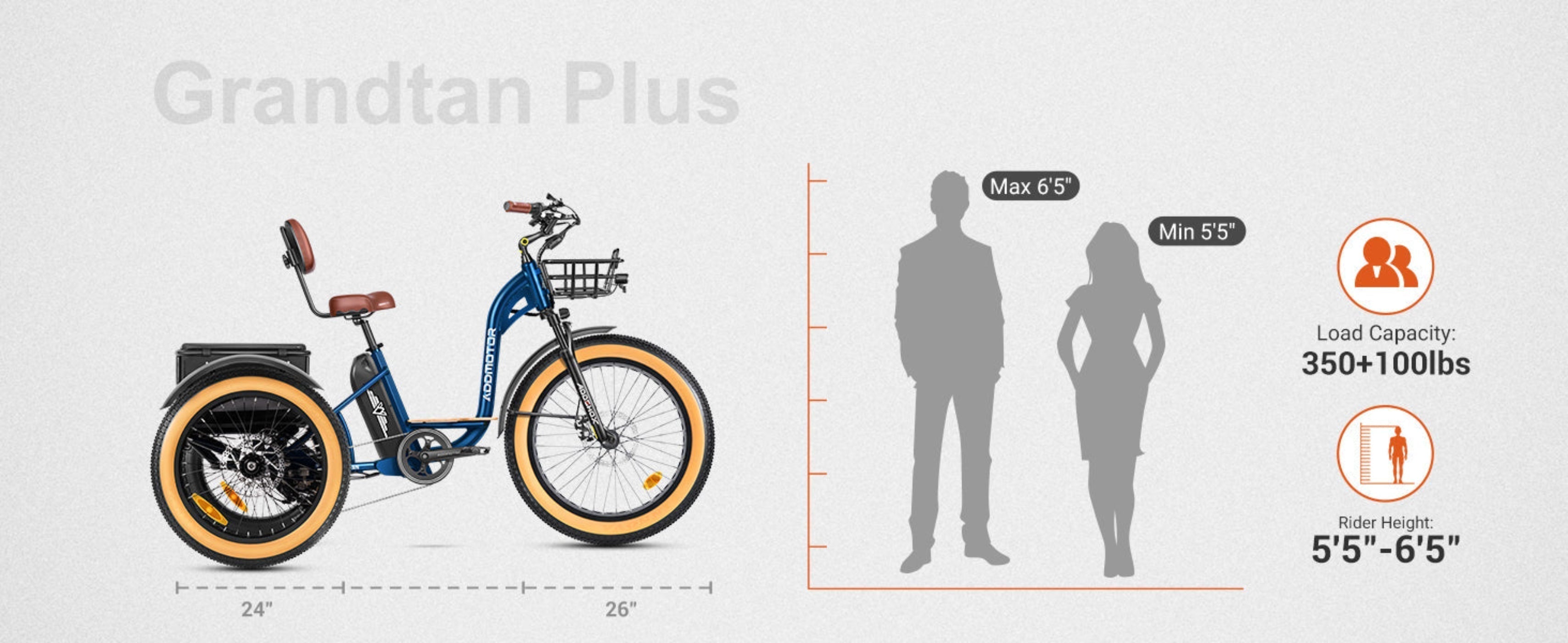

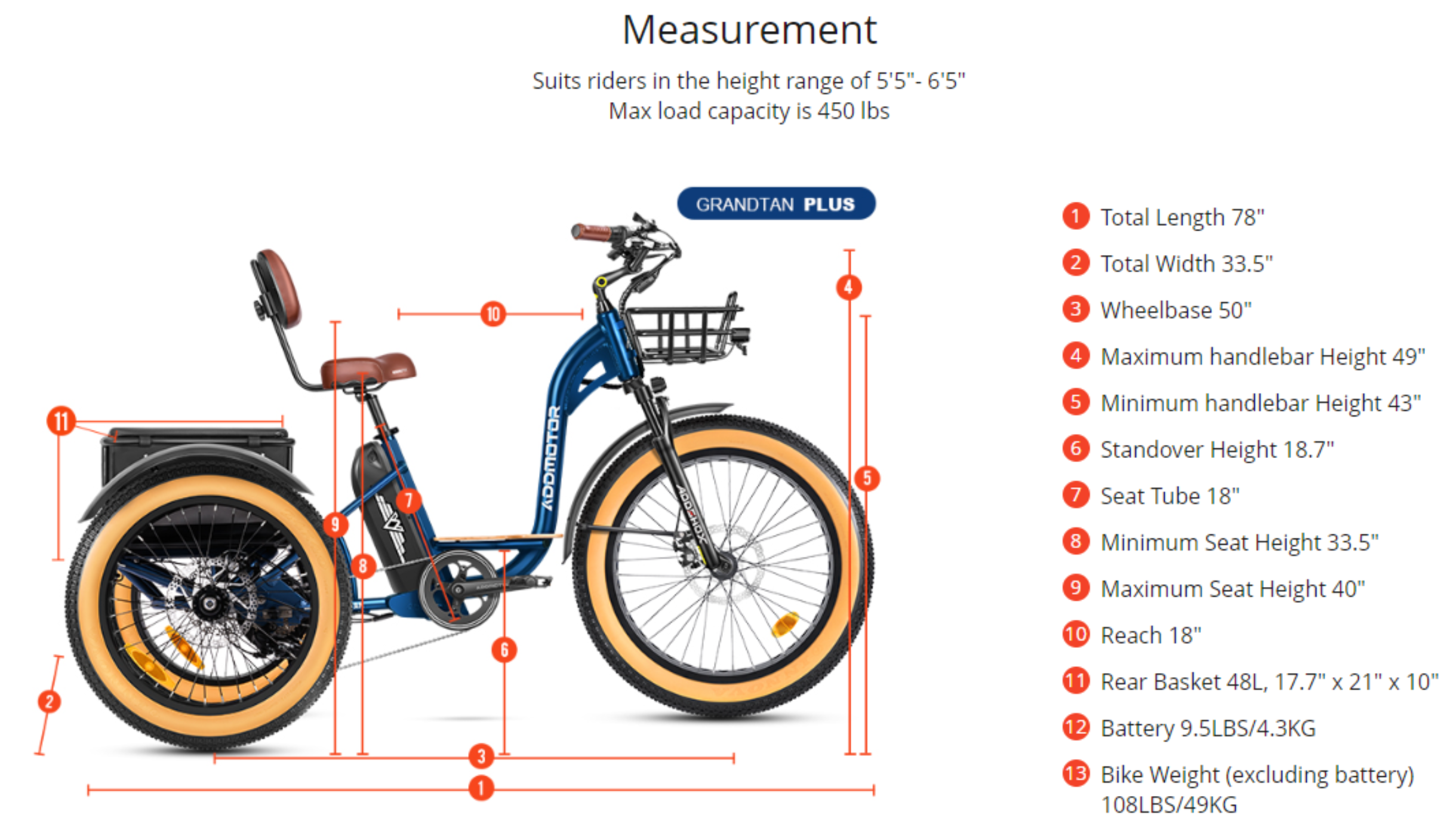

A: Suitable for riders 5’4” to 6’4”, it supports up to 450 lbs, making it a great choice for people of all sizes who want stability and comfort.
Q: How does it perform on various terrains?
A: Equipped with fat tires, hydraulic disc brakes, and a powerful motor, the Grandtan Plus II handles sand, gravel, and rough terrain with ease.
Q: Does it include any smart features?
A: Yes! The backlit LCD display tracks speed, battery life, trip distance, and PAS level, keeping you in control during every ride.
Maintenance Tips
-
Battery Management – Charge the 48V battery between 20%-80% to extend its lifespan. Avoid deep discharges and overcharging.
-
Tire Pressure – Maintain 20–30 PSI in the extra-fat tires for optimal off-road traction and comfort. Check regularly for punctures.
-
Clean After Rides – Clean the frame, wheels, and drivetrain after each ride. Avoid using high-pressure water on electronics.
-
Lubricate Drivetrain – Apply lubricant to the chain every 100 miles or after wet conditions to reduce friction and prevent rust.
-
Brake Inspection – Regularly inspect hydraulic brakes for pad wear and replace if needed to ensure responsive braking.
-
Frame & Axle Tightening – Monthly check of frame, rear axle, and trike wheel bolts to ensure stability and safety.
-
Suspension & Shock Care – Inspect front and rear suspension for smooth travel and leaks. Adjust or lubricate as necessary.
-
Electronics & Display – Keep the display clean and up to date. Avoid exposure to moisture or impact damage.
-
Storage Tips – Store in a cool, dry place. If unused for extended periods, recharge the battery every 4–6 weeks.
-
Professional Service – Have the trike professionally serviced every 6–12 months for optimal performance and safety.
