AG Spray Pro UTV Sprayer 65 Gallon Gas w/ Electric Controls - 5303227

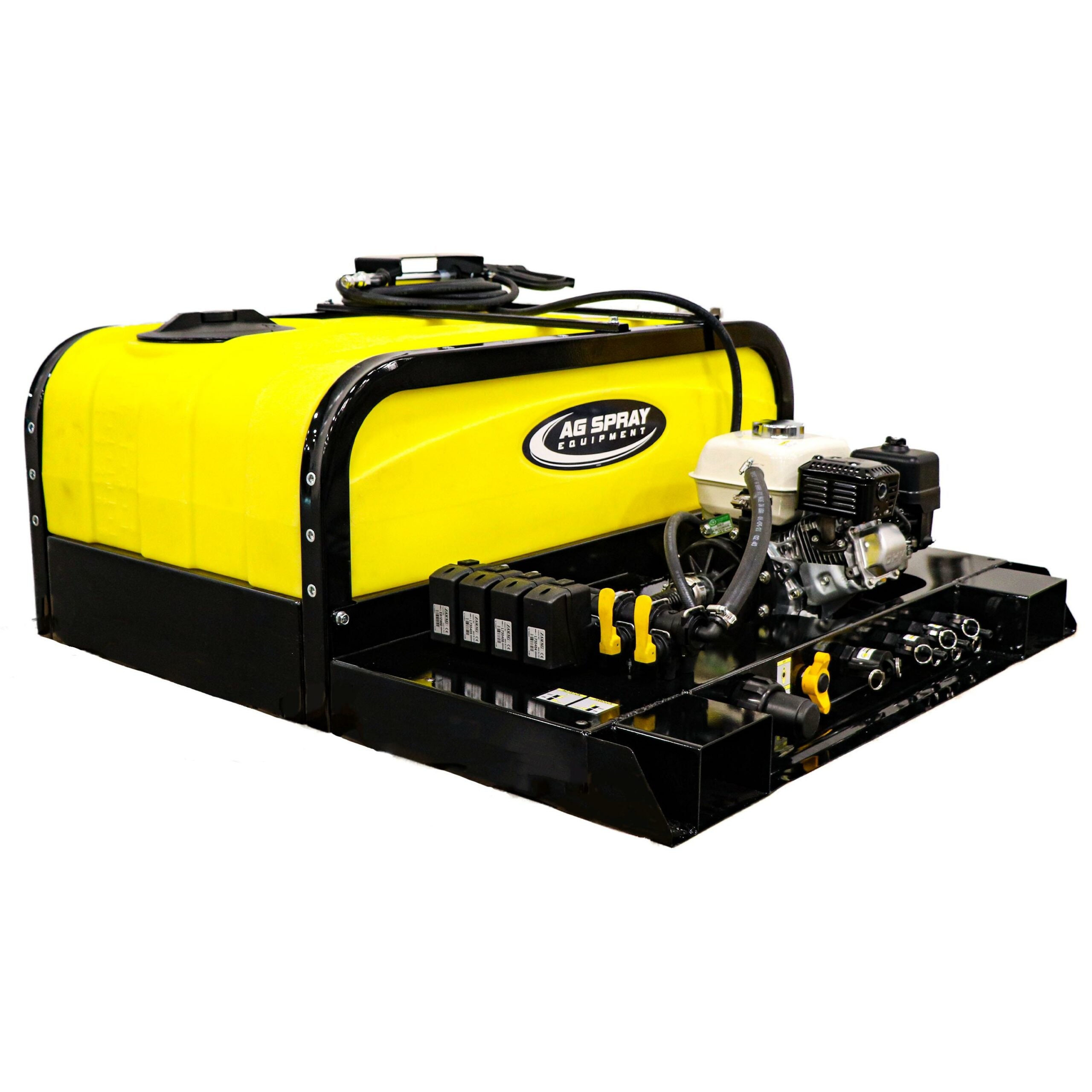

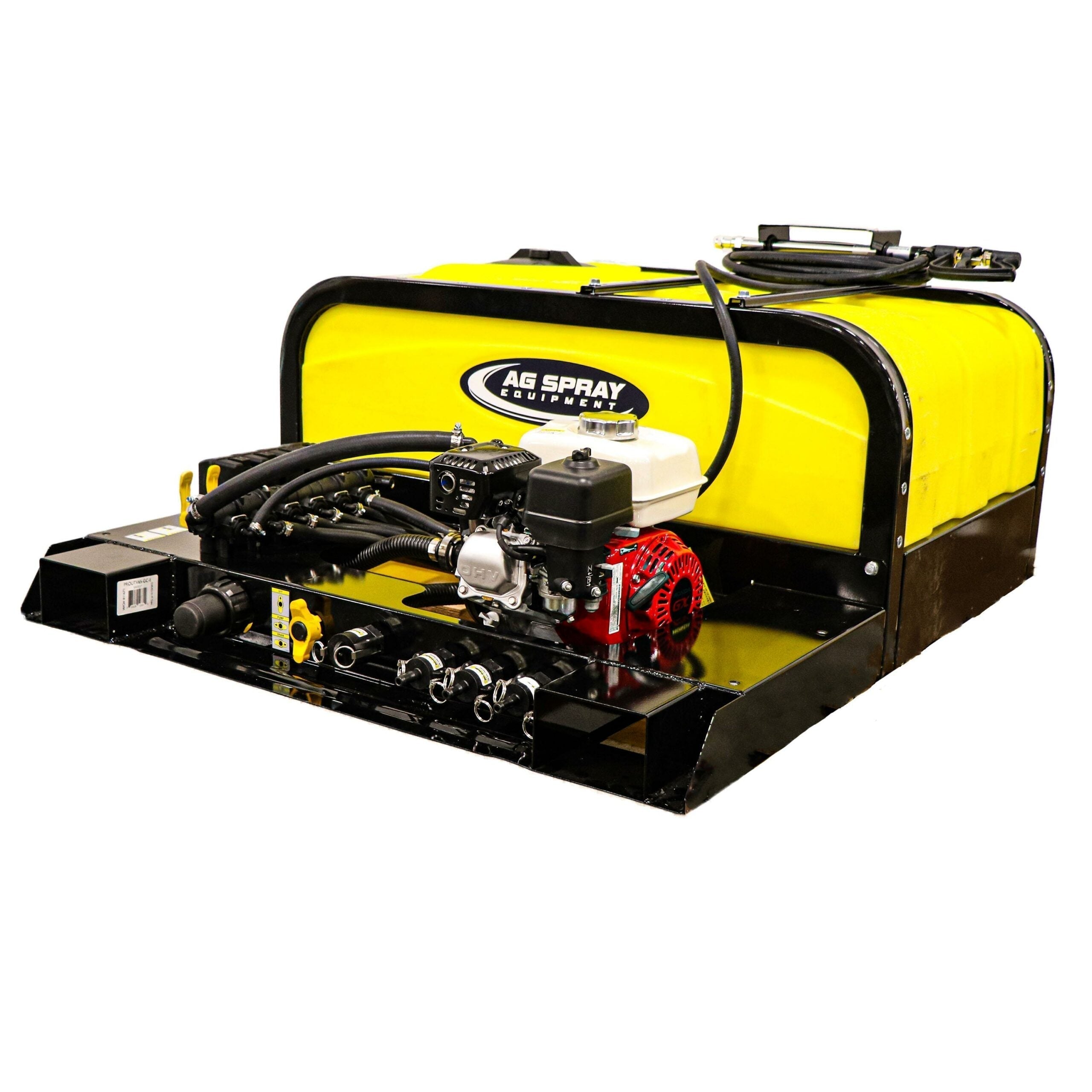

The 5303227 PROUTV Series Gas Engine configuration from Ag Spray is a professional series 65 gallon sprayer designed for the bed of an UTV that is built to handle any job whether it’s utility, municipality, rangeland or ag. The gas engine version is designed for the tailgate to be open on most models of UTV. The 12 volt cab mounted electric controls allow the operator to adjust the pressure and turn the boom sections on/off from inside the cab. The steel base has fork lift pockets incorporated for convenient installation and removal. The poly tank is built with a molded-in tank baffle with sloped floor and a molded-in outlet fitting for easy and complete clean out. Equipped with a GX160 Honda engine coupled to a GE-85 Centrifugal Pump to provide reliable pressure that delivers plenty of volume and is rated up to 23 GPM and a max of 58 PSI. The pro series long range handgun with adjustable pattern tip distributes up to 38 feet of horizontal spray and up to 27 feet of vertical spray and comes with 25 feet of 3/8 inch hose. Hand wand spray pattern is controlled by how far the trigger is depressed which allows the operator to change between straight to wide fan pattern to meet your application needs. Combined with our 1 year warranty, AG SPRAY PROUTV Sprayers will deliver dependable use when you need it most.
Features
-
Fully drainable tank with molded in outlet fitting, no lip in the tank to hold back product
-
Tank baffle to limit sloshing for better handling
-
Lid gasket to prevent liquid leaking when going over rough terrain
-
Heavy skid with Fork Lift pockets for easy installation/removal
-
12 threaded inserts in each tube for additional accessory mounting
-

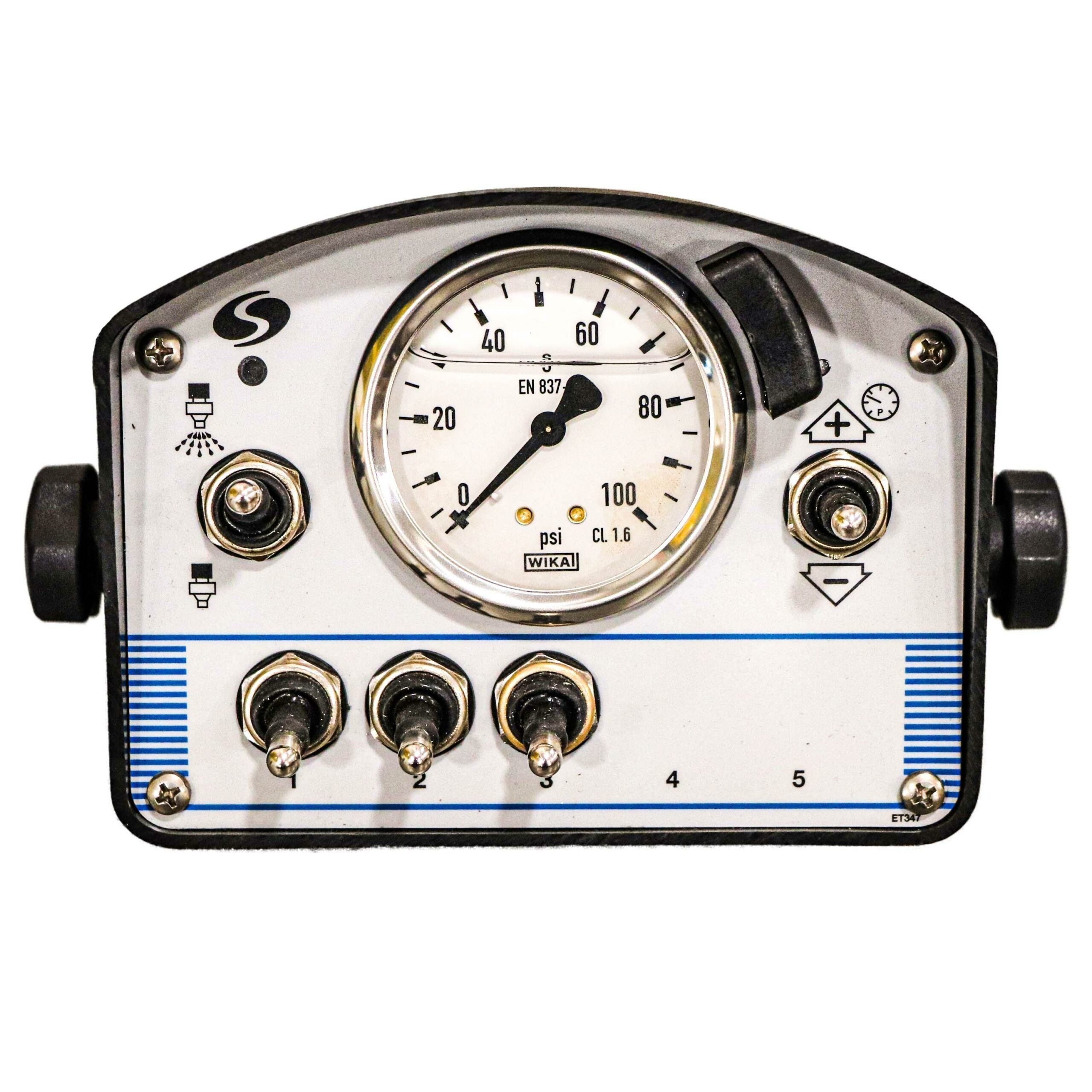

Electric 12V controls for in-cab pressure and 3 section on/off control
-
Boom options of traditional or boomless in 3 sections
-
Shutoff valve on handgun hose inlet
-
Prevents the hose from being charged with chemical until you want to use it
-
Eliminates the need to flush the handgun line when switching chemicals when you didn’t charge the line and use the handgun
-
Prevents the handgun from being the shutoff and potentially leaking
-
Gas units designed for tailgate to be down with boom mounts attaching directly to the skid base
-
Centrifugal pump installed in a lowered position so pump inlet is approximately equal to bottom of tank for better priming
-
4 Ratchet Strap tie down slots on under side of tank retention tubes for secure installation
What Our Experts Think
-
High Capacity: The AG Spray Pro UTV Sprayer with a 65-gallon tank is designed for larger spraying tasks, offering ample capacity for efficient coverage.
-
Gas-Powered Performance: Powered by a reliable gas engine, providing robust performance for demanding applications in the field.
-
Electric Controls: Features electric controls for precise spray adjustments, allowing easy operation and consistent application.
-
Durable & Heavy-Duty: Built with high-quality, corrosion-resistant materials for long-lasting durability and performance in tough environments.
-
Easy Mounting: Compatible with most UTVs, ensuring secure and quick installation for mobile spraying.
Q&A
Q: What is the AG Spray Pro UTV Sprayer 65 Gallon Gas w/ Electric Controls used for?
A: This sprayer is designed for use with UTVs to efficiently spray fields, crops, and landscapes, offering a 65-gallon capacity with a gas-powered engine and electric controls for reliable performance.
Q: What features are included in the AG Spray Pro UTV Sprayer 65 Gallon Gas w/ Electric Controls?
A: It features a 65-gallon tank, a gas-powered engine for reliable power, electric controls for easy operation, and is mounted for easy attachment to UTVs, providing mobility and flexibility for spraying tasks.
Q: Is the AG Spray Pro UTV Sprayer easy to use?
A: Yes, it is designed for simplicity with electric controls for adjusting spray settings and a gas engine for consistent performance, making it ideal for various spraying needs in outdoor environments.
Q: How does the AG Spray Pro UTV Sprayer compare to other sprayers?
A: The AG Spray Pro UTV Sprayer offers the advantage of a gas-powered engine paired with electric controls, providing reliable power and easy operation, making it ideal for more demanding spraying tasks in a compact, mobile design.
Maintenance Tips
-
Clean After Use: Rinse the tank, pump, and spray nozzles with clean water to remove chemical residues and prevent clogging.
-
Check Fuel and Engine: Regularly inspect the gas engine, changing the oil and replacing filters as needed.
-
Inspect Hoses and Nozzles: Ensure hoses are in good condition and nozzles are clear from blockages.
-
Battery and Electrical System: Test the electric controls and battery periodically for proper function.
-
Winter Storage: Drain all water and fuel, store in a dry, sheltered area to prevent freezing or engine damage.
