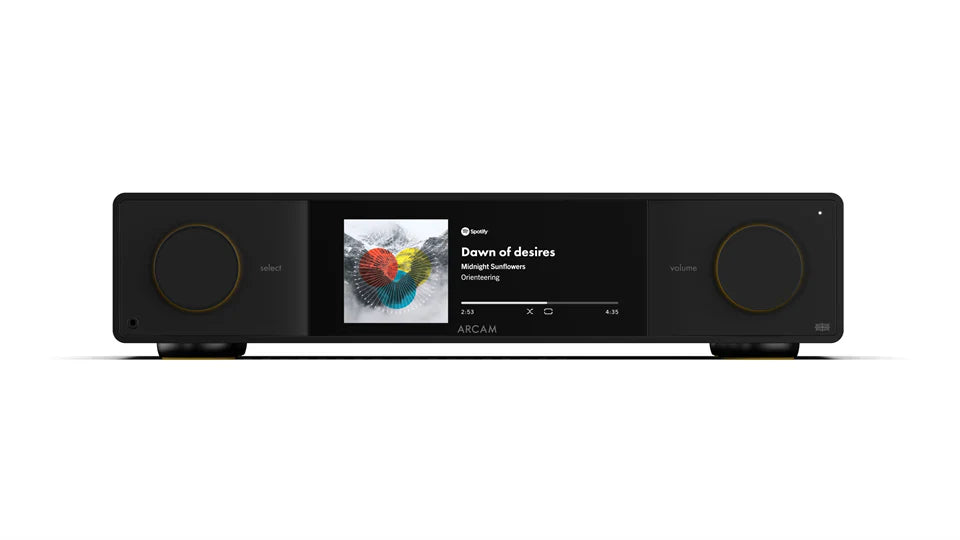

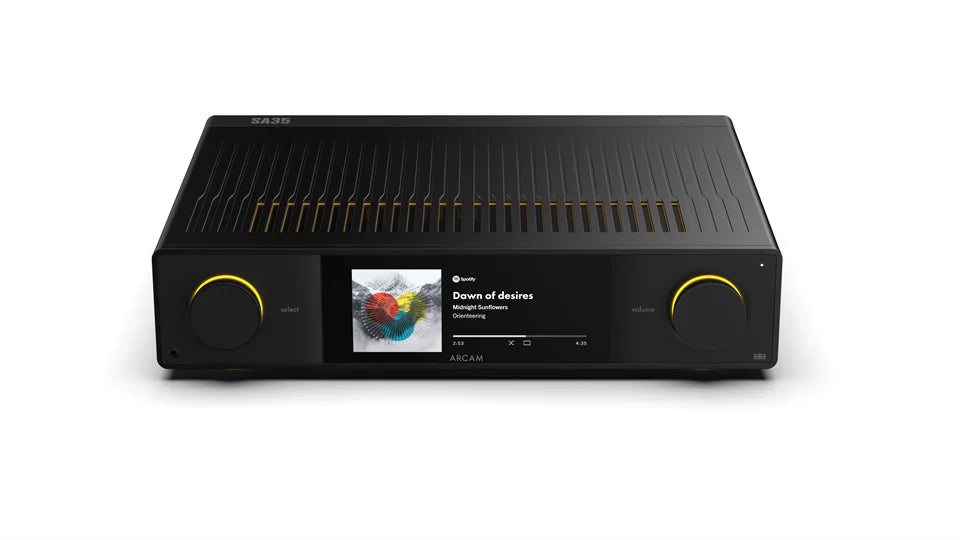

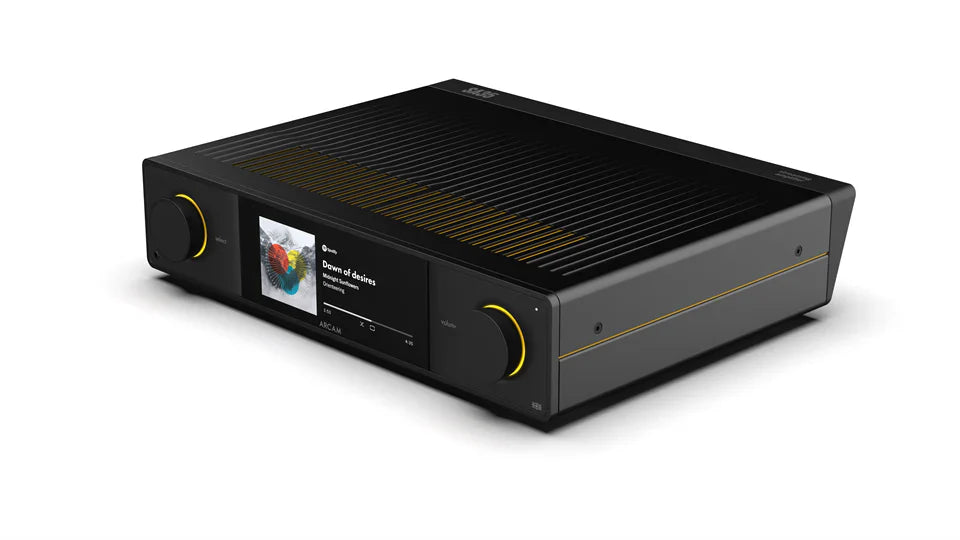

SA35
Streaming Integrated Amplifier
Perfect for the Creator - Beautiful Music + Optimised Amplification = An enriched music experience
The ARCAM SA35 is the all-in-one streaming system for the discerning music lover. It includes hard-won technologies for preserving the most delicate sounds and reproducing music with all its subtleties, nuances and excitement intact. Expertly crafted in Cambridge UK, it includes an all-new digital audio and streaming platform, new linear toroidal power supply design, new user interface and new app.
Exquisite sound quality has been achieved through thoughtful engineering of a new 6-layer digital audio and streaming platform which includes a ground plane through the entire board to keep noise and interference away from the sensitive audio components. These components include the latest Hyperstream iV DAC topology from ESS, in a balanced configuration with advanced Jitter elimination. Sound quality is enhanced further with a new linear toroidal transformer power supply design that drives the entirety of the internal operation with lower noise, and a switching supply that only operates for peak efficiency when in standby.
Building off decades of innovation, our 5th generation Class G amplifier design is meticulously crafted so you can expect the best sound quality and dynamics from what has always been a better sounding, and more efficient Class of amplifier. New components and materials have been painstakingly analysed and reviewed to ensure uncompromising sound performance.
Up front, the SA35 features a new, bonded 6.5" high-resolution display to show album artwork and metadata which is clearly legible from the comfort of your preferred armchair. For playback, an inclusive feature set supports most smart phones and tablets, as well as popular streaming services. Connecting the SA35 to your home network with Wi-Fi is quick and straightforward with our ARCAM Radia App. Once connected, enjoy instant playback using Apple Airplay, Google Cast, Spotify Connect, Tidal Connect, Qobuz Connect, and Roon (coming soon).
The ARCAM SA35 is the ultimate high resolution audio solution. With outputs for subwoofers, along with Dirac Live Room Correction, the SA35 has the flexibility to deliver exceptional sound, in any room, with your choice of speakers.
- All new, ultra High-Resolution Streaming Platform to deliver on sound quality and user experience
- ARCAM Class G Amplification with 2x 120W of ultra-low distortion power
- MM & MC Phono inputs
- HDMI eARC input
- Dual Subwoofer outputs and Dirac Live Room Correction
- High-resolution display for clealy visible album artwork and metadata
- Supports up to 32 bit / 384 kHz Hi-res audio
- Roon Ready (coming soon)
- Works with Spotify Connect, Tidal Connect and Qobuz Connect
- Supports Apple Airplay and Google Cast
- Setup with ARCAM Radia App for presets, Internet Radio and Podcasts
- Bluetooth with Snapdragon Sound and Auracast
- Plastic Free Packaging
SPECIFICATIONS
| Services |
Works with (apps): ARCAM Radia, Spotify (Connect), Tidal (Connect), Qobuz (Connect), Roon Ready (coming soon)
Works with (services): Apple Airplay, Google Cast
ARCAM Radia supported services (Global): Internet Radio, Podcasts, UPnP, USB Media (using USB-A mass storage input
|
| Continuous power output (0.5% THD), per channel |
2 channels driven, 20Hz . 20kHz, 8Ω: 120W
2 channels driven, 1kHz, 4Ω: 200W
Harmonic distortion, 80% power, 8Ω at 1kHz: 0.002% |
| Analogue Inputs |
Number of inputs: 3 (RCA pairs)
Phono Inputs: MM and MC
Frequency response: 20Hz.20kHz ± 0.2dB
Signal/noise ratio (A-wtd, ref. 50W, 1V input): 106dB |
| Digital Inputs |
Supported Streaming media: FLAC, WAV (LPCM), AAC, ALAC, AIFF, DSD (up to 256), MP3, MP4, OGG, WMA
Supported Streaming Bit depth: 16, 24, 32
Supported Streaming sample rates (kHz): Up to 384 kHz
Gapless Playback: Yes
Digital Audio Inputs: 1x HDMI eARC, 2x Coaxial (RCA), 2x Optical (Toslink)
Supported Digital input Bit depth: 16, 24
Supported Digital input sample rates (kHz): Up to 192 kHz
Frequency response (filter 1): 20Hz.20kHz ± 0.2dB
Signal/noise ratio (A-wtd, ref. 50W, 0dBFS): 110dB |
| Wireless Specifications |
Bluetooth Profile 5.4; A2DP Sink/Source, AVRCP, BLE, Snapdragon Sound, AAC, LE Audio, Auracast
Bluetooth Transmitter Frequency and Power: 2,400 MHz to 2,483.5 MHz: <20dBm
Wi-Fi Network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
2.4G Wi-Fi Transmitter Frequency Range and Power:
2400-2483.5 MHz (USA 11 Channels, Europe and Others 13 Channels): <20dBm
5G Wi-Fi Transmitter Frequency Range and Power:
5150-5250 MHz <23dBm
5250-5350 MHz <20dBm
5470-5725 MHz <20dBm (Not used in China)
5725-5850 MHz <14dBm for EU, <33dBm for other regions. |
| General |
Mains voltage: 100V or 110–120V or 220–240V, 50–60Hz
Power consumption (maximum): 700W
Power consumption (standby): <0.5W
Dimensions W x D (including speaker terminals) x H (including feet):
432 x 344 x 99mm
Weight (net): 12 kg
Weight (packed): 14 kg
|
| Supplied accessories |
Mains lead(s)
Remote control with 2 x AAA batteries
Measurement Microphone
5m USB Cable
Quick Start Guide
Important Safety Instructions |
