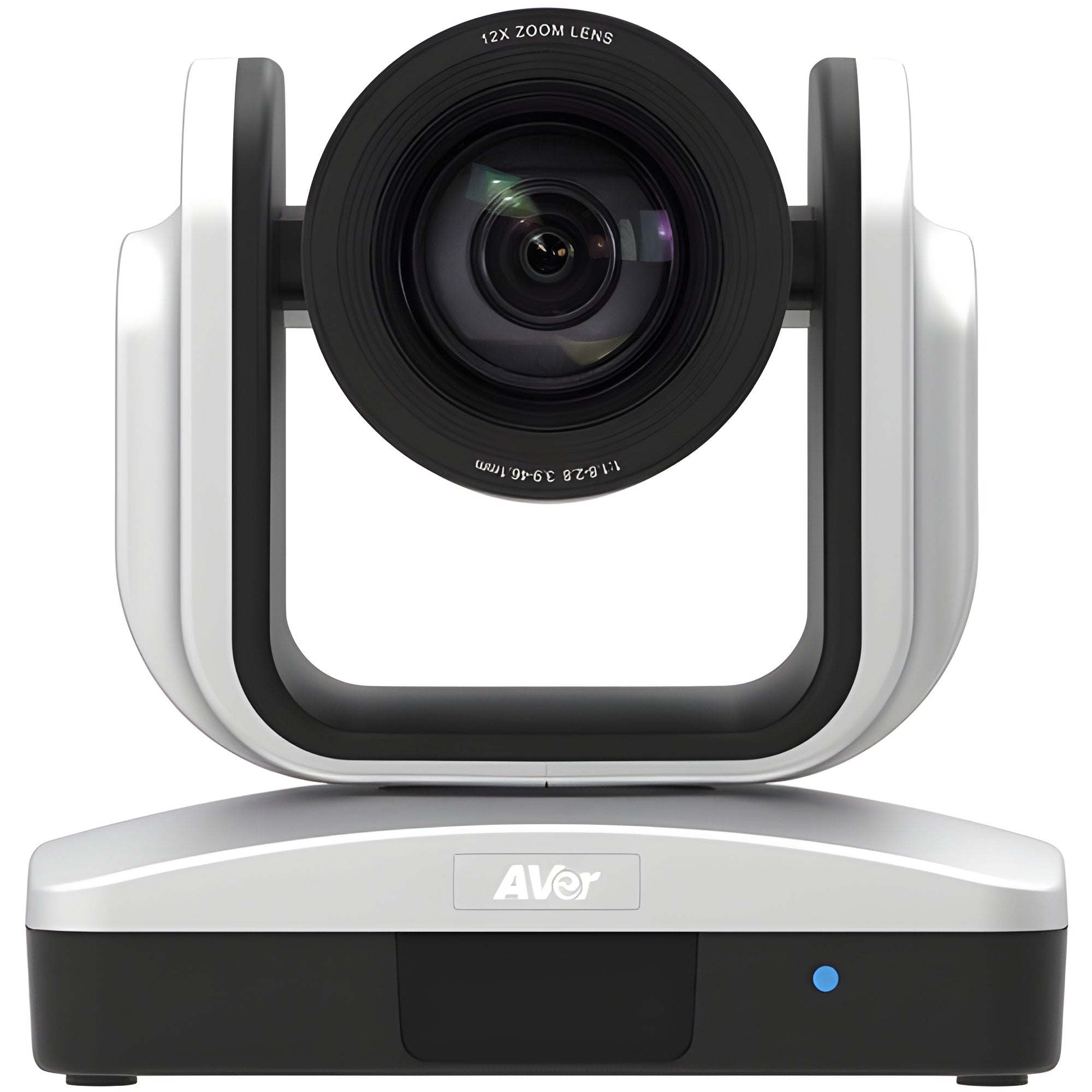

AVer CAM530 Professional HD 12X USB PTZ camera with HDMI - CAM530
The Aver CAM530 is an affordable, professional-grade 12X HDMI 1080p PTZ camera optimized to deliver an exceptional video communication experience. The built-in USB interface is compatible with any desktop or laptop and all of your favorite apps and Cloud Services. Both HDMI and USB can be used simultaneously.

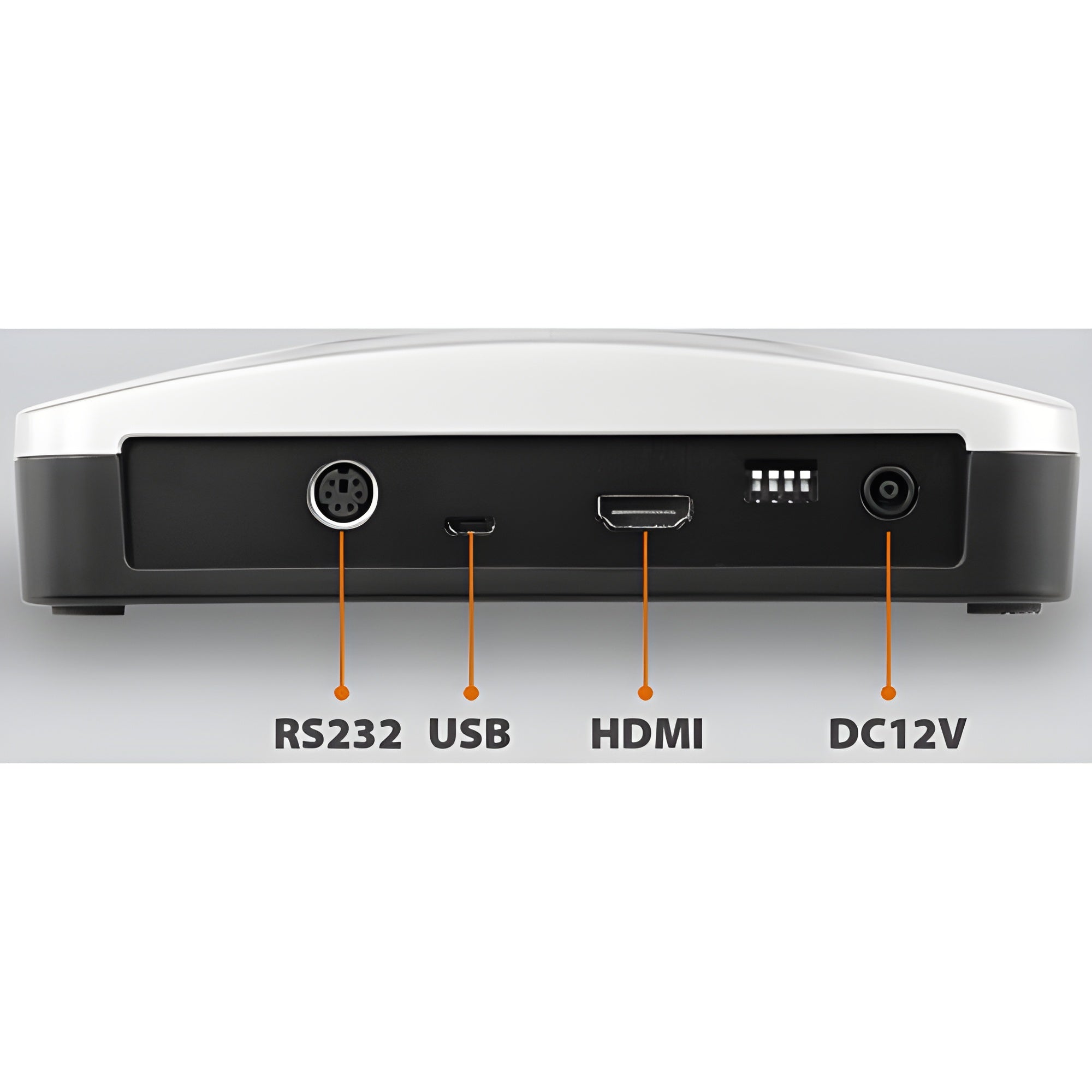

HDMI & USB simultaneous output
You are now able to view simultaneously your USB video recording or streaming with HDMI output.
12X optical zoom with PTZ
With one of the fastest and smoothest true 12X optical zoom 72.5° wide angle camera available on the market today, the CAM530's multi-element, multi-coating auto-focus optics and 12X true optical zoom delivers rapid and smooth pan, tilt and zoom-in performance to capture the smallest details with absolute clarity at every focal length.
1080p 60 frames per second high definition video
With up to 60 frames per second 1080p high definition video built into the CAM530, you will enjoy the highest resolution available for your video conferencing and video collaboration calls.
Up to 100 camera presets
Having only one camera preset can be extremely limiting. The CAM530 allows you to customize your meetings by storing up to 100 PTZ presets by RS232 VISCA or UVC. 10 camera presets can be easily accessed with one touch of the remote, saving you time and providing flexibility to swiftly move to predetermined locations in the conference room.
RS232 VISCA integration capabilities
With advanced integration capabilities built into the CAM530, including an RS232 cable and VISCA support, the system can easily be integrated into a controlled environment allowing users to operate and manage the CAM530 through an AV control panel
Features
- 1920 x 1080 resolution
- 12x Optical Zoom
- RS-232 port and VISCA support
- USB 2.0 UVC video and audio
Specifications
| Sensor |
1/2.8" 60fps low lux 2M pixel CMOS sensor |
| Resolution |
HD 1080 |
| White Balance |
Auto/Manual color temperature adjustment through standard UVC command |
| Output |
USB & HDMI |
| Camera Control |
IR remote control, VISCA via RS-232, UVC PTZapp |
| Focal Length |
f/1.8 (wide) to 2.8 (tele) |
| Minimum Object Distance |
Minimum Working Distance: 3.2' (1 m) |
| Pan Angle |
±130° |
| Tilt Angle |
+90° (up) -25° (down) |
| Presets |
10 camera presets (through remote control), 100 (through VISCA & UVC) |
| Operating Temperature |
32 to 104°F (0 to 40°C) |
| Power |
100 to 240 VAC, 50/60 Hz |
| Minimum Illumination |
3.5 lx (50 IRE, F1.8, shutter 1/30) |
| Optical Zoom |
12x |
What our Expect Think
-
HD 1080P Video Quality: Delivers sharp, high-definition video for professional-level conferencing and streaming.
-
12X Optical Zoom: Provides detailed, close-up shots even from a distance, perfect for dynamic presentations and events.
-
USB Plug-and-Play: Easy to set up with USB 3.0 connectivity—just plug in and start your video call or stream.
-
HDMI Output: Offers additional flexibility with HDMI support for external displays and video recording.
-
Flexible PTZ Control: Pan, tilt, and zoom with precision to capture every angle, ideal for meeting rooms and larger events.
-
Compatibility with Major Platforms: Works seamlessly with Zoom, Microsoft Teams, Skype, and other popular video conferencing solutions.
Q&A
Q: What is the AVer CAM530?
A: The AVer CAM530 is a professional HD 12X USB PTZ camera with HDMI output, designed for video conferencing, live streaming, and professional video production. It offers high-quality video with smooth pan, tilt, and zoom capabilities.
Q: Is the CAM530 suitable for video conferencing?
A: Yes, with its 12X optical zoom and high-definition video output, the CAM530 is perfect for professional video conferencing, providing clear and detailed video for meetings and presentations.
Q: What control options are available for the CAM530?
A: The CAM530 can be controlled remotely via IR remote, RS-232, or through software, providing flexibility for different video production environments.
Q: Does the CAM530 work with third-party applications?
A: Yes, the CAM530 is compatible with most popular video conferencing and streaming platforms, such as Zoom, Skype, Microsoft Teams, YouTube, and more.
Maintenance Tips
-
Regular Lens Cleaning – Gently clean the lens with a microfiber cloth to avoid smudges and maintain sharp video quality.
-
Update Firmware – Keep the firmware up to date to ensure optimal performance and new feature access.
-
Check Connections – Ensure the USB and HDMI connections are secure to avoid signal issues during video calls or streaming.
-
Smooth PTZ Movements – Use gradual PTZ adjustments to reduce motor wear and tear for long-term performance.
-
Prevent Overheating – Store the camera in a well-ventilated area to avoid overheating, especially during extended use.
-
Test Audio and Video – Regularly check the audio and video sync to ensure a seamless conferencing experience.
-
Keep Dust-Free – Store the camera in a dust-free location to preserve its performance and prevent internal dust buildup.
