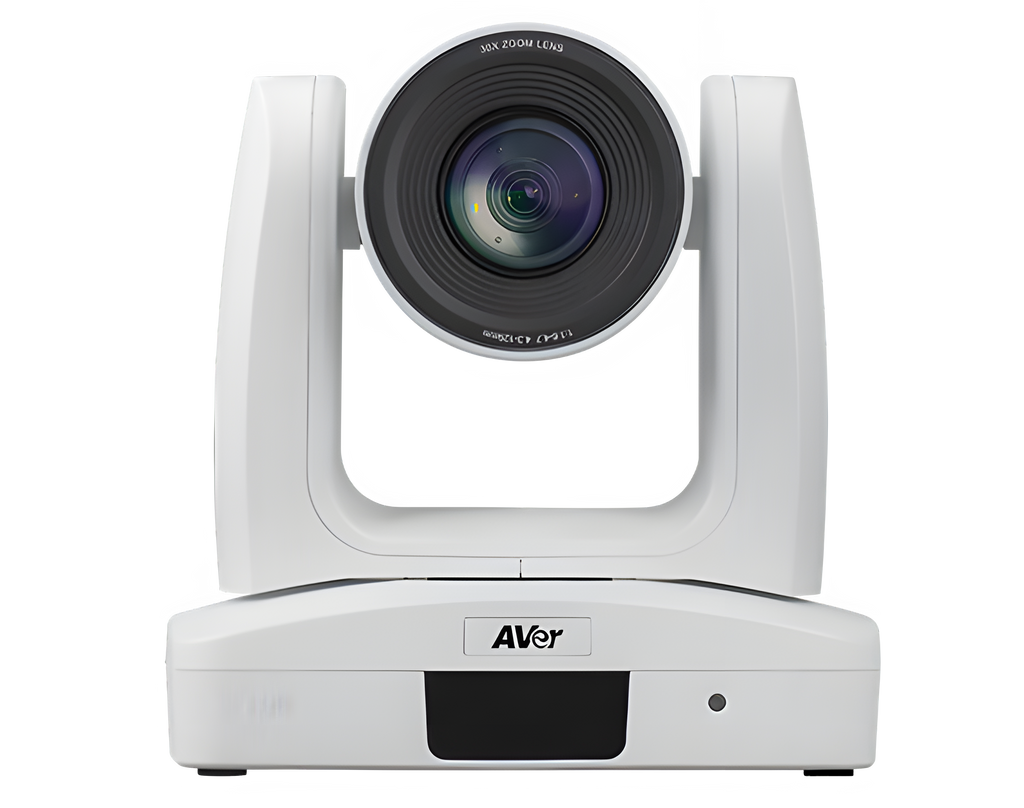

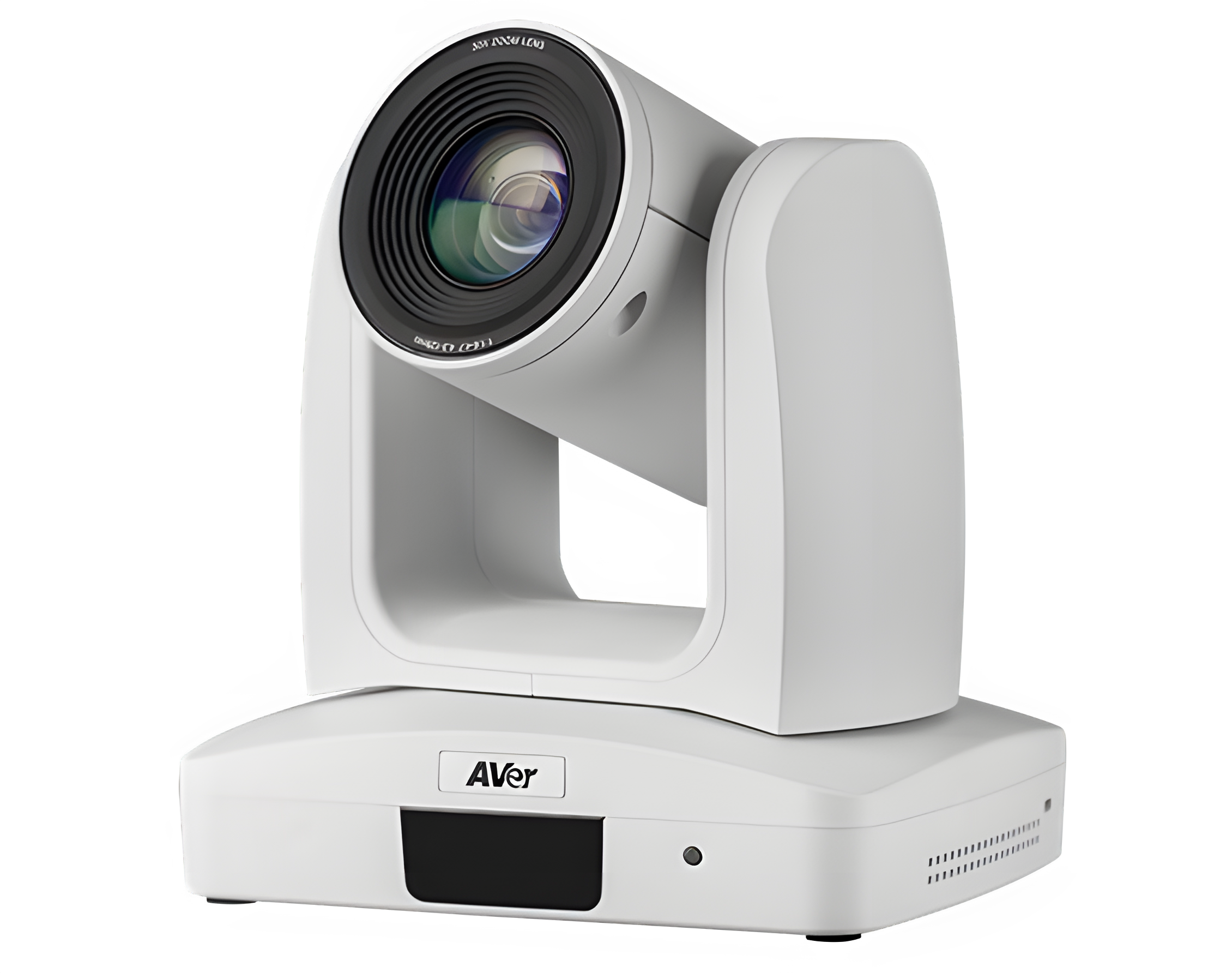

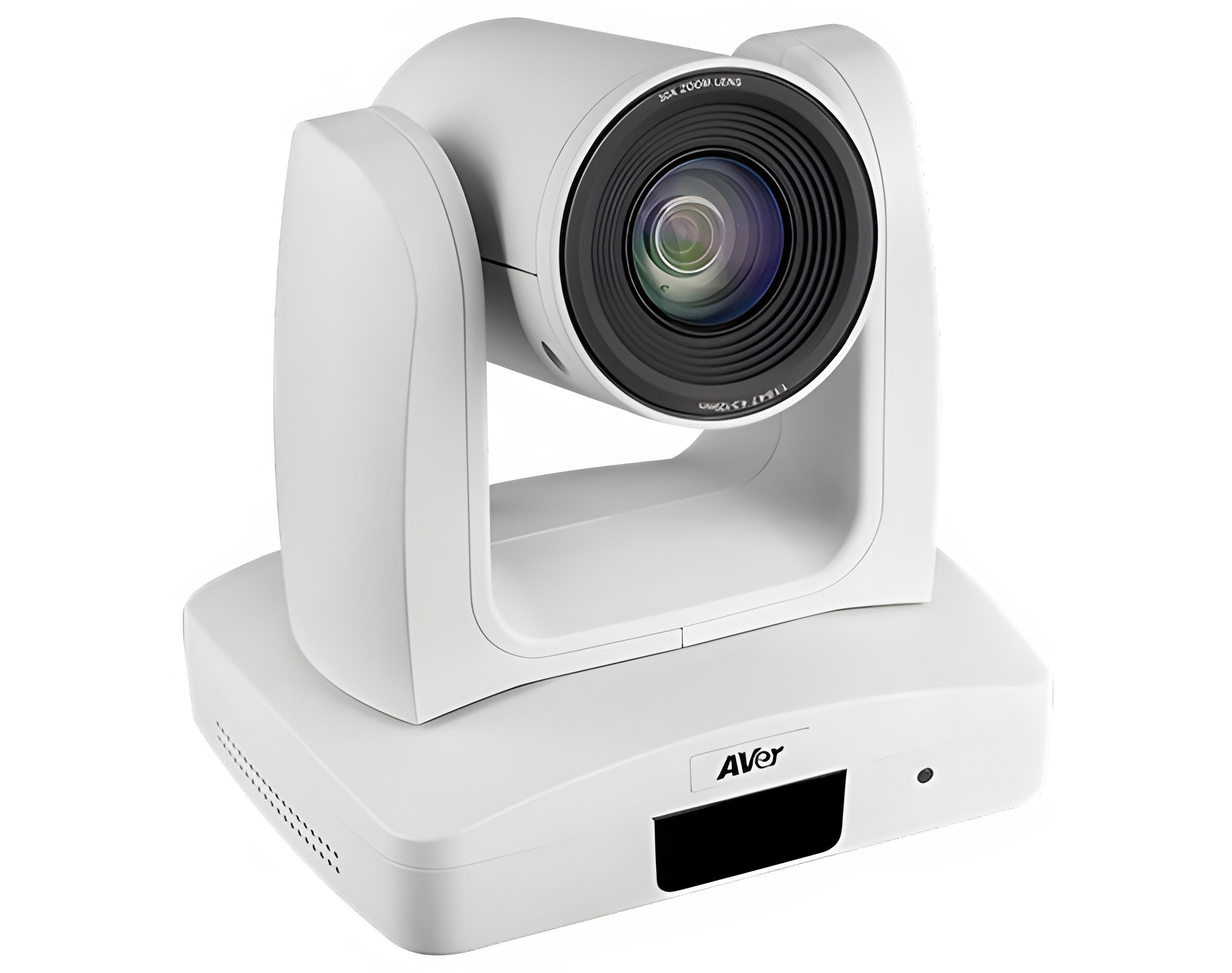

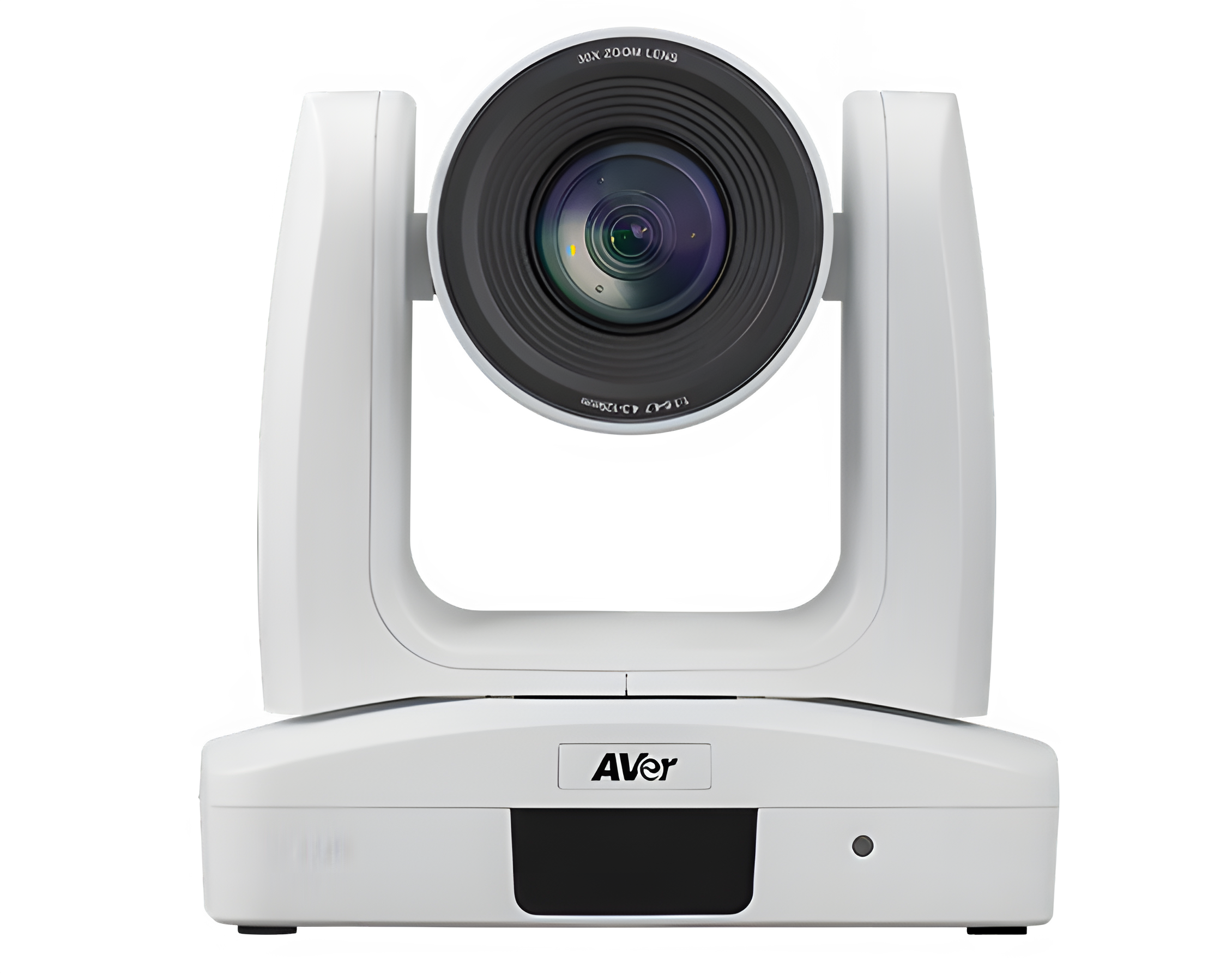

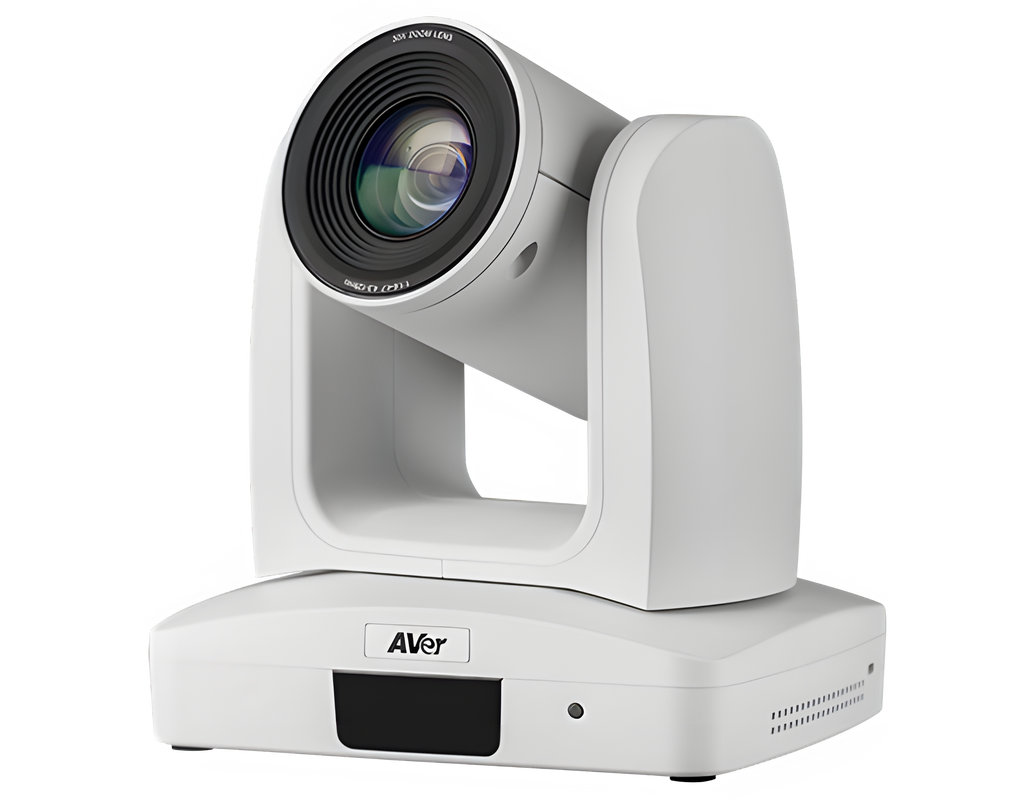

AVer PTZ310NW Professional PTZ HD camera (White) - PTZ310NW
Capture your events in true-to-life video quality with NDI-HX Connectivity
The AVer PTZ310N NDI PTZ Live Streaming Camera is the latest camera with NewTek NDI integrated. It combines both standard SDI and HDMI connections as well as Ethernet/NDI network connectivity for HD video streaming, recording, and broadcasting. The PTZ310N can output HD video and audio while receiving control signal and power over a single connection. Pan, tilt, zoom, recording settings, and more can also be adjusted remotely over Ethernet. The NDI protocol, NewTek's innovative IP technology, gives you low-latency access to audio and video devices anywhere on your network for various A/V applications.
Seamless tracking between your preset zones
AVer SmartShoot optimizes your camera controls for automatic and seamless content capturing between your preset areas. With SmartShoot’s preset zone tracking you can create an uncompromising multi-camera feel with just one PTZ310N across all your preset zones. Save effortand time, while providing your video with a huge variety of shooting ranges.
Fit your FOV in seconds
AVer’s new SmartFrame provides you with one-touch face targeting technology to create stunning video content fast. SmartFrame instantly adjusts your FOV to fit everyone on screen at stunning speed so you can start recording presentations, lectures, and more with no hassle. Perfect for capturing multiple people, SmartFrame makes video content capturing easy and enjoyable.
Highly versatile camera motion control
The PTZ310N advanced Motion Control Settings allow you to preform precise and steady camera movement during recording. Customizable speed controls provide you the ability to change movement speeds to best optimize your recording experience and with a wide shooting range, you will always produce superior video content. Furthermore, the PTZ310N is capable of pan/tilt rotation maneuvers as small as 0.1° per step equipping you with perfectly fluid control when record.
Prepare for any angle with outstanding preset location functionality
Preset the PTZ310N with up to 255 different locations through VISCA via RS232 and RS422 functionality. Always be prepared to change your recording view with its simplified IR remote and the ability to set 10 preprogrammed preset locations for easy manual control of the recording view.
Features
- Full HD 1080p60
- 12X Optical Zoom
- HDMI/USB IP/3G-SDI
- IP Streaming
Specifications
| Sensor |
1/2.8” 1080p 60fps Exmor CMOS |
| Resolution |
4K |
| Signal-to-Noise Ratio |
Noise Reduction (2D/3D) |
| Gain |
Auto / Manual |
| Shutter Speed Range |
1/1s to 1/32,000s |
| White Balance |
Auto / Indoor / Outdoor / One-push / Manual (2500 - 10000) |
| Image Flip |
Flip, Mirror |

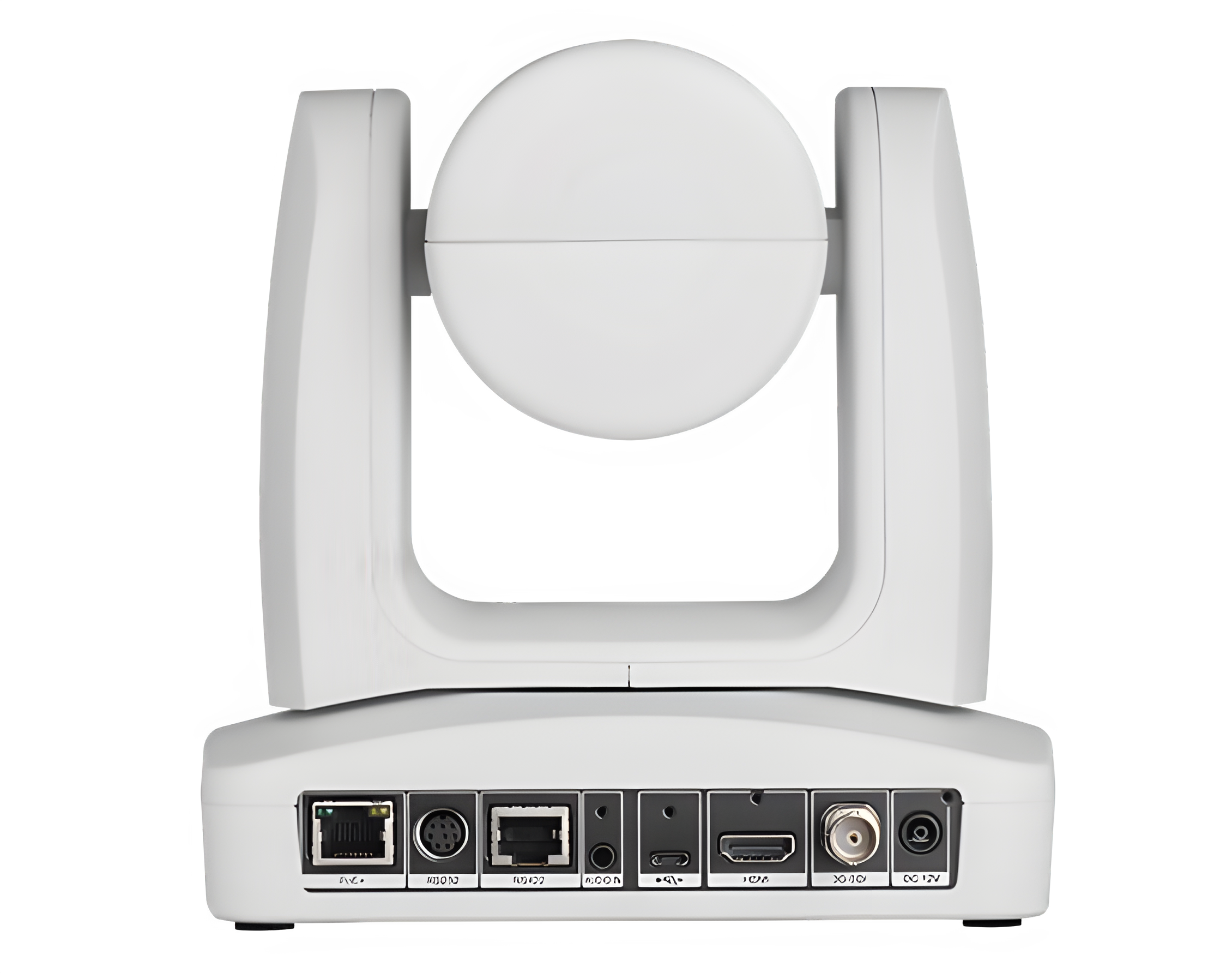

| Output |
3G-SDI, HDMI, IP, USB |
| Audio Input |
MIC / Line-in |
| Audio |
AAC-LC (48/44.1/32/24K), G.711/PCM (16K/8K) |
| Camera Control |
IP, RS-232, RS-422, VISCA |
| Focal Length |
3.9 to 46.8mm |
| Optical Zoom |
3x |
| Pan Angle |
170° |
| Tilt Angle |
-30° to 90° |
| Pan Speed |
0.1 to 100°/sec |
| Tilt Speed |
0.1 to 100°/sec |
| Presets |
10 via IR, 255 via RS-232 |
| Minimum Illumination |
0.4 lux |
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Power |
1 x Barrel / Coaxial (12 VDC at 5 A), PoE+ 802.3at |
What our Expect Think
-
Full HD 1080p Resolution – Captures crisp, high-quality video for professional conferencing and streaming.
-
12X Optical Zoom + 12X Digital Zoom – Offers smooth, precise zooming for detailed close-ups.
-
SmartFrame Technology – AI-powered auto-framing keeps participants in view automatically.
-
Pan, Tilt, Zoom (PTZ) Control – Wide 170° pan and 120° tilt range for dynamic coverage.
-
True WDR & Low Light Performance – Ensures clear visuals in varying lighting conditions.
-
Multiple Output Options – Supports HDMI, USB, and IP streaming for versatile connectivity.
-
PoE+ (Power over Ethernet) – Simplifies installation with a single cable for power and data.
-
White Color Design – Blends seamlessly into modern meeting rooms and worship spaces.
Q&A
Q: What is the AVer PTZ310NW?
A: A professional PTZ HD camera with 12X optical zoom, Full HD 1080p resolution, and NDI|HX support for seamless video streaming and conferencing.
Q: Is it suitable for live streaming and broadcasting?
A: Yes, it supports NDI|HX, HDMI, and IP streaming, making it ideal for live events, worship services, and online education.
Q: What control options are available?
A: It offers remote control via RS-232, RS-422, IP, and web UI for flexible operation.
Q: What makes it ideal for professional use?
A: Its AI tracking, high-quality zoom, and multiple output options ensure smooth and reliable video production.
Maintenance Tips
-
Clean the Lens Gently – Use a microfiber cloth to ensure sharp image quality.
-
Keep Firmware Updated – Optimize performance, security, and compatibility.
-
Avoid Direct Sunlight & Heat – Prevent sensor damage and overheating.
-
Secure Power & Network Connections – Ensure stable connectivity and operation.
-
Use Smooth PTZ Movements – Prevent motor strain by avoiding abrupt manual adjustments.
-
Store in a Dust-Free Environment – Keep vents and sensors clear for optimal function.
-
Mount Securely – Ensure stability to avoid vibration or misalignment.
