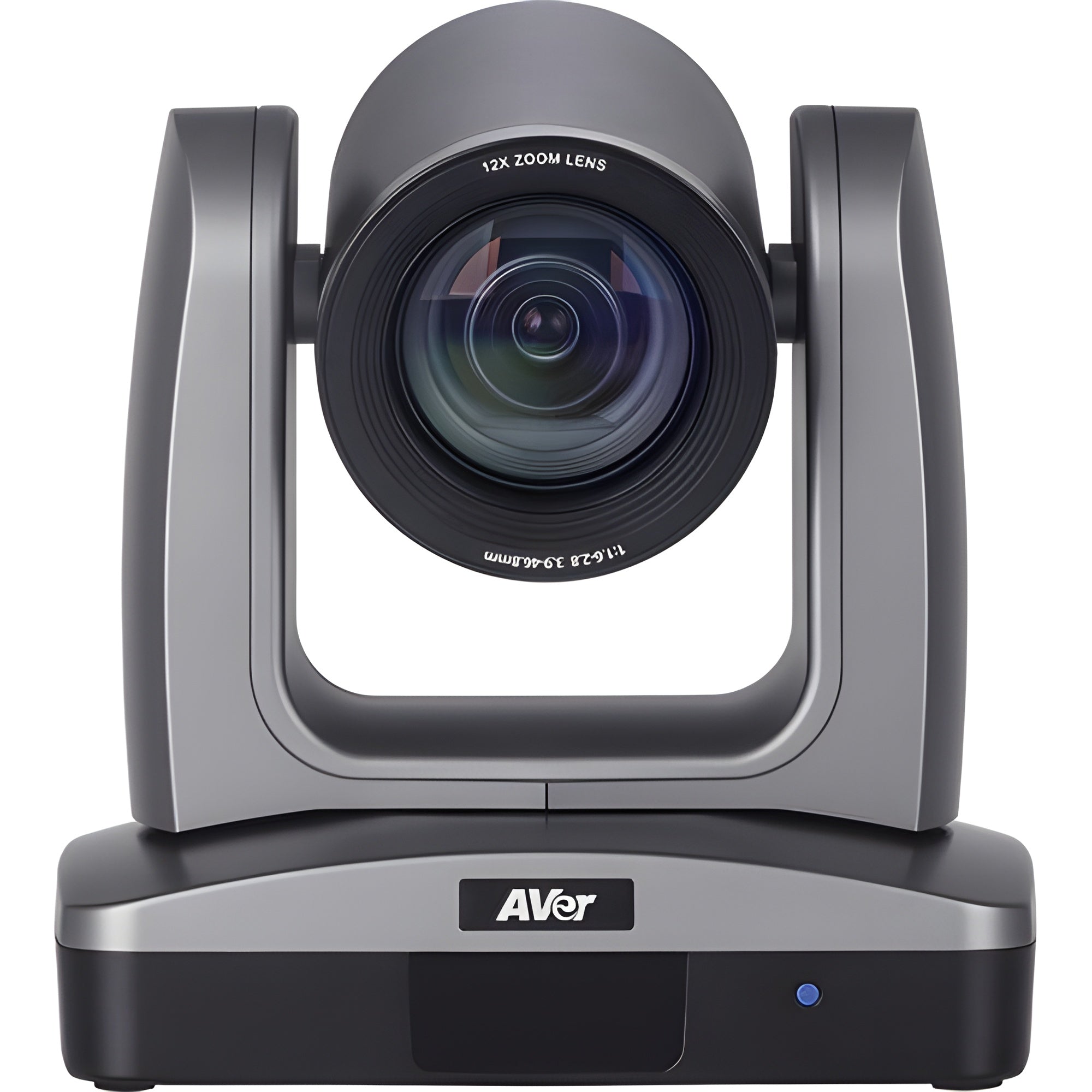

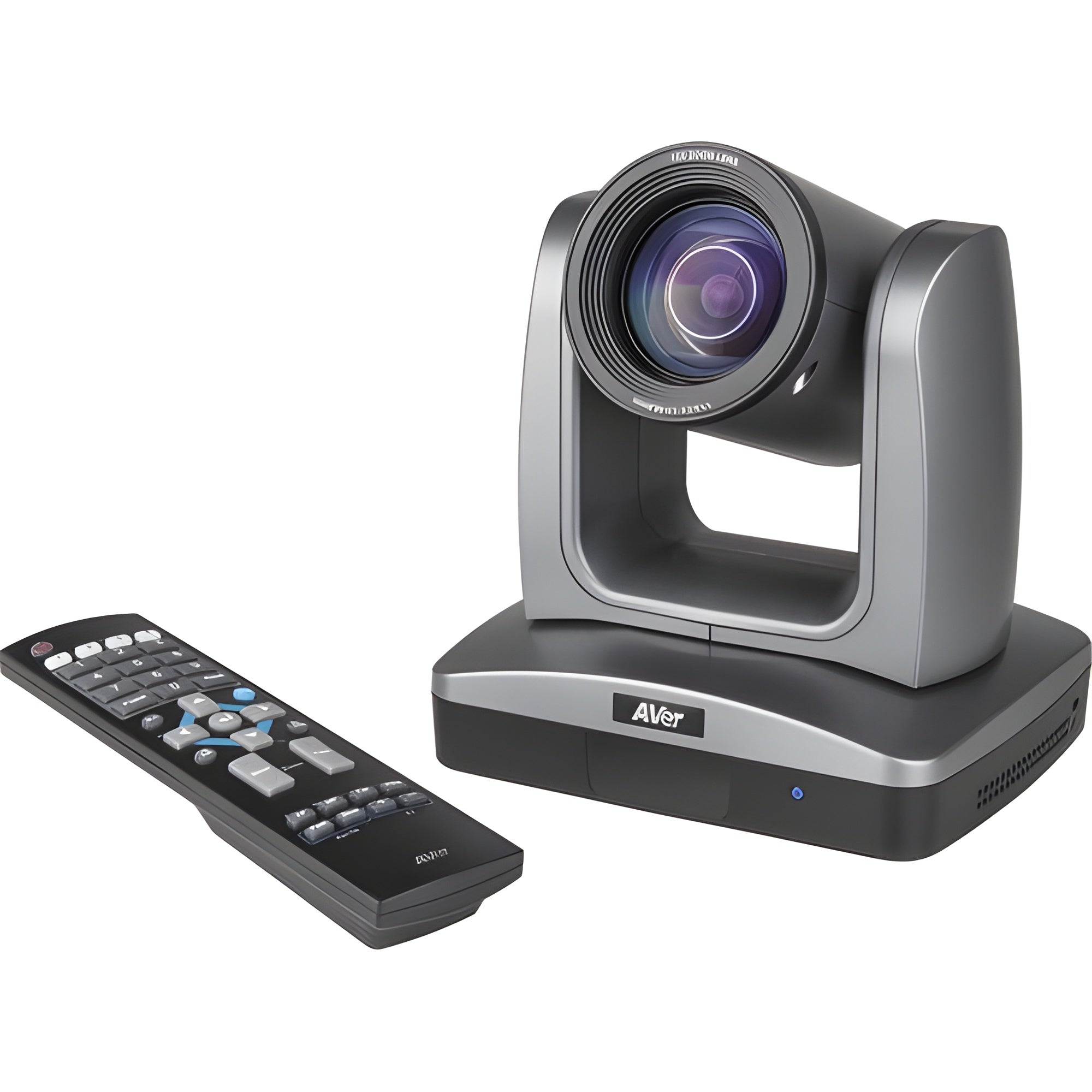

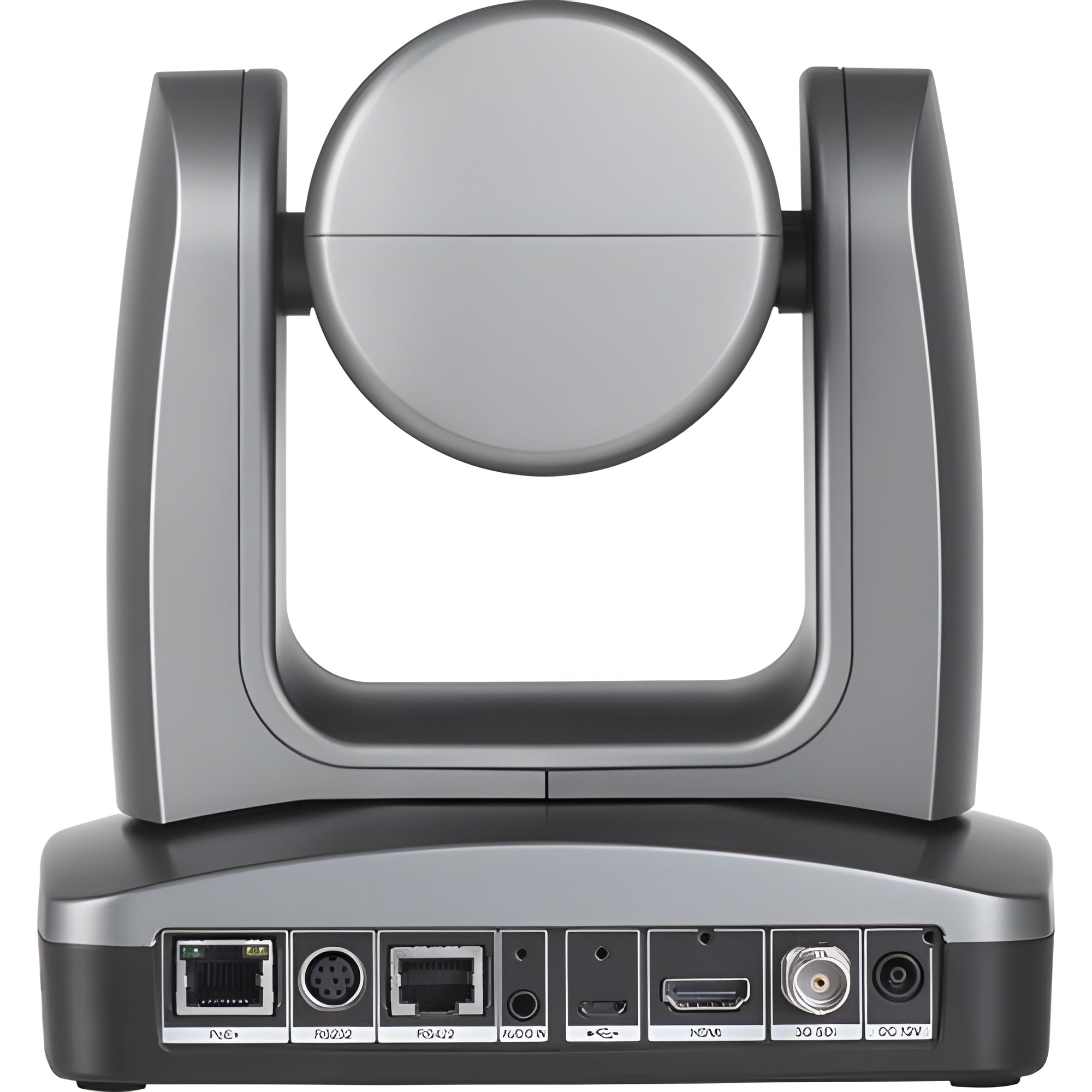

AVer PTZ330 Professional PTZ HD camera - PTZ330
Capture your events in true-to-life video quality
The AVer PTZ310 Professional Live Streaming PTZ Camera provides the superior video quality and versatility you need to record and share events around the world! Available in white to suit your hospital, classroom, or wedding atmospheres.
Seamless tracking between your preset zones
AVer SmartShoot optimizes your camera controls for automatic and seamless content capturing between your preset areas. With SmartShoot’s preset zone tracking you can create an uncompromising multi-camera feel with just one PTZ310 across all your preset zones. Save effortand time, while providing your video with a huge variety of shooting ranges.
Fit your FOV in seconds
AVer’s new SmartFrame provides you with one-touch face targeting technology to create stunning video content fast. SmartFrame instantly adjusts your FOV to fit everyone on screen at stunning speed so you can start recording presentations, lectures, and more with no hassle. Perfect for capturing multiple people, SmartFrame makes video content capturing easy and enjoyable.
Highly versatile camera motion control
The PTZ310 advanced Motion Control Settings allow you to preform precise and steady camera movement during recording. Customizable speed controls provide you the ability to change movement speeds to best optimize your recording experience and with a wide shooting range, you will always produce superior video content. Furthermore, the PTZ310 is capable of pan/tilt rotation maneuvers as small as 0.1° per step equipping you with perfectly fluid control when record.
Prepare for any angle with outstanding preset location functionality
Preset the PTZ310 with up to 255 different locations through VISCA via RS232 and RS422 functionality. Always be prepared to change your recording view with its simplified IR remote and the ability to set 10 preprogrammed preset locations for easy manual control of the recording view.
Features
- IP Streaming
- HDMI/USB IP/3G-SDI
- Full HD 1080p60
- 30X Optical Zoom
Specifications
| Sensor |
1/2.8” 1080p 60fps Exmor CMOS |
| Resolution |
HD 1080 |
| Signal-To-Noise Ratio |
Noise Reduction (2D/3D) |
| Gain |
Auto / Manual |
| Shutter Speed Range |
1/1s to 1/32,000s |
| White Balance |
Auto / Indoor / Outdoor / One-push / Manual (2500 - 10000) |
| Image Flip |
Flip, Mirror |
| Output |
3G-SDI, HDMI, IP, USB |
| Audio Input |
MIC / Line-in |
| Audio |
AAC-LC (48/44.1/32/24K), G.711/PCM (16K/8K) |
| Camera Control |
IP, RS-232, RS-422, VISCA |
| Focal Length |
f = 4.3mm (Wide) ~ 129mm (Tele) |
| Minimum Object Distance |
0.01m (Wide), 1.2m (Tele) |
| Pan Angle |
170° |
| Tilt Angle |
-30° to 90° |
| Pan Speed |
0.1 to 100°/sec |
| Tilt Speed |
0.1 to 100°/sec |
| Presets |
10 via IR, 255 via RS-232 |
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Power |
1 x Barrel / Coaxial (12 VDC at 5 A), PoE+ 802.3at |
| Minimum Illumination |
0.4 lux |
| Optical Zoom |
30x |
What our Expect Think
-
Ultra HD 4K Resolution – Captures stunningly clear, detailed video at 4K, perfect for high-quality video conferences, live streaming, and broadcasts.
-
30X Optical Zoom – Achieves close-up clarity with smooth zoom, ideal for large venues or capturing fine details from a distance.
-
Wide Pan & Tilt Range – Offers a 170° pan and 90° tilt, ensuring complete coverage of the room or event space.
-
Low Light Performance – Delivers sharp, high-quality video even in challenging lighting conditions, ensuring reliability in varied environments.
-
Advanced Auto-Framing – Automatically adjusts the camera frame to keep participants centered in the shot, improving user experience.
-
Multiple Output Options – Supports HDMI, USB 3.0, and 3G-SDI outputs, allowing flexible integration with a wide range of video production systems.
-
Power over Ethernet (PoE) – Simplifies setup by powering the camera through a single Ethernet cable for ease of installation.
-
Flexible Remote Control – Fully compatible with AVer’s PTZ control software for remote management and preset configuration
Q&A
Q: What is the AVer PTZ330?
A: The AVer PTZ330 is a professional PTZ HD camera offering 30X optical zoom, Full HD 1080p resolution, and advanced NDI|HX support, ideal for broadcasting, live streaming, and video conferencing.
Q: Is it suitable for live streaming and broadcasting?
A: Yes, it supports NDI|HX, HDMI, and IP streaming, making it perfect for live events, church services, corporate meetings, and more.
Q: What control options are available?
A: It offers control via RS-232, RS-422, IP, web UI, and VISCA over IP for remote operation and integration with other systems.
Q: Why is this camera ideal for professional use?
A: Its powerful zoom, AI auto-tracking, and multiple connectivity options make it perfect for high-quality video production in any professional setting.
Maintenance Tips
-
Clean the Lens Regularly – Use a microfiber cloth to maintain optimal video quality.
-
Update Firmware Periodically – Ensure the camera is up-to-date for security and feature improvements.
-
Avoid Direct Sunlight & Excessive Heat – Protect the camera from potential sensor damage and overheating.
-
Ensure Stable Power & Network Connections – Maintain a steady connection to avoid interruptions during use.
-
Use Smooth PTZ Movements – Prevent motor strain by avoiding abrupt adjustments.
-
Store in a Dust-Free Environment – Keep vents and sensors clean for optimal performance.
-
Secure Mounting – Ensure the camera is properly mounted to avoid vibrations and misalignment.
