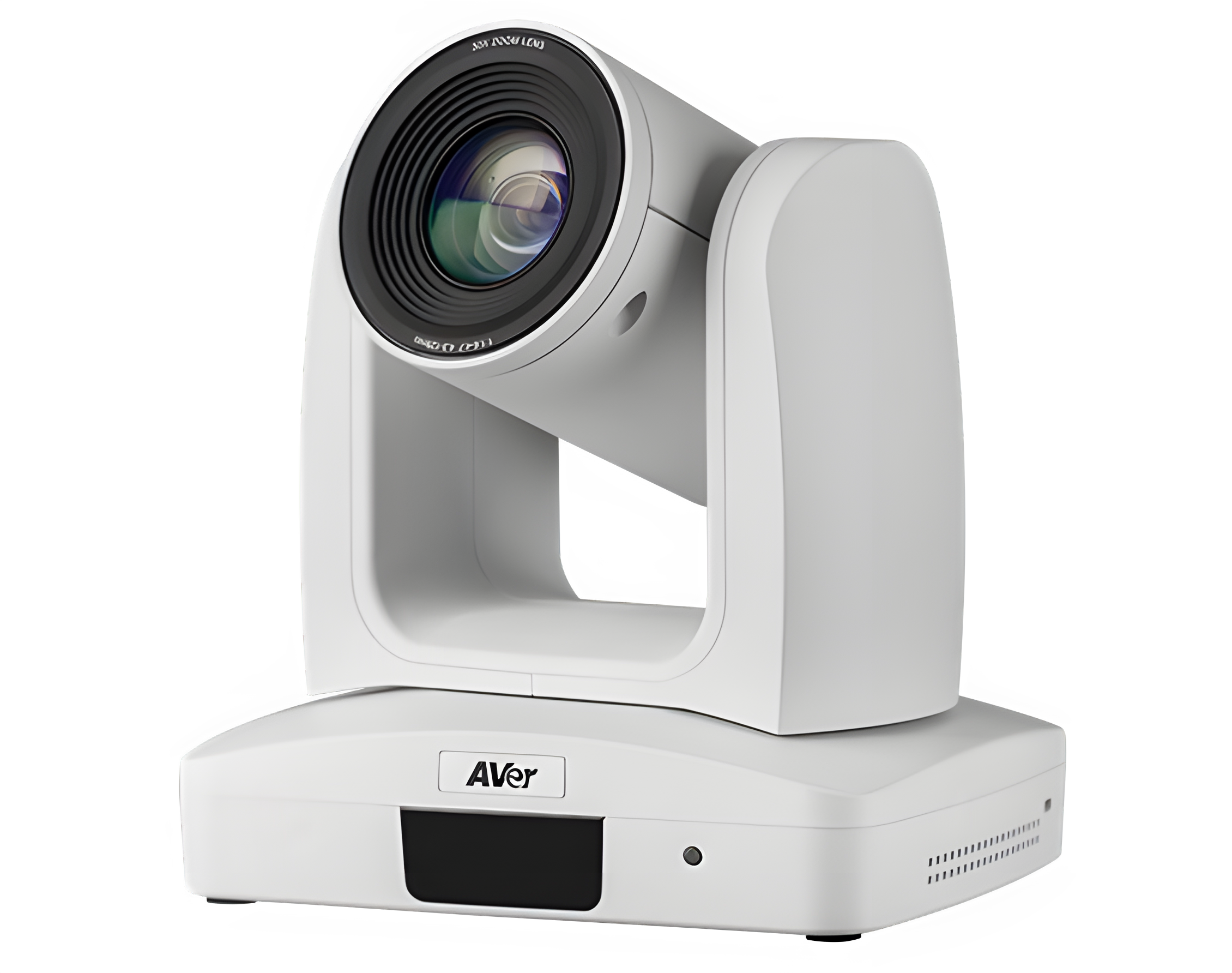

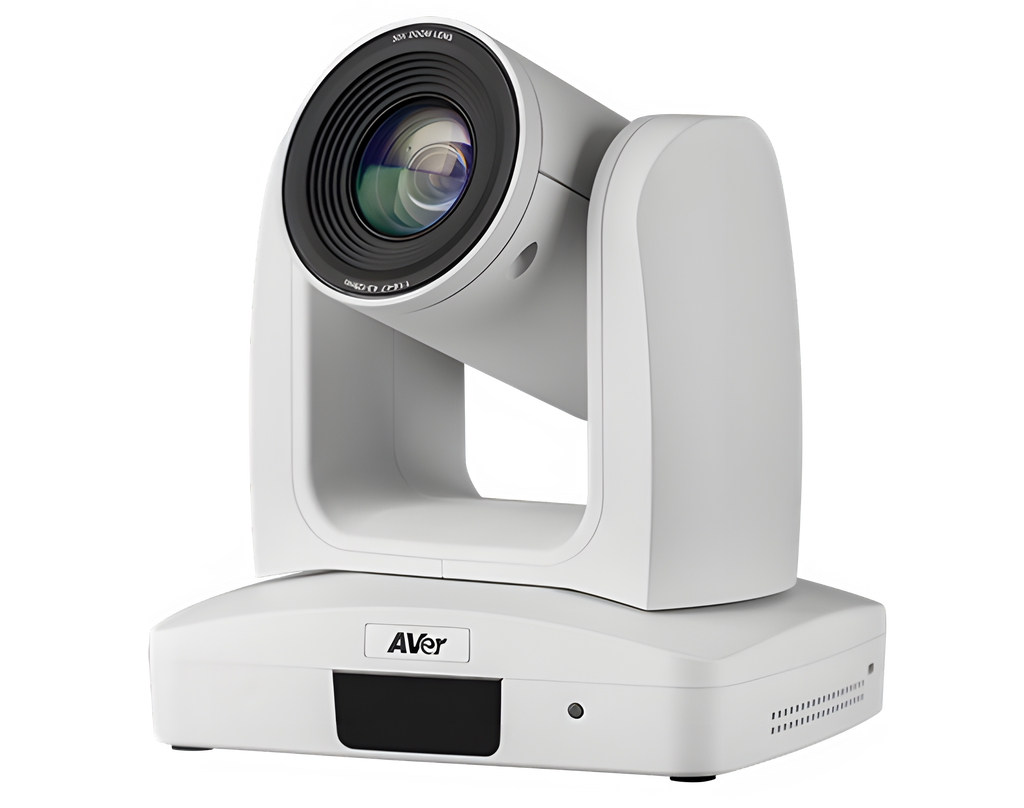

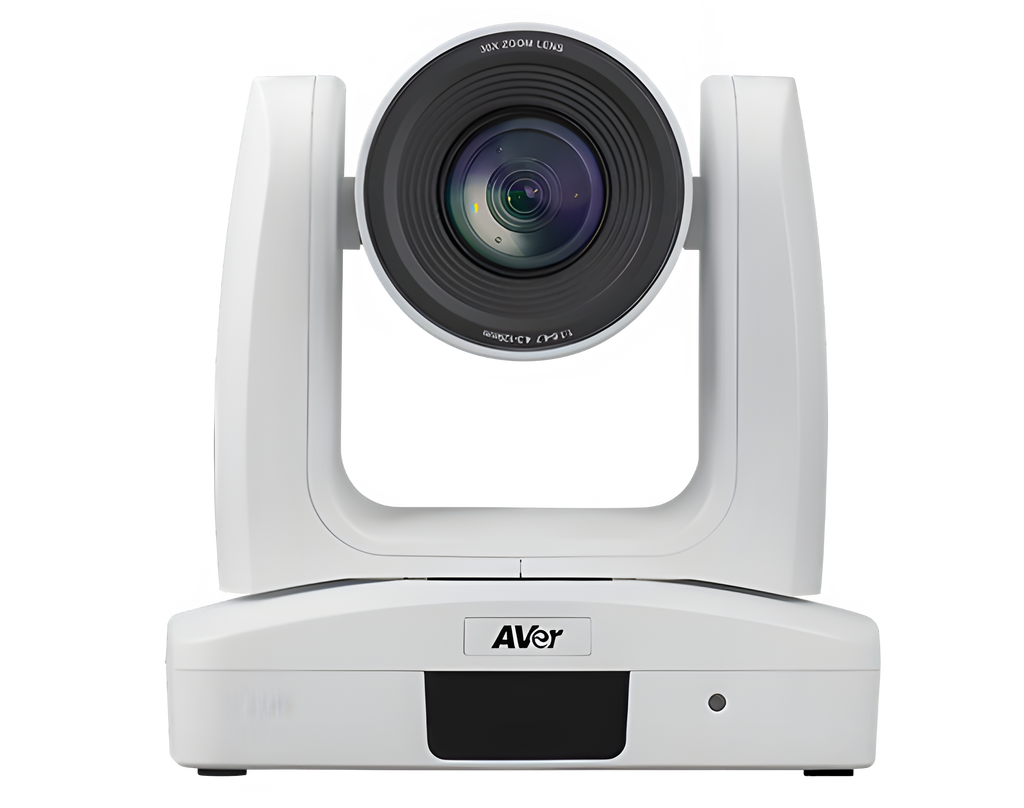

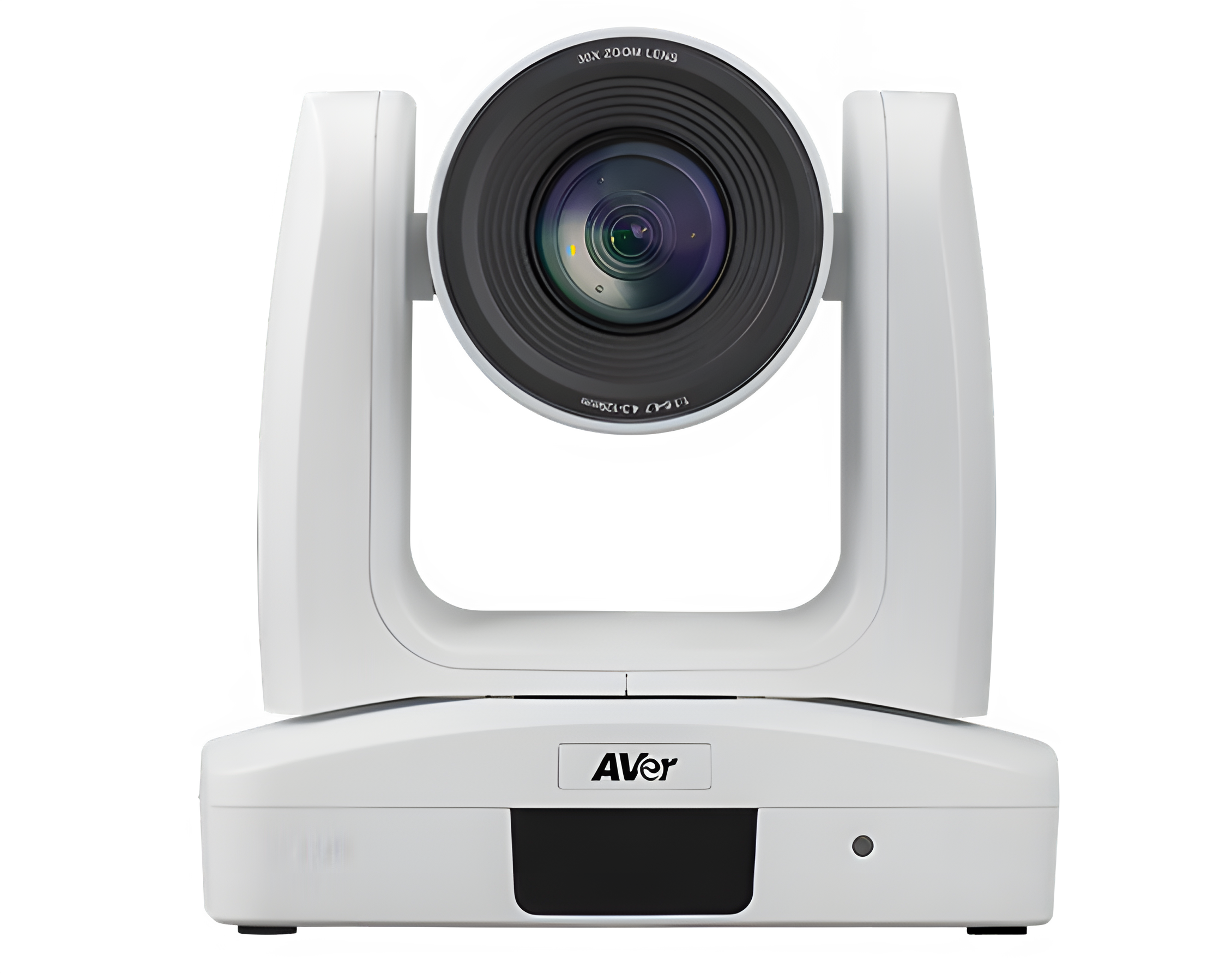

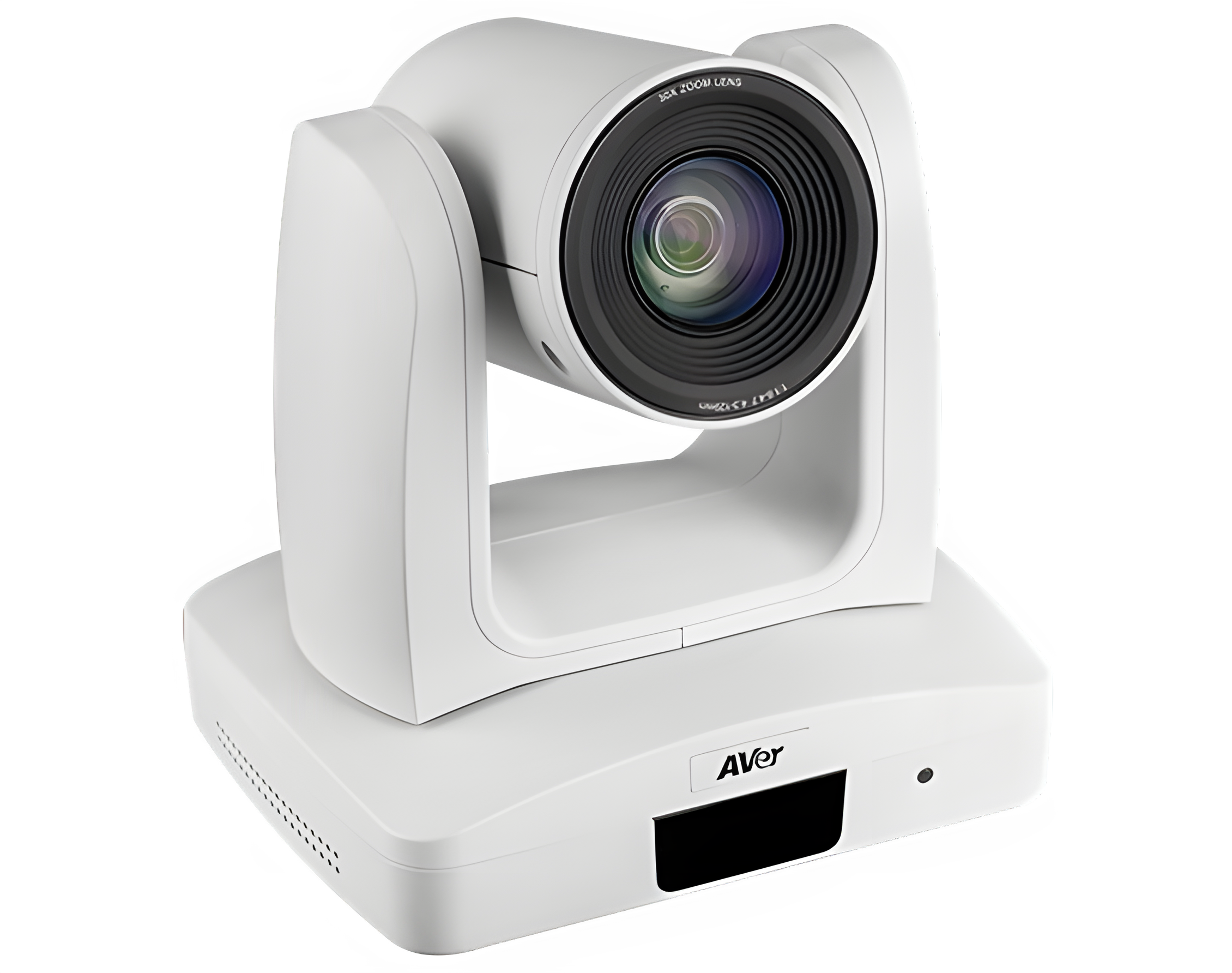

AVer PTZ330N-W NDI PTZ Live Streaming Camera (White) - PTZ330NW
Capture your events in true-to-life video quality with NDI-HX Connectivity
The AVer PTZ330N NDI PTZ Live Streaming Camera is the latest camera with NewTek NDI® integrated. It combines both standard SDI and HDMI connections as well as Ethernet/NDI network connectivity for HD video streaming, recording, and broadcasting. The PTZ330N can output HD video and audio while receiving control signal and power over a single connection. Pan, tilt, zoom, recording settings, and more can also be adjusted remotely over Ethernet. The NDI protocol, NewTek's innovative IP technology, gives you low-latency access to audio and video devices anywhere on your network for various A/V applications.
Seamless tracking between your preset zones
AVer SmartShoot optimizes your camera controls for automatic and seamless content capturing between your preset areas. With SmartShoot’s preset zone tracking you can create an uncompromising multi-camera feel with just one PTZ330N across all your preset zones. Save effortand time, while providing your video with a huge variety of shooting ranges.
Fit your FOV in seconds
AVer’s new SmartFrame provides you with one-touch face targeting technology to create stunning video content fast. SmartFrame instantly adjusts your FOV to fit everyone on screen at stunning speed so you can start recording presentations, lectures, and more with no hassle. Perfect for capturing multiple people, SmartFrame makes video content capturing easy and enjoyable.
Highly versatile camera motion control
The PTZ330N advanced Motion Control Settings allow you to preform precise and steady camera movement during recording. Customizable speed controls provide you the ability to change movement speeds to best optimize your recording experience and with a wide shooting range, you will always produce superior video content. Furthermore, the PTZ330N is capable of pan/tilt rotation maneuvers as small as 0.1° per step equipping you with perfectly fluid control when record.
Prepare for any angle with outstanding preset location functionality
Preset the PTZ330N with up to 255 different locations through VISCA via RS232 and RS422 functionality. Always be prepared to change your recording view with its simplified IR remote and the ability to set 10 preprogrammed preset locations for easy manual control of the recording view.
Features
- PoE Supports
- Low-Latency NDI Video

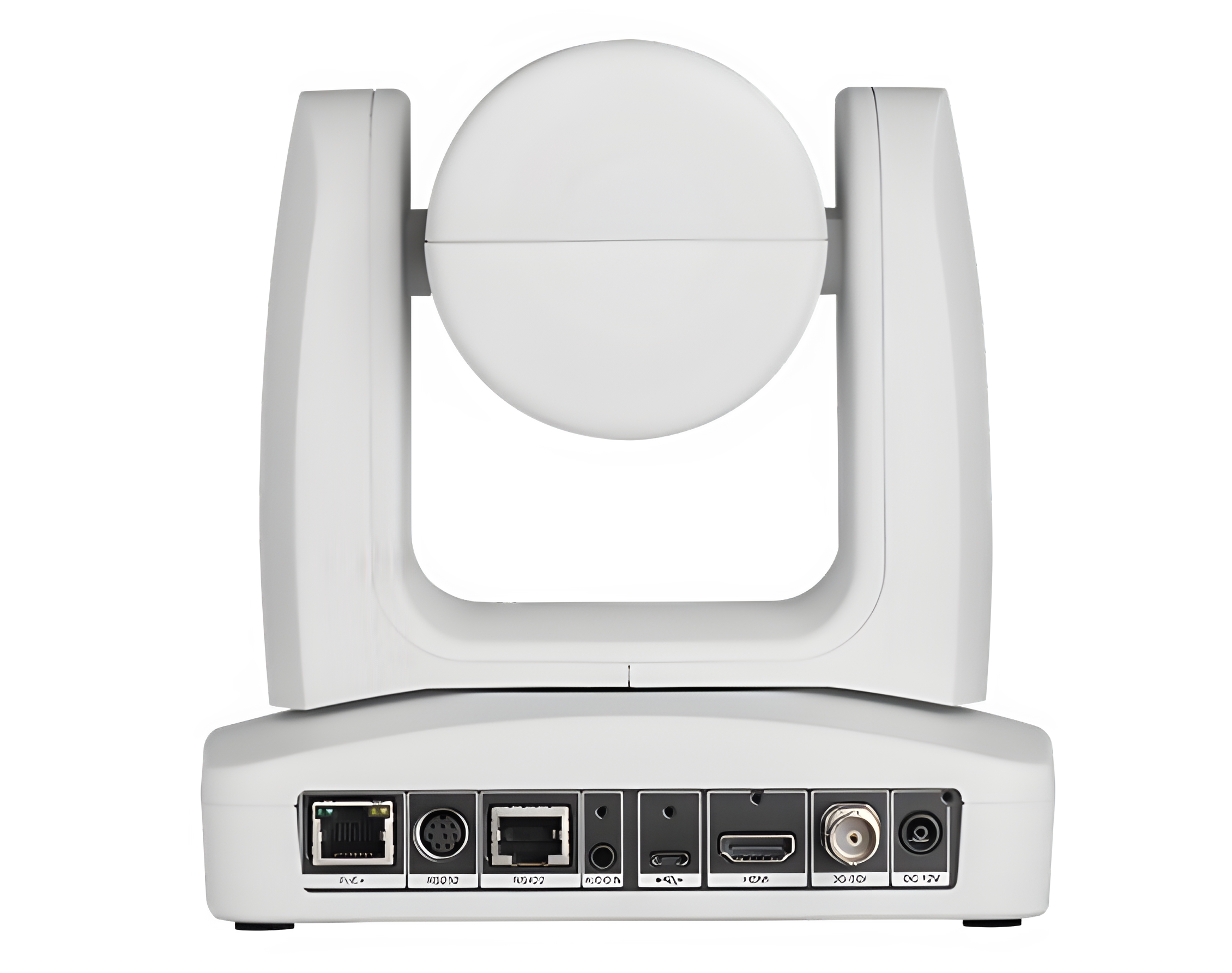

- HDMI, SDI, NDI/IP & USB
- 30X Optical Zoom
- Support NDI|HX2 protocol
Specifications
| Sensor |
1/2" 1080p 60fps Exmor CMOS |
| Resolution |
HD 1080 |
| Signal-To-Noise Ratio |
(IP) Noise reduction (2D/3D) |
| Gain |
Auto / Manual |
| Shutter Speed Range |
1/1s to 1/32,000s |
| Exposure Control |
Auto, Manual, Priority AE (Shutter, IRIS), BLC |
| White Balance |
Auto / Indoor / Outdoor / One-push / Manual (2500 - 10000) |
| Image Flip |
Flip, Mirror |
| Output |
3G-SDI, HDMI, IP, USB |
| Audio Input |
MIC / Line-in / 3.5mm (NDI |
| Audio |
3G-SDI, HDMI, IP, USB, AAC-LC (48/44.1/32/24K), G.711/PCM (16K/8K) |
| Camera Control |
RS232 (DIN8) / RS422 (RJ45), NDI |
| Focal Length |
f = 4.3mm (Wide) ~ 129mm (Tele) |
| Minimum Object Distance |
0.01m (Wide), 1.2m (Tele) |
| Pan Angle |
±170° |
| Tilt Angle |
+90°/-30° |
| Pan Speed |
0.1 ~ 100°/Sec |
| Tilt Speed |
0.1 ~ 100°/Sec |
| Presets |
10 (IR), 255 (RS232) |
| Operating Temperature |
Temperature: 0°C ~ +40°C; Humidity: 20% ~ 80% |
| Power |
AC100V-AC240V to DC12V/5A |
| Minimum Illumination |
0.3 lux (IRE50, F1.6, 30fps) |
| Optical Zoom |
30x |
What our Expect Think
-
4K Resolution: Provides stunning 4K video quality for crystal-clear live streaming and broadcasting.
-
NDI Support: Seamless network video integration for efficient, high-quality IP-based live streaming.
-
30X Optical Zoom: Captures distant subjects with precision, ideal for large venues and dynamic events.
-
PTZ Control: Pan, tilt, and zoom capabilities for versatile camera positioning and smooth tracking.
-
Sleek White Design: Aesthetic design that blends well into modern environments, perfect for studios and professional settings.
-
Multiple Connectivity Options: Includes HDMI, USB, and IP streaming, offering flexibility for various production setups.
Q&A
Q: What is the AVer PTZ330N-W?
A: The AVer PTZ330N-W is a high-performance NDI PTZ camera with 30x optical zoom, designed for live streaming, broadcasting, and professional video production. It features smooth pan, tilt, and zoom functionality, and comes in a sleek white design.
Q: How does NDI support benefit live streaming?
A: NDI (Network Device Interface) allows for high-quality, low-latency video streaming over IP networks, eliminating the need for traditional video cables and enabling seamless integration with other NDI-enabled devices and production systems.
Q: Is the PTZ330N-W suitable for professional broadcasting?
A: Yes, with its 30x optical zoom, NDI support, and high-definition video output, the PTZ330N-W is ideal for live broadcasts, streaming events, and professional video production.
Q: What control options are available for the PTZ330N-W?
A: The camera can be remotely controlled via RS-232, RS-422, IP, and NDI, offering flexibility for various video production setups.
Maintenance Tips
-
Regular Lens Cleaning – Use a microfiber cloth to gently clean the lens, ensuring clear and sharp video quality.
-
Update Firmware – Keep the firmware updated to maintain the latest features and functionality.
-
Stable Network Connection – Ensure your NDI network connection is stable for uninterrupted live streaming and video output.
-
Smooth PTZ Movements – Handle the PTZ functions with care, avoiding abrupt movements to extend the camera's motor lifespan.
-
Check Cable Connections – Secure all connections (NDI, USB, HDMI, etc.) to avoid signal disruptions during use.
-
Prevent Overheating – Keep the camera in a well-ventilated area to ensure proper cooling during long live streams.
-
Store in a Clean Area – Store the camera in a dust-free environment to maintain its performance and longevity.
