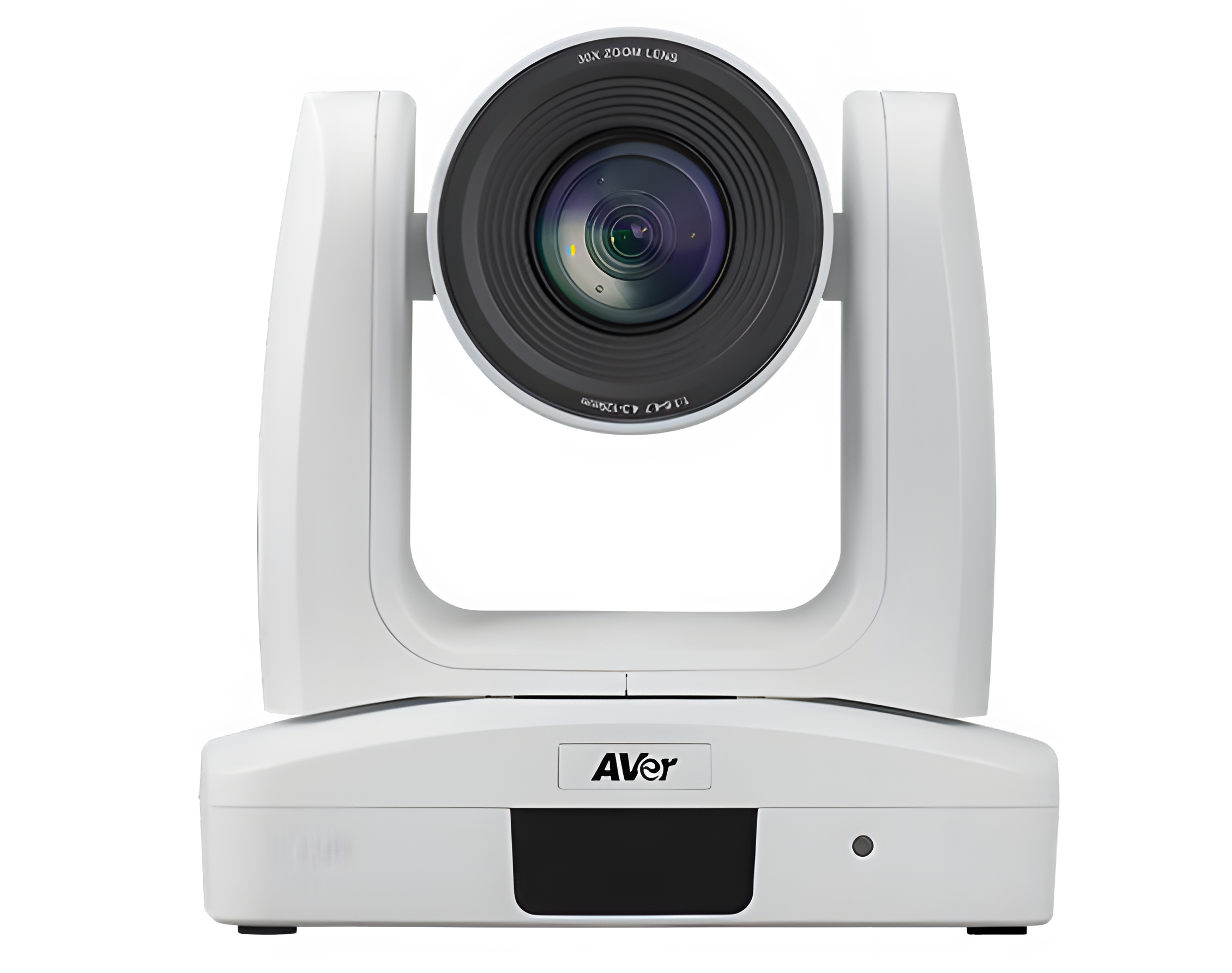

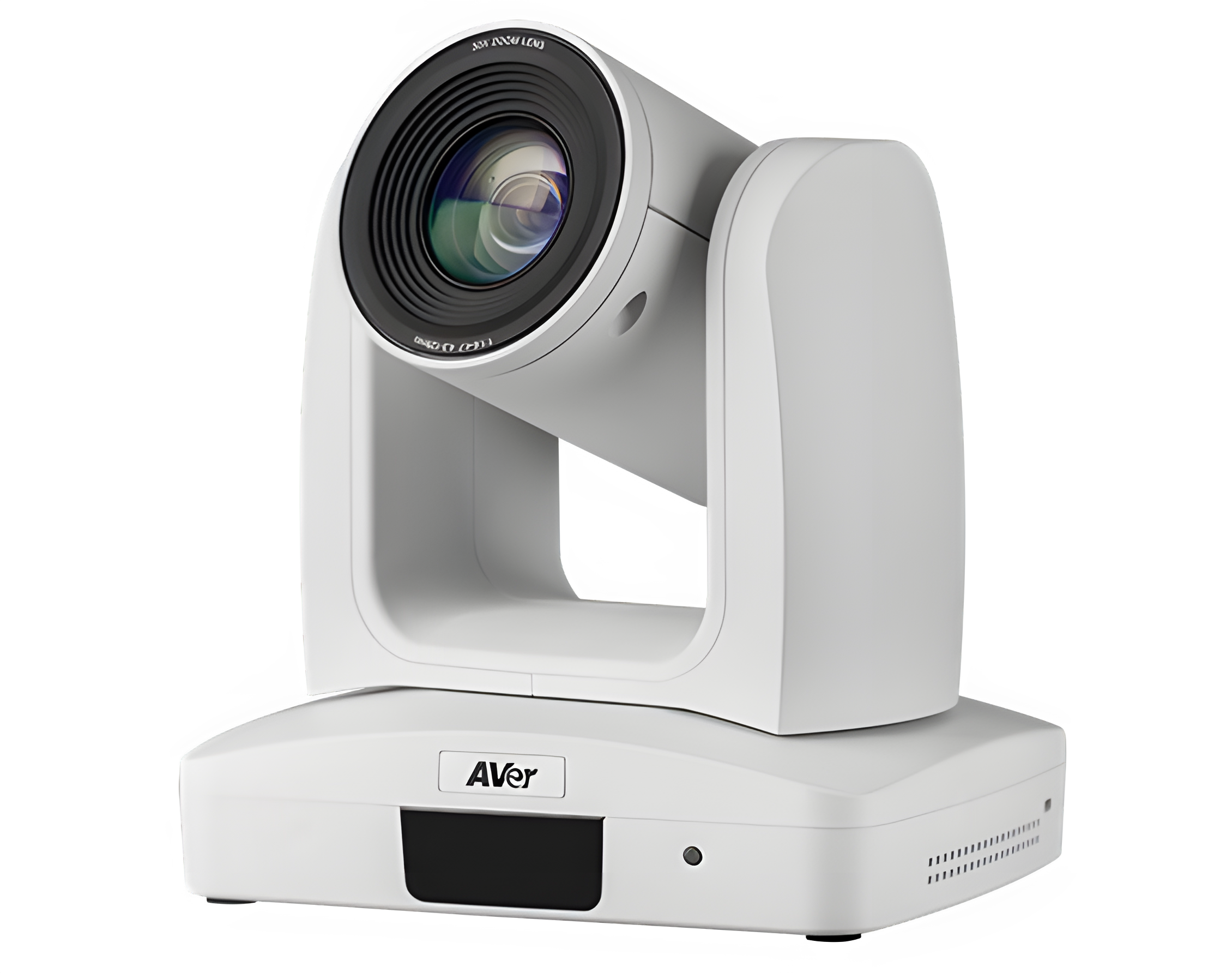

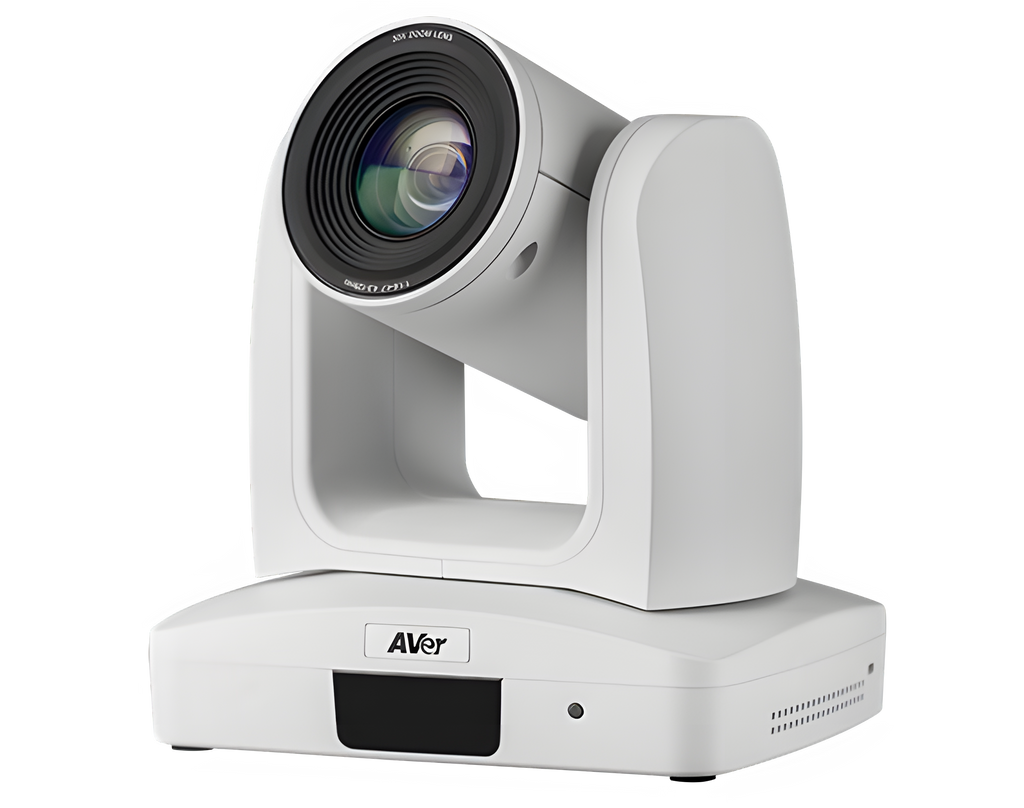

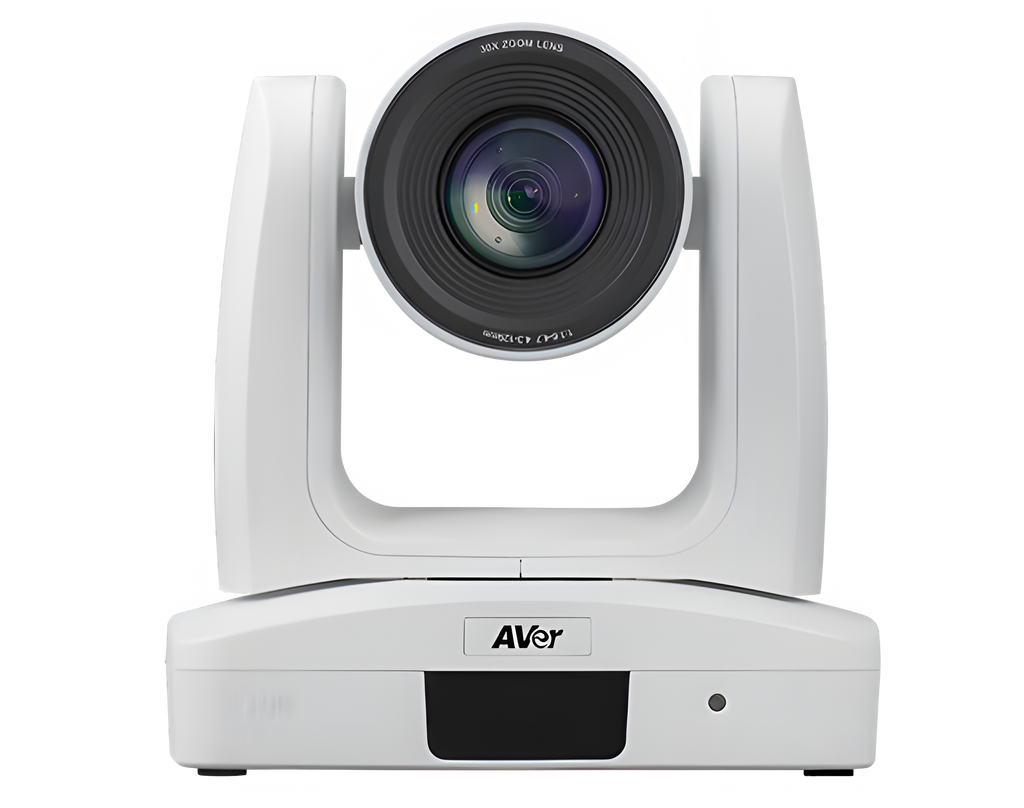

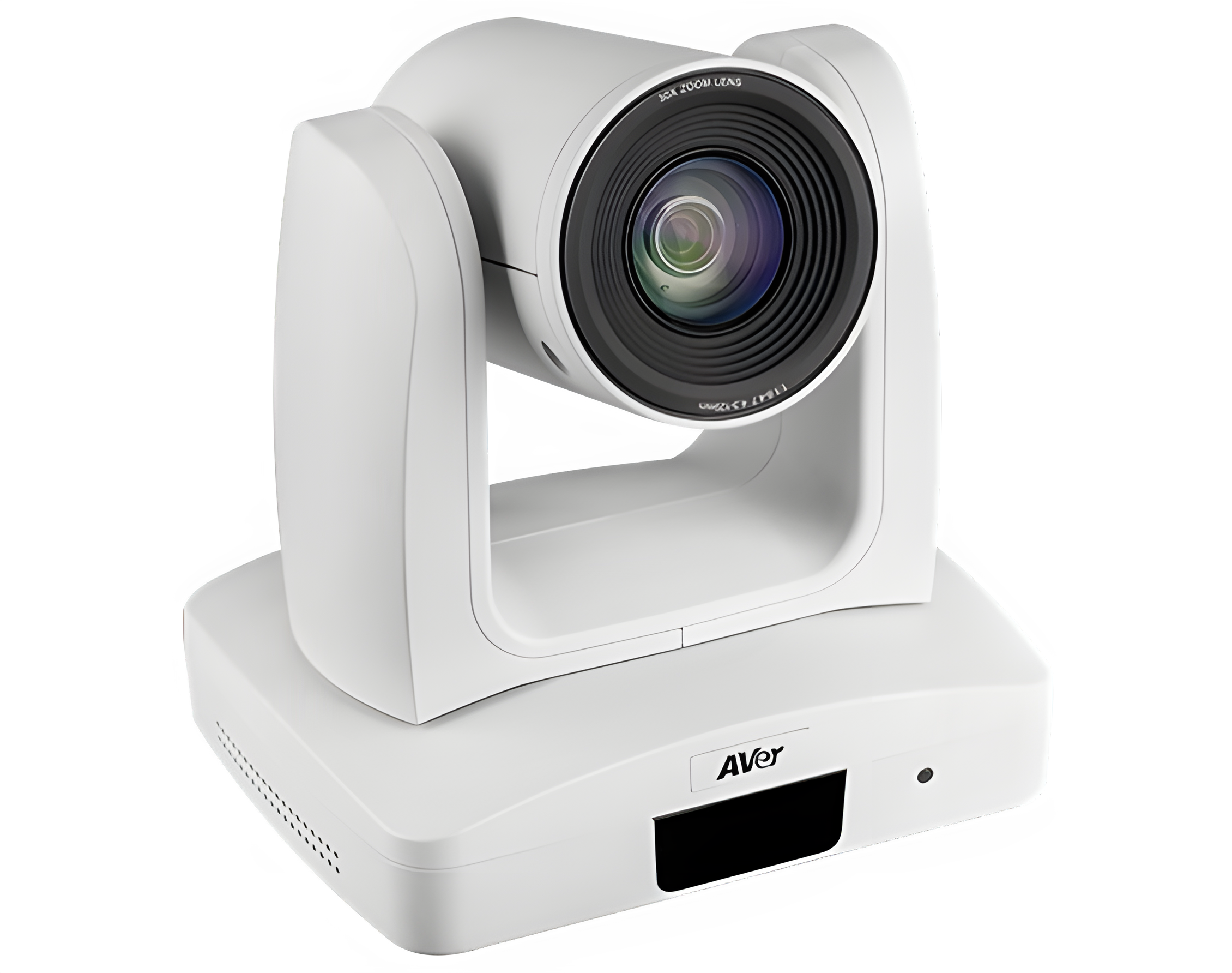

AVer PTZ330W Professional PTZ HD camera (White) - PTZ330W
Capture your events in true-to-life video quality
The AVer PTZ330W Professional Live Streaming PTZ Camera provides the superior video quality and versatility you need to record and share events around the world! Available in white to suit your hospital, classroom, or wedding atmospheres.
Seamless tracking between your preset zones
AVer SmartShoot optimizes your camera controls for automatic and seamless content capturing between your preset areas. With SmartShoot’s preset zone tracking you can create an uncompromising multi-camera feel with just one PTZ330 across all your preset zones. Save effortand time, while providing your video with a huge variety of shooting ranges.
Fit your FOV in seconds
AVer’s new SmartFrame provides you with one-touch face targeting technology to create stunning video content fast. SmartFrame instantly adjusts your FOV to fit everyone on screen at stunning speed so you can start recording presentations, lectures, and more with no hassle. Perfect for capturing multiple people, SmartFrame makes video content capturing easy and enjoyable.
Highly versatile camera motion control
The PTZ330 advanced Motion Control Settings allow you to preform precise and steady camera movement during recording. Customizable speed controls provide you the ability to change movement speeds to best optimize your recording experience and with a wide shooting range, you will always produce superior video content. Furthermore, the PTZ330 is capable of pan/tilt rotation maneuvers as small as 0.1° per step equipping you with perfectly fluid control when record.
Prepare for any angle with outstanding preset location functionality
Preset the PTZ330 with up to 255 different locations through VISCA via RS232 and RS422 functionality. Always be prepared to change your recording view with its simplified IR remote and the ability to set 10 preprogrammed preset locations for easy manual control of the recording view.
Features
- Full HD 1080p60
- 30X Optical Zoom
- HDMI/USB IP/3G-SDI
- IP Streaming
Specifications
| Sensor |
1/2.8” 1080p 60fps Exmor CMOS |
| Resolution |
4K |
| Signal-To-Noise Ratio |
Noise Reduction (2D/3D) |
| Gain |
Auto / Manual |
| Shutter Speed Range |
1/1s to 1/32,000s |
| White Balance |
Auto / Indoor / Outdoor / One-push / Manual (2500 - 10000) |
| Image Flip |
Flip, Mirror |
| Output |

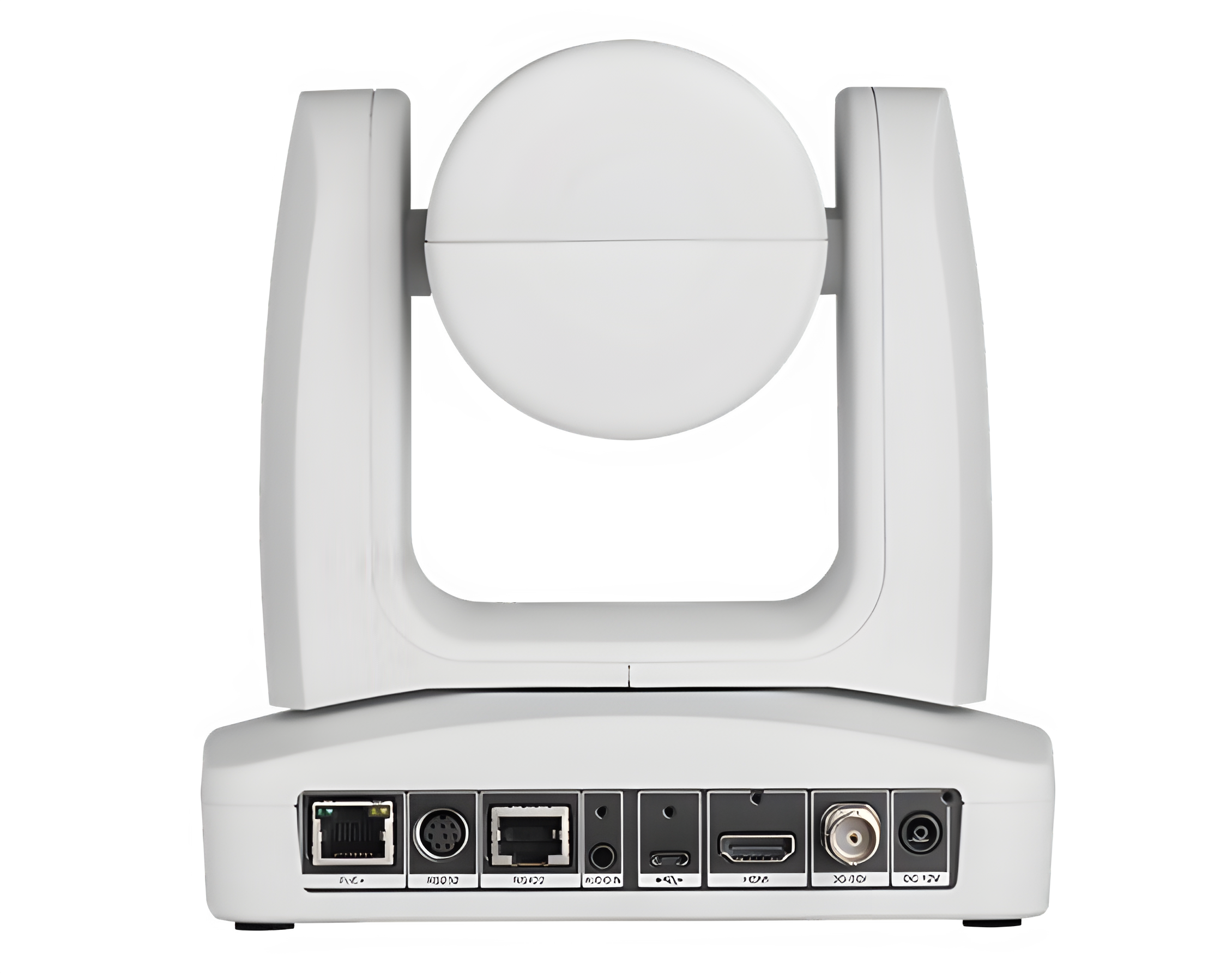

3G-SDI, HDMI, IP, USB |
| Audio Input |
MIC / Line-in |
| Audio |
AAC-LC (48/44.1/32/24K), G.711/PCM (16K/8K) |
| Camera Control |
IP, RS-232, RS-422, VISCA |
| Focal Length |
f = 4.3mm (Wide) ~ 129mm (Tele) |
| Minimum Object Distance |
0.01m (Wide), 1.2m (Tele) |
| Pan Angle |
170° |
| Tilt Angle |
-30° to 90° |
| Pan Speed |
0.1 to 100°/sec |
| Tilt Speed |
0.1 to 100°/sec |
| Presets |
10 via IR, 255 via RS-232 |
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Power |
1 x Barrel / Coaxial (12 VDC at 5 A), PoE+ 802.3at |
| Minimum Illumination |
0.4 lux |
| Optical Zoom |
3x |
What our Expect Think
-
Full HD 1080p Resolution – Delivers crisp, high-definition video for professional streaming and conferencing.
-
30X Optical Zoom + 12X Digital Zoom – Capture sharp details even from a distance.
-
Advanced PTZ Functionality – 170° pan and 120° tilt range for smooth, precise movements.
-
SmartFrame Auto-Framing – AI technology automatically adjusts the frame to include all participants.
-
True WDR & Low Light Performance – Ensures optimal image clarity in varying lighting conditions.
-
NDI|HX2 Support – Low-latency IP streaming for seamless integration with broadcasting systems.
-
Multiple Video Output Options – HDMI, USB, 3G-SDI, and IP streaming for versatile connectivity.
-
Power over Ethernet (PoE+) – Reduces cable clutter by combining power and data into a single connection.
Q&A
Q: What is the AVer PTZ330W?
A: A high-performance PTZ HD camera with 30X optical zoom, Full HD 1080p resolution, and NDI|HX support for professional video production and streaming.
Q: Is it suitable for live streaming and broadcasting?
A: Yes, its NDI|HX, HDMI, 3G-SDI, and IP streaming capabilities make it ideal for live events, houses of worship, and remote learning.
Q: What control options are available?
A: Remote control via RS-232, RS-422, IP, web UI, and VISCA over IP for seamless integration.
Q: What makes it ideal for professional use?
A: Its powerful zoom, AI tracking, multiple connectivity options, and ultra-smooth PTZ movement ensure superior video quality.
Maintenance Tips
-
Clean the Lens Gently – Use a microfiber cloth to maintain crystal-clear video quality.
-
Keep Firmware Updated – Regular updates optimize performance and security.
-
Avoid Direct Sunlight & Heat – Prevent sensor damage and overheating.
-
Secure Power & Network Connections – Ensure stable and uninterrupted operation.
-
Use Smooth PTZ Movements – Avoid abrupt manual adjustments to prevent motor strain.
-
Store in a Dust-Free Environment – Keep vents and sensors free of dust for optimal function.
-
Check Mounting Stability – Ensure secure installation to avoid vibrations and misalignment.
