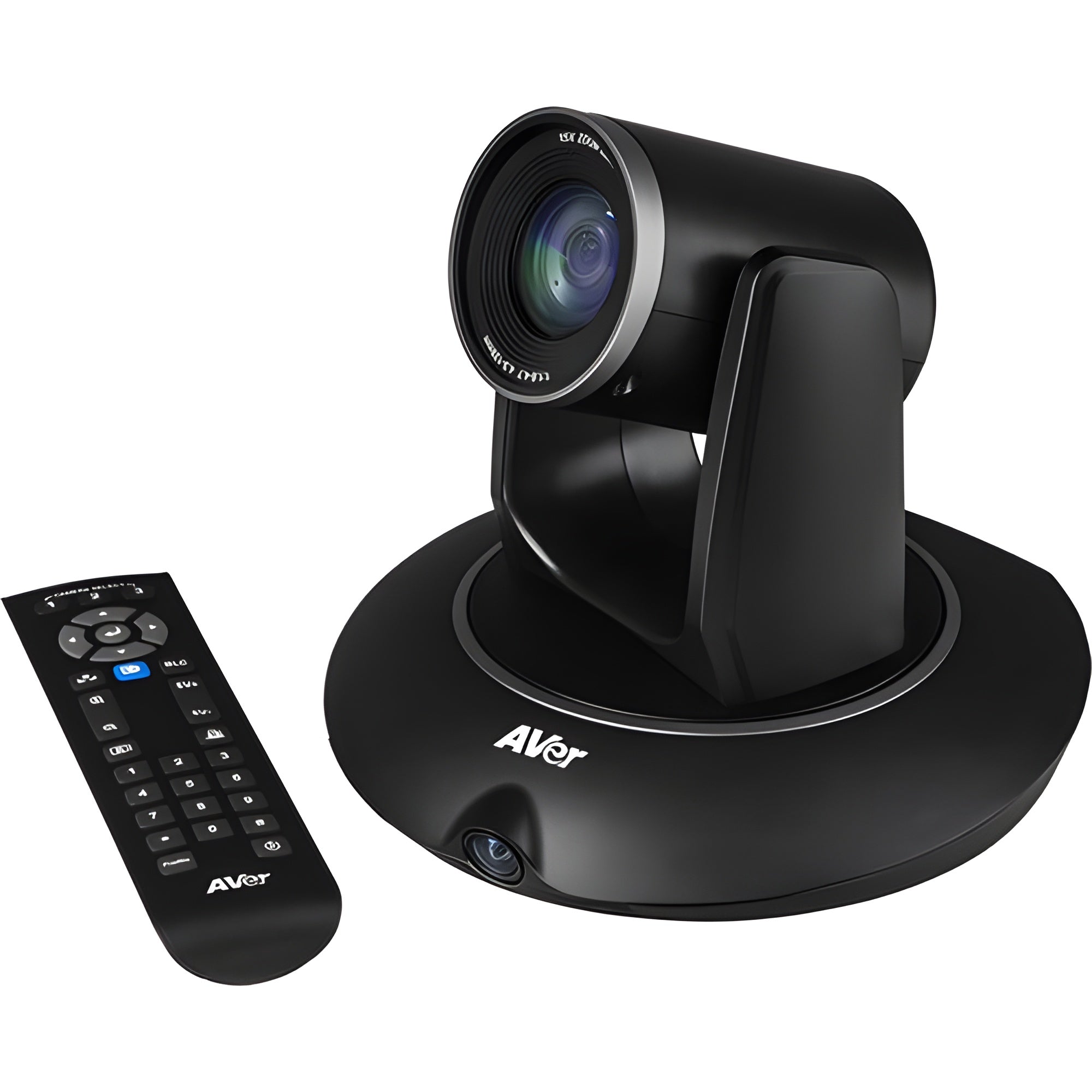

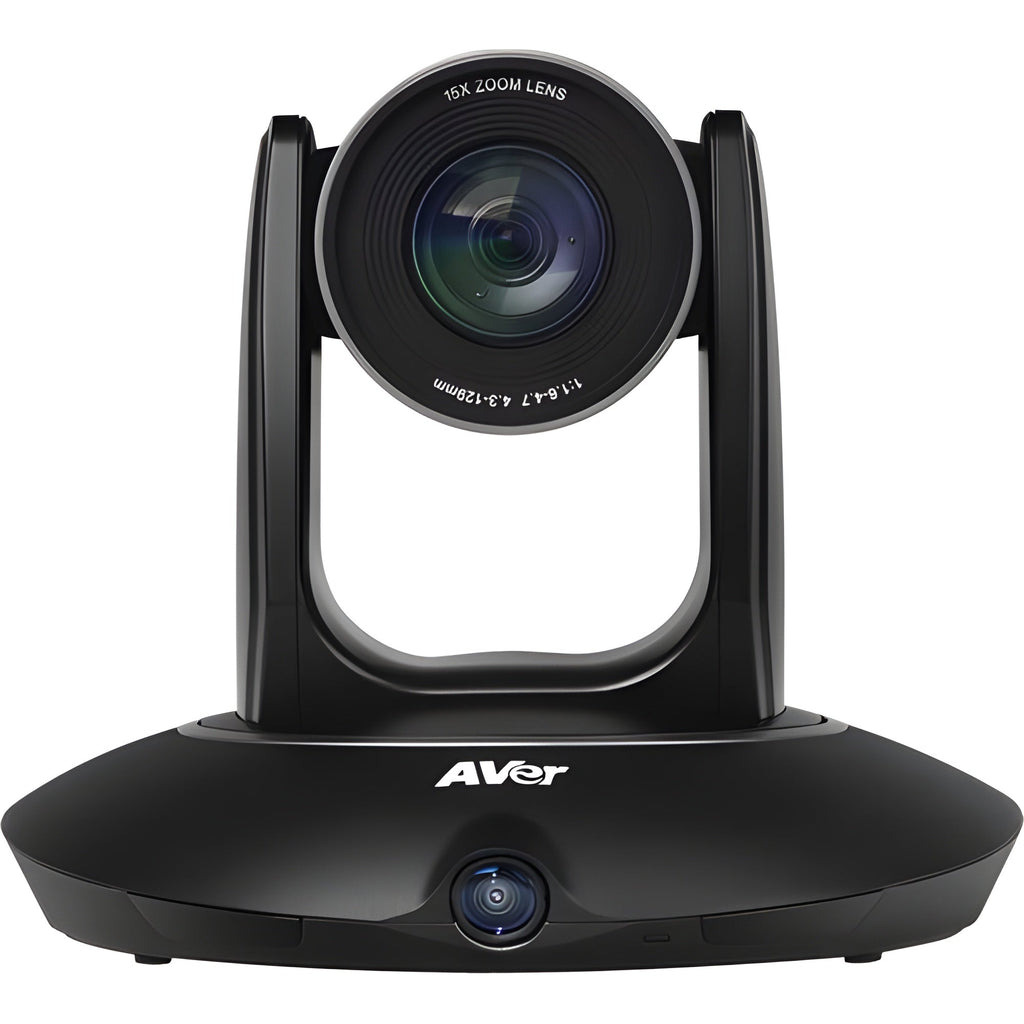

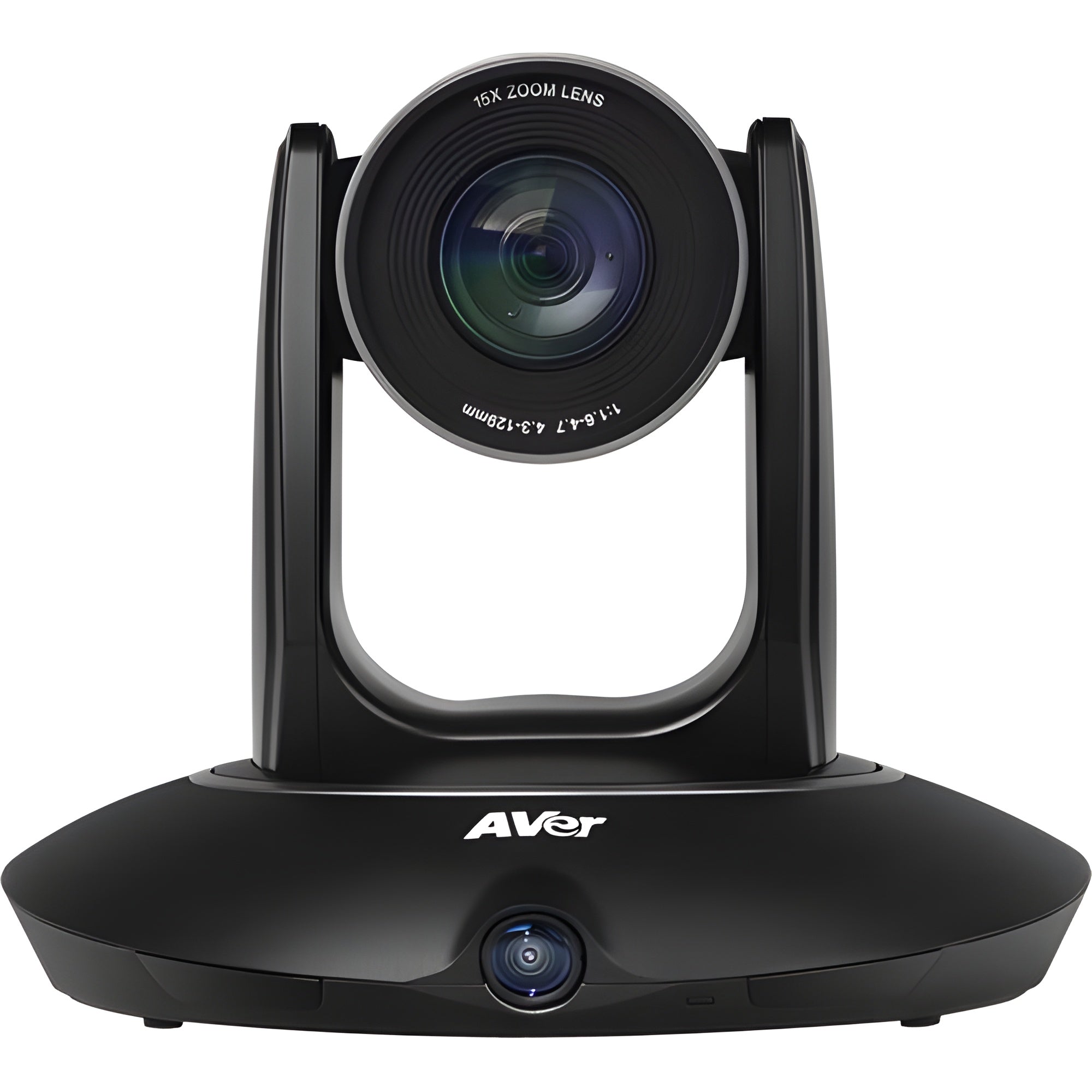

AVer TR320 Dual lens 22X auto tracking camera - TR320
Make your tracking more intelligent
The AVer TR320 Professional Auto Tracking and Live Streaming Camera offers highly adaptive target tracking with a powerful PTZ camera, 22X optical zoom, and a secondary 120° panoramic camera to meet the needs of educational organizations, governmental institutions, houses of worship and enterprises. The TR320 is the affordable solution that lets you save money and manpower when recording or streaming speeches, lectures, higher education courses, and essential employee training in professional 1080p video quality. The TR530 supports IP streaming and the ease of integration to other AV tools allow you to create your best productions!
Capture every interaction
Track your target everywhere with Wide Area Tracking. Wide Area Tracking provides presenters the flexibility to leave the stage and interact with a crowd or students, all while being continuously tracked even if they become obscured by other people or objects.
Enjoy the unprecedented quality and support
AVerCare delivers industry-leading 3 year advance replacement warranty with free RMA shipping and 24 hour turnaround time. We strive to provide industry leading product quality, service and support so you’re always up and running!
Features
- Dual lens 22X auto tracking camera
- 1/2.8" 60fps low lux CMOS sensor
- Up to 1080p/60
- VISCA/Pelco-D/Pelco-P Control
- 3 Years with AVerCare
Specifications
| Sensor |
1/2.8" 60fps low lux CMOS sensor |
| Resolution |
HD 1080 |
| Signal To Noise Ratio |
Off/Low/Medium/High |
| Gain |
Auto/Manual |
| Shutter Speed Range |
1/5 s to 1/32000 s |
| Exposure Control |
Auto |
| White Balance |
Auto/Manual (2500 ~ 10000) |

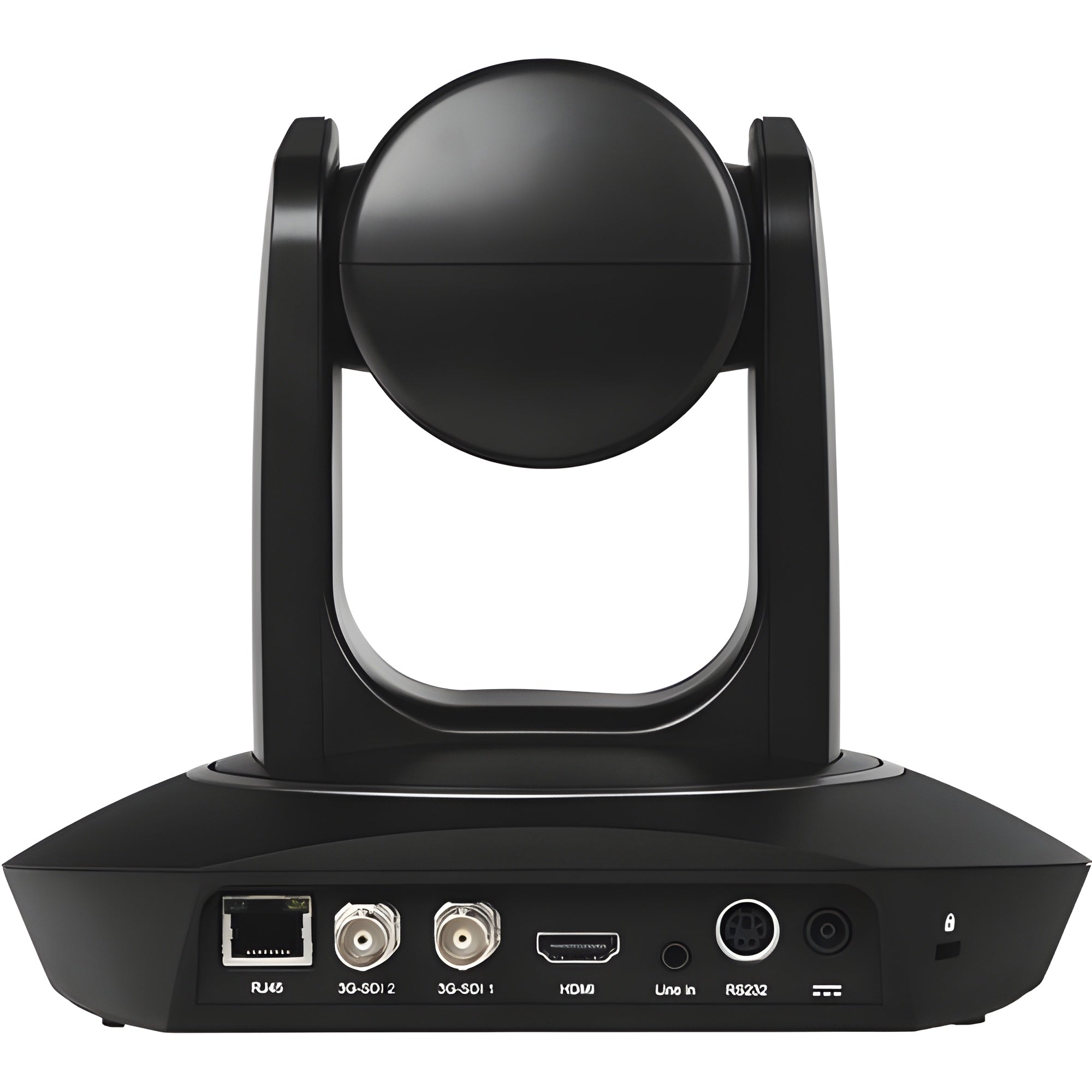

| Output |
HDMI/IP/3G-SDI |
| Audio |
PCM, AAC-LC, G.711 |
| Camera Control |
RS232 (via optional DB9 to DIN6 adapter), IP (RJ45), VISCA/Pelco-D/Pelco-P |
| Focal Length |
f = 4.3mm (Wide) ~ 64.5mm (Tele) |
| Minimum Object Distance |
1.2 meter at Tele-End (22X); 0.1 meter at Wide-End (1X) |
| Tilt Angle |
2° ~ 50°/Sec |
| Pan Speed |
2° ~ 50°/Sec |
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Power |
AC110V-AC220V to DC12V/5A |
| Minimum Illumination |
IRE50:0.47 lux (60FPS); 0.23 lux (30fps) |
| Optical Zoom |
22x |
What our Expect Think
-
22X Optical Zoom: Offers detailed and crisp close-ups from a distance, perfect for large venues, conferences, or events.
-
Dual Lens Design: Provides flexibility for multiple perspectives and enhanced video quality, offering both wide-angle and close-up views.
-
Auto Tracking Technology: Automatically follows and frames the subject, ensuring smooth and hands-free operation during live events and presentations.
-
High-Quality Video: Captures clear, professional HD video for streaming, broadcasting, and video conferencing.
-
Versatile PTZ Control: Pan, tilt, and zoom with precision for dynamic camera shots and flexible setups.
-
Multiple Connectivity Options: Compatible with HDMI, SDI, and IP streaming, ensuring easy integration into various production setups.
Q&A
Q: What is the AVer TR320?
A: The AVer TR320 is a dual-lens PTZ camera with 22X optical zoom and auto-tracking capabilities, designed for professional video production, live streaming, and broadcasting.
Q: How does the auto-tracking feature work?
A: The TR320 uses advanced AI algorithms to automatically track the subject or speaker, ensuring smooth video production without manual adjustments, making it ideal for live events and conferences.
Q: Is the TR320 suitable for live streaming and professional video production?
A: Yes, the TR320 is perfect for live streaming, broadcasting, and video production with its 22X optical zoom, dual-lens system, and auto-tracking functionality for dynamic video coverage.
Q: What control options are available for the TR320?
A: The TR320 can be controlled via remote control, RS-232, RS-422, or IP, providing flexibility in different video production environments.
Maintenance Tips
-
Regular Lens Cleaning – Use a microfiber cloth to gently clean both lenses and ensure clear video quality.
-
Update Firmware – Check for firmware updates to enhance camera performance and take advantage of new features.
-
Check Connections – Ensure all cables (USB, HDMI, SDI) are securely connected to avoid signal loss or disruptions.
-
Smooth Pan, Tilt, and Zoom – Perform gradual and smooth PTZ adjustments to prevent motor strain and ensure long-lasting operation.
-
Overheating Prevention – Keep the camera in a well-ventilated space to prevent overheating, especially during long sessions.
-
Test Auto Tracking – Regularly test the auto-tracking functionality to ensure it tracks subjects accurately during live events.
-
Store in Clean Environment – Store the camera in a dust-free, clean space to prevent debris from affecting lens clarity and overall performance.
