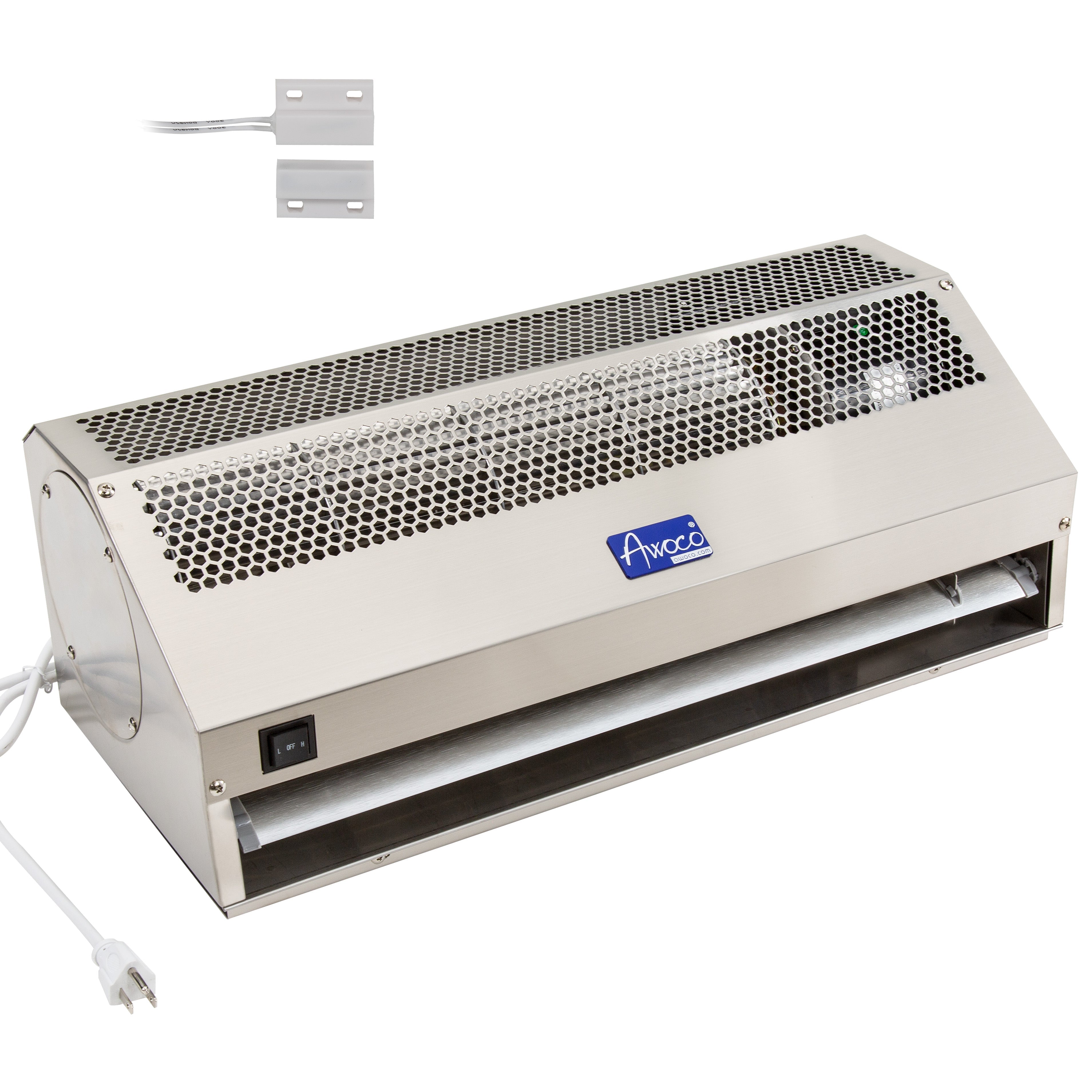

Awoco Stainless Steel Super Power 2 Speeds Commercial Indoor Air Curtain, 120V Unheated with an Easy-Install Magnetic Door Switch - FM1506-SS
-
Isolate Interior from Exterior Air: This air curtain is not an air conditioner, It won't generate cold and hot air. Air curtain is a powerful fan that forces a high speed air stream over the entrance to isolate the interior and exterior air environment while blocking 90% of Hot or Cold air, dust, and smoke. Stainless steel construction, easy to clean slim body.
-

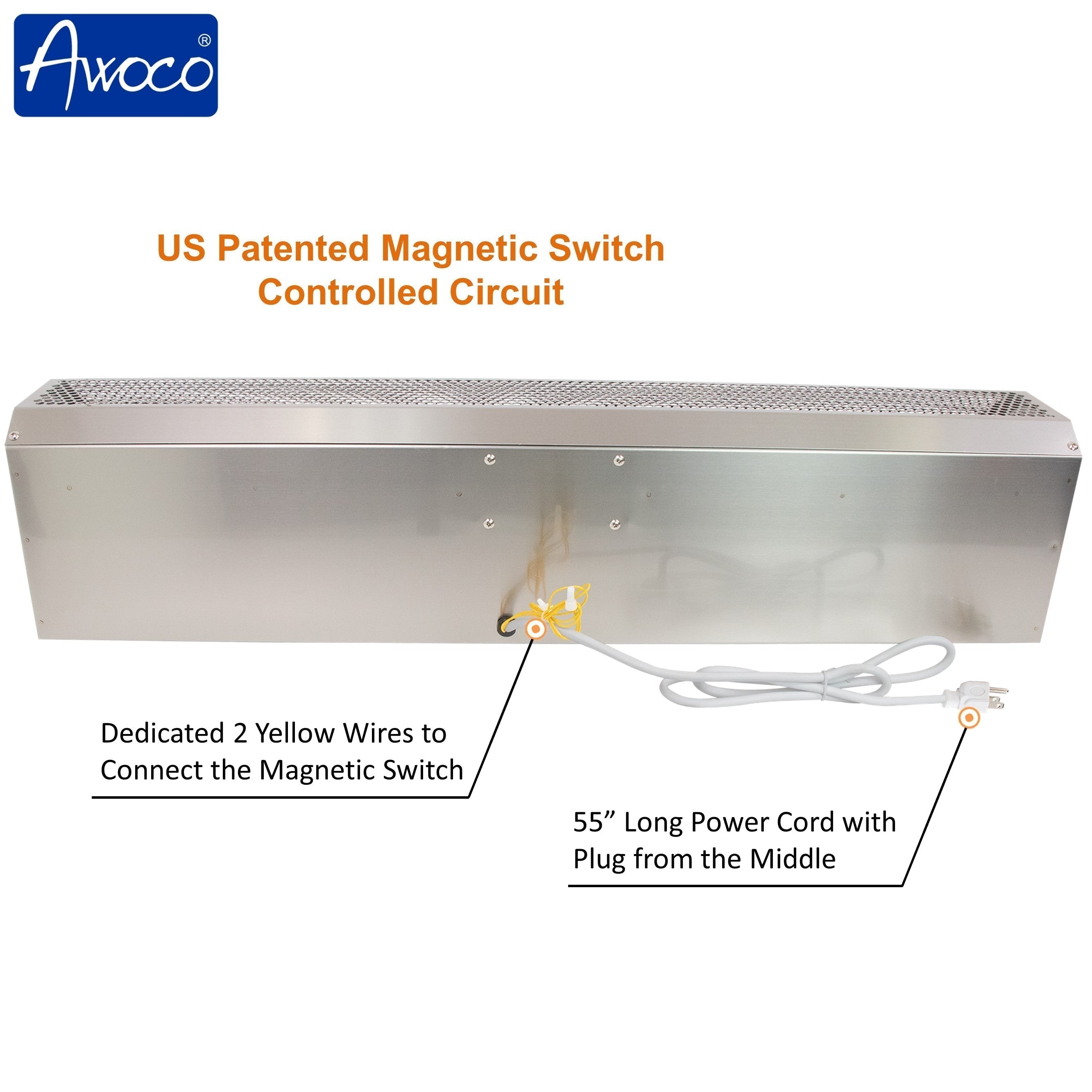

Magnetic Switch Controlled Circuit (US Patented): 2 pieces of magnets have no direct contact, won’t be damaged by a door slamming. The magnetic door switch installation is much easier than the traditional mechanical plunger switch. 12VDC is safer and no hard wired required. It works even when the door closer is not working well, just install at the closer distance while the door is closed.
-

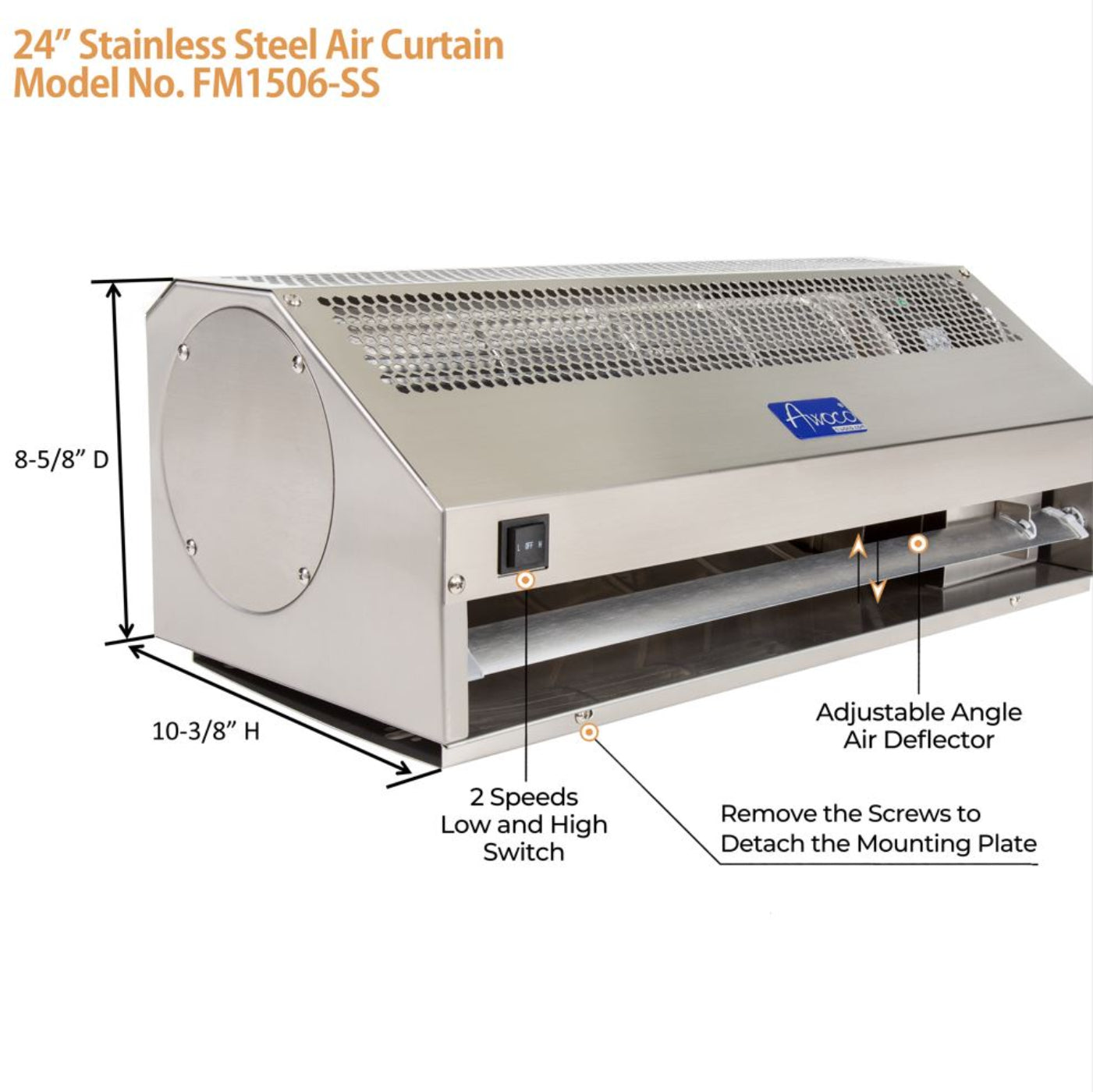

24" Air Curtain, 2 Speeds at Lo/Off/Hi switch: Super powerful high speed at 785 CFM, 57dB, low speed at 628 CFM, 55dB. 120V 60Hz 230W (0.31HP, 2.40A), less power consumption than other industrial air curtains. Adopting the technology of German electrical machinery, it continuously runs for business hours. 1 motor and 2 ABS Fan Wheels. 18” air outlet to cover up to 20” window opening.
-

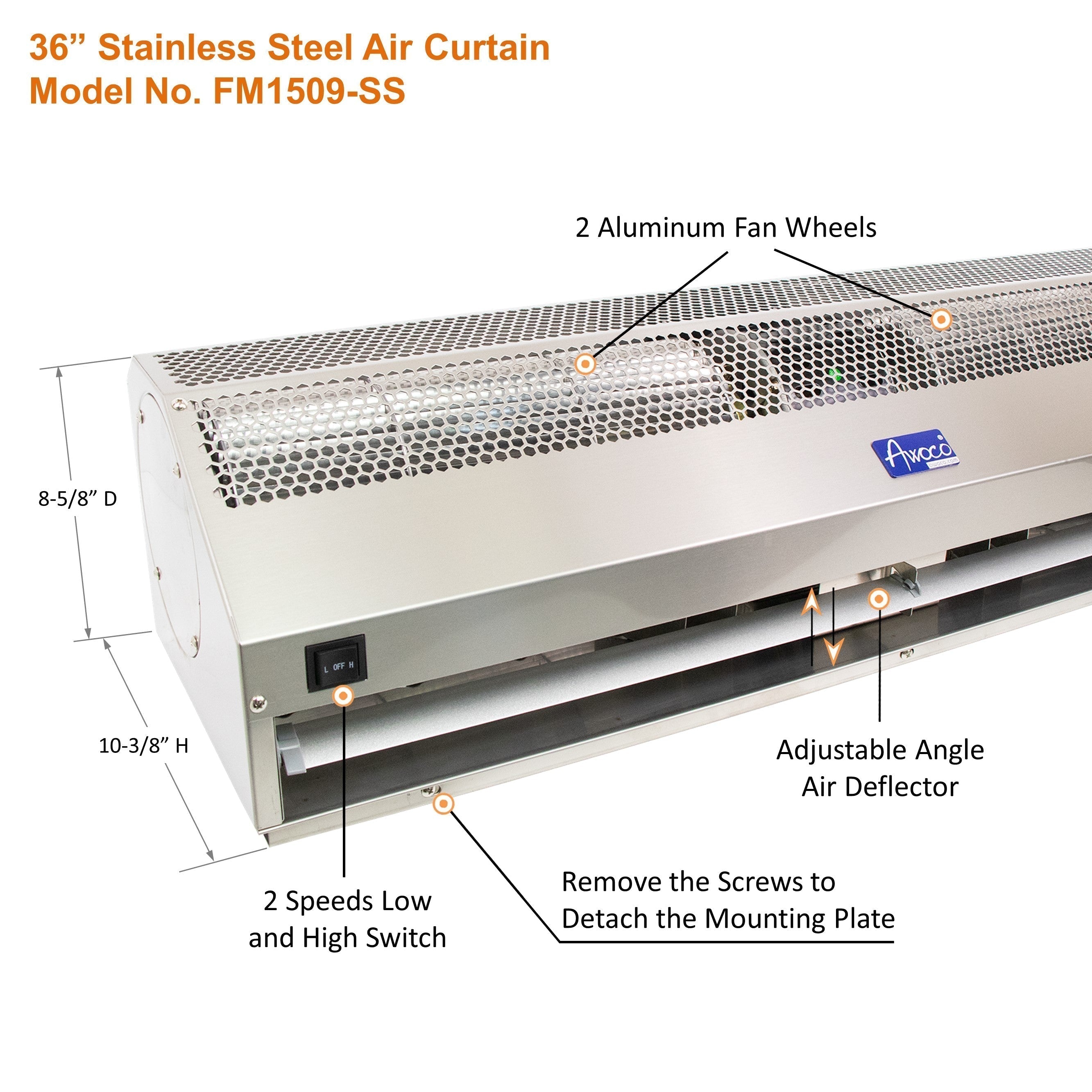

36" Air Curtain, 2 Speeds at Lo/Off/Hi switch: Super powerful high speed at 785 CFM, 57dB, low speed at 628 CFM, 55dB. 120V 60Hz 230W (0.31HP, 2.40A), less power consumption than other industrial air curtains. Adopting the technology of German electrical machinery, it continuously runs for business hours. 1 motor and 2 ABS Fan Wheels. 18” air outlet to cover up to 20” window opening.
-

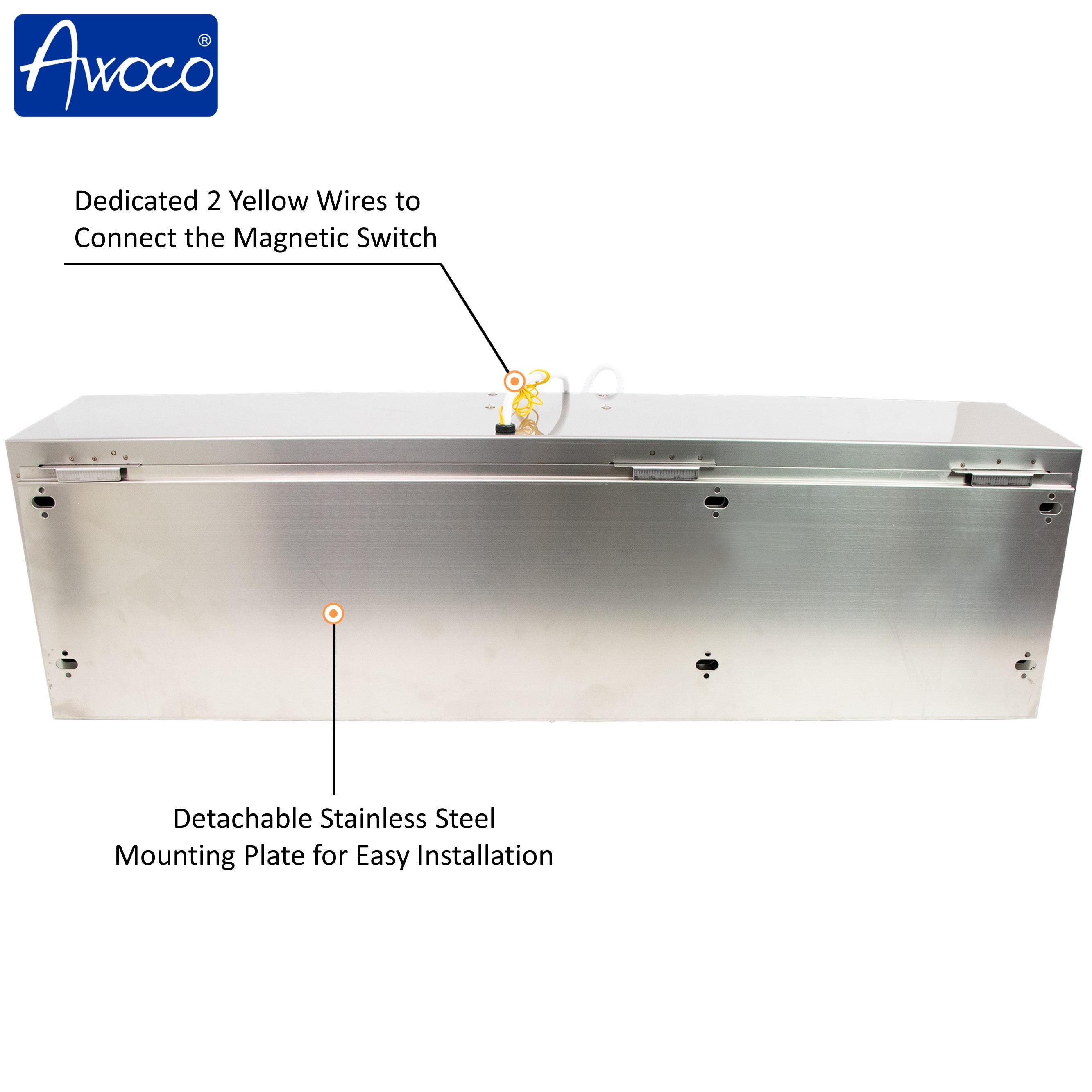

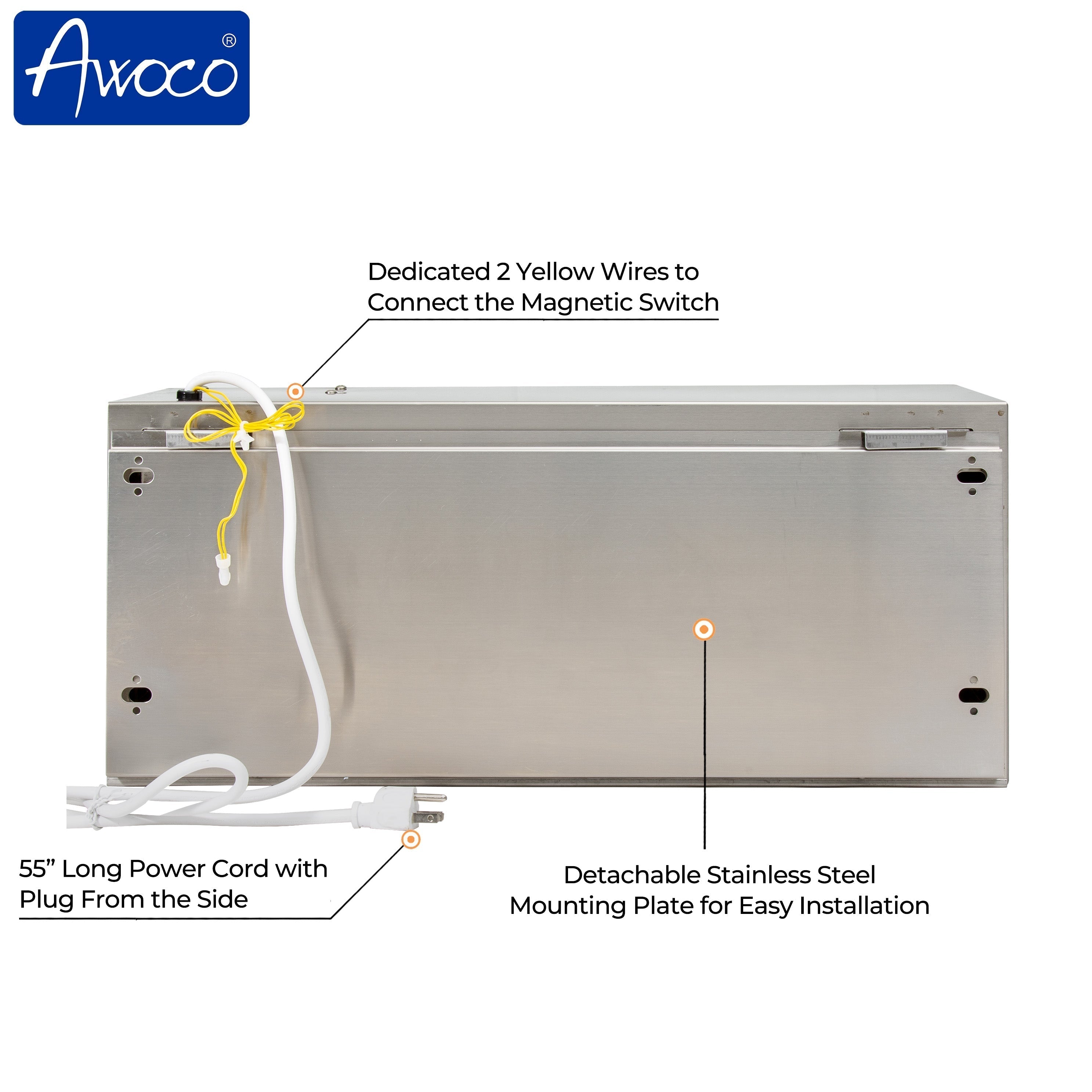

Easy Installation: Refer to Technical Specification User Manual, installation should be easy. 1) mount the detachable mounting plate securely. 2) hang the air curtain up. 3) install the optional door switch and connect to the dedicated 2 wires. Fireproof and anti-erosive powder coated metal case, easy to clean slim body.
-
1 Year Warranty, Professional Tech Support: Free parts, repair or exchange within 1 year. Awoco high quality product reputation and supreme customer service is a guarantee.
-
24" Dimensions: 23-3/4” L x 8-5/8” D x 10-3/8” H. CE.
-
36" Dimensions: 35-1/2” L x 8-5/8” D x 10-3/8” H. UL..
Specifications
| Voltage |
120V, 60Hz. |
Depth |
8-5/8 in. |
Height |
10-3/8 in. |
|
|
| Air Velocity |
1968 FPM (Low) – 2559 FPM (High) |
| Model No. |
For
Door Size |
Width |
Power
(W/HP) |
Net Weight
(LB) |
Current
(A) |
Air Volume
(CFM) |
Noise Level
(dB) |
| Lo |
Hi |
Lo |
Hi |
| FM1506-** |
24" |
23-3/4" |
230/0.31 |
27.5 |
2.4 |
628 |
785 |
55 |
57 |
| FM1509-** |
36" |
35-1/2" |
300/0.4 |
33.1 |
3.13 |
942 |
1177 |
56 |
58 |
| FM1510-** |
42" |
41-3/4" |
350/0.47 |
37.5 |
3.65 |
1059 |
1354 |
56 |
58 |
| FM1512-** |
48" |
47-1/4" |
350/0.47 |
43 |
3.65 |
1295 |
1648 |
57 |
59 |
| FM1515-** |
60" |
59" |
400/0.54 |
48.5 |
4.17 |
1648 |
2119 |
58 |
60 |
| FM1518-** |
72" |
71-1/2" |
600/0.8 |
61.7 |
6.25 |
1884 |
2354 |
59 |
61 |
Product Manual
VIEW / DOWNLOAD
Videos
AWOCO 101 VIDEOS
What Our Experts Think
-
Strong Airflow Barrier – Super powerful 2-speed fan keeps dust, odors, and insects out while maintaining indoor temperature.
-
Commercial-Grade Performance – Ideal for restaurants, stores, and offices, ensuring clean and energy-efficient environments.
-
Durable Stainless Steel Build – Sleek, corrosion-resistant design for long-lasting use.
-
Easy-Install Magnetic Door Switch – Automatically activates when doors open, enhancing efficiency.
-
Unheated Energy-Saving Operation – Reduces HVAC load without extra power consumption.
-
120V Standard Compatibility – Simple plug-in setup for quick installation.
Q&A
Q: What is the Awoco FM1506-SS Air Curtain?
A: A commercial-grade stainless steel air curtain with 2-speed operation, designed to prevent dust, insects, and outside air from entering indoor spaces.
Q: What size is this air curtain?
A: It is 60 inches (5 feet) wide, suitable for standard commercial doorways.
Q: Does it provide heated air?
A: No, this model is unheated and operates only with ambient air.
Q: What power supply does it require?
A: It runs on a standard 120V power connection.
Q: How powerful is the airflow?
A: It features two speeds for adjustable airflow, ensuring effective air separation.
Q: What is the purpose of the magnetic door switch?
A: The included magnetic door switch allows automatic activation when the door opens and turns off when the door closes.
Q: Where can this air curtain be used?
A: It’s ideal for restaurants, retail stores, warehouses, and other commercial spaces to maintain indoor air quality.
Q: Is installation easy?
A: Yes, it’s designed for quick and easy installation with mounting brackets included.
Q: What material is it made of?
A: Durable stainless steel for long-lasting performance and easy maintenance.
Maintenance Tips
-
Clean Air Intake & Outlet – Wipe down the stainless steel housing and vents monthly to prevent dust buildup.
-
Inspect & Clean Fan Blades – Check every 3–6 months and remove any debris for optimal airflow.
-
Test Magnetic Door Switch – Ensure proper activation and alignment; clean contacts if necessary.
-
Check Mounting Stability – Tighten screws and brackets periodically to prevent vibrations or misalignment.
-
Inspect Motor & Wiring – Look for any loose connections or unusual noises that may indicate wear.
-
Use Proper Speed Settings – Low speed for moderate airflow, high speed for heavy traffic areas.
-
Keep Surroundings Clear – Avoid placing objects near the intake or outlet to maintain unrestricted airflow.
-
Run Regularly – Use consistently to prevent dust accumulation and ensure efficient operation.
