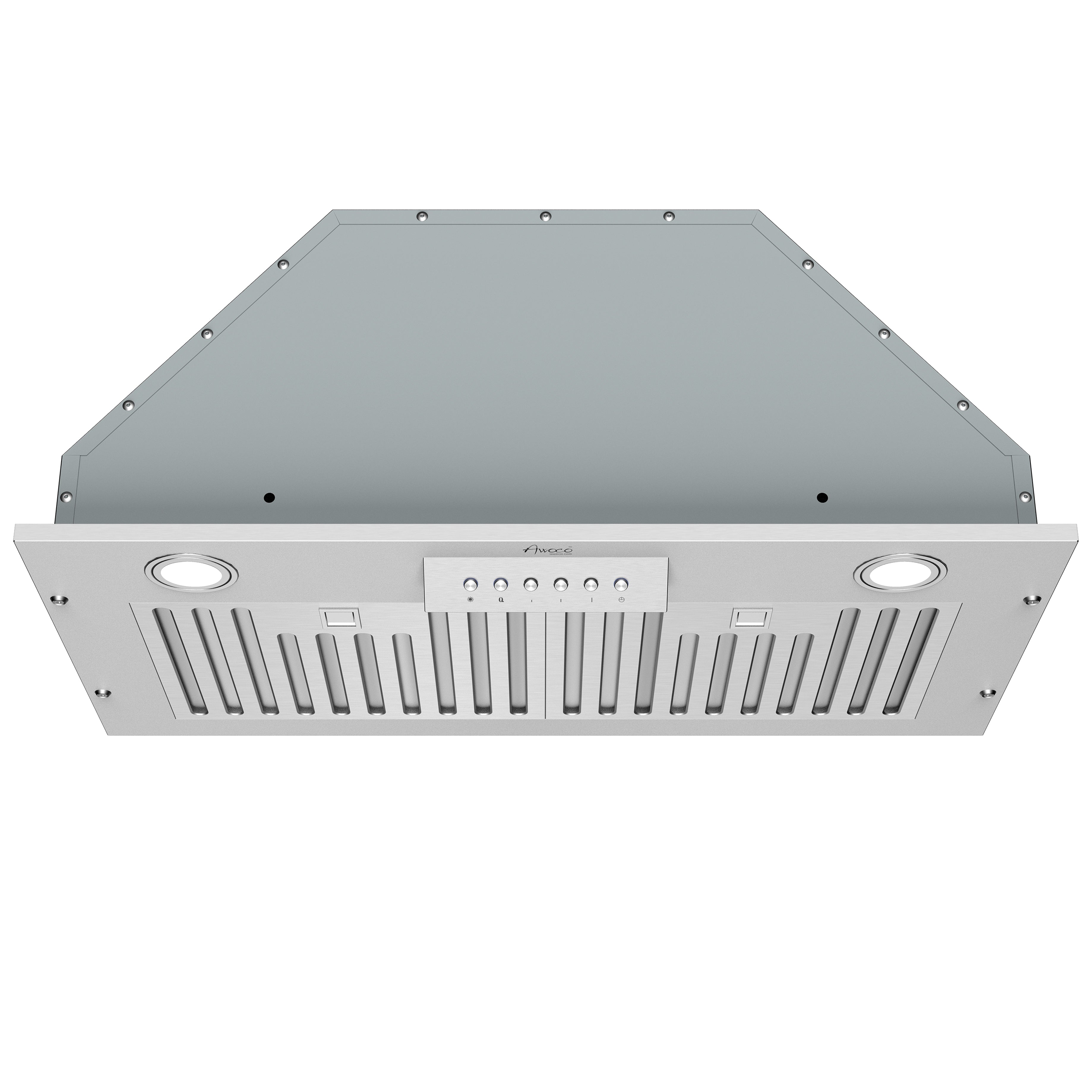

Awoco RH-BQ-M 14-1/2”D Built-in/Insert Stainless Steel Range Hood, 4-Speed, 650 CFM, LED Lights, Baffle Filters for Wood Hood - RH-BQ-M30
- BUILT-IN/ INSERT TYPE: Hood insert improves ventilation and lighting over your stove while providing a very strong performance. Built with high quality 1mm thick 18-gauge stainless steel with satin finishing. Perfect for 30” kitchen ranges that fits snug into wood hood.

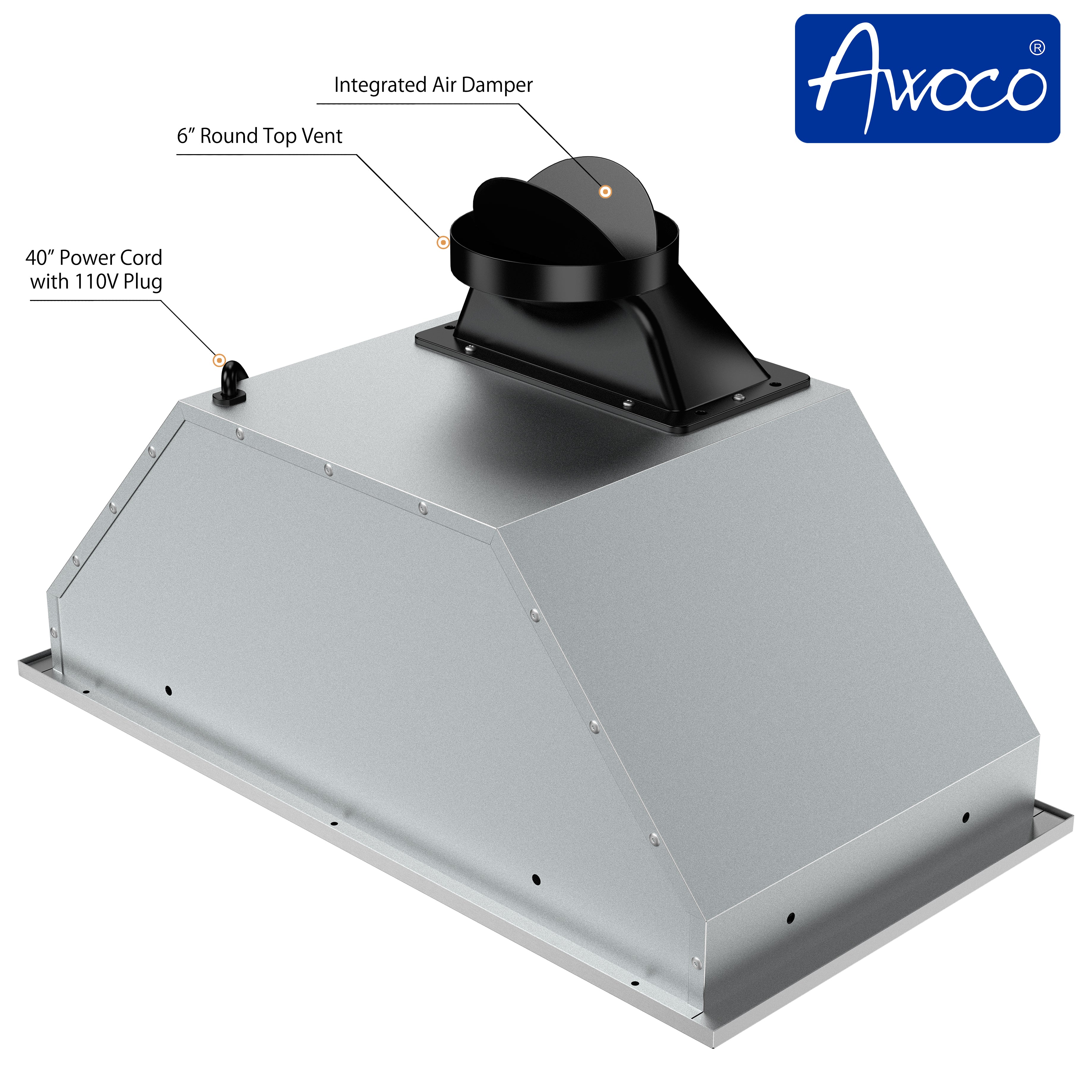

- DUCTED VENT OUTSIDE, 6” ROUND TOP VENT: 6” round top exhaust vent. Ducts are not included. Wood hood cut out hole size: 26-1/8" x 10-3/8". This is a ducted model, required vent on wall or roof designed for better performance.

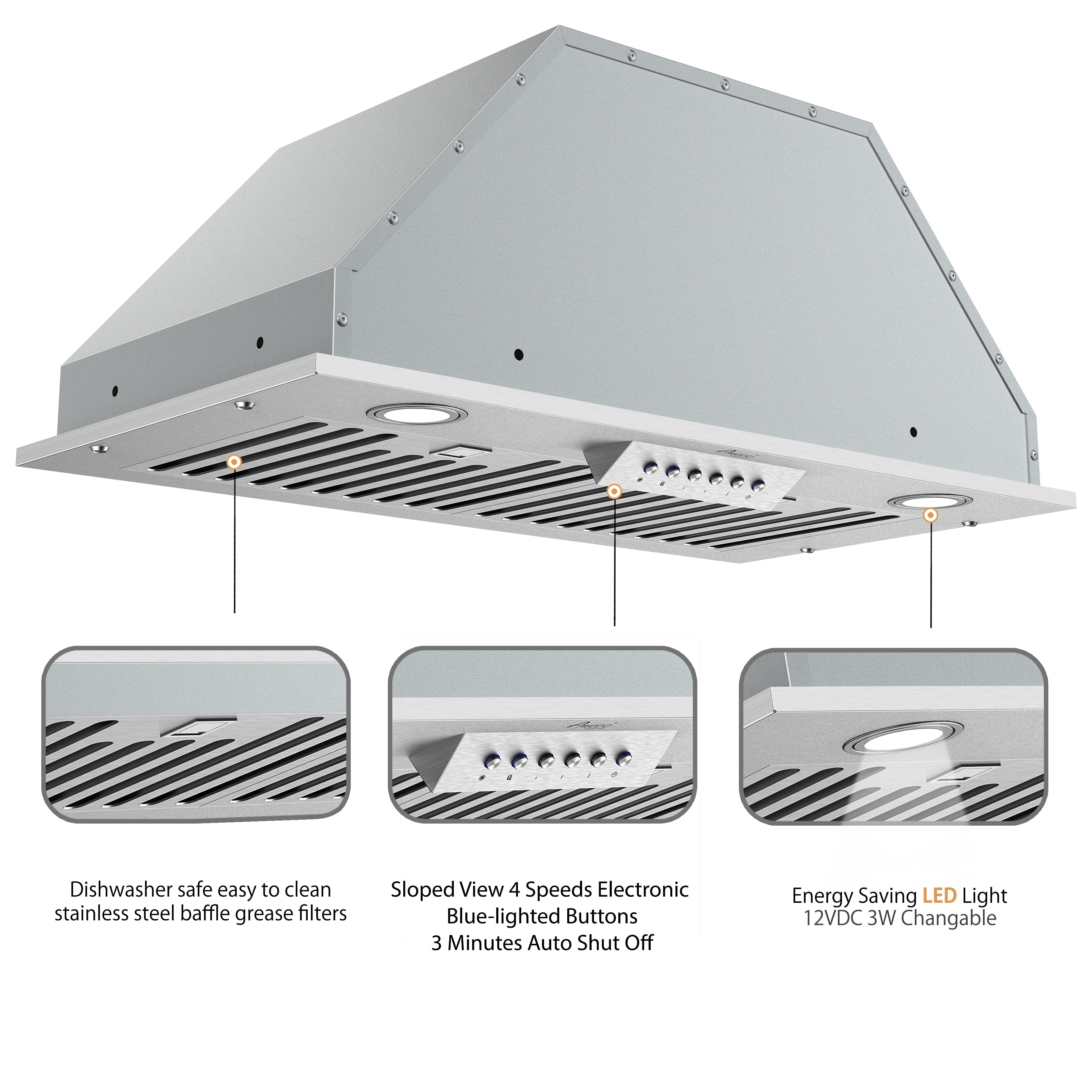

- 4 SPEEDS POWERFUL OPERATION WITH LED LIGHTS: 4 speeds (Q, I, II, III up to 650 CFM), sloped view blue highlighted electronic buttons with 2 3W energy saving cold bright LED lights. Power rating: 120V/60Hz, 130W Max. Power cord with plug is included. Noise level at low: 38 dB, 2.0 sones. Noise level at high: 60 dB, 9.0 sones.
- DISHWASHER SAFE BAFFLE FILTERS: Dishwasher safe; commercial style stainless steel baffle air filters. The oil is contained in the baffle filters, no oil holders needed.
- 2 YEARS USA LIMITED PARTS WARRANTY: ETL Certified. Free parts, repair or exchange within 2 years. Awoco high quality product reputation and supreme customer service is a guarantee.

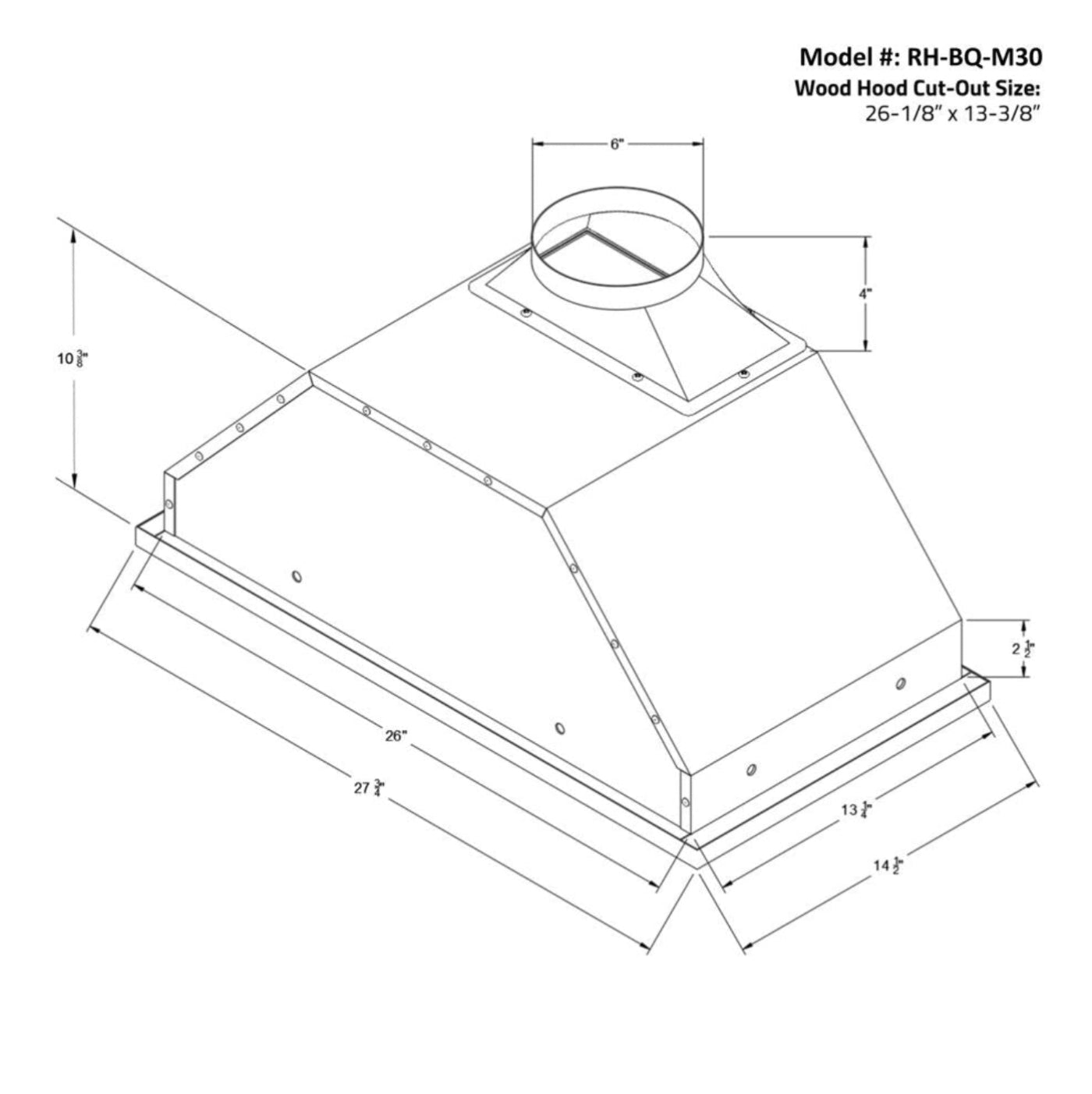

- 30" Hood Dimensions: 27-3/4"W x 14-1/2"D x 14-7/8"H. Hood weight: 26 lbs.
-
36" Hood Dimensions: 35-3/8"W x 14-1/2"D x 14-7/8"H. Hood weight: 29 lbs.
Specifications
| Mounting Type |
Insert Embedded to the Wood Hood. |
| Venting |
6" Round TOP Vent Exhaust. |
| Power Rating |
120V~60Hz, 130W Max. |
| Lighting |
2x 3W LED. |
| Noise Level |
• Low: 38 dB.
• Hight: 60 dB. |
| Model No. |
Width |
Depth |
Height |
# of
Baffle Filters |
Vent Size
("Duct") |
Max CFM |
Wood Hood
Cutout Size |
| RH-BQ-30 |
27-3/4" |
11-3/4" |
14-7/8" |
2 |
6" Round |
600 |
26-1/8" x 10-3/8" |
| RH-BQ-36 |
35-3/8" |
3 |
34-1/8" x 10-3/8" |
Product Manual
VIEW / DOWNLOAD
Videos
AWOCO 101 VIDEOS
What Our Experts Think
-
Efficient Ventilation – 650 CFM, 4-speed fan effectively removes smoke, grease, and odors.
-
Compact 14.5” Depth – Perfect for custom wood hoods, providing a seamless built-in look.
-
Durable Stainless Steel Build – Sleek, modern, and resistant to stains and grease.
-
Bright LED Lighting – Enhances cooktop visibility with long-lasting, energy-efficient lights.
-
High-Performance Baffle Filters – Dishwasher-safe, ensuring easy maintenance and grease trapping.
-
Quiet Operation – Strong airflow with minimal noise levels for a comfortable cooking experience.
Q&A
Q: What is the Awoco RH-BQ-M30 Range Hood?
A: A 30-inch built-in/insert stainless steel range hood with a 14.5-inch depth, 650 CFM airflow, and 4-speed settings, designed for installation inside a custom wood hood.
Q: How powerful is the ventilation?
A: The 650 CFM motor efficiently removes smoke, grease, and odors, making it ideal for everyday cooking.
Q: What type of filters does it use?
A: It includes stainless steel baffle filters, which are dishwasher-safe for easy maintenance.
Q: Does it have lighting?
A: Yes, it features bright LED lights for enhanced cooking visibility.
Q: What vent size does it require?
A: It has a 6-inch round top vent for strong and efficient ventilation.
Q: How is it controlled?
A: The unit offers push-button controls for 4 fan speed settings.
Q: Is it suitable for a wood hood?
A: Yes, it is designed for installation inside a custom wood hood or cabinet space.
Q: What material is it made of?
A: Constructed from high-quality stainless steel for durability and a sleek look.
Maintenance Tips
-
Clean Baffle Filters – Wash every 3–4 weeks with warm soapy water or place in the dishwasher to maintain airflow.
-
Wipe Stainless Steel Exterior – Use a microfiber cloth and stainless steel cleaner to prevent grease buildup.
-
Inspect & Clean Blower Fan – Check every 2–3 months for grease accumulation to ensure optimal suction.
-
Check & Replace LED Lights – If flickering or dim, replace with compatible LEDs.
-
Keep Venting System Clear – Ensure the duct system remains unobstructed for efficient smoke removal.
-
Use Proper Speed Settings – Adjust speed based on cooking intensity—lower for light use, higher for heavy grease and smoke.
-
Run Hood After Cooking – Let it run for 5–10 minutes post-cooking to clear lingering odors and moisture.
