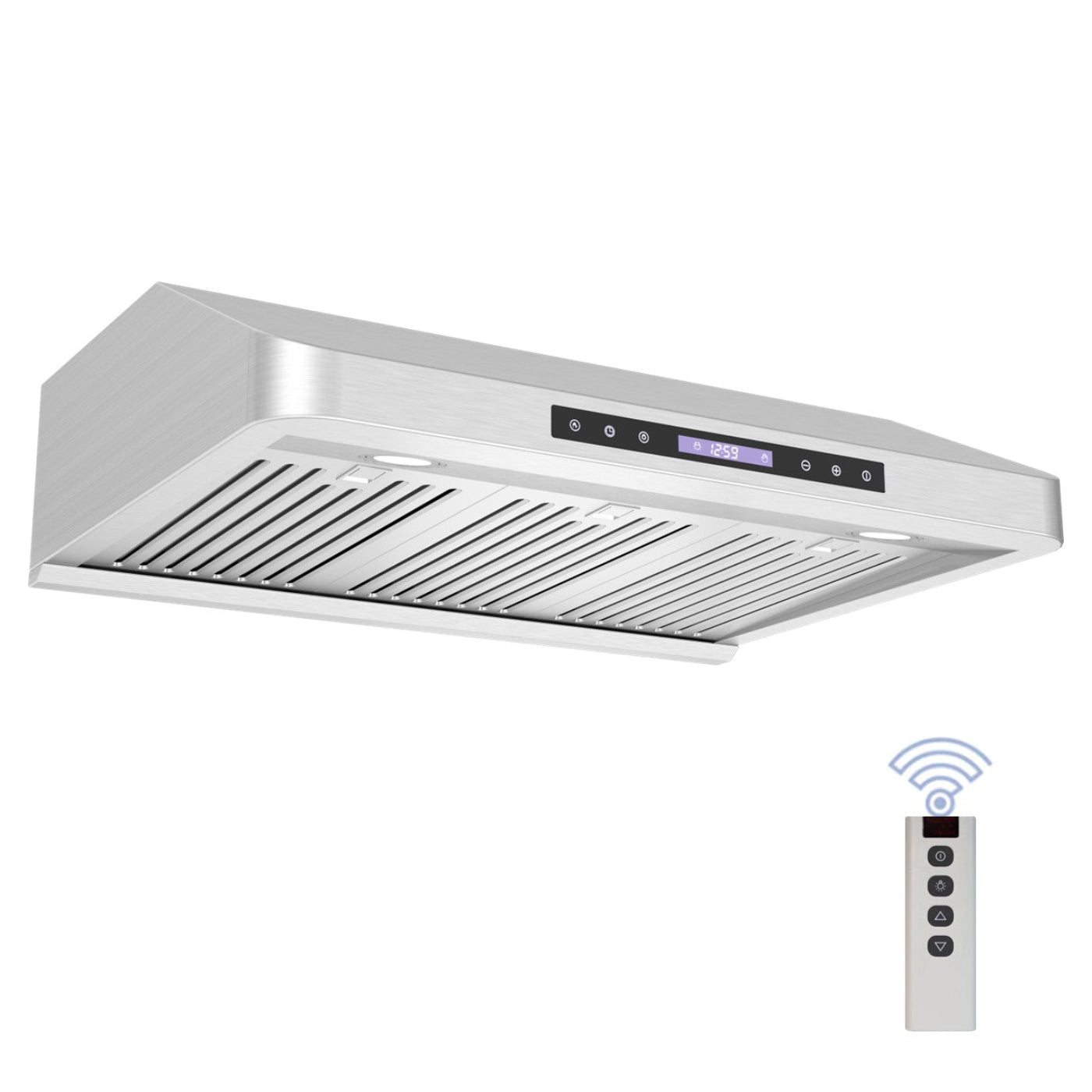

Awoco RH-S10-MS Under Cabinet Supreme 7” High Stainless Steel Range Hood, 4 Speeds with Gesture Sensing Touch Control Panel, 8” Round Top Vent, 1000 CFM with Remote Control & LED Lights - RH-S10-30MS
-

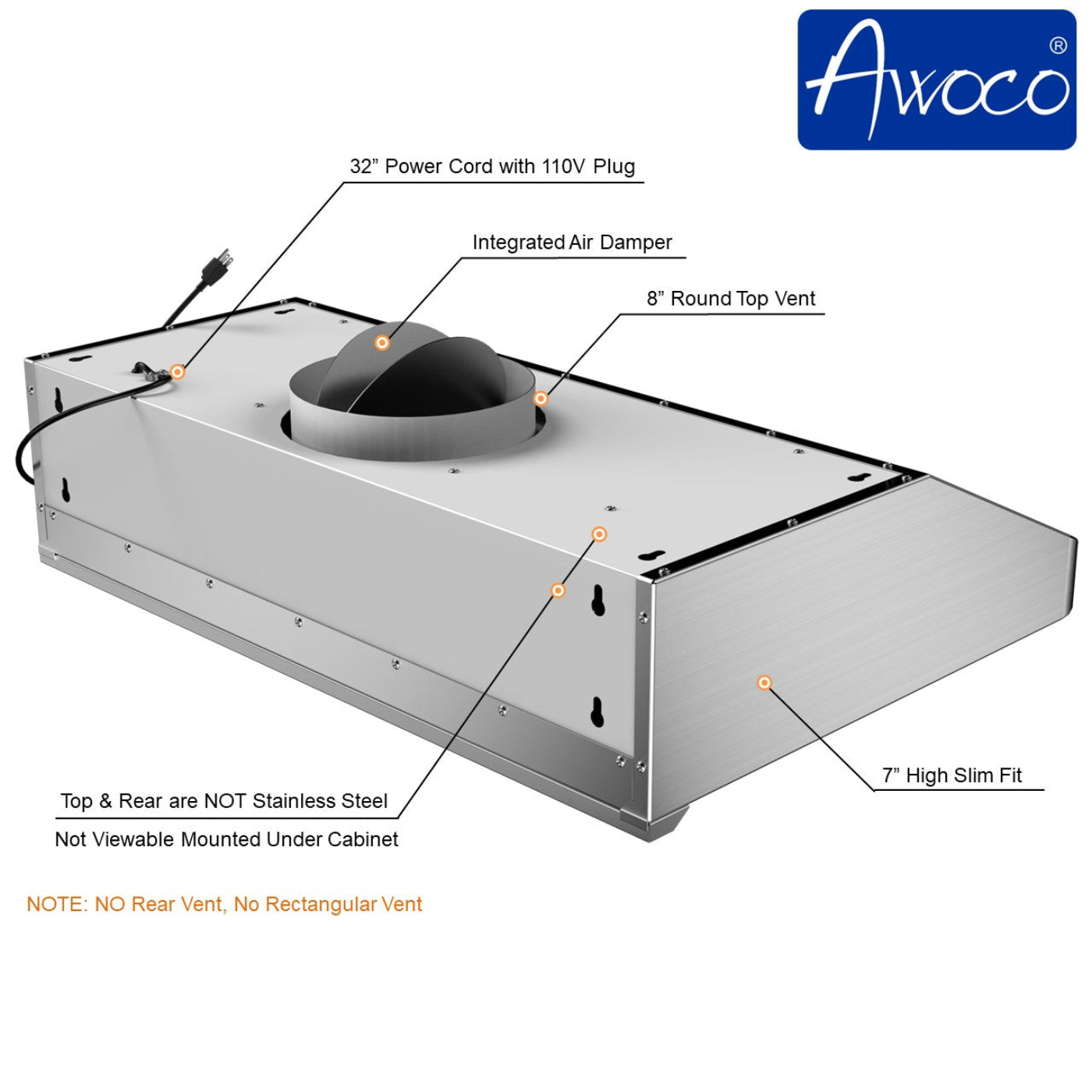

SUPREME SERIES 7” HIGH DUCTED VENT OUTSIDE, 8” ROUND TOP VENT: Under cabinet, high quality stainless steel with brush finishing. 8” round TOP vent. Ducts are not included. This machine cannot convert to ductless and NO rear vent.
-

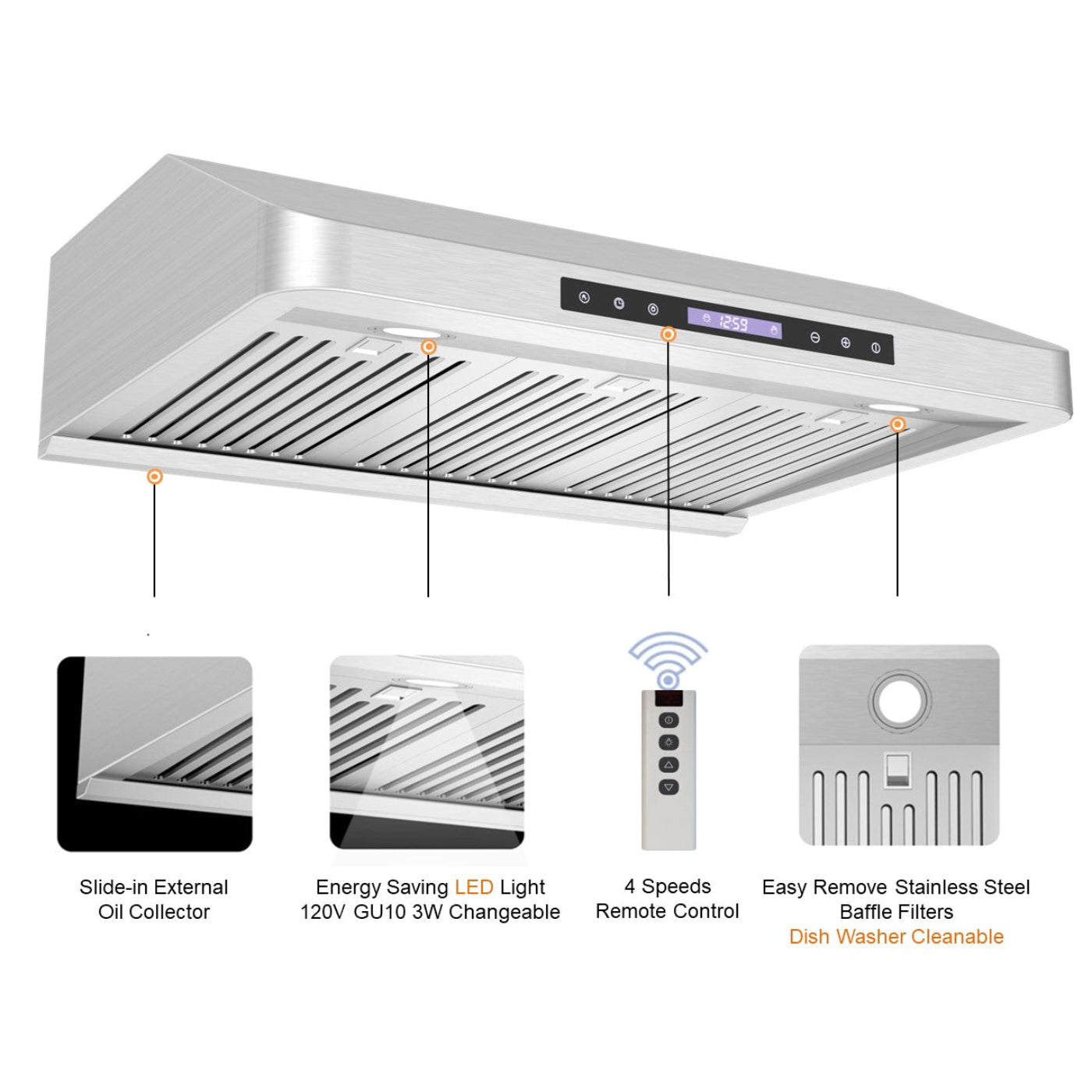

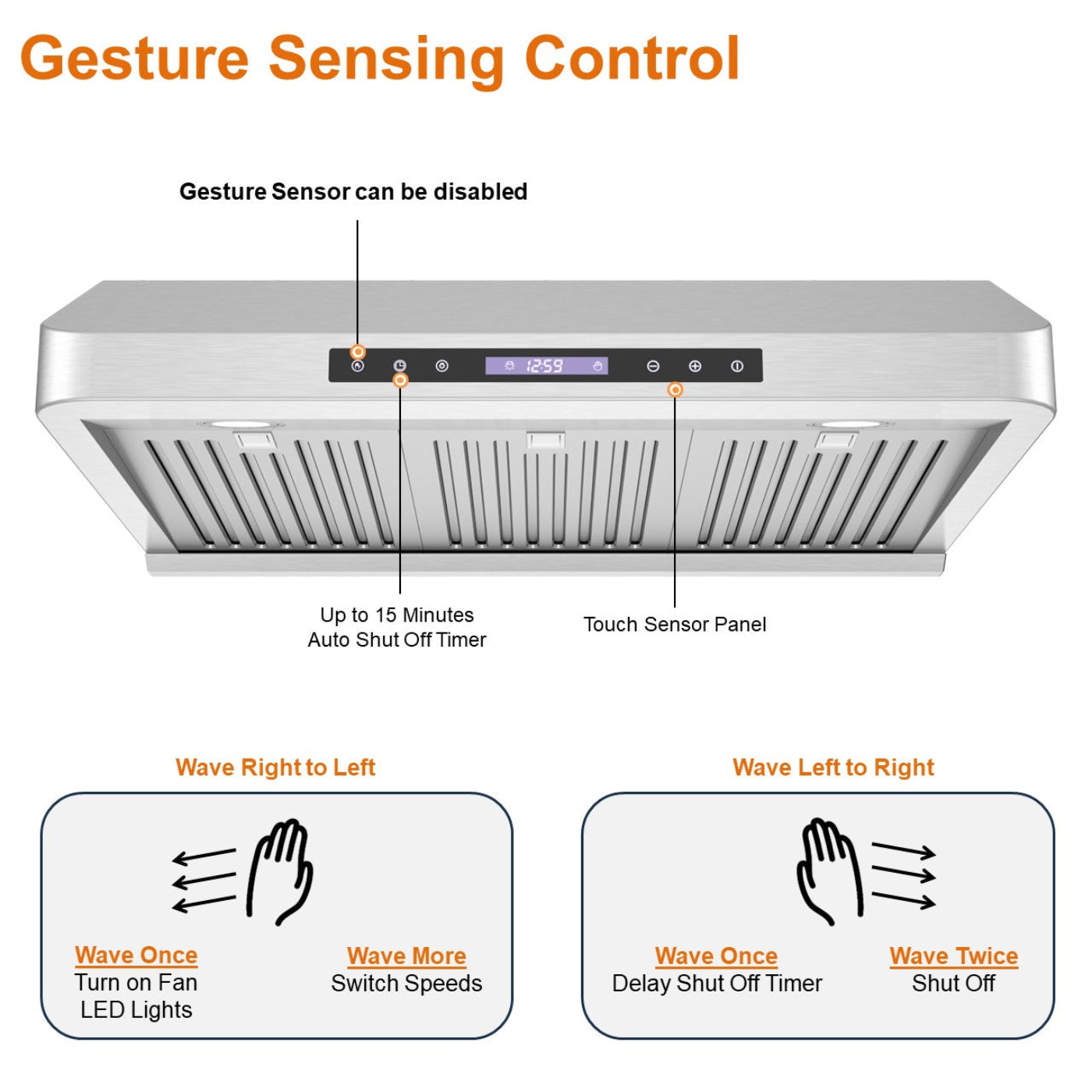

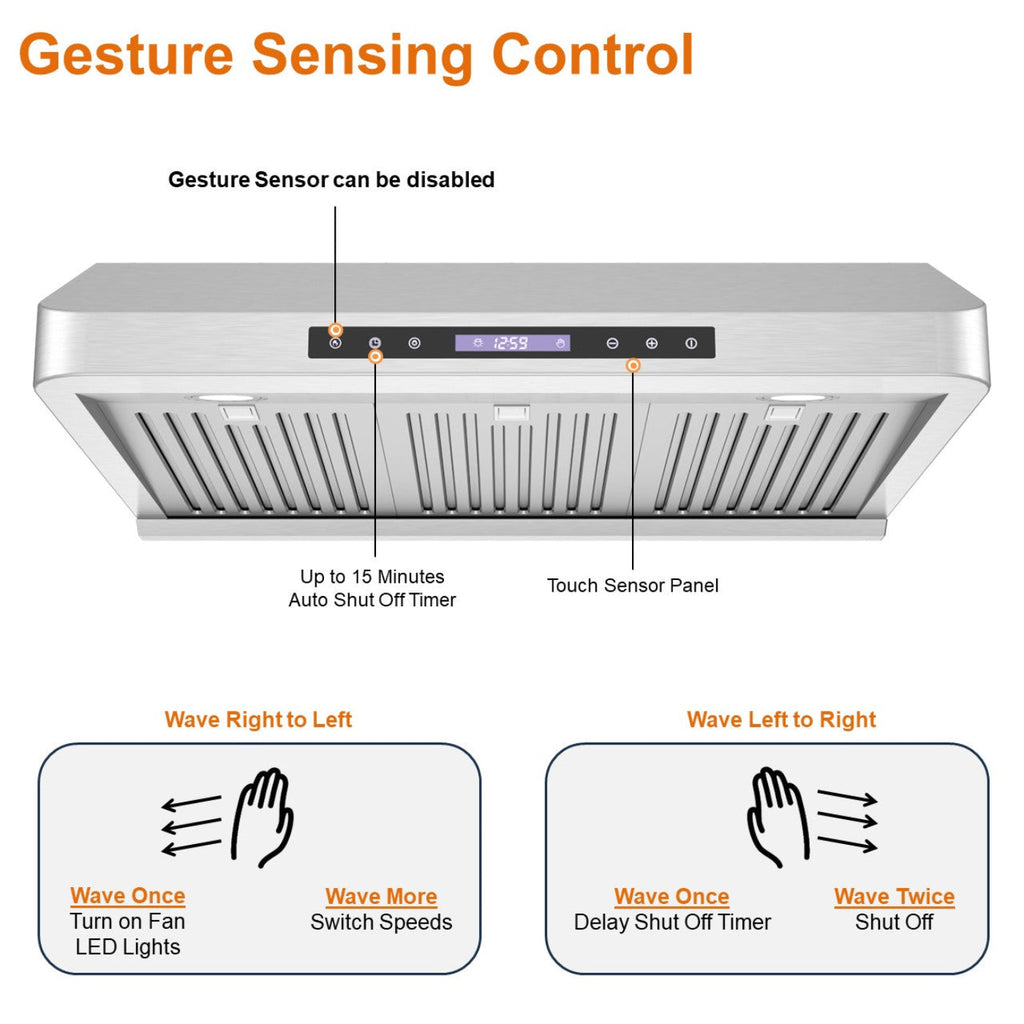

GESTURE SENSING TOUCH CONTROL PANEL, REMOTE CONTROL & LED Lights: Convenient gesture control design that allows you to control your range hood with the wave of your hand. Option to enable/disable gesture sensing by pressing on the icon on the touch control panel. Touch control panel with the remote control sensor receives infrared signals from the remote. 2 of 1.5W twist lock removable energy saving cold bright LED lights.
-

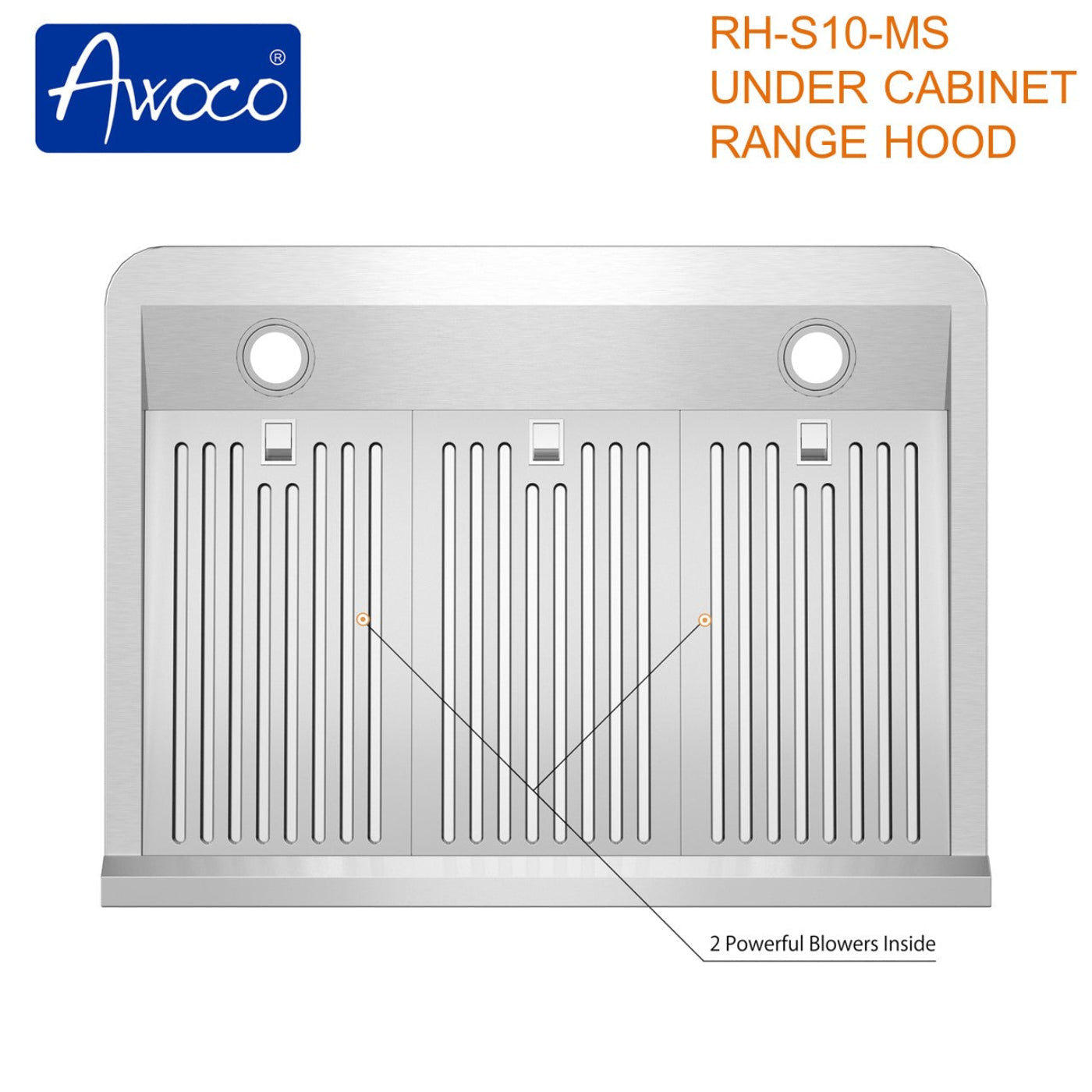

4 SPEEDS POWERFUL OPERATION & 12 Hours Clock Format: 4 speeds (385/590/815/1000 CFM), 12 hours clock format, 2 Motors, Centrifugal Squirrel Cage Blowers. More powerful than a traditional blower. Power rating: 120V/60Hz, 200W Min. 246W Max. Power cord with plug is included. Noise level at low: 46 dB, 4.0 sones. Noise level at high: 64 dB, 12.0 sones.
-
3 DISHWASHER SAFE BAFFLE FILTERS, 1-15 MINUTES AUTO SHUT OFF: Dishwasher safe; easily removable commercial style stainless steel baffle air filters. The oil is contained in the baffle filters and the external oil collector. Up to 15 minute timer with a delayed auto shut off to vent the leftover smoke after cooking. After 3 hours the range hood will auto shut off, in case you forget to shut off the hood.
-
1 YEAR LIMITED WARRANTY: ETL Certified. Free parts, repair or exchange within 1 year. Awoco high quality products with a superb reputation and supreme customer service is always a guarantee. Recommended installation height of the range hood is 27”, minimum should be 24” and the maximum should be no more than 30”.
- 30" Dimensions: 29-1/2"W x 22"D x 7"H. Hood weight: 39.5 lbs.

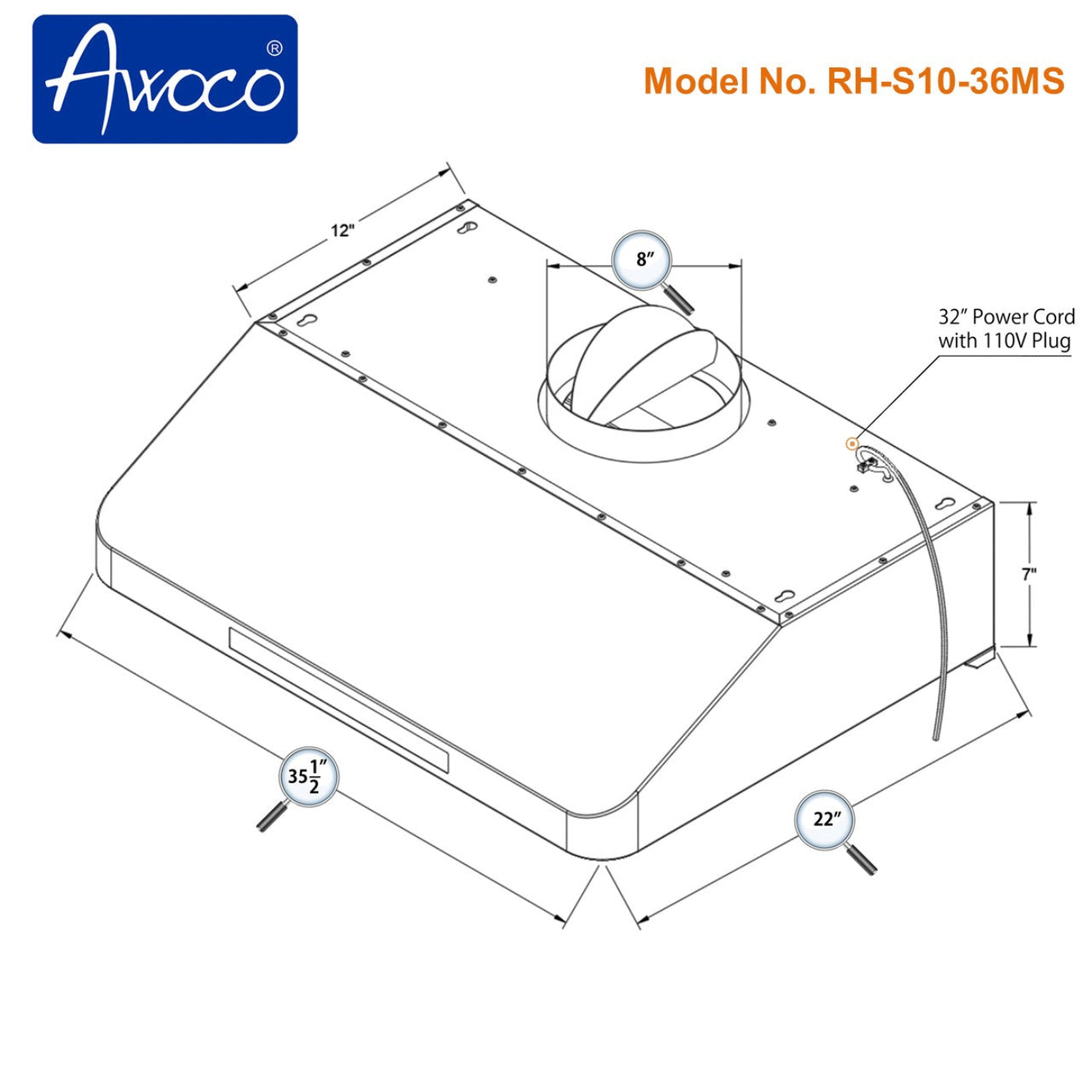

- 36" Dimensions: 35-1/2"W x 22"D x 7"H. Hood weight: 50 lbs.
Product Manual
VIEW / DOWNLOAD
Videos
AWOCO 101 VIDEOS
What Our Experts Think
-
High-Powered Ventilation – 1000 CFM, 4-speed fan quickly removes smoke, grease, and odors.
-
Slim 7” Height Design – Space-saving under-cabinet fit with commercial-grade performance.
-
Gesture Sensing & Touch Control – Hands-free operation for effortless adjustments.
-
Convenient Remote Control – Adjust fan speed and lighting from anywhere in the kitchen.
-
8” Round Top Vent – Ensures strong airflow and easy duct compatibility.
-
Bright LED Lighting – Energy-efficient cooktop illumination for better visibility.
-
Durable Stainless Steel Build – Modern, sleek, and easy to clean.
-
Dishwasher-Safe Baffle Filters – Effectively traps grease and simplifies maintenance.
Q&A
Q: What is the Awoco RH-S10-30MS Range Hood?
A: A 30-inch under-cabinet stainless steel range hood with a 7-inch height, 1000 CFM powerful airflow, and gesture-sensing touch control panel for hands-free operation.
Q: What makes this model unique?
A: It features a gesture-sensing control panel, allowing you to adjust settings with a wave of your hand, along with a touch panel and remote control for convenience.
Q: How powerful is the airflow?
A: The 1000 CFM motor efficiently removes smoke, grease, and odors, making it ideal for high-heat cooking.
Q: What size is the vent connection?
A: It has an 8-inch round top vent for strong ventilation performance.
Q: Does it include filters?
A: Yes, it comes with stainless steel baffle filters that are dishwasher-safe for easy cleaning.
Q: How many fan speeds does it have?
A: It offers 4-speed settings to customize airflow based on cooking needs.
Q: Are lights included?
A: Yes, it features bright LED lights for enhanced visibility while cooking.
Q: Can I control it remotely?
A: Yes, it includes a remote control for easy operation.
Q: Is installation simple?
A: Yes, it is designed for under-cabinet installation, with mounting hardware included.
Q: What material is it made of?
A: Constructed from premium stainless steel for durability and a modern, professional look.
Maintenance Tips
-
Clean Baffle Filters Regularly – Wash every 3–4 weeks with warm soapy water or in the dishwasher to maintain airflow and suction power.
-
Wipe Stainless Steel Exterior – Use a microfiber cloth and stainless steel cleaner to prevent stains and grease buildup.
-
Inspect & Clean Blower Fan – Check every 2–3 months for grease buildup to ensure efficient performance.
-
Check & Replace LED Lights – If lights flicker or dim, replace them with compatible LEDs.
-
Keep 8” Round Vent Clear – Ensure proper airflow by keeping the duct system free of blockages.
-
Use Correct Speed Settings – Lower speeds for light cooking, higher speeds for heavy smoke and grease.
-
Test Gesture Sensing & Touch Panel – Keep the panel clean for optimal responsiveness; wipe gently with a damp cloth.
-
Run Hood After Cooking – Let it run for 5–10 minutes post-cooking to eliminate lingering smoke and odors.
