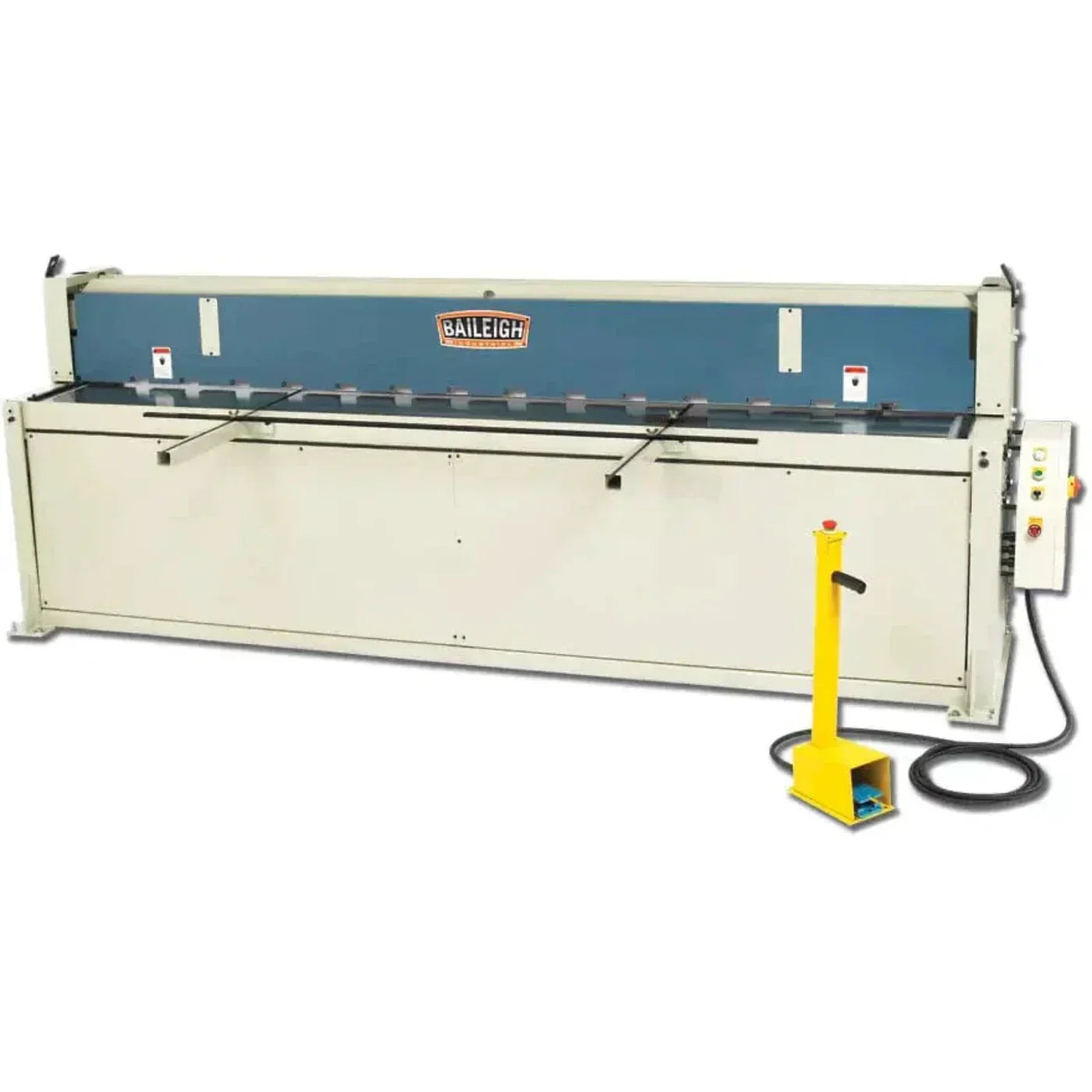

Baileigh SH-12014; 220V 3Phase Hydraulic Powered Shear 120" Length 14 Gauge Mild Steel Capacity
This 120” hydraulic shear lets you cut full sheets the long way. Built with a plate steel carriage, the rigid and simple SH-12014 will give you decades of dependable service.
- 14 gauge mild steel maximum capacity.
- Minimum capacity of 24 gauge mild steel.
- 5 hp motor runs on 220-volt 3-phase power.
- Powerful industrial-grade hydraulics produce smooth movements that prolong blade life.
- Up to 20 strokes per minute
- Adjustable 24” backgauge helps ensure repeatability.
- Front support arms and table guides keep the material square to the blade.
- 3 modes on the operator console:
- Inch mode: Jog the control and ease the blade down to the material.
- Single mode: Make one cut cycle per foot pedal push.
- Auto mode: Continue cycling as you hold the pedal down.
- Comes standard with high carbon chromium blades.
- Blades have 4 shearing edges, so you can turn them when an edge gets dull to extend blade life and save money.
- Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life.
- Fully welded steel construction helps prevent flex and maintain accuracy for many years.
- Covered by a 1-year parts warranty.
- We stock replacement parts, including blades, in house for fast shipping.
Includes lifetime technical support by phone from a team of reps with hands-on metalworking experience.
Specifications
Item Number SH-12014
Blade Rake Angle 2 degrees
Back Gauge Length 24'
Shear Length 120'
Motor 5 hp
Thickness (SS) 14 ga. (18 ga.)
Strokes Per Minute 20
Front Gauge Length 24'
Blade Angle 2°
Power 220V / 3-phase
Shipping Weight 5930lbs
Minimum Material Thickness 24ga
Shipping Dimensions (Inches) 150x44x60
What Our Experts Think
-
Heavy-Duty Capacity: The Baileigh SH-12014 offers a robust 14-gauge mild steel cutting capacity with a 120" length, making it ideal for large-scale, industrial cutting tasks.
-
Hydraulic Power: Powered by a hydraulic system, it delivers precise, clean cuts with minimal effort, providing a reliable and consistent performance for demanding applications.
-
Durable Build: Constructed with high-quality materials, this shear is designed for long-term use, offering excellent durability and performance in heavy-duty environments.
-
User-Friendly Controls: Equipped with intuitive controls, the Baileigh SH-12014 ensures ease of operation, even in high-production settings, reducing operator fatigue.
-
Efficiency and Precision: Engineered to provide smooth and accurate cuts every time, this machine is built for efficiency, helping to streamline your production process
Q&A
Q: What is the Baileigh SH-12014 Hydraulic Powered Shear?
A: The Baileigh SH-12014 is a heavy-duty hydraulic-powered shear designed for cutting 120" lengths of mild steel up to 14 gauge in thickness. It offers precision and efficiency in sheet metal cutting for industrial and commercial applications.
Q: What is the cutting capacity of the Baileigh SH-12014?
A: The Baileigh SH-12014 can cut 14 gauge mild steel up to 120 inches in length, making it ideal for large sheet metal projects.
Q: What type of power does the Baileigh SH-12014 use?
A: The Baileigh SH-12014 operates on a 220V 3-phase power supply, ensuring consistent and reliable operation for industrial settings.
Q: What are the key features of the Baileigh SH-12014 Hydraulic Powered Shear?
A:
-
Hydraulic Operation: Provides smooth, high-efficiency cutting with minimal effort.
-
Large Cutting Capacity: Cuts up to 14 gauge mild steel with a 120" length capacity.
-
Heavy-Duty Construction: Built with durable components for long-lasting use in demanding environments.
-
Precision Cutting: Offers accurate and clean cuts, ensuring high-quality results.
-
Safety Features: Includes built-in safety mechanisms for operator protection.
-
Foot Pedal Control: Hands-free operation for ease of use while cutting large sheets.
Q: Is the Baileigh SH-12014 suitable for heavy industrial use?
A: Yes, the Baileigh SH-12014 is designed for heavy industrial use and is built to handle continuous cutting of large sheets of mild steel, making it perfect for fabrication shops or manufacturing facilities.
Q: How easy is it to operate the Baileigh SH-12014?
A: The Baileigh SH-12014 features a user-friendly design with hydraulic controls and a foot pedal for hands-free operation, making it easy for operators to use efficiently.
Q: Can the Baileigh SH-12014 cut materials other than mild steel?
A: While the Baileigh SH-12014 is primarily designed for mild steel, it can also cut other materials such as aluminum or stainless steel, depending on their thickness and properties.
Q: What is the build quality of the Baileigh SH-12014?
A: The Baileigh SH-12014 is built with a robust frame and high-quality hydraulic components to ensure long-lasting durability and reliable performance even under heavy use
Maintenance Tips
-
Routine Lubrication: Regularly lubricate all moving parts, including the shear blades, hinges, and pivot points, to ensure smooth operation and prevent wear.
-
Hydraulic System Check: Inspect the hydraulic fluid levels and top up as necessary. Check for leaks or signs of wear in the hydraulic hoses and components.
-
Blade Maintenance: Keep the shear blades sharp and free from nicks. If the blades become dull or damaged, have them professionally sharpened or replaced.
-
Cleanliness: Keep the machine clean and free from debris or buildup of metal scraps. Use a soft cloth and non-abrasive cleaner to wipe down the machine.
-
Tighten Bolts and Fasteners: Regularly check and tighten all bolts, screws, and fasteners to maintain machine stability and prevent vibrations.
-
Electrical System Check: Ensure that the electrical connections are secure and free from corrosion. Test the control system for proper function.
-
Inspect Guards and Safety Features: Verify that all safety guards and features are intact and functioning properly to ensure operator safety.
-
Calibration and Alignment: Periodically check the alignment of the cutting mechanism to ensure accurate cuts. Recalibrate if necessary.
-
Storage: If not in use for extended periods, cover the machine to protect it from dust, moisture, or environmental elements.
-
Professional Servicing: Schedule periodic professional maintenance to keep the shear in optimal condition, especially if you notice any performance issues.
