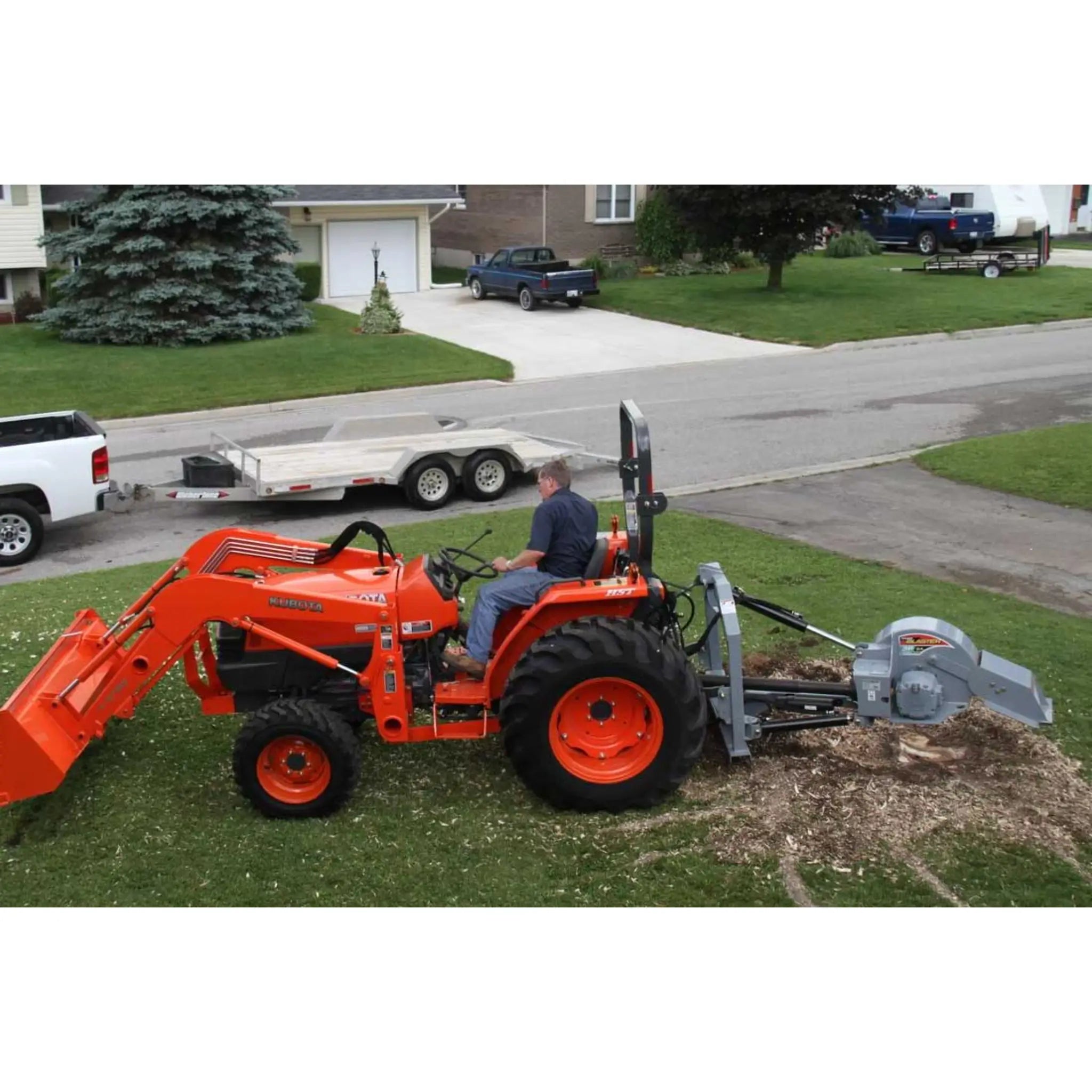

Baumalight 3P24 Stump Grinder For Tractors - BML-3P24-S1050-C1-NT

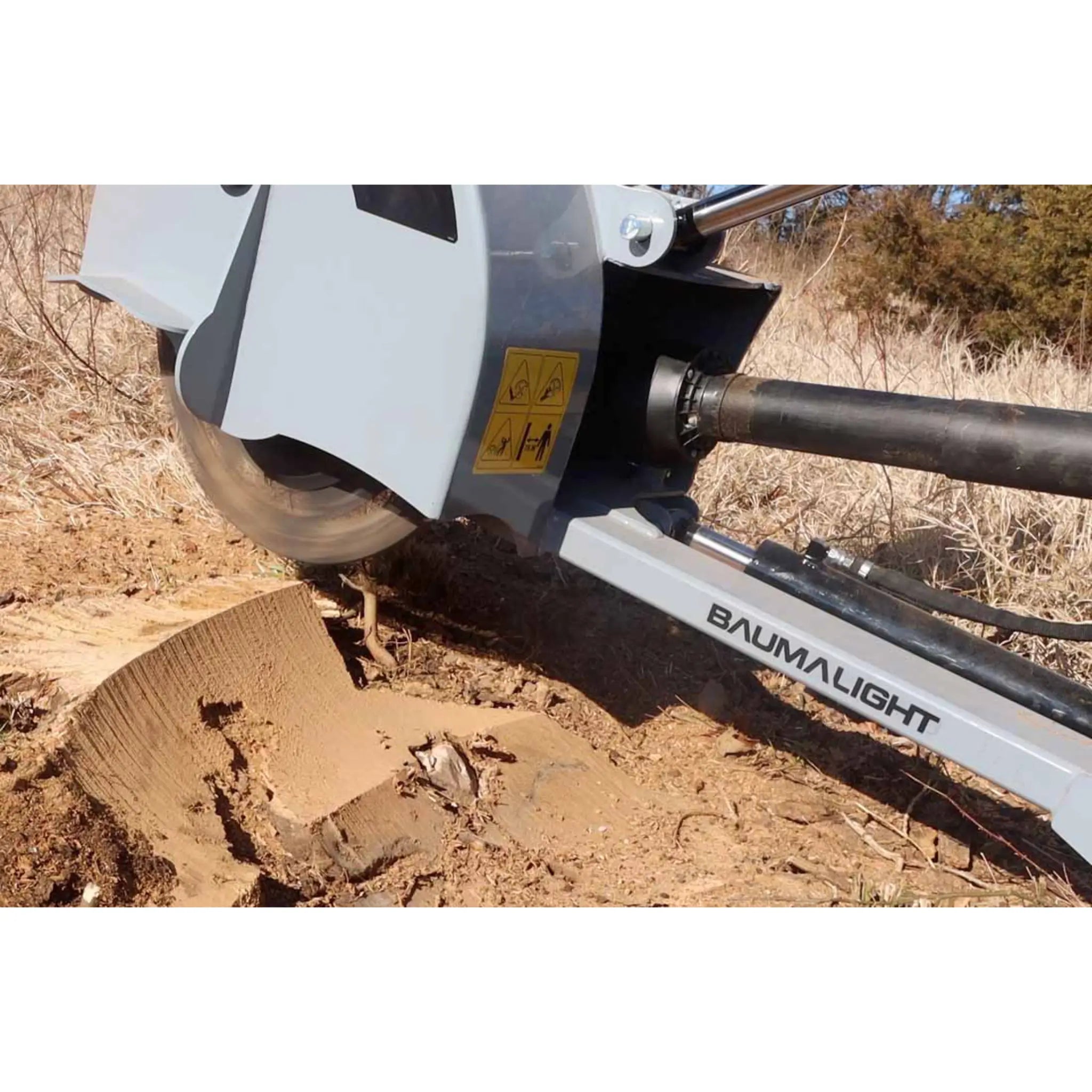

Enjoy relentless power and lightning-fast efficiency with the Baumalight 3P24 PTO Stump Grinder. Engineered for tractors with 30-60 HP, this robust grinder features a 24" rotor with 34 carbide teeth for optimal grinding prowess. With a substantial 803 Ft.-Lbs of torque at 810 RPM, and dual hydraulic remote com
Baumalight 3P24 Stump Grinder
patibility, it ensures deep, precise cuts—18" above and 8" below ground.

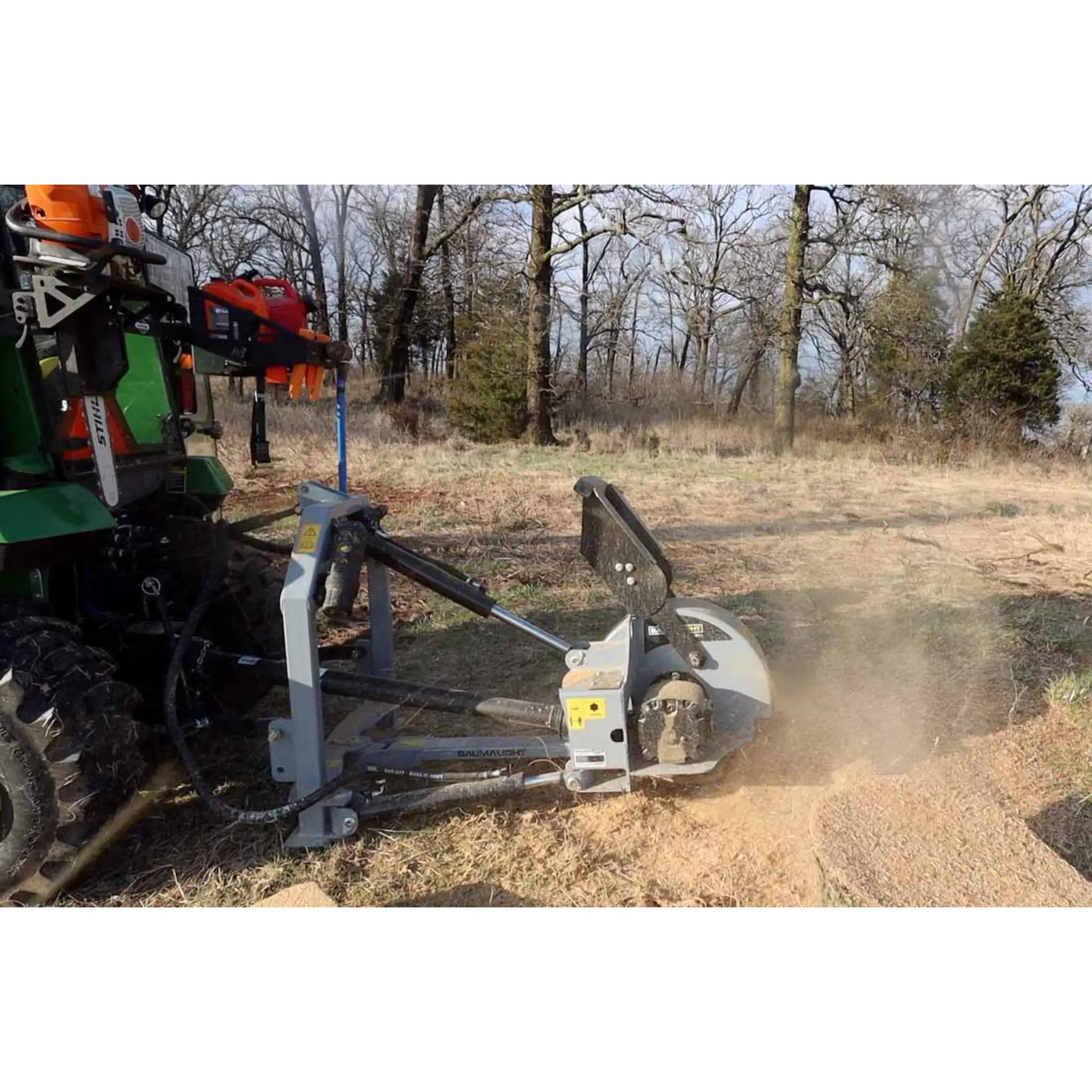

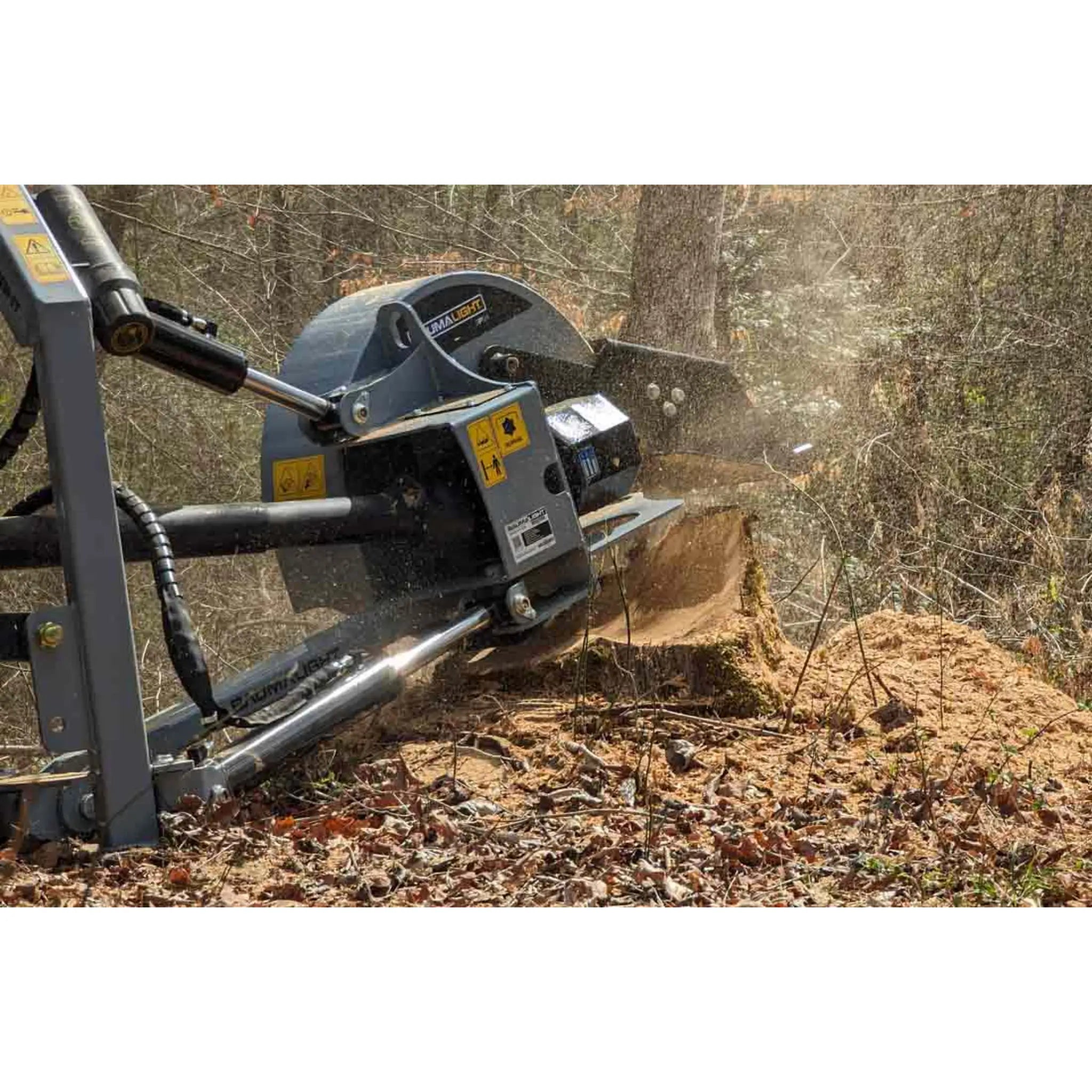

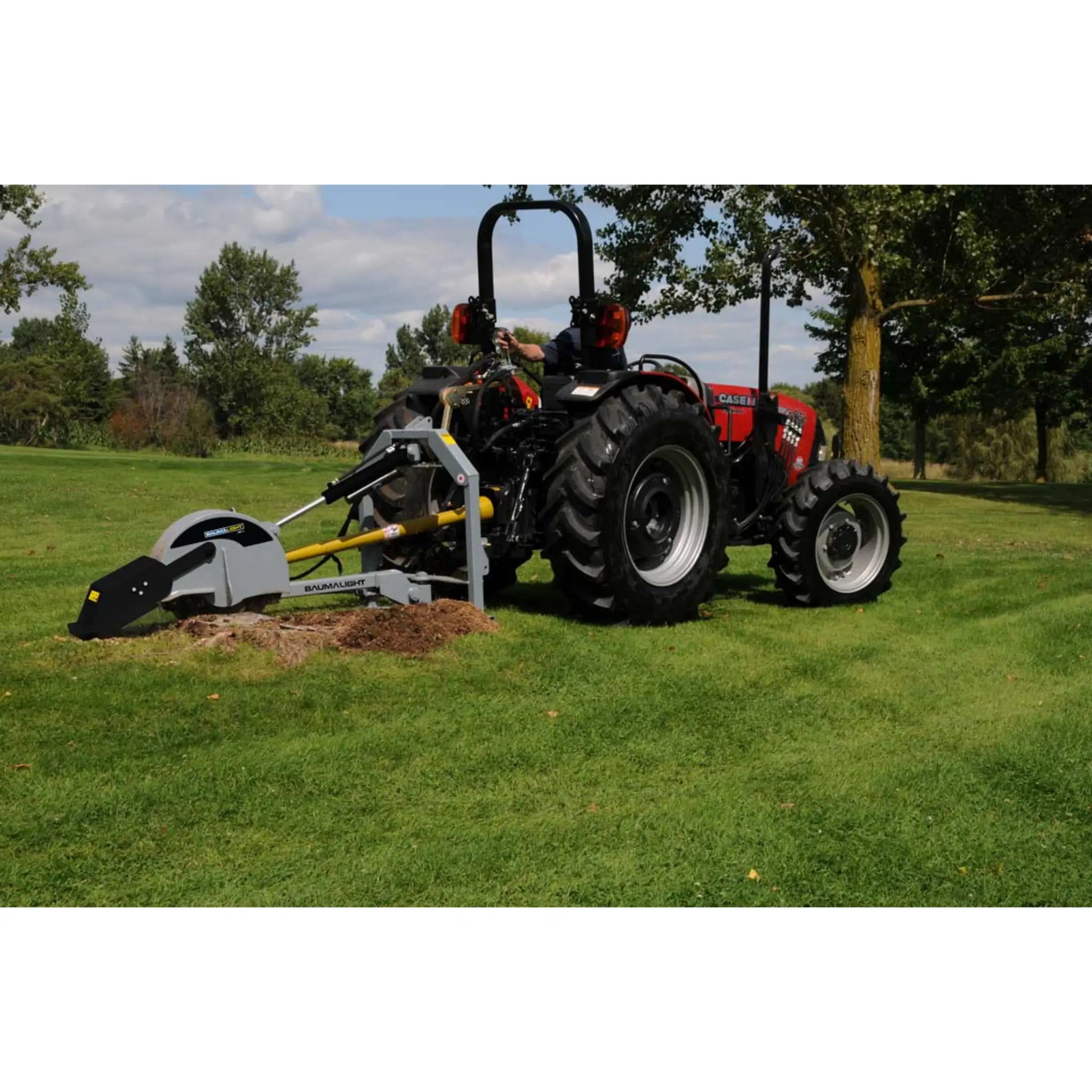

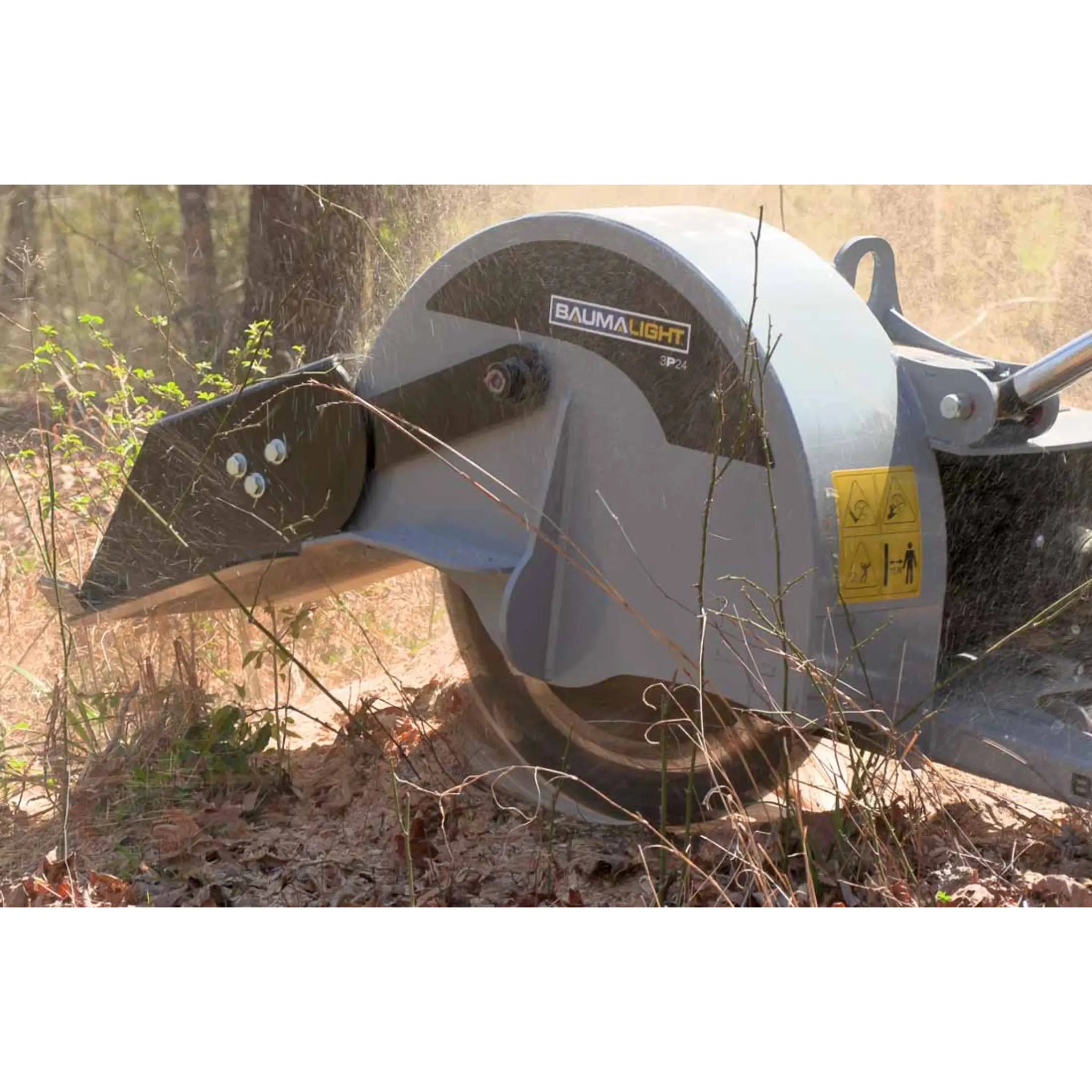

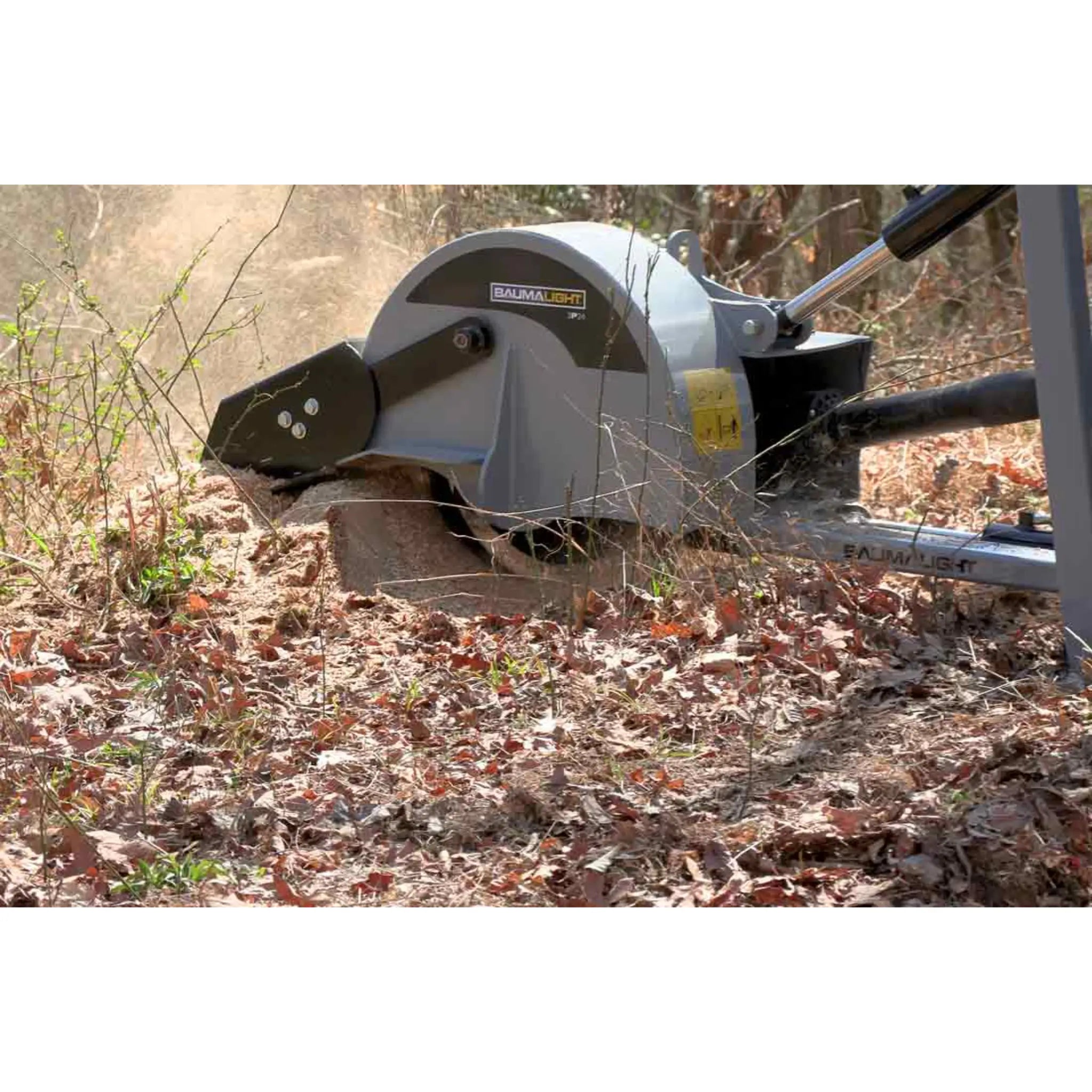

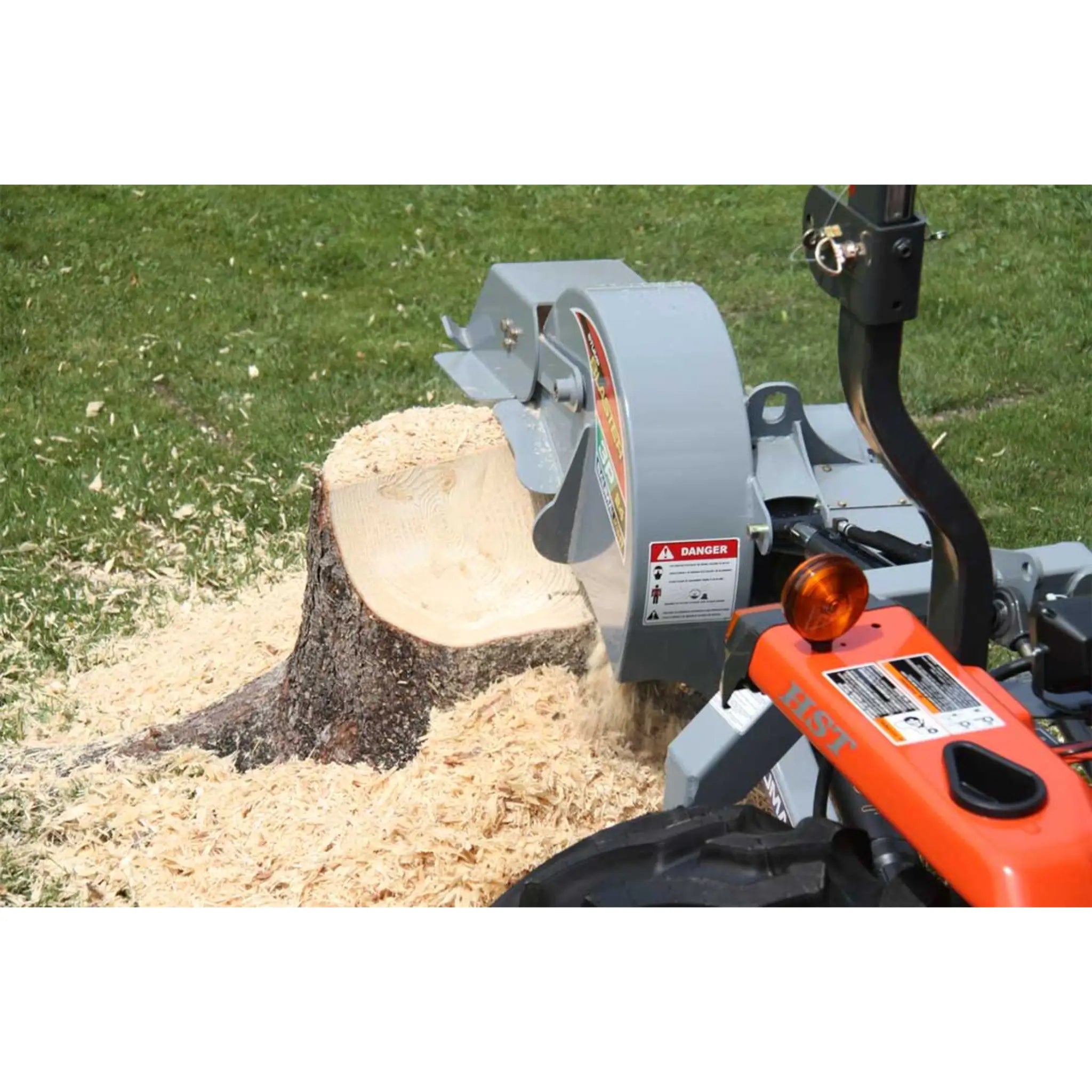

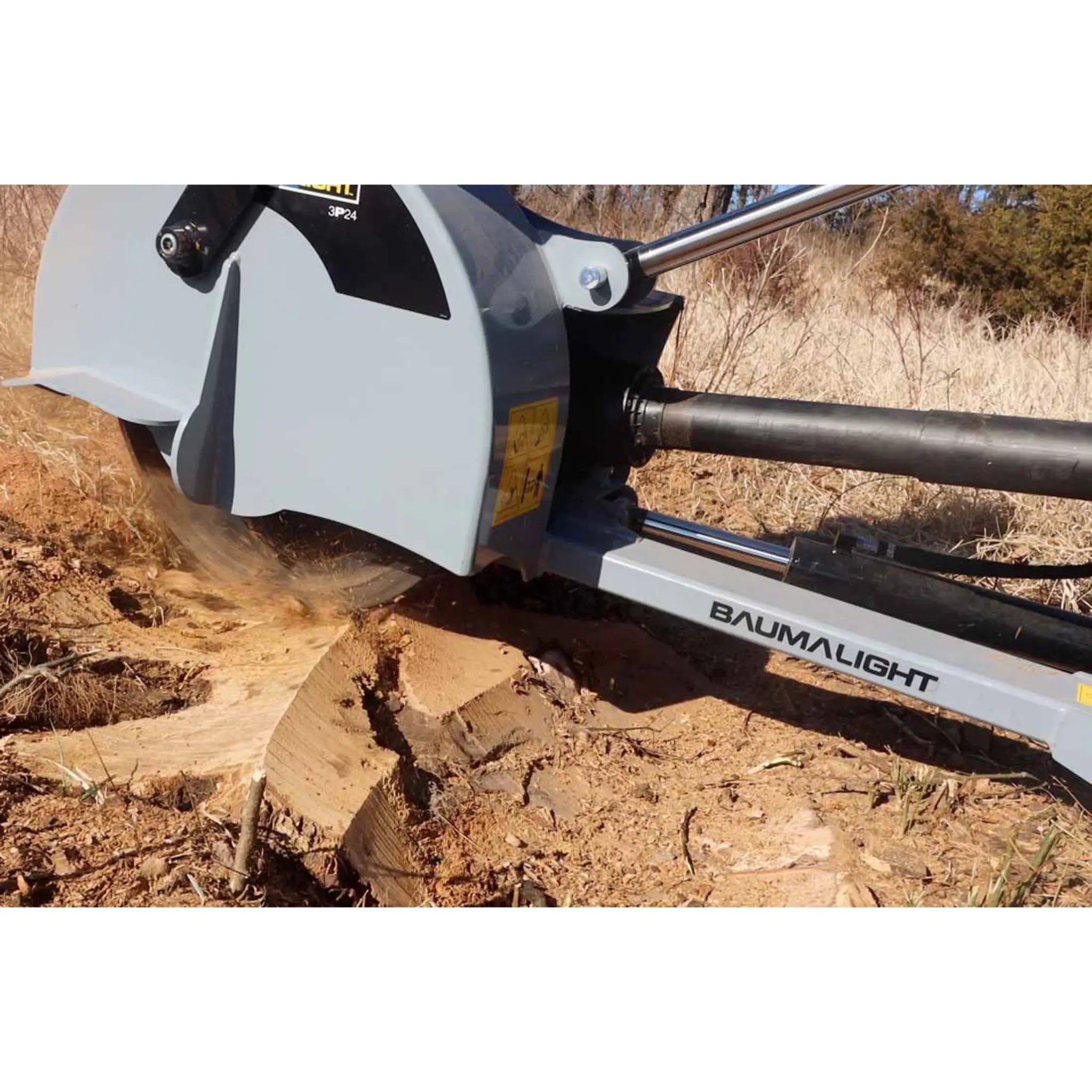

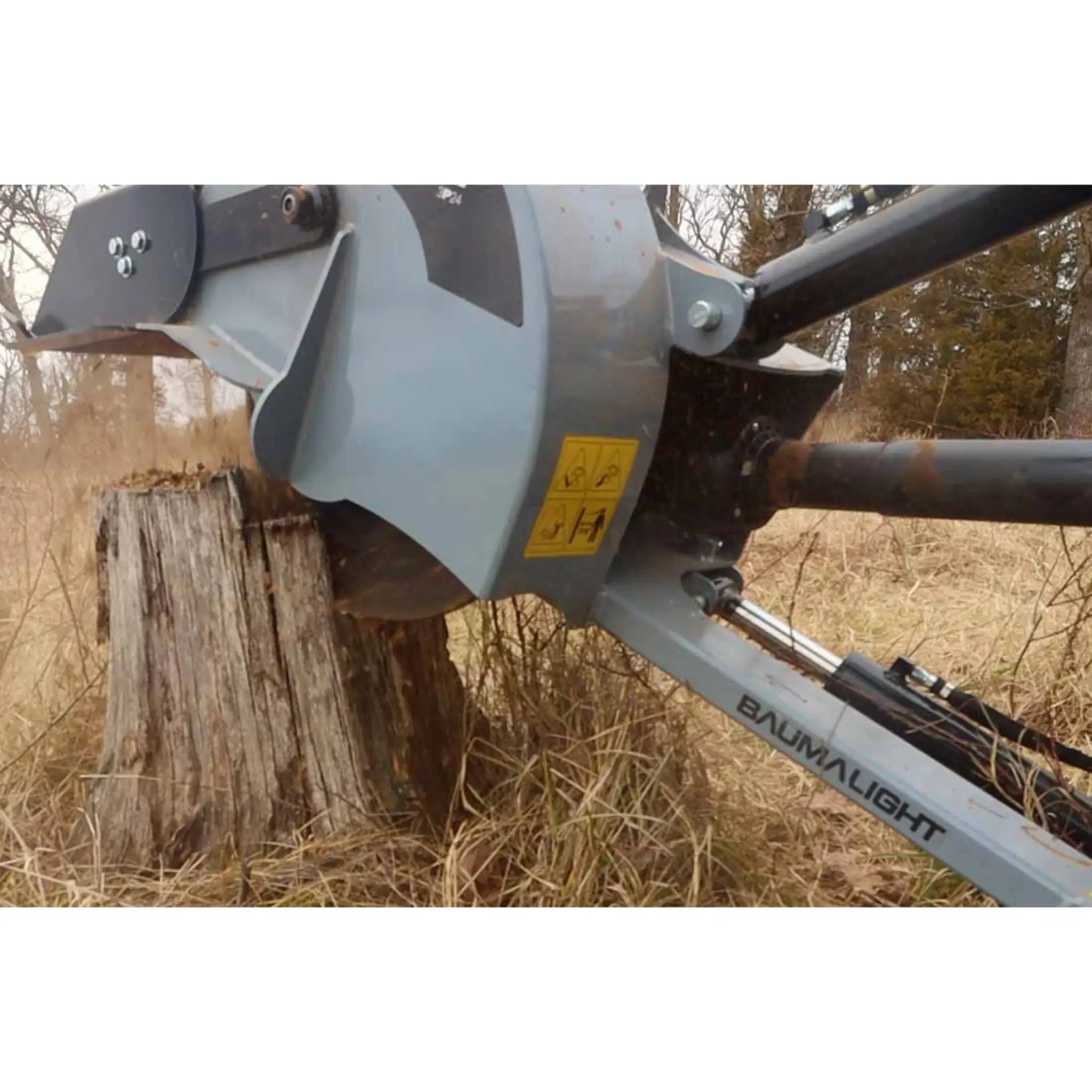

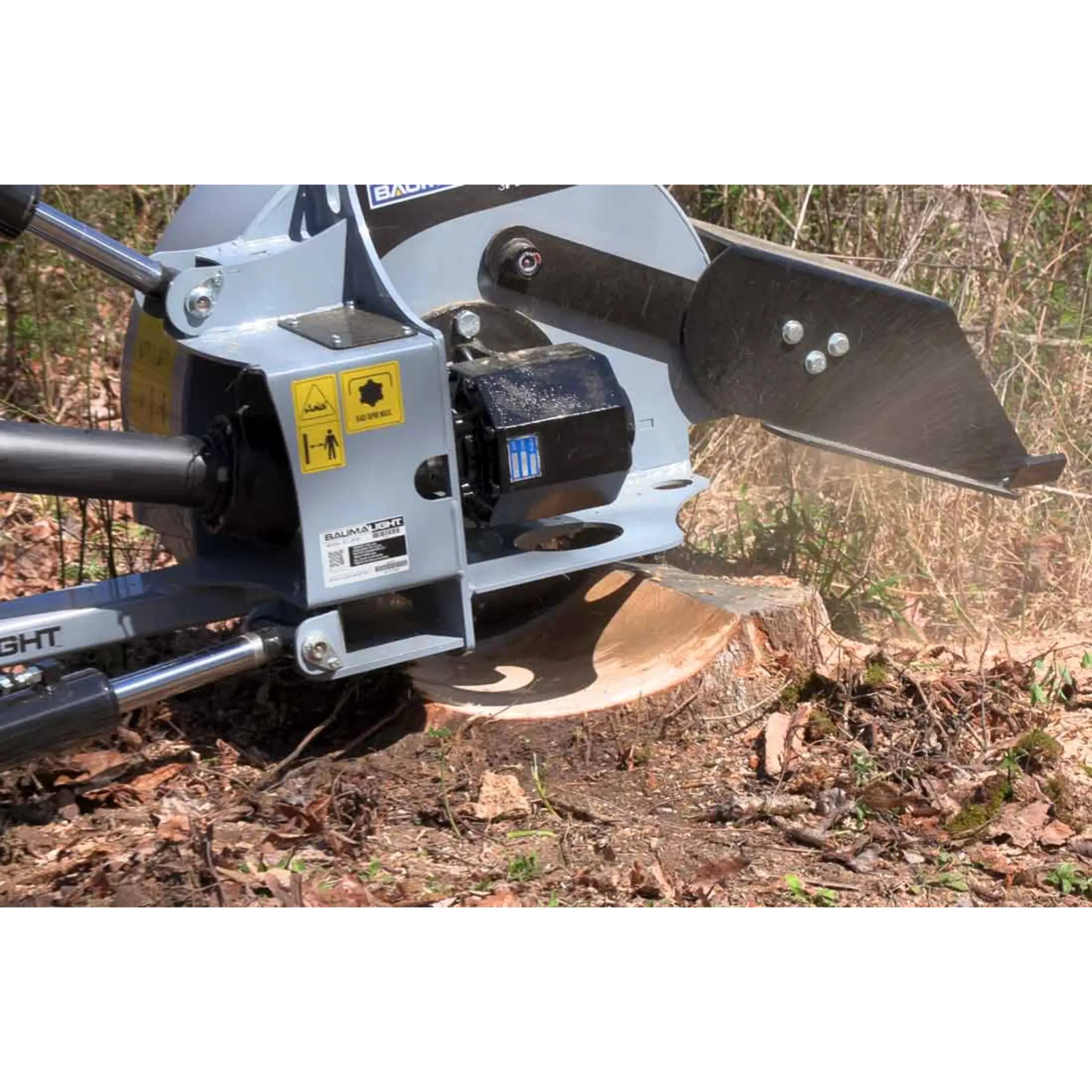

TheBaumalight 3P24 PTO stump grinderstands as a pinnacle of efficiency and rugged strength, tailor-made for tractors equipped with a 30-50 HP motor. Designed to conquer even the most challenging stumps, this unit boasts a formidable 24-inch rotor with 34 replaceable carbide teeth, ensuring a cutting depth of 18 inches above ground and 8 inches below. Its powerful direct drive system, complemented by a heavy-duty gearbox, delivers a whopping 803 Ft-Lbs of torque, turning the rotor at 810 RPM to pulverize stumps into dust efficiently.
Crafted for adaptability, the 3P24 requires two hydraulic remotes from your tractor to operate the cutting and lifting cylinders effectively. For those with limited hydraulic options, Baumalight offers a convenient S1050 valve kit, enhancing compatibility and control, especially on smaller tractors. The unit’s flow control feature allows operators to fine-tune the grinding speed, maximizing productivity and minimizing wear on the equipment.

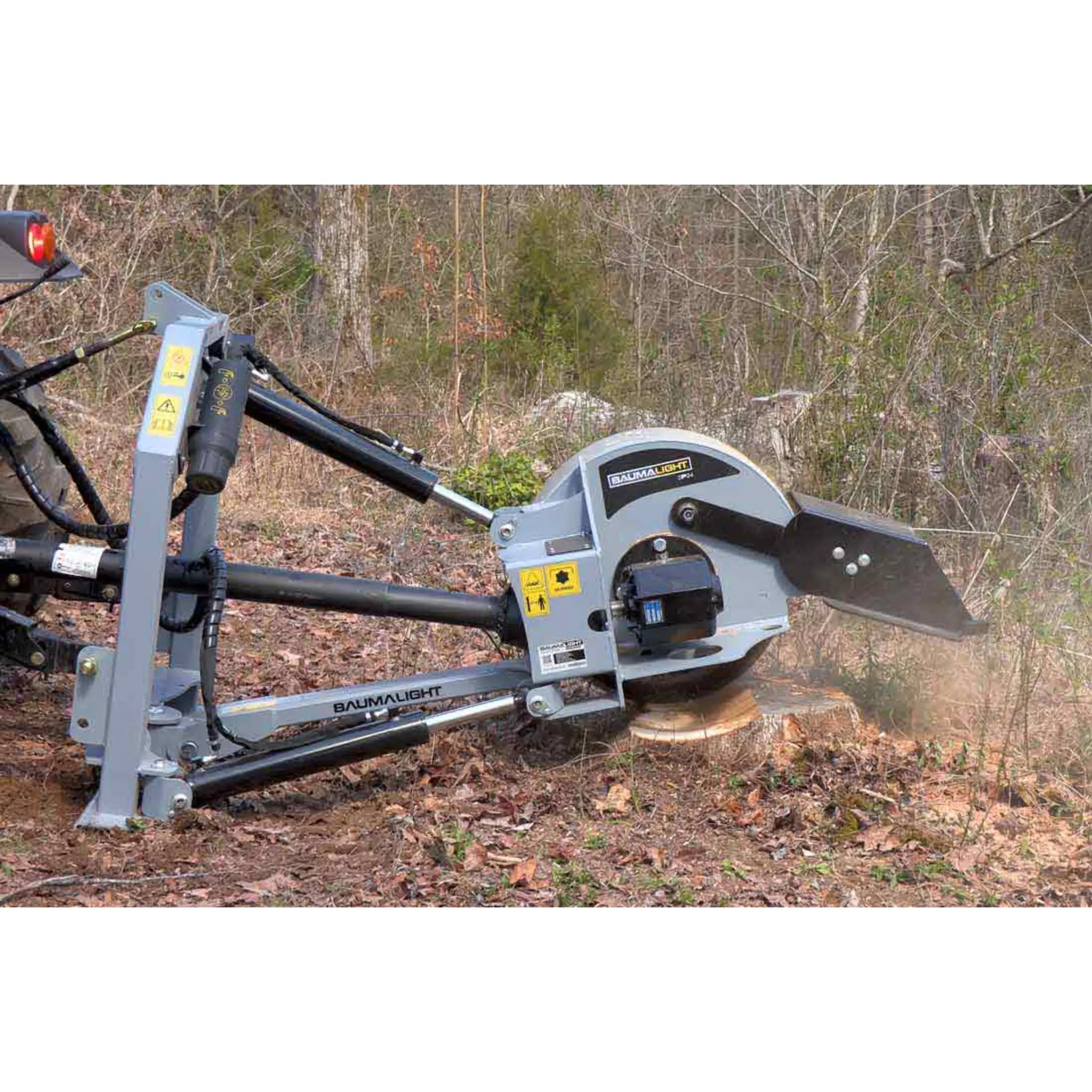

The robust design extends to every aspect of the 3P24, from its heavy-duty base that stabilizes operations and reduces tractor stress, to the high-grade chrome-vanadium AISI 6150 steel spring bushings at all main pivot points. An optional external control mounted on an adjustable arm provides enhanced cutting control, crucial for optimal performance in diverse working conditions. With Baumalight’s commitment to durability and performance, this stump grinder is not just a purchase; it’s a long-term investment in your land management arsenal.
Specifications
Model No.
1P24
3P24
3P34
3P40
Recommended HP Size
20-45
25-55
45-80
60-120
Maximum Engine HP
50
58
85
125
Maximum PTO HP
40
50
75
115
Transmission
Hydrostatic only
Any
Any
Any
Hydraulic GPM
--
5–20
5–20
5–20
Rotor Size
24"
24"
34"
34"
Number of Teeth
34
34
54
54
Tooth Part number
S1000
S1000
S1000
S1000
Tooth Construction
Carbide steel bolt-in
Carbide steel bolt-in
Carbide steel bolt-in
Carbide steel bolt-in
Cutting Wheel Speed
540 RPM
810 RPM
810 RPM
1000 RPM
Cutting Height - Above Ground
10"
18"
25"
25"
Cutting Depth - Below Ground
6"
8"
14"
14"
Maximum Cutting Depth - Per Pass
5"
6"
9"
9"
Maximum Horizontal Cut
22"
22"
32"
32"
Swing Arc
0°
65°
65°
65°
Hub Torque
803 Ft.-Lbs.
803 Ft.-Lbs.
803 Ft.-Lbs.
1050 Ft.-Lbs.
Over Torque Protection
Slip clutch
Slip clutch
Slip clutch
Slip clutch
Hitch
Cat I
Cat I or II
Cat II
Cat II
Quick hitch compatibility
Yes
No
No
No
Requires 12 Volt DC
No
No
No
No
Input Speed
540
540
540
1000
Unit Weight (Shipping) Lbs.
350
920
1231
1280
Width (Shipping)
48"
42"
48"
48"
Length (Shipping)
48"
49"
54"
54"
Stump cutting time chart
Tractor HP
20Hp
30Hp
40Hp
60Hp
70Hp
80Hp
90Hp
120Hp
--
30 min
20 min
15 min
--
--
--
--
--
Tractor HP
20Hp
30Hp
40Hp
60Hp
70Hp
80Hp
90Hp
120Hp
--
--
15 min
12 min
10 min
--
--
--
--
Tractor HP
20Hp
30Hp
40Hp
60Hp
70Hp
80Hp
90Hp
120Hp
--
--
--
--
6 min
5 min
4 min
--
--
Tractor HP
20Hp
30Hp
40Hp
60Hp
70Hp
80Hp
90Hp
120Hp
--
--
--
--
6 min
5 min
4 min
3 min
2 min
