    Baumalight GXM550 Stump Grinder For 3.5 - 8 Ton Excavators - BML-GXM550-X508-EWC3.5-6-B

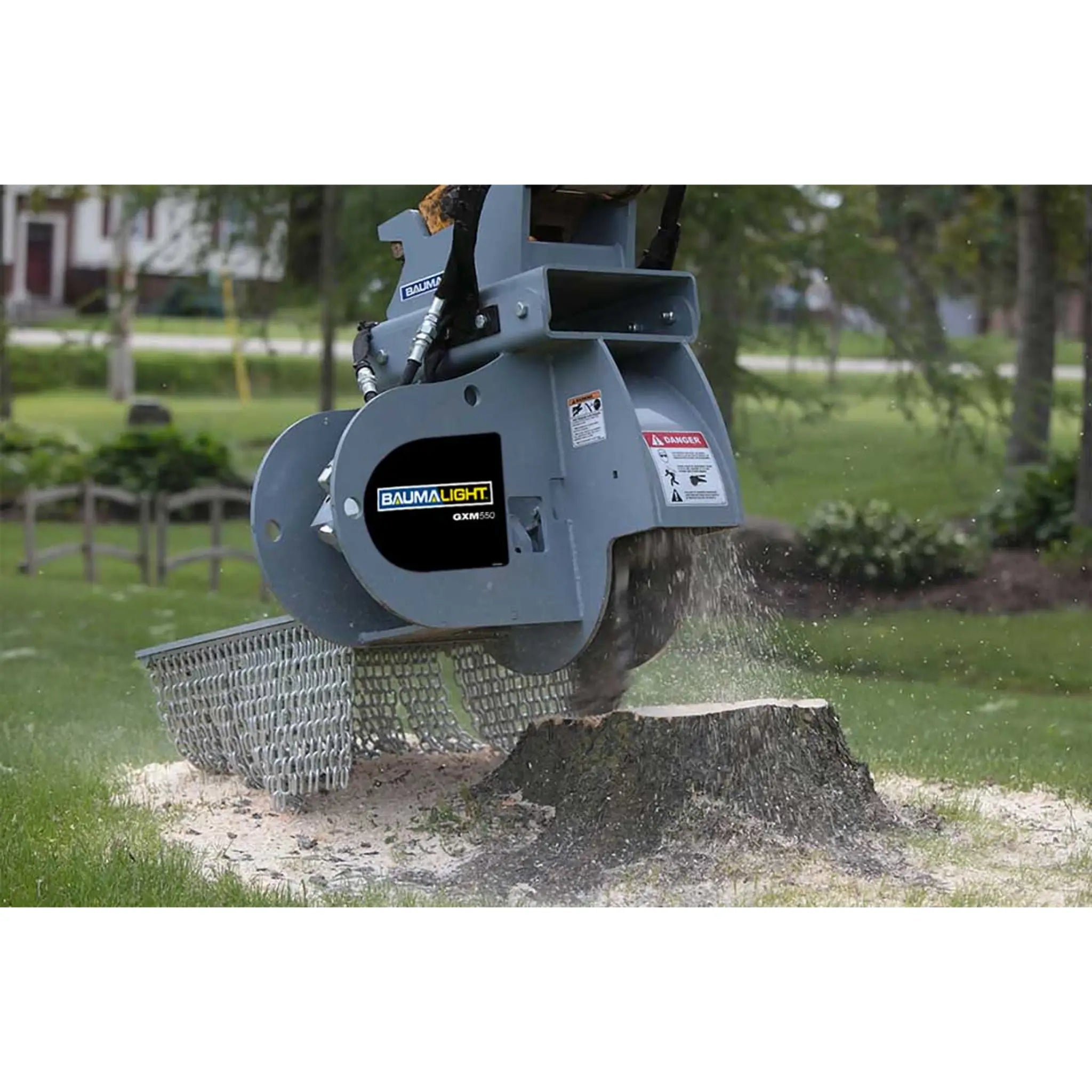

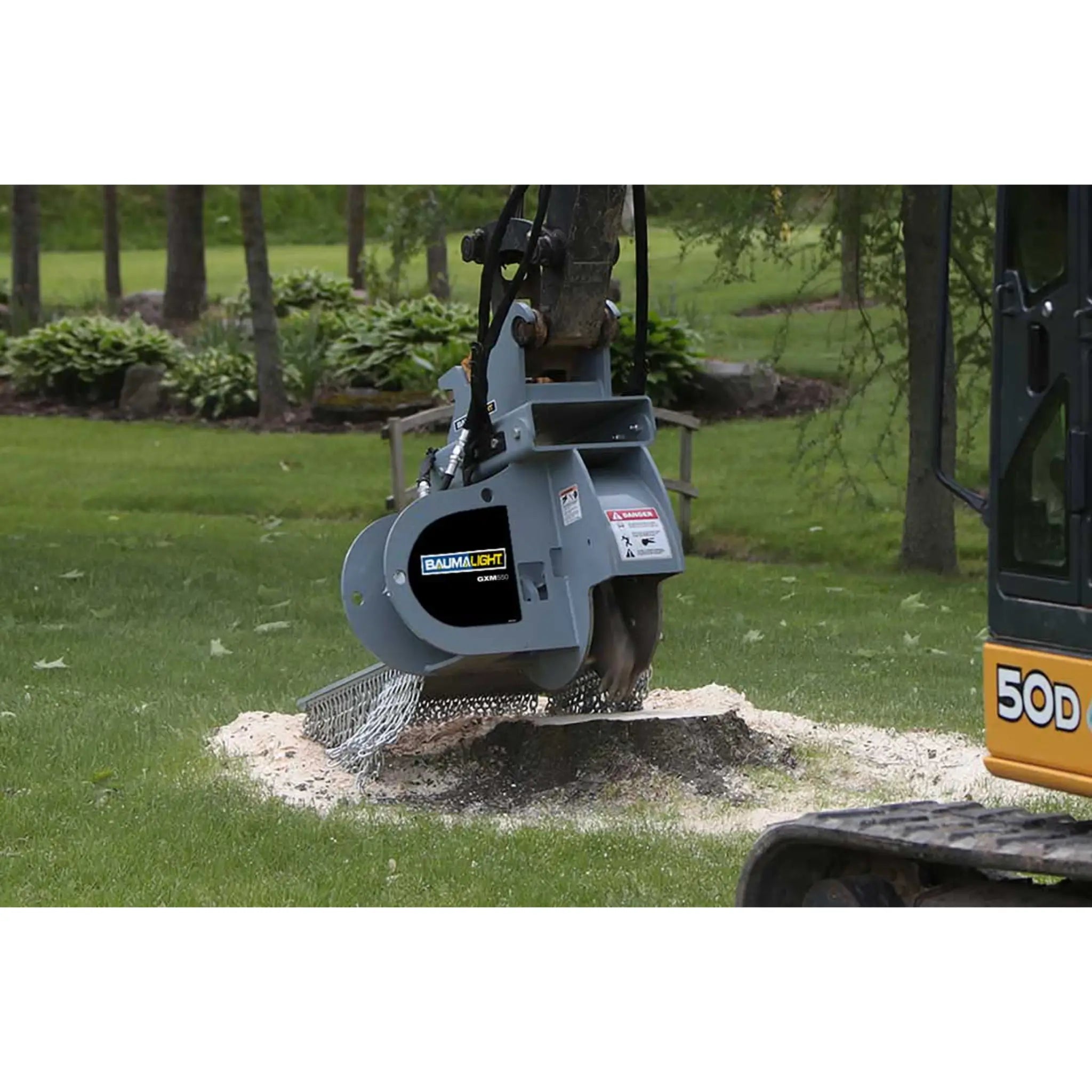

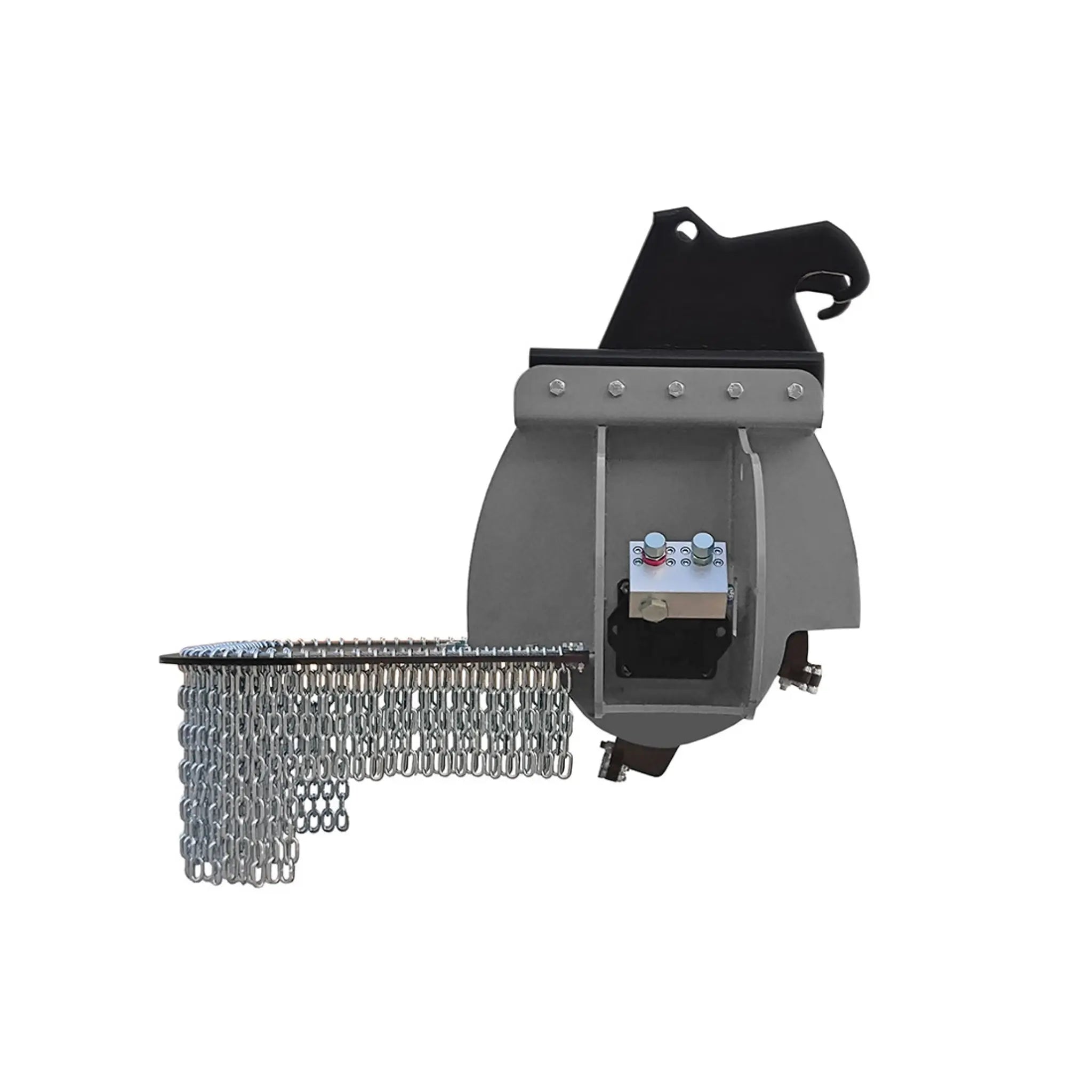

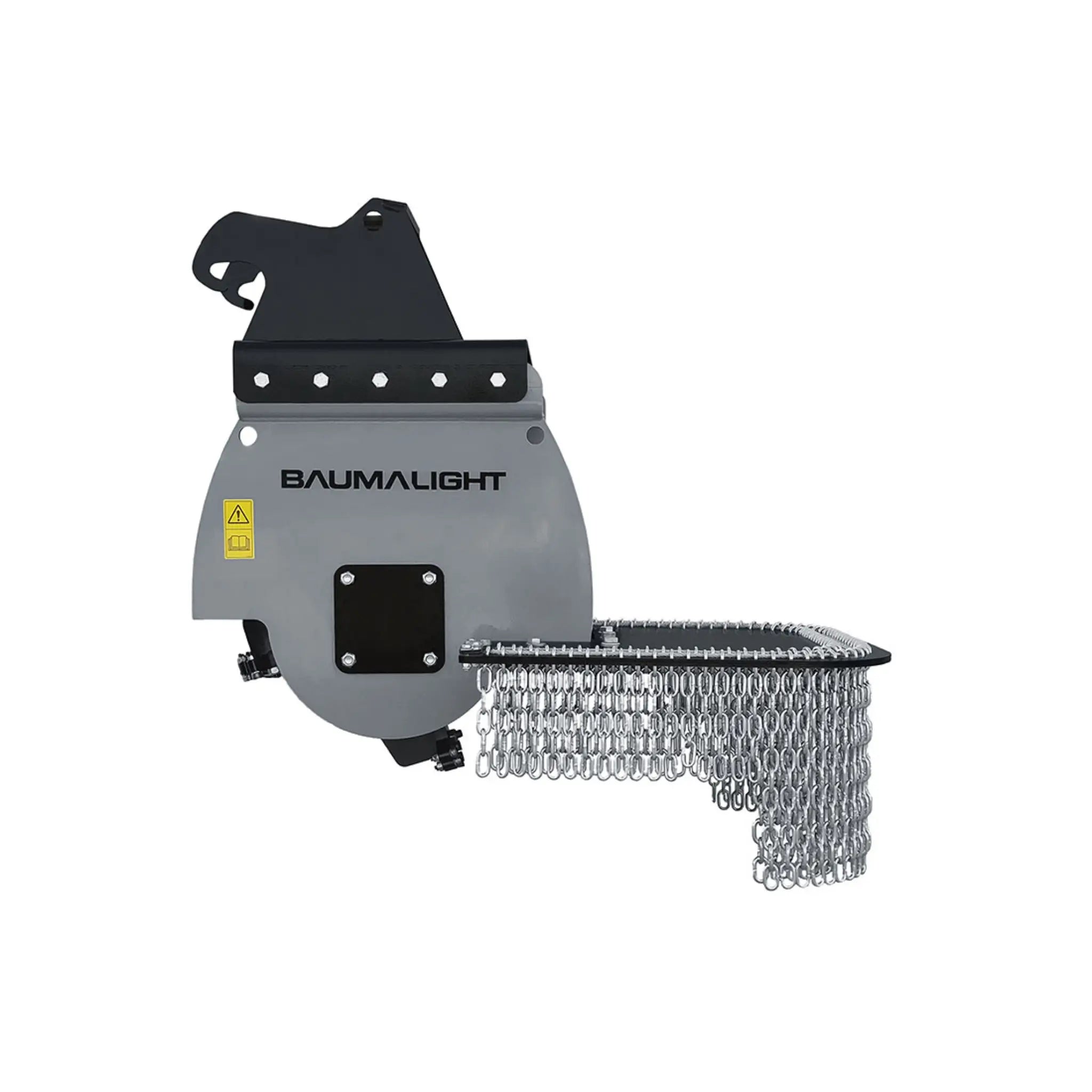

    Maximize stump removal efficiency with the Baumalight GXM550. This robust stump grinder features a 24" rotor and a bent-axis piston motor, ensuring powerful performance. The grinder is equipped with 12 carbide teeth, each rotatable up to three times for extended use. The unique concave tooth design delivers aggressive, precise cuts, reducing wear and enhancing mulch quality.

    Baumalight GXM550

    Designed for superior performance, the Baumalight GXM550 stump grinder is tailored for excavators weighing 3.5 to 8 tons and accommodates hydraulic flows between 8 to 40 gallons per minute. Its robust 24" rotor, powered by a high-efficiency bent-axis piston motor, ensures deep and effective stump removal. The durable 1.25" thick steel rotor serves as the foundation for the carbide-tipped cutting system, crucial for maintaining momentum even in the toughest conditions.

    Equipped with 12 high-speed, round carbide teeth arranged in trios, the GXM550 allows each tooth to rotate to a fresh edge up to three times, maximizing longevity and efficiency in stump grinding. This unique design not only extends the service life of the teeth but also produces finer mulch, which enhances the smoothness of operation. The bolt-on design of the teeth simplifies replacement, reducing downtime and maintenance costs.




    Specifications
    Model No. S14 S18 GXM350 GXM550 GXM750
    Baumalight Connection Code A04 A04 A02 A02 A02
    Recommended Carrier Size 1-2 ton 1.5-4 ton 1.5-4.5 ton 3.5-8 ton 7-18 ton
    Motor Type Gerotor Gerotor High efficiency bent axis piston High efficiency bent axis piston High efficiency bent axis piston
    Hydraulic GPM Check Motor Options Check Motor Options Check Motor Options Check Motor Options Check Motor Options
    Rotor Size 18" 24" 19" 24" 24"
    Number of Teeth 12 34 12 12 12
    Tooth Part number H3000 S1000 H3000 H3000 H3000
    Tooth Construction High speed Planer High speed High speed High speed
    Cutting Wheel Speed Depends on GPM Depends on GPM Depends on GPM Depends on GPM Depends on GPM
    Cutting Height - Above Ground No limit No limit No limit No limit No limit
    Cutting Depth - Below Ground 6" 10" 16" 24" 24"
    Maximum Cutting Depth - Per Pass 2" 5" 3/4" 1" 1"
    Maximum Horizontal Cut 12" 22" 12" 22" 22"
    Over Torque Protection Relieve valve Relieve valve Relieve valve Relieve valve Relieve valve
    Hitch 1" pivot pins 1" pivot pins Bolt on Bolt on Bolt on
    No. of Remotes Required - Hydraulic 1 1 1 1 1
    Requires 12 Volt DC No No No No No
    Unit Weight (Shipping) Lbs. 394 642 650 822 1300



    Motor options - stump cutting time chart
    36in Root Base

    EXCAVATOR STUMP CUTTING TIMES BASED ON 24" STUMP

    Motor Case Drain PSI 12 GPM 15 GPM 20 GPM 25 GPM 30 GPM 35 GPM 40 GPM 50 GPM 60 GPM CC Motor
    Type
    RPM at
    MAX GPM
    X508 Motor
    Available for :
    GXM350,GXM550
    Critical 3,000 25 min 20 min -- -- -- -- -- -- -- 25 Piston 2300
    4,000 20 min 15 min -- -- -- -- -- -- --
    X510 Motor
    Available for :
    GXM350,GXM550
    Critical 3,000 25 min 15 min 8 min 7 min -- -- -- -- -- 34 Piston 4290
    4,000 20 min 10 min 7 min 5 min -- -- -- -- --
    X530 Motor
    Available for :
    GXM350,GXM550
    Critical 3,000 -- 16 min 8 min 7 min 7 min -- -- -- -- 47 Piston 2100
    4,000 -- 11 min 7 min 5 min 5 min -- -- -- --
    X540 Motor
    Available for :
    GXM550,GXM750
    Critical 3,000 -- -- 8 min 7 min 6 min 5 min -- -- -- 65 Piston 2100
    4,000 -- -- 7 min 5 min 5 min 4 min -- -- --
    X550 Motor
    Available for :
    GXM550,GXM750
    Critical 3,000 -- -- -- 7 min 6 min 5 min 4 min -- -- 64 Piston 2140
    4,000 -- -- -- 5 min 5 min 4 min 3 min -- --
    X570 Motor
    Available for :
    GXM750
    Critical 3,000 -- -- -- -- 7 min 6 min 4 min 3 min -- 84 Piston 2000
    4,000 -- -- -- -- 6 min 4 min 3 min 3 min --
    X590 Motor
    Available for :
    GXM750
    Critical 3,000 -- -- -- -- -- -- 5 min 3 min 3 min 108 Piston 1900
    4,000 -- -- -- -- -- -- 3 min 3 min 2 min
