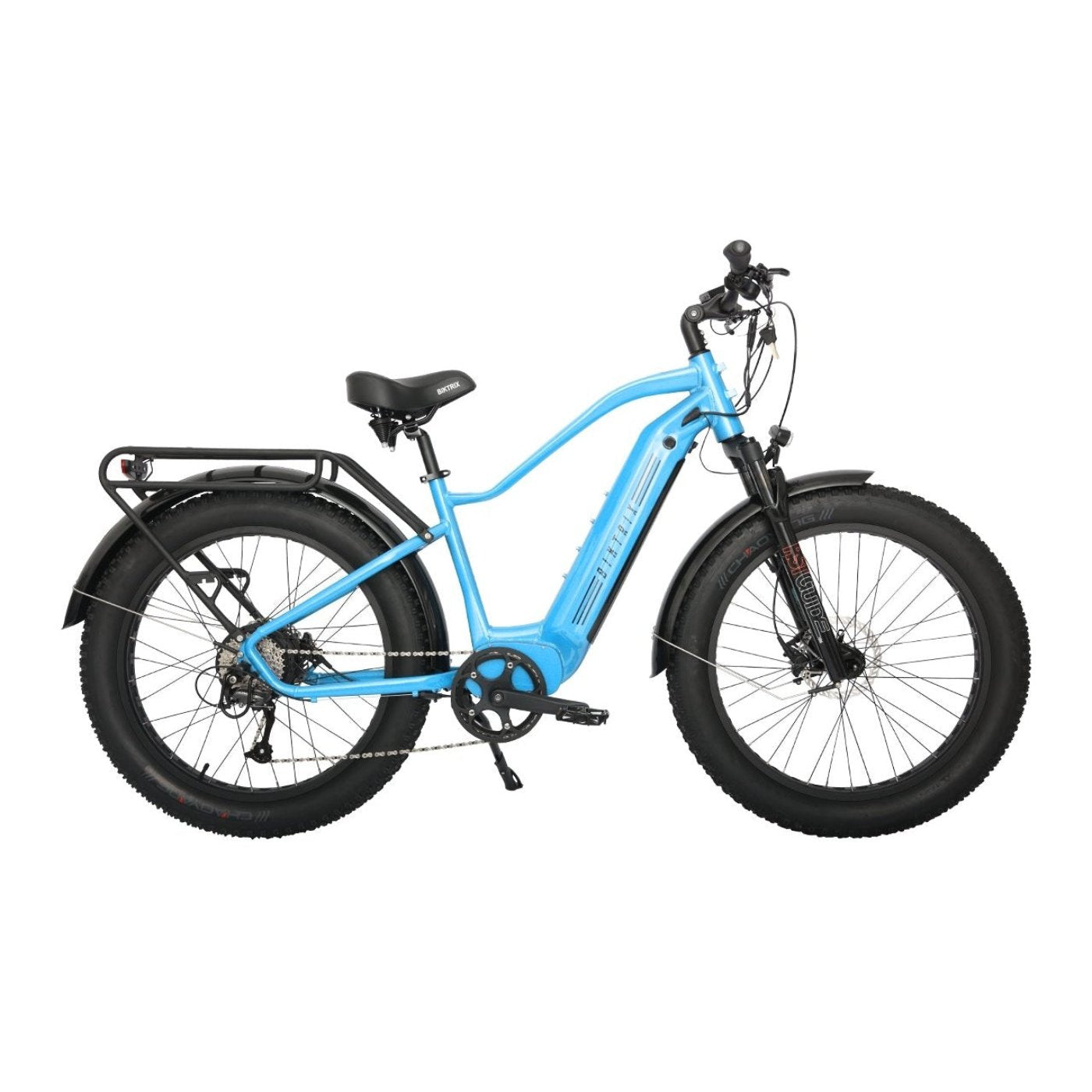

Biktrix 2024 Juggernaut Hub Duo Step-Over 750W Hub-Drive Fat Tire Electric Bike
The Biktrix Juggernaut Hub Duo 750W Step-Over Electric Bike is perfect for commuting on the street or adventuring.
With its durable build quality and 85Nm of torque, you can get all the power you need.
The Cushy RST Guide suspension fork evens out the bumps, making for an even, smooth ride every time.
The Tektro hydraulic disc brakes provide strong and dependable stopping power. Extra traction from fat tires. To get less drag ad to achieve a smooth commute on multiple surfaces, choose the 27.5" plus-size wheels.
Why Should You Choose Biktrix?
750W Hub Motor
The powerful hub-drive motor features 750 watts of power and 80Nm of torque. This allows you to span cities, climb hills, and explore all the places you want to go with ease.
Optional Range Extender
Multiple range-extender battery options can expand your eBike's range all the way to 100 miles.
LCD Display
The LCD display shows all kinds of important information about your ride including speed, battery life, range, odometer, pedal assist level and more.
Suspension Fork
The RST Guide fork provides 80mm of travelwith pre-load, lockout, and rebound adjustability
Drivetrain
From climbing hills to holding maximum speed on the flats, the Shimano 9-speed drivetrain has you covered.
Hydraulic Disc Brakes
When it's so easy to go fast, you need strong stopping power. These hydraulic disc brakes will quickly and reliably bring you to a halt.
Integrated Front Light
This bright LED light is powered by the bike's battery and can be turned on/off with a button on the handlebar control pad.
Rack & Fenders
These fenders will keep you and your bike clean. Need to carry some gear? Strap on the rear rack and make your way!
Rear Light
The bright red rear light helps you ride with more confidence at night.
Specifications
| Frame |
6061 Aluminum |
| Brakes |
XD-E300 Dual Piston Hydraulic w/ 180mm Rotors |
| Battery Sizes |
Total Capacity of 52V 36.5Ah 1898Wh: |
| 52V 17.5Ah 910Wh (Internal Battery) + |
| Up to 52V 19Ah 988Wh (External Range Extender Battery) |
| Fork |
RST Guide, 75mm Travel, Preload Adjustable and Lockout |
| Brake Levers |
Adjustable with Integrated Brake Cutoffs |
| Headset |
Threadless 1-1/8" to 1-1/2" Tapered |
| Handlebar |
700mm Wide, 30mm Rise, 31.8mm Clamp |
| Shifter Rear |
Shimano Alivio 9-Speed Trigger Shifter |
| Stem |
90mm Adjustable Gooseneck Stem |
| Rear Derailleur |
Shimano Alivio 9-Speed |
| Grips |
Slide-On Comfort Grips |
| Cassette |
11-34T |
| Seat Post |
28.6mm Aluminum |
| Chain |
KMC e9S |
| Seat Post Clamp |
Quick-Release |
| Crank Set |
44T Chainring with 170mm Arms |
| Saddle |
Biktrix Comfy Saddle |
| Bottom Bracket |
Torque Sensor with Square Taper Spindle |
| Motor |
750W Rear Hub |
| Front Hub |
135mm 36H |
| Display |
500C / DM07 LCD Display |
| Front Axle/Skewer |
5mm Quick-Release |
| Lights |
Integrated Headlight, Taillight |
| Rear Hub |
Motor |
| Throttle |
Thumb Throttle |
| Rear Axle/Skewer |
Bolt-On |
| Assist Levels |
0-5 (or 0-3, 0-9) |
| Rims |
Solid Black 36H |
| Assist Type |
Torque + Cadence |
| Tires |
26x4", 27.5x3" |
| Other |
Front and Rear Metal Fenders, Rear Rack, Kickstand |
Size & Fitting
19" Step-Over
| 1 |
Effective Top Tube Length |
560mm |
22in |
| 2 |
Seat Tube Length (Classic Bike Size) |
470mm |
18.5in |
| 3 |
Reach |
460mm |
18.1in |
| 4 |
Stack |
600mm |
23.6in |
| 5 |
Chainstay Length |
510mm |
20.1in |
| 6 |
Standover Height |
710mm |
28in |
| 7 |
Head Angle |
70° |
- |
| 8 |
Seat Angle |
75° |
- |
| 9 |
Head Tube Length |
180 mm |
7.1 in |
| 10 |
Fork Length |
530mm |
20.9in |
| 11 |
Front Center |
720mm |
28.3in |
| 12 |
BB (Bottom Bracket) Drop |
60mm |
2.4in |
| 13 |
Fork Offset |
30mm |
1.2in |
| 14 |
Wheelbase |
1230mm |
48.4in |
| 15 |
Total Length |
1970mm |
77.6in |
| 16 |
Max Seat Height |
1020mm |
40.2in |
| 17 |
Min Seat Height |
860mm |
33.9in |
| 18 |
Handlebar Height |
1080mm |
42.5in |
| 19 |
Weight (Without Battery) |
28.9kg |
63.7lb |
What Our Experts Think
-
Dual 750W Hub-Drive Motors: The 2024 Juggernaut Hub Duo Step-Over is powered by dual 750W hub-drive motors, providing substantial power for effortless hill climbing and tackling challenging terrain.
-
Fat Tires for All-Terrain Riding: Equipped with large, rugged fat tires, this bike excels on all surfaces, from snow and sand to gravel and mud, ensuring excellent traction and stability.
-
Step-Over Frame: The step-over design offers added rigidity, stability, and a traditional feel, making it ideal for riders who prefer a solid frame with easy accessibility.
-
Long-Range Battery: With a high-capacity battery, this bike offers impressive range, perfect for long commutes, off-road adventures, or extended recreational rides.
-
Full Suspension Capability: The fat tires, combined with the bike’s design, ensure a smooth and comfortable ride, absorbing shocks and bumps on uneven terrain.
-
Versatile Performance: Whether you're navigating city streets, light trails, or rough off-road paths, this bike is built to perform across a variety of environments.
-
Durable & Reliable Construction: Built to handle tough riding conditions, the Juggernaut Hub Duo is designed for long-lasting durability, making it an ideal choice for both urban and off-road cycling.
Q&A
Q: What is the Biktrix 2024 Juggernaut Hub Duo Step-Over 750W Hub-Drive Fat Tire Electric Bike?
A: The Biktrix 2024 Juggernaut Hub Duo Step-Over is a robust 750W hub-drive fat tire electric bike designed for both urban commuting and off-road adventures. It features a step-over frame for stability and dual batteries for extended range, making it perfect for tackling various terrains.
Q: What are the key features of the Biktrix 2024 Juggernaut Hub Duo Step-Over?
A: Key features include a 750W hub-drive motor, dual battery system providing up to 80 miles of range, durable fat tires for enhanced grip on sand, snow, and rough terrain, hydraulic disc brakes for reliable stopping power, and a comfortable step-over frame for easy mounting and dismounting.
Q: What is the range of the Biktrix 2024 Juggernaut Hub Duo Step-Over?
A: The bike offers a range of up to 60-80 miles per charge, depending on factors like rider weight, terrain, and riding mode, thanks to its dual battery setup.
Q: How fast can the Biktrix 2024 Juggernaut Hub Duo Step-Over go?
A: The bike can reach speeds of up to 28 mph (45 km/h), providing a fast and smooth ride for both urban roads and off-road trails.
Q: Is the Biktrix 2024 Juggernaut Hub Duo Step-Over suitable for off-road riding?
A: Yes, the bike’s fat tires, powerful motor, and durable design make it ideal for off-road riding on various surfaces, including sand, snow, gravel, and uneven terrain.
Q: How long does it take to charge the Biktrix 2024 Juggernaut Hub Duo Step-Over battery?
A: The battery typically takes 6-8 hours to fully charge. With dual batteries, you can extend your riding time before needing to recharge.
Q: What is the weight of the Biktrix 2024 Juggernaut Hub Duo Step-Over?
A: The bike weighs approximately 70-75 lbs (32-34 kg), offering a stable ride while still being manageable for most riders.
Q: Does the Biktrix 2024 Juggernaut Hub Duo Step-Over come with a warranty?
A: Yes, the bike comes with a limited warranty. For full details on warranty coverage, please check with the retailer.
Q: Can I customize the Biktrix 2024 Juggernaut Hub Duo Step-Over with accessories?
A: Yes, the bike is compatible with a variety of accessories such as racks, fenders, and lights to personalize your riding experience.
Q: Is the Biktrix 2024 Juggernaut Hub Duo Step-Over easy to assemble?
A: The bike comes partially assembled with clear instructions for easy final assembly. Professional assembly is recommended for optimal performance and safety.
Maintenance Tips
-
Battery Care: Charge the battery regularly, keeping it between 20-80% for optimal lifespan. Avoid overcharging or fully discharging the battery. For long-term storage, remove the battery, store it at 50% charge, and place it in a cool, dry location.
-
Regular Cleaning: Clean the bike using a soft cloth and mild detergent. Avoid spraying water directly on the motor, battery, and electrical components to prevent water damage.
-
Tire Pressure: Check tire pressure frequently and ensure it is within the recommended range, especially for fat tires. Proper inflation improves ride stability, reduces motor strain, and prolongs tire life.
-
Lubricate the Chain: Lubricate the chain every few hundred miles or after riding in muddy or wet conditions. Clean the chain thoroughly before applying new lubricant to prevent dirt and debris buildup.
-
Brake Checks: Inspect brake pads for wear and ensure the brakes are functioning properly. Replace worn pads to ensure optimal braking power and safety.
-
Motor and Wiring Inspection: Regularly inspect the hub motor and wiring for any loose connections, fraying, or damage. Tighten or replace parts as needed to maintain optimal motor performance.
-
Crankset and Pedals: Periodically check the crankset and pedals for damage or looseness. Tighten or replace as necessary to ensure smooth and efficient pedaling.
-
Proper Storage: When not in use for extended periods, store the bike in a cool, dry location. If storing for a long time, remove the battery, charge it to about 50%, and store it separately to avoid damage.
