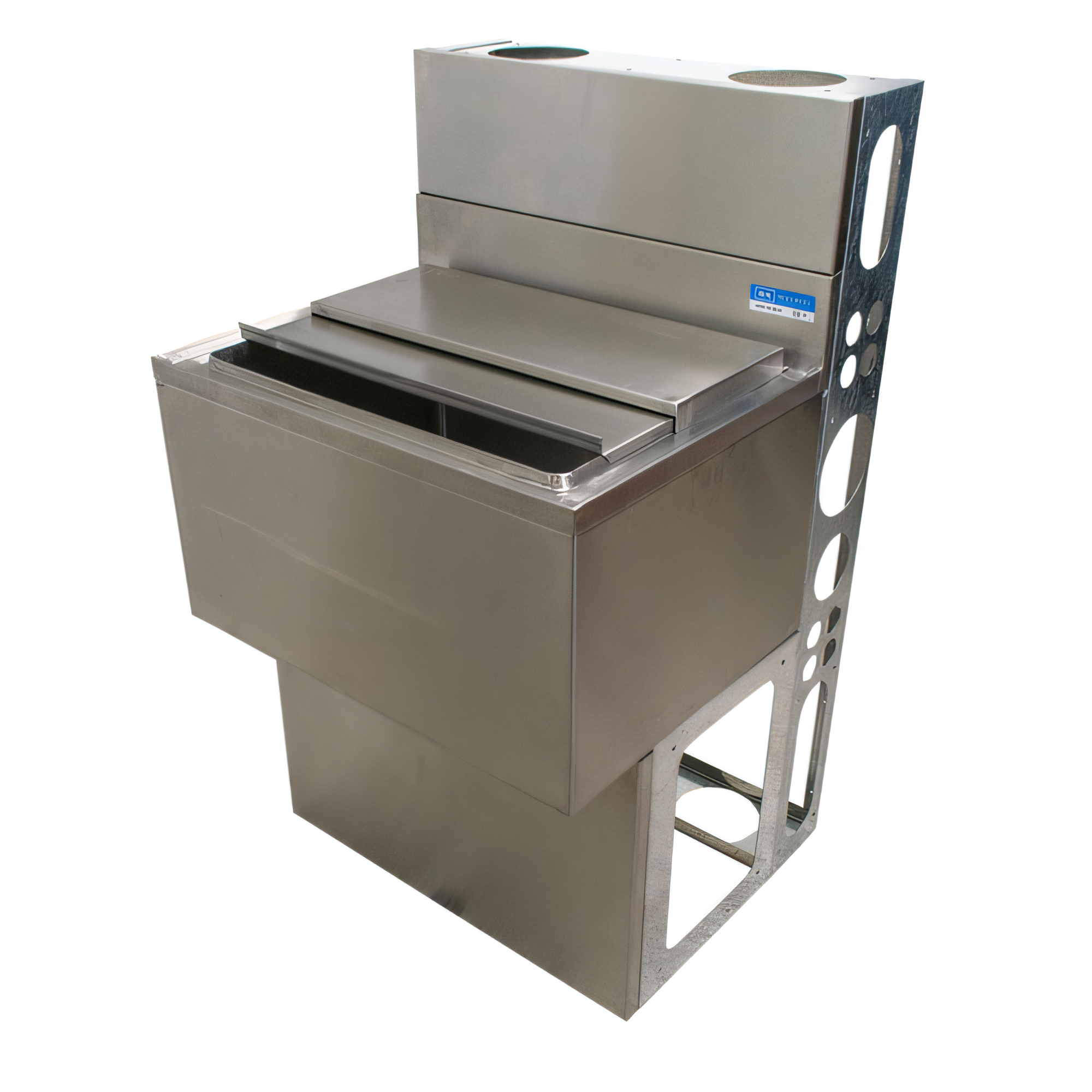

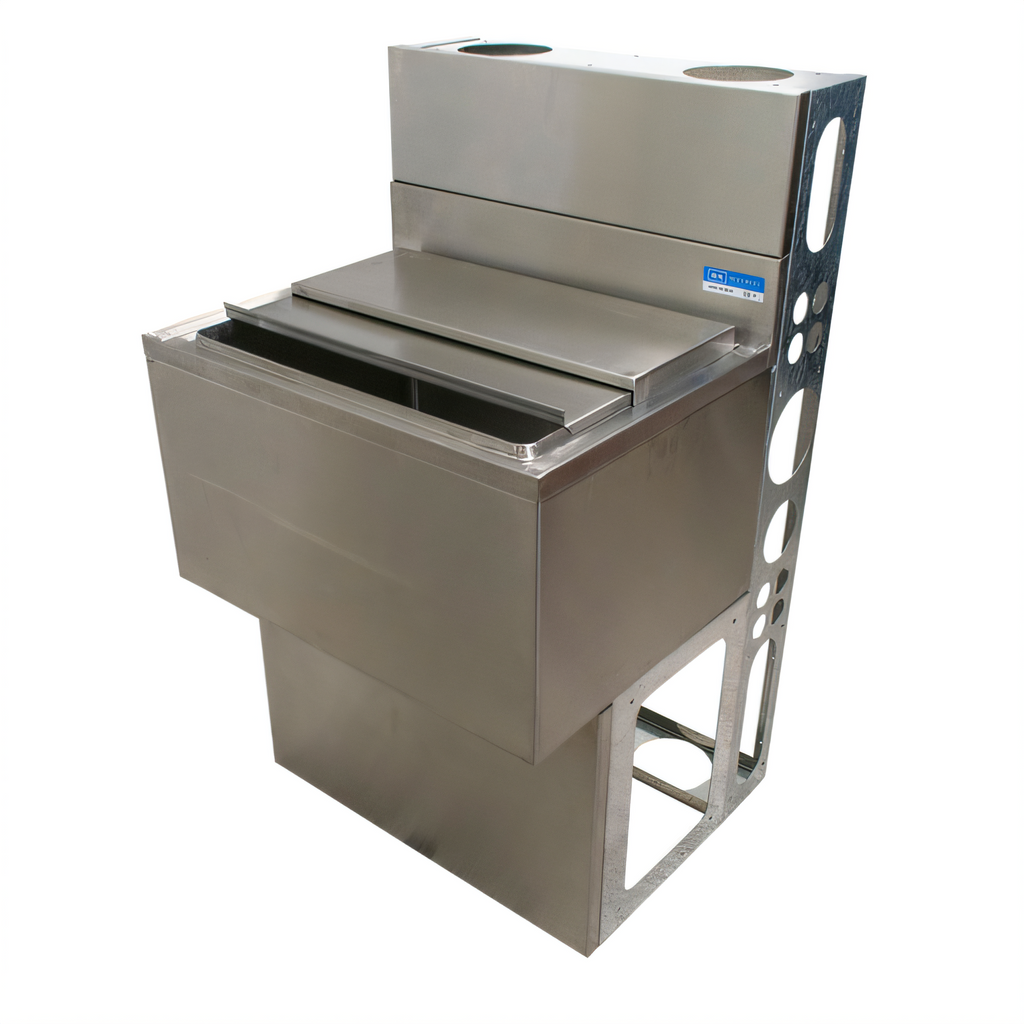

BK Resources UBDW-18-IB30 Bar Equipment - UBDW-18-IB30
80 lb Capacity • Includes BKDR-325CP Drain & BKIB-L-3018 Sliding Lid
Designed for high-volume beverage programs, this BK Resources underbar ice bin keeps up with the busiest shifts. The fully insulated 12 9⁄16" deep bin holds up to 80 lbs of ice, while the integrated 4" backsplash and sliding stainless steel cover maintain a sanitary, splash-free workspace. Built from heavy-duty 18 ga type 304 stainless steel and backed by NSF certification, it delivers the reliability bartenders demand night after night.
Features
- Generous 80 lb ice capacity keeps service flowing during peak hours.
- 12 9⁄16" deep, fully insulated bin prolongs ice life for reduced melt-off.
- 4" rear backsplash protects surrounding walls and workstations.
- 1" NPS threaded drain with plug (BKDR-325CP) for quick, sanitary melt-water removal.
- Sliding stainless steel lid (BKIB-L-3018) included—required for human ice consumption and easy to operate with one hand.
- 18 ga type 304 stainless steel front & interior; galvanized die wall and base add structural rigidity.
- No. 4 satin polish on exposed surfaces for a professional, easy-to-clean finish.
- Removable front access panel simplifies installation and plumbing maintenance.
- NSF listed—meets strict health department standards for ice storage.
- Back-bar cocktail stations
- Hotel & resort lounges
- Event and catering bars
- Coffee, smoothie & juice bars
Specifications
| Overall Width |
30" (762 mm) |
| Overall Depth |
18" (457 mm) |
| Bin Interior (W × D × H) |
≈ 25" × 15" × 12 9⁄16" |
| Ice Capacity |
80 lbs (36 kg) |
| Backsplash Height |
4" (102 mm) |
| Drain Size / Type |
1" NPS with threaded plug (BKDR-325CP) |
| Construction |
18 ga type 304 stainless steel; galvanized die wall & base |
| Finish |
No. 4 satin polish |
| Included Accessories |
Sliding lid (BKIB-L-3018), drain & plug |
What our Experts Think
-
Premium Build Quality: Crafted from durable stainless steel for long-lasting commercial use.
-
Efficient Bar Organization: Compact design maximizes workspace while keeping tools and supplies accessible.
-
Easy to Clean: Smooth surfaces and corrosion-resistant materials simplify maintenance.
-
Sturdy & Reliable: Supports frequent use in busy bar and restaurant environments.
-
Versatile Functionality: Ideal for bars, restaurants, and catering operations needing efficient prep and storage.
Q&A
Q: What is the UBDW‑18‑IB30?
A: A commercial-grade underbar insulated ice bin designed for efficient ice storage and handling in bars, restaurants, and hospitality environments.
Q: What materials and construction quality does it have?
A: Made from 18/304 stainless steel with reinforced walls and base for corrosion resistance, durability, and long commercial life.
Q: What functional features does it include?
A: Includes a 4″ backsplash, sliding bin cover to protect ice, and 1″ drain with plug for easy cleaning.
Q: Is it suitable for commercial use?
A: Yes, it is NSF-certified for food contact and commercial sanitation standards.
Q: How does it support bar workflow?
A: Provides easy, accessible ice storage at beverage stations, streamlining drink prep and service in high-volume environments.
Q: Who is this ice bin ideal for?
A: Ideal for bars, restaurants, cafes, catering setups, and hospitality venues needing a reliable, hygienic, and efficient ice supply solution
Maintenance Tips
-
Daily Cleaning: Wipe surfaces with a mild, non-abrasive cleaner to remove spills and sticky residues.
-
Sanitize Regularly: Use a food-safe sanitizer to maintain hygiene in high-use areas.
-
Inspect Components: Check doors, drawers, and hinges for proper operation and tighten if needed.
-
Avoid Harsh Chemicals: Do not use bleach or abrasive pads that can damage finishes.
-
Prevent Standing Water: Dry spills promptly to avoid corrosion and rust.
-
Lubricate Moving Parts: Apply light lubrication to hinges or sliding parts for smooth operation.
