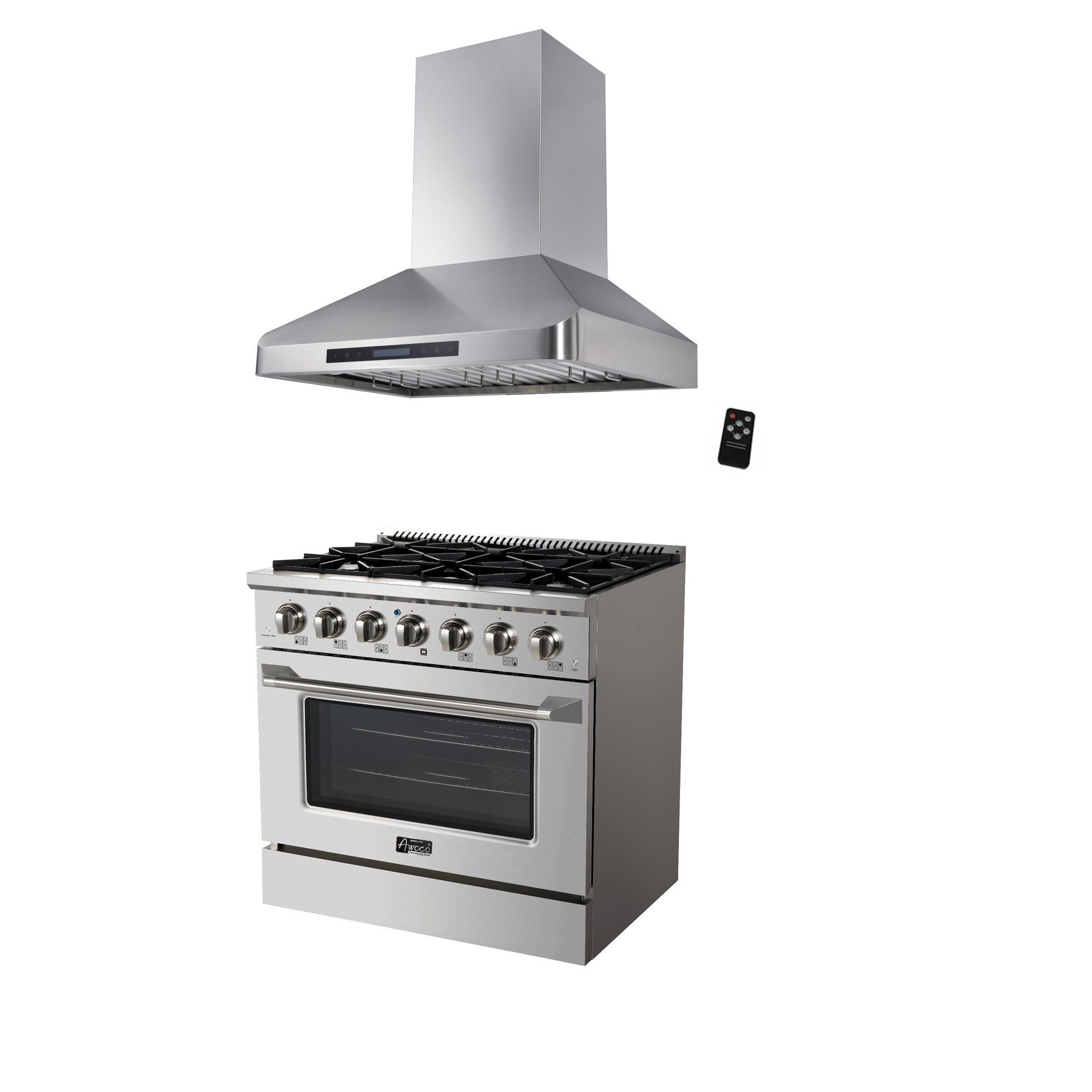

Combo Awoco 36” Freestanding 6 Burners Range with 36'' RH-WT-36 Wall Mount Range Hood - JK36A1-T-NG+RH-WT-36

Combo Awoco 36” Freestanding 6 Burners Range with 36'' RH-WT-36 Wall Mount Range Hood - JK36A1-T-NG+RH-WT-36

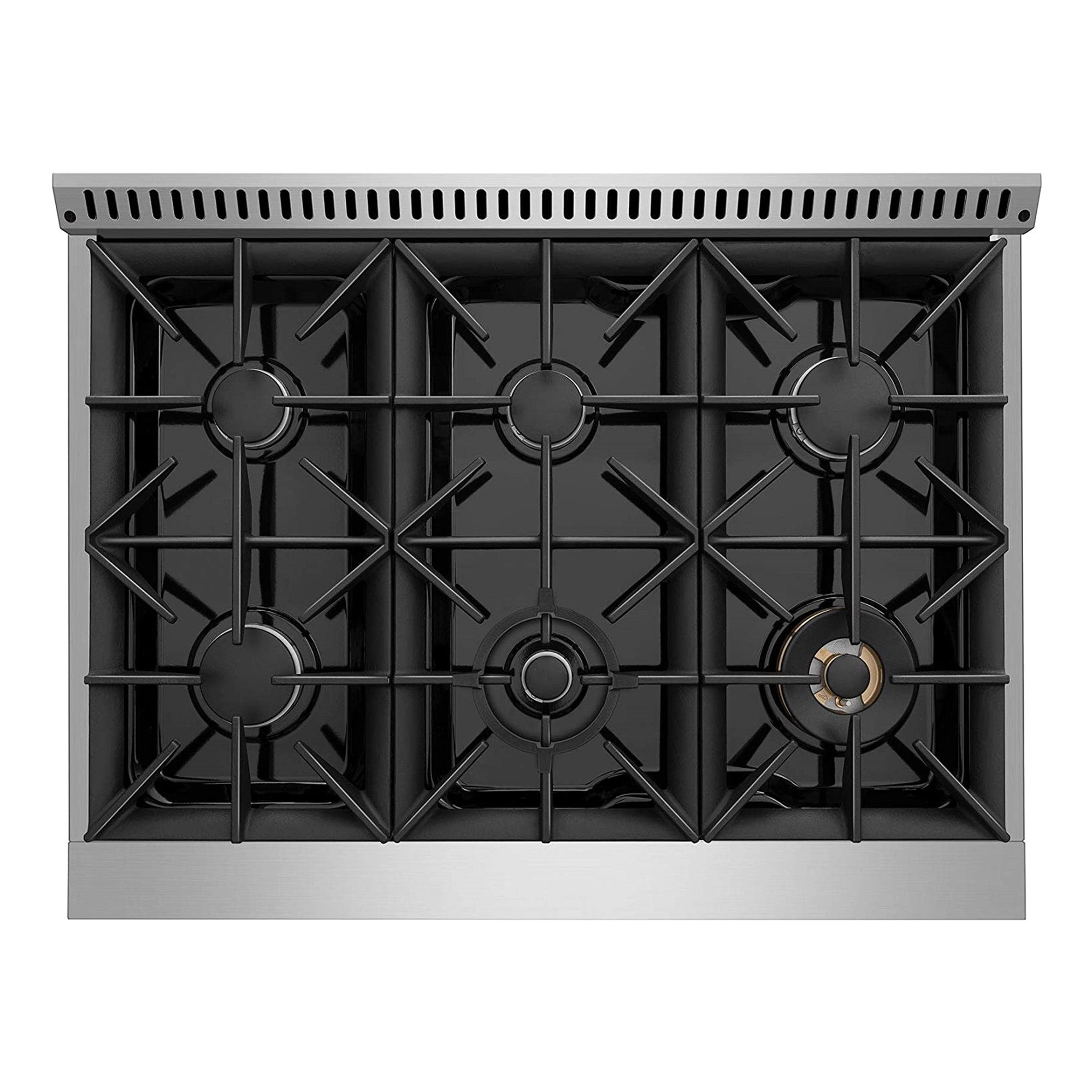

• High BTU 6 Burners - High-performance gas burners which allow you to cook from a high heat for boiling, frying, or searing to a low simmer for delicate sauces. Includes two 15,000 BTU rapid burners, one 12,000 BTU and two 9,000 BTU semi-rapid burners with one 6,000 BTU axillary burner.

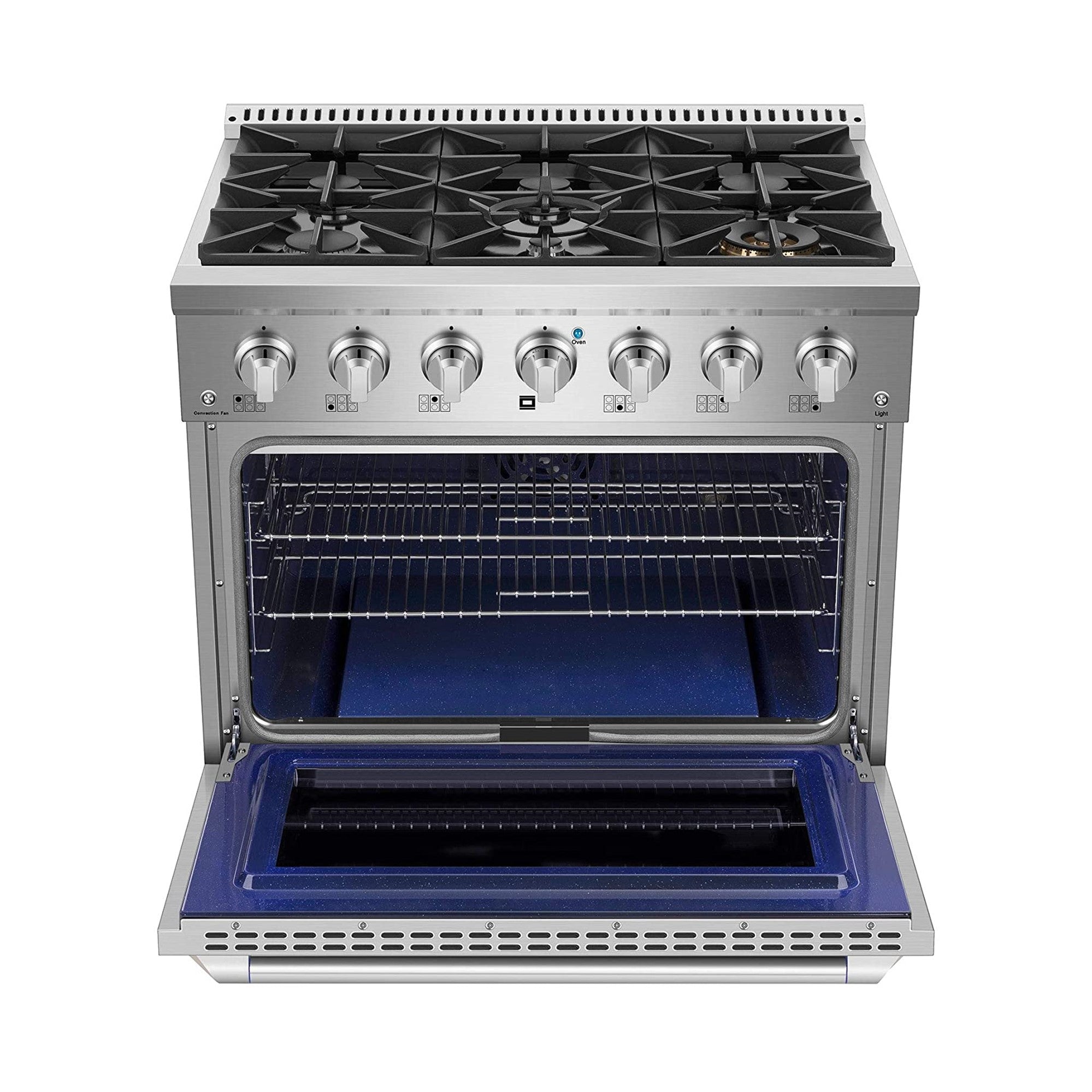

• Convection Oven - Cook and bake like a pro with the 4.5 cu ft. extra-large convection oven with 2 racks and an extra-large oven window. Oven broiler: 10,000 BTU. U shape stove burner: 22,000 BTU.

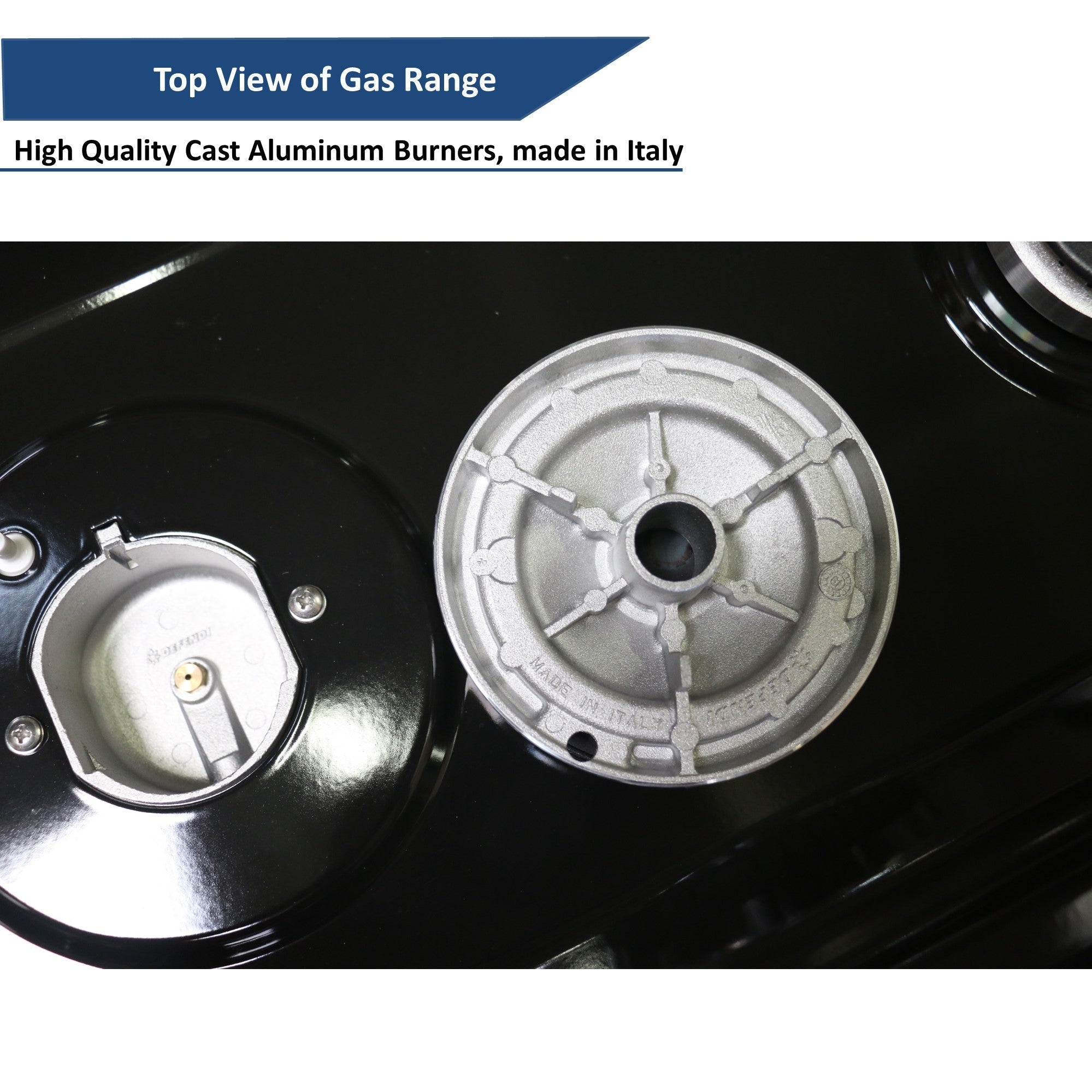

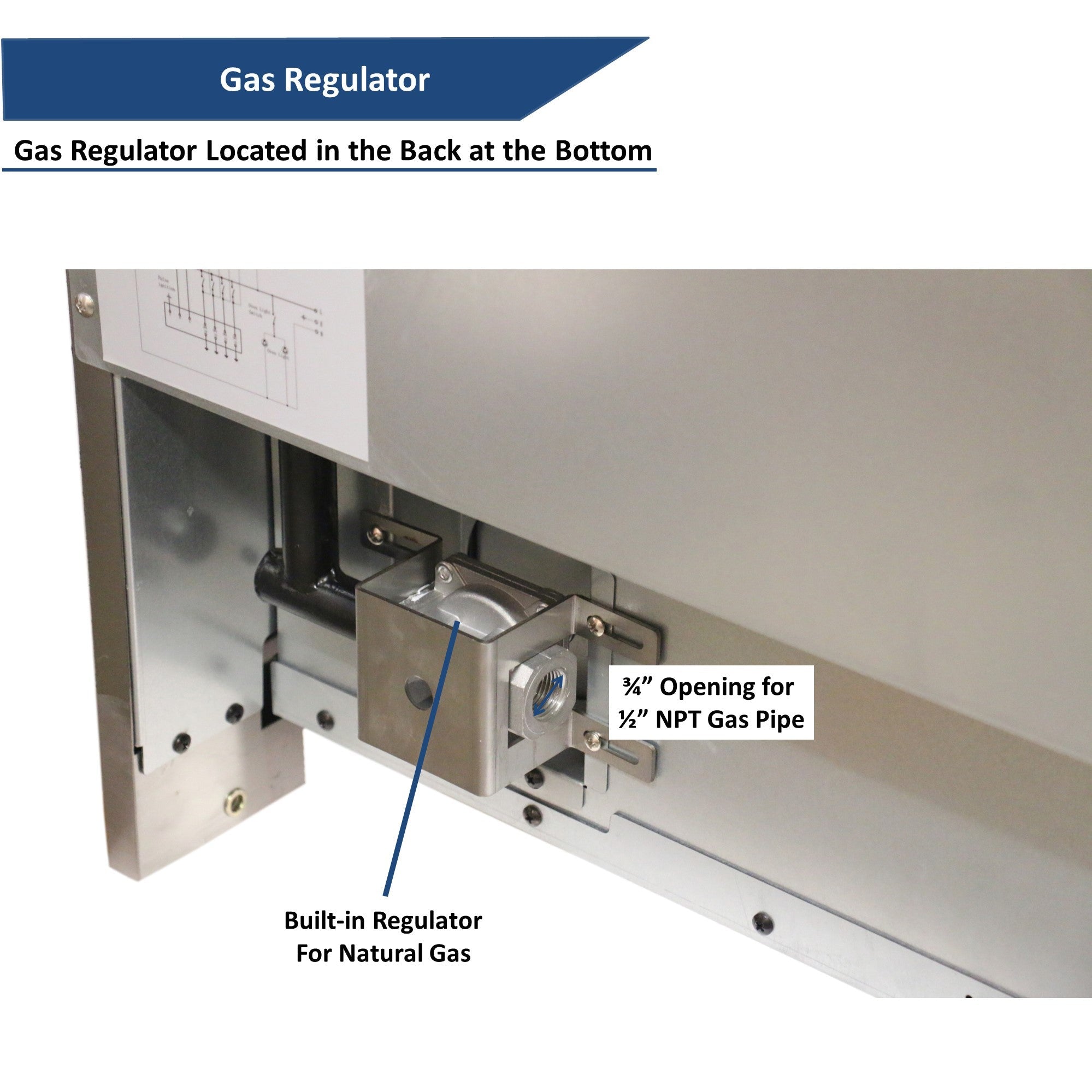

• Heavy Duty Construction - Constructed of stainless steel, heavy duty cast iron grates for heat retention and distribution. High quality cast aluminum burners, made in Italy. Gas regulator is included.

• Safety Bracket - The range will not tip during normal use, however the range can tip if you apply too much force or weight to the open door. The anti-tip bracket prevents the range from tipping over.

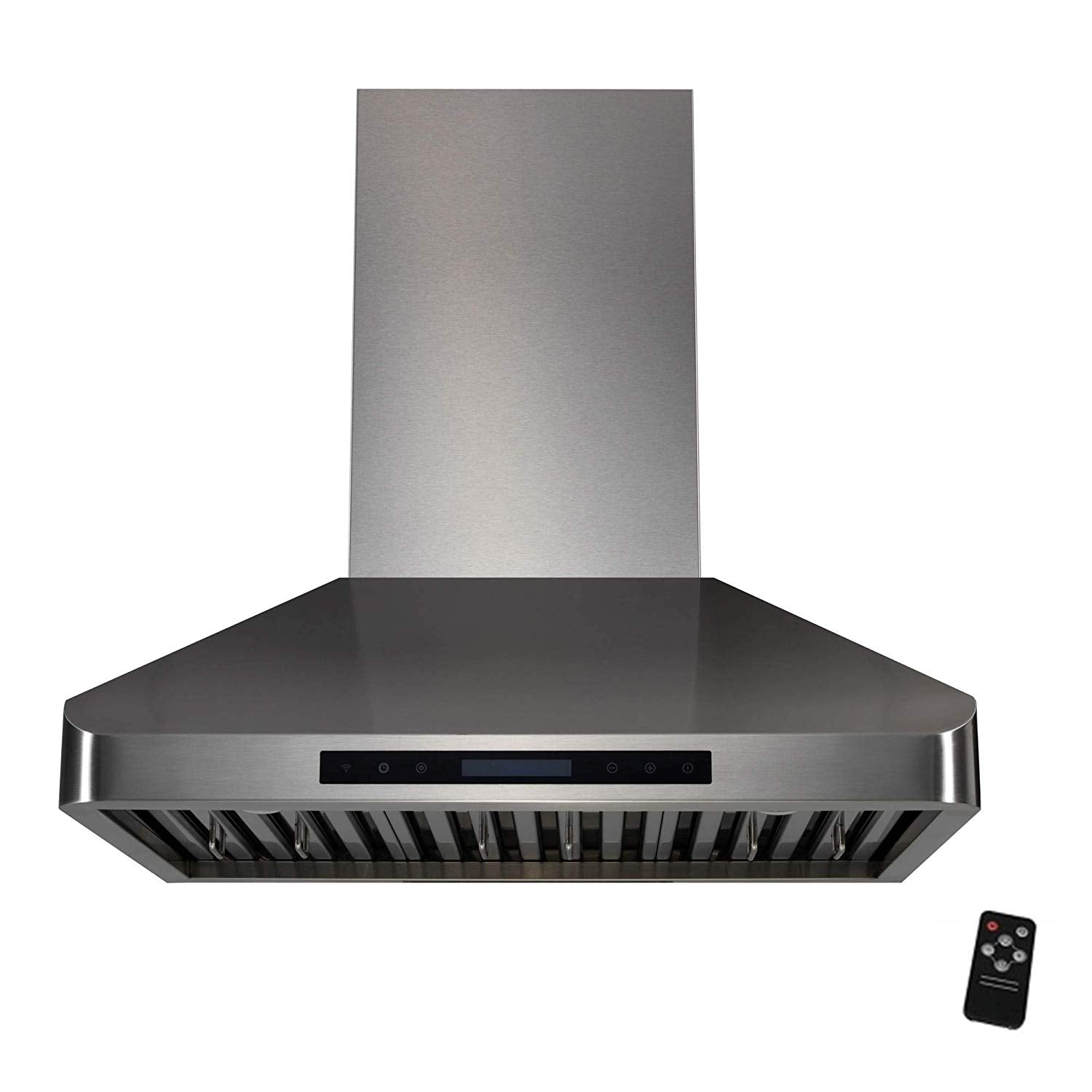

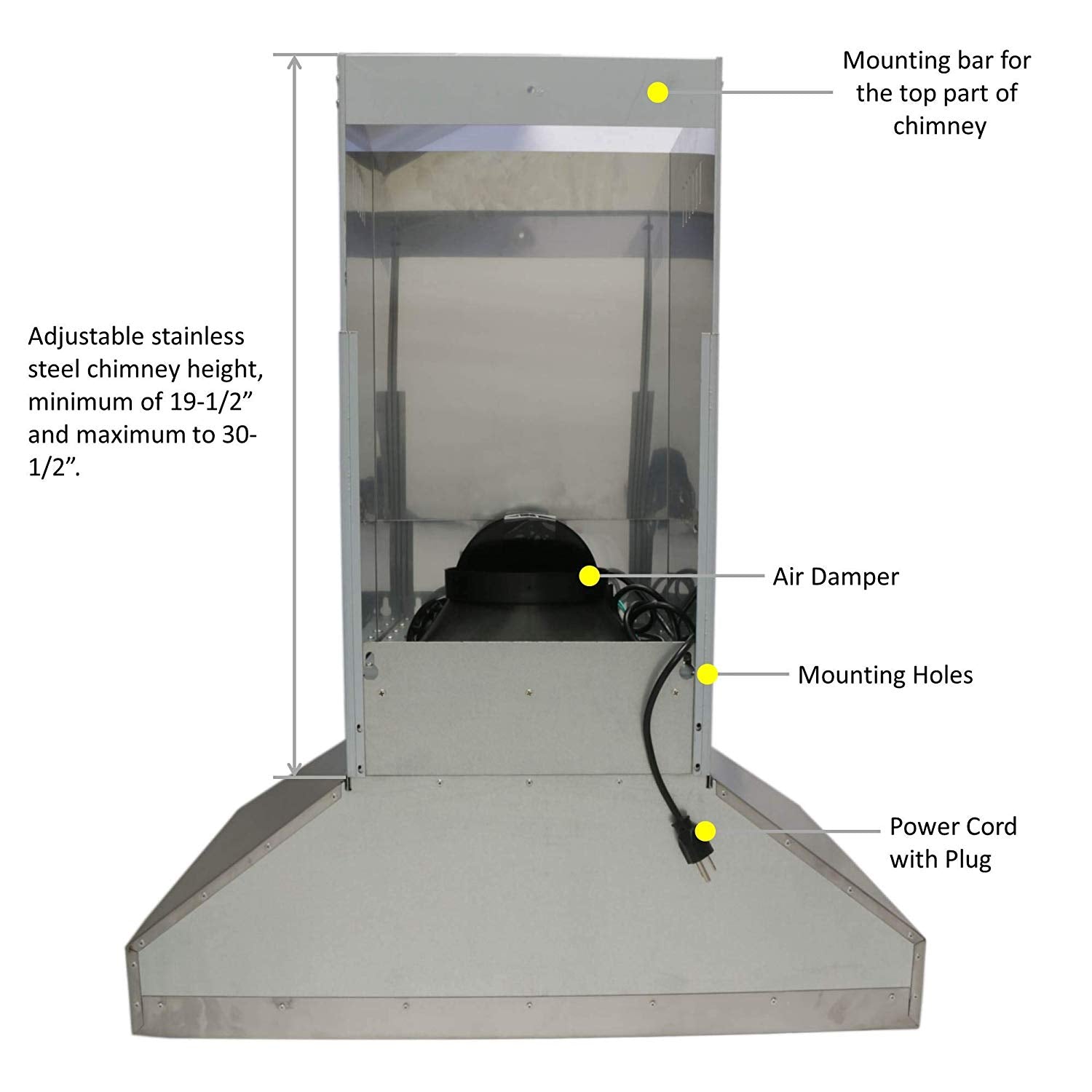

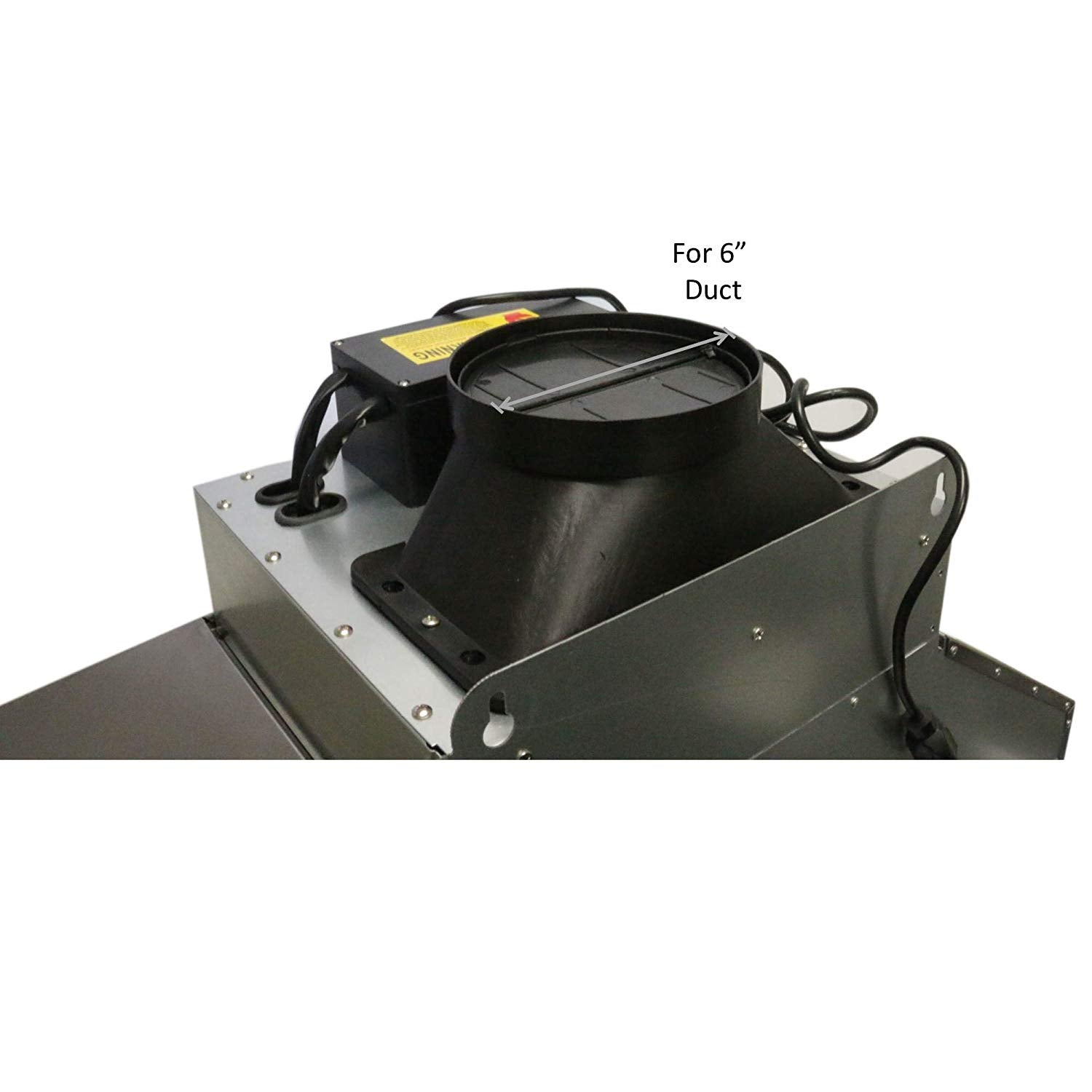

• WALL MOUNT, CHIMNEY, 6” ROUND TOP VENT, 1mm THICK - Wall mounted, high quality 1 mm thick stainless steel with brush finishing. Adjustable stainless steel chimney height minimum of 20” to maximum of 39”.

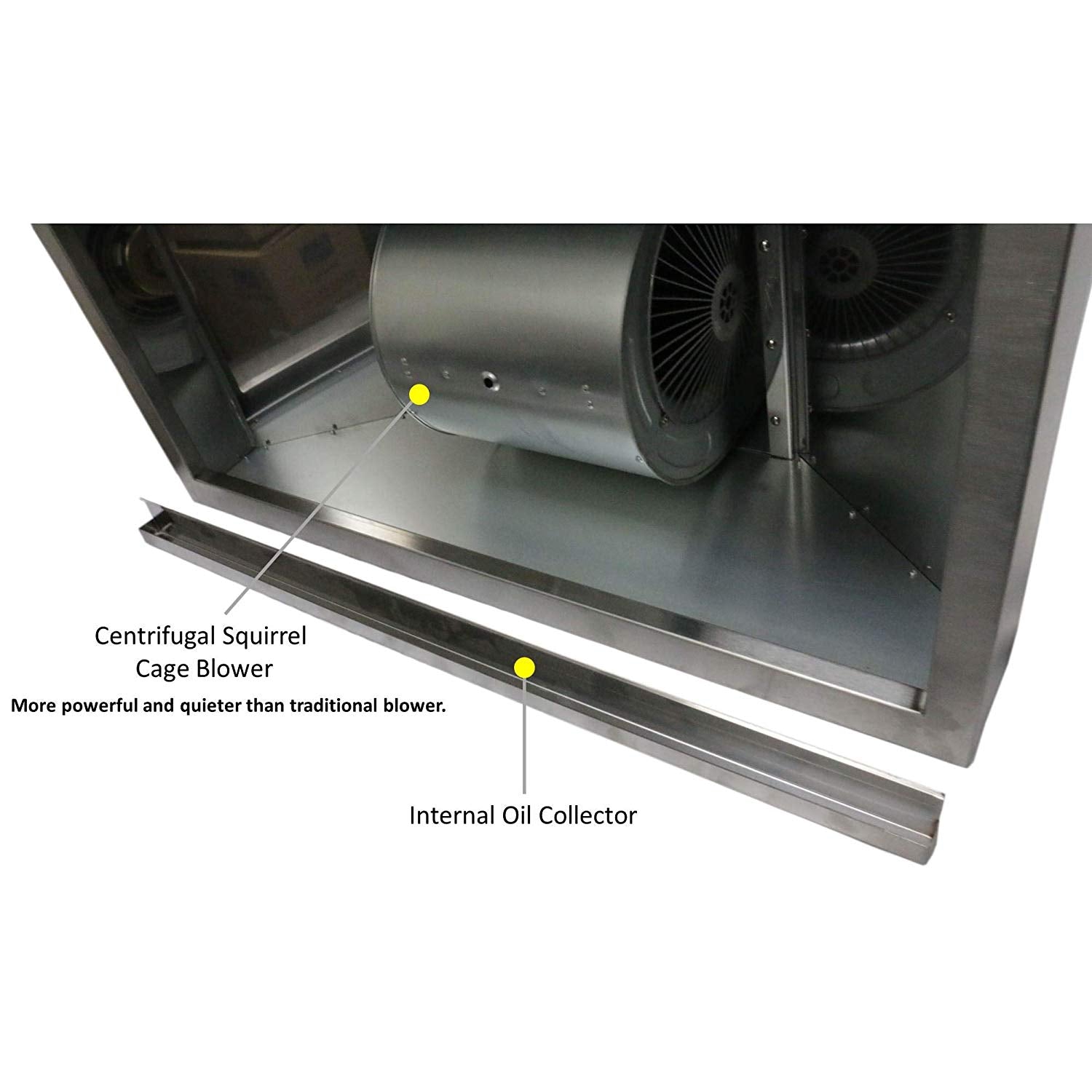

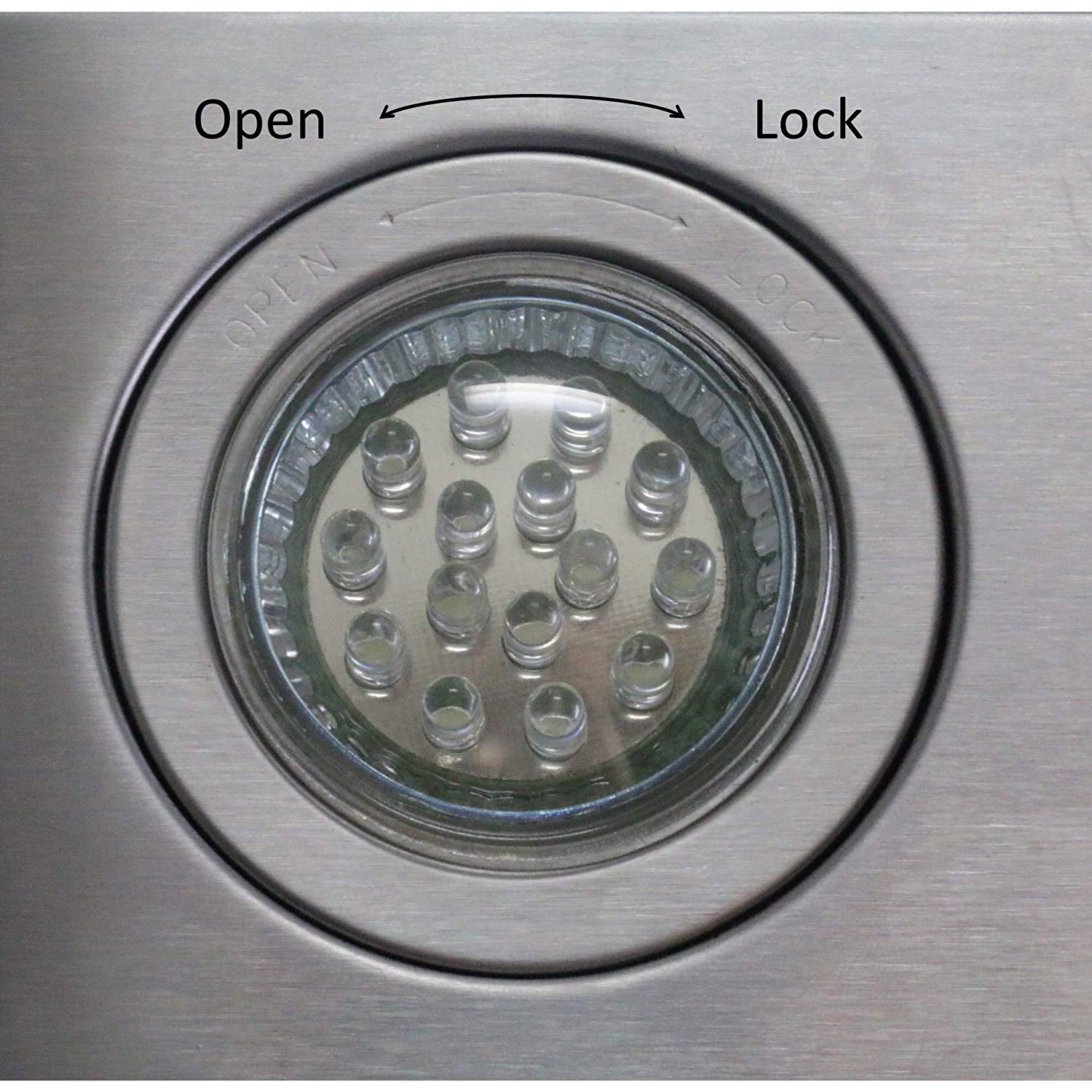

• INTERNAL OIL COLLECTOR & TWIST LOCK LED LIGHTS - Comes with easily removable internal oil collector, 1 air damper is included on the top. 2 of 3W twist lock energy saving cold bright LED lights. Turn left to remove light bulb and turn right to lock. Light button operates independently from the power button. It works even when the range hood is not turned on. LED light indicator will illuminate in the LCD display once the lamps are turned on.

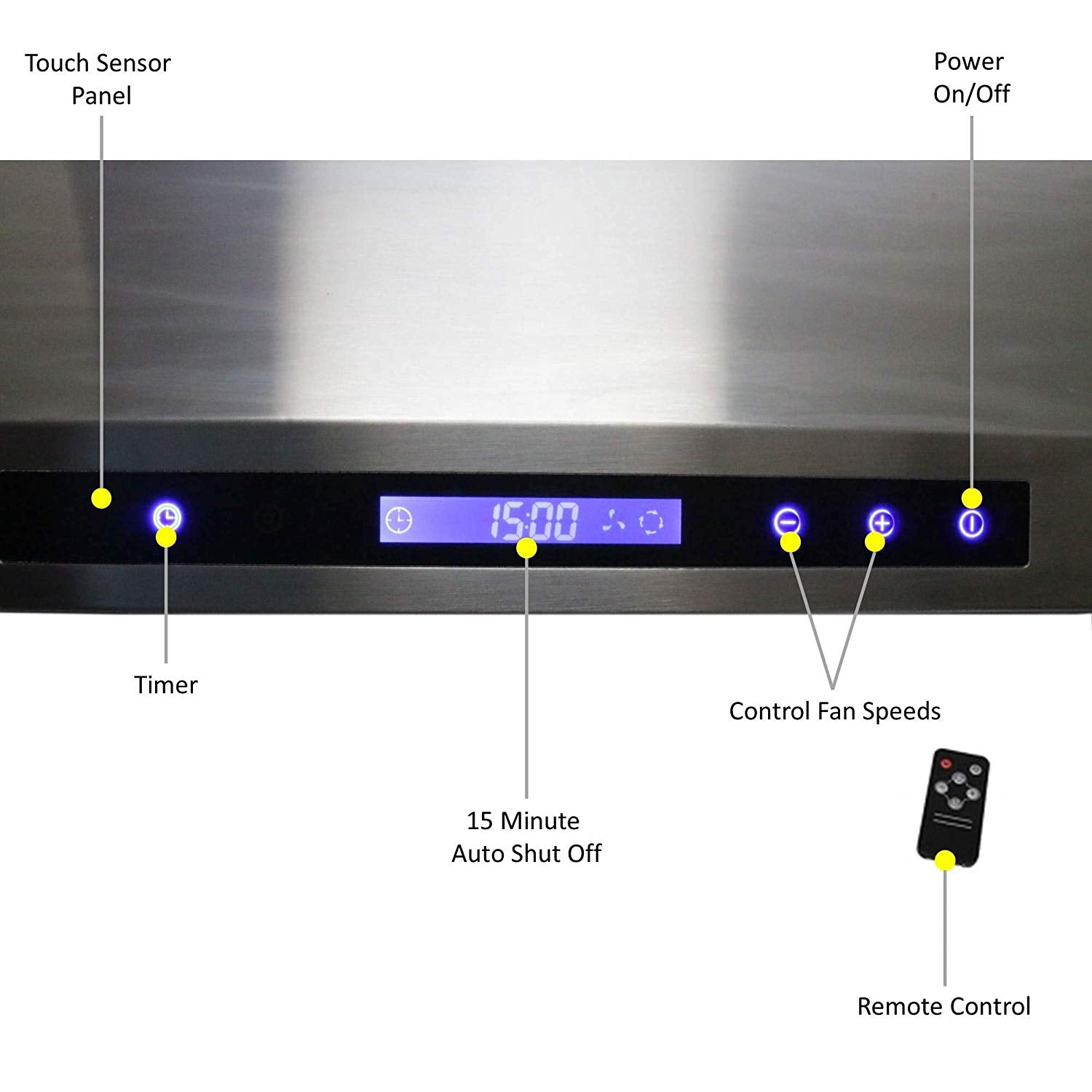

• 4 SPEEDS POWERFUL OPERATION WITH REMOTE CONTROL - 4 speeds (385/490/715/900 CFM), touch sensor panel with remote control sensor receives infrared signal from the remote. Powerful centrifugal squirrel cage fan. More powerful and quieter than traditional blower. Power rating: 120V/60Hz, 230W Min. 242W Max. Power cord with plug is included. Noise level at low: 38 dB, 2.0 sones. Noise level at high: 60 dB, 9.0 sones.

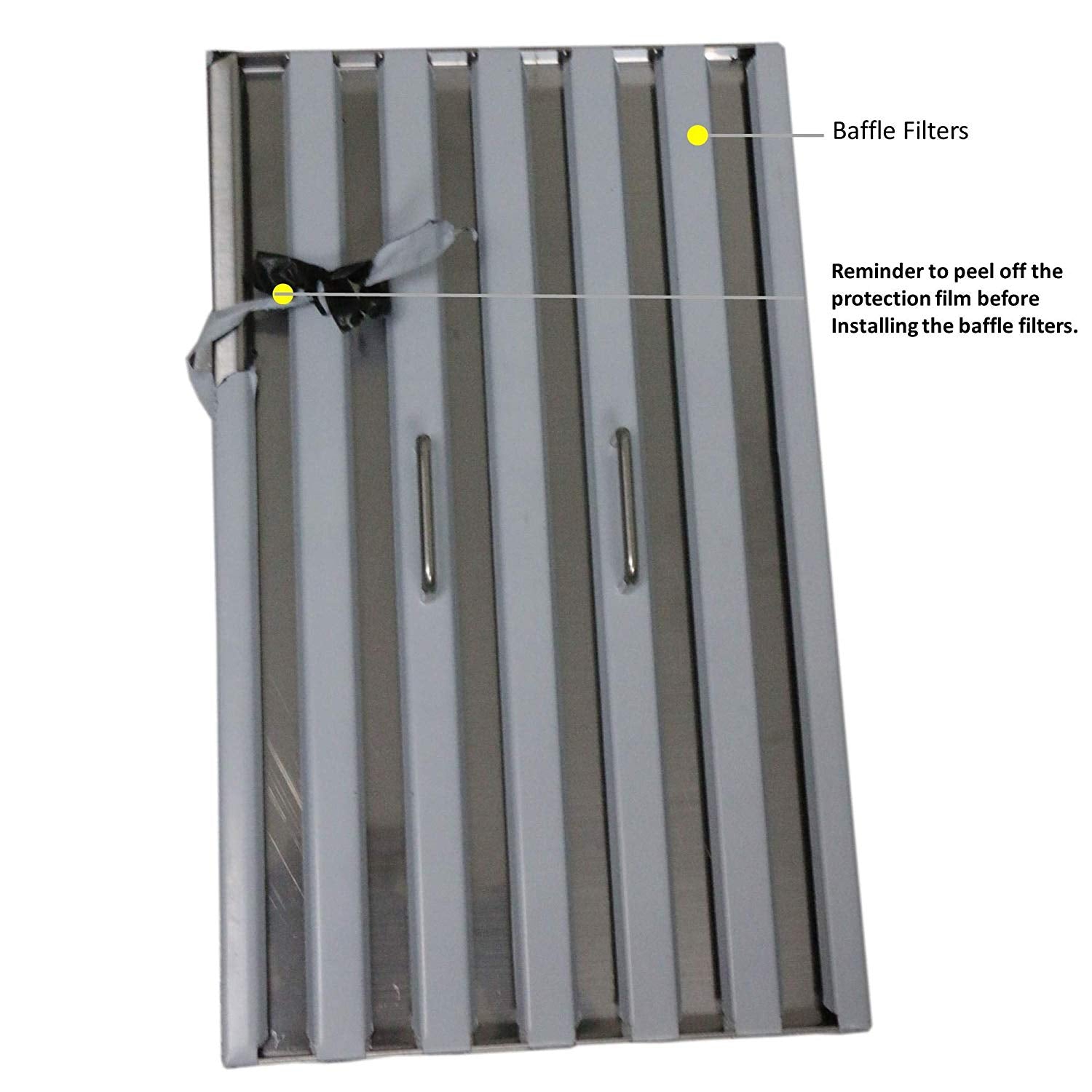

• 3 DISHWASHER SAFE BAFFLE FILTERS, 1-15 MINUTES AUTO SHUT OFF - Dishwasher safe easily removable commercial style stainless steel baffle air filters. The oil is contained in the baffle filters and internal oil collector. Up to 15 minutes timer delayed auto shut off to vent the leftover smoke after done cooking.

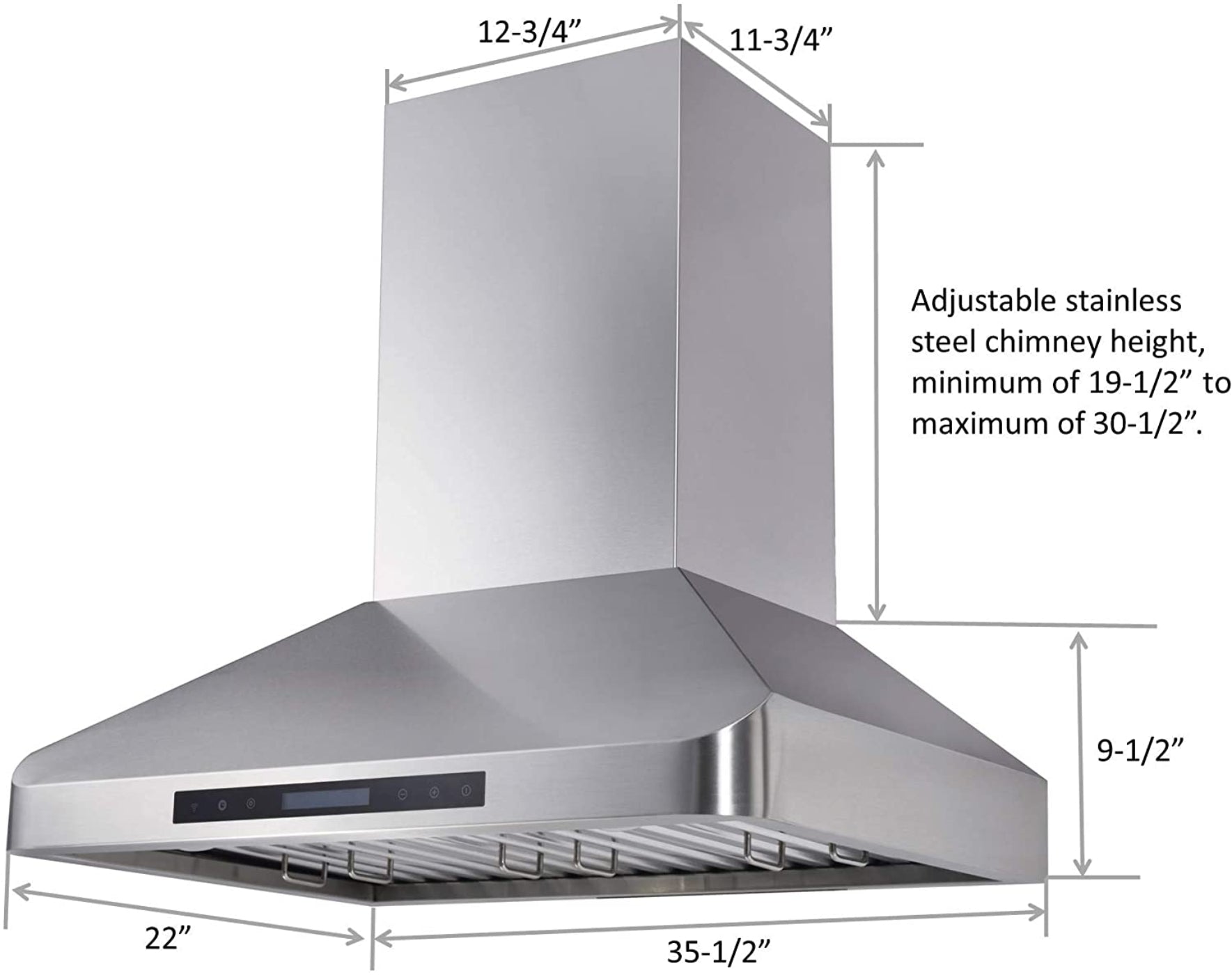

• 1 YEAR LIMITED WARRANTY - ETL Certified. Free parts, repair or exchange within 1 year. Awoco high quality product reputation and supreme customer service is a guarantee. Hood Body Dimensions: 35-½” W x 22” D x 9-½” H. Adjustable chimney height: 20” - 39”. Maximum Overall Height: 48-½”.

Specifications

Product Type: Freestanding

Number of Burners: 6

Cleaning Type: Manual Clean

Cooktop Surface: Deep Recessed

Convection Oven: Yes

Number of Ovens: Single Oven

Overall Oven Capacity: 4.5 Cubic Feet

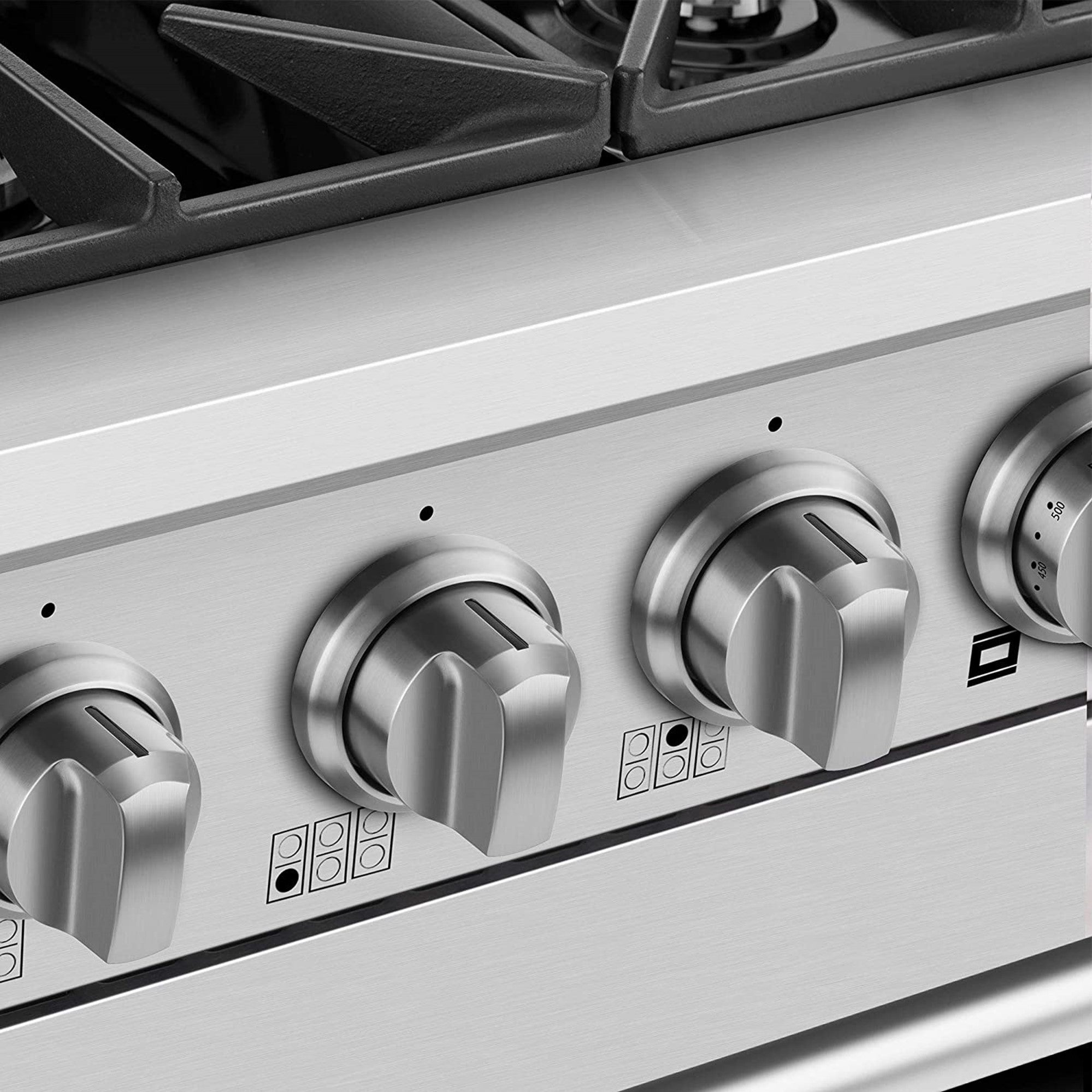

Control Type: Knobs

Control Location: Front

Primary Material: Stainless Steel

LED Display: No

Number of Racks: 2

Broiler: Yes

• Broiler Burner BTU Output: 10,000 BTUs

• Broiler Location: Oven

Bake Element: Yes

• Bake Element BTU Output: 22,000 BTUs

• Hidden Bake Element: Yes

Dual Cooktop Elements: Yes

• Number of Dual Elements: 1

Griddle Included: No

Interior Oven Light: Yes

Downdraft Exhaust: No

Power Cord Included: Yes

Supplier Intended and Approved Use: Residential Use

Soft Close Door: Yes

Country of Origin: Made in China

Product Manual

VIEW / DOWNLOAD

Videos

AWOCO 101 VIDEOS

What Our Experts Think

• Powerful Cooking & Ventilation Combo – 6-burner gas range paired with a high-performance range hood for maximum efficiency.
• Heavy-Duty 36” Freestanding Gas Range – Spacious cooktop with even heat distribution for professional cooking results.
• Wall-Mount Range Hood with 1000 CFM – Strong suction removes smoke, grease, and odors efficiently.
• Stainless Steel Build – Durable, sleek, and easy to clean, perfect for modern kitchens.
• Bright LED Lighting – Enhances cooktop visibility for precision cooking.
• Remote-Controlled Hood – Adjust fan speed and lighting with ease

Q&A

Q: What is included in this combo?
A: This set includes a 36” freestanding gas range with 6 burners and a 36” stainless steel wall-mount range hood.

Q: What is the power of the range burners?
A: The gas range features 6 high-performance burners for versatile cooking.

Q: What is the airflow capacity of the range hood?
A: The range hood provides 900 CFM ventilation for effective smoke and odor removal.

Q: How many fan speeds does the range hood have?
A: It offers 4-speed settings for customized airflow control.

Q: Does the range hood have lighting?
A: Yes, it includes 2 bright LED lights for better cooktop visibility.

Q: Is a remote control included?
A: Yes, the range hood comes with a remote for convenient operation.

Q: What type of fuel does the range use?
A: This model is designed for natural gas (NG).

Q: Is installation hardware included?
A: Yes, both the range and hood come with necessary mounting hardware.

Maintenance Tips

• Daily Cleaning: Wipe burners, grates, and surfaces with a damp cloth and mild detergent. Avoid abrasive cleaners.
• Burner Maintenance: Remove and clean burner caps and ports weekly to prevent clogs.
• Grease Filter: Clean the range hood grease filter monthly with warm, soapy water or a dishwasher (if safe).
• Vent & Duct Cleaning: Inspect and clean every 3-6 months to ensure proper airflow.
• Stainless Steel Care: Use a soft cloth with stainless steel cleaner to prevent stains and fingerprints.
• Check Ignition & Gas Lines: Periodically inspect for gas leaks or ignition issues. Seek professional servicing if needed.
