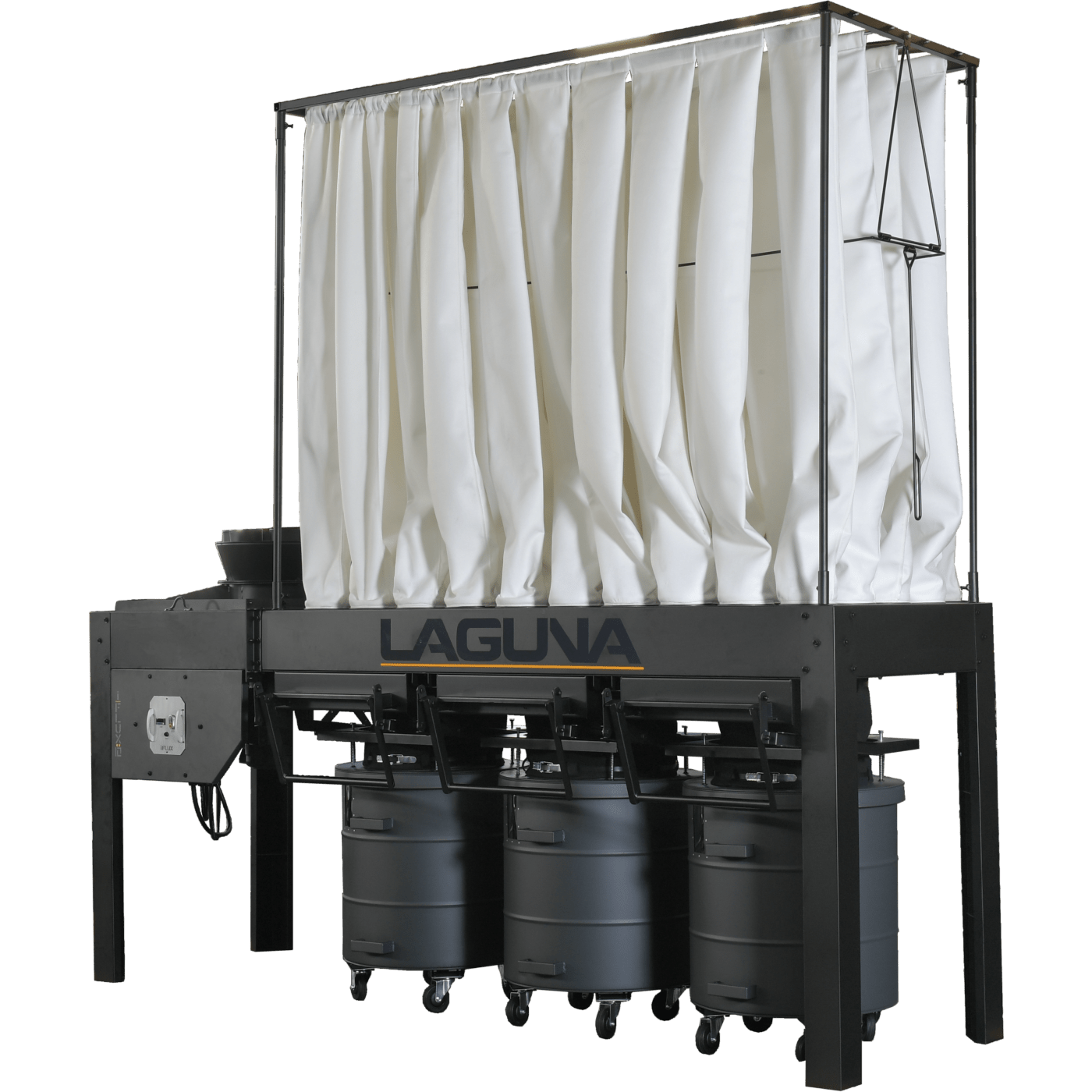

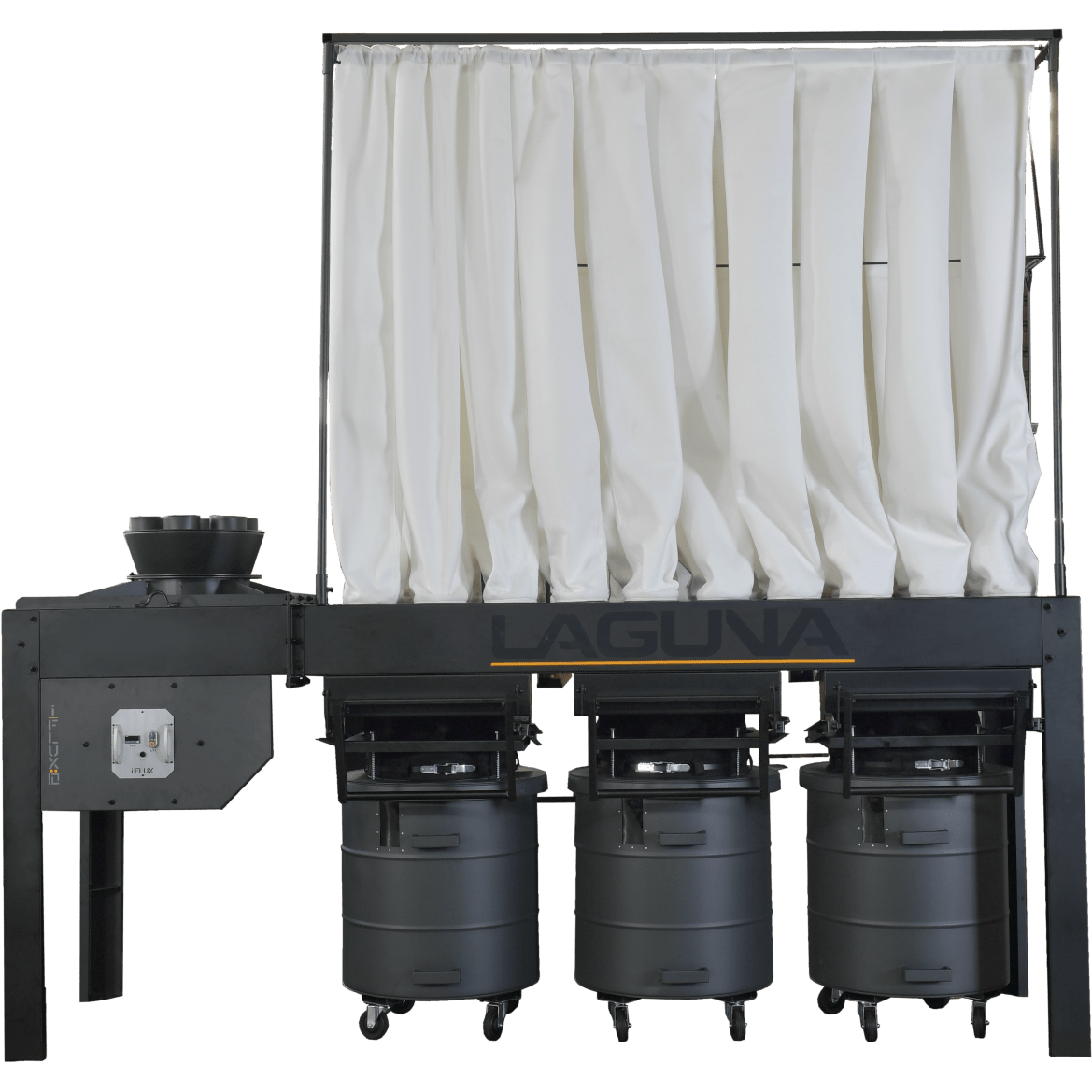

Laguna Tools Industrial Dust Collector - I|Flux: 10 Elite - MDCIF102203

Airflow 5000CFM @ 6”wc

The 15″ inlet has a net airflow of 5000CFM with a static pressure of 6″wc. A typical CNC Router needs a minimum requirement of 1500CFM, while a typical 37″ widebelt sander would call for a minimum 2000CFM. This makes the iFlux 10 a great fit for a CNC Router based cabinet shop that would be running several tools at once.

Fine Dust Ready

With fine dust, the key is to have a large filter surface area and to keep those filters clean. The smaller tube filter design of the iFlux|10 Elite are designed for the fine dust to cake on and the inner side of the filters and fall down into the bin as the mass grows. The filter surface area of the iFlux |10 Elite is 409 square feet. A typical 5HP dust collector has a surface area of 260 square feet. This increase in filter area translates to a large increase in airflow, making the iFlux an ideal machine for fine dust applications.

Quick Lever Wast Bins

The waste bins are easier to change than the kitchen garbage. Deactivate the air tight seal by pulling up the release bar and roll out the bin. The positive pressure design means there is no need for a bag hold down system like in multi-stage system. The wheels swivel 360 degrees and are mounted on a sturdy base to ensure they work in your shop for many many years.

Additional Features

The i|flux1 10 Elite fine dust collector displays an amperage read out on the control panel. This allows the user to monitor the efficiency of the motor. A high frequency remote is also included standard so that the operator can turn the machine on and off with a 60 meter range.

Safety

There are several NFPA standards in place to ensure the proper installation and use of a dust collector. For woodworkers, the standard is NFPA 664: Standard for the Prevention of Fires and Explosions in Wood Processing and Woodworking Facilities. The i|Flux 10 Elite complies directly with this standard. In addition, the i|Flux is fitted with a phase controller and TEFC motor for added electrical safety.
