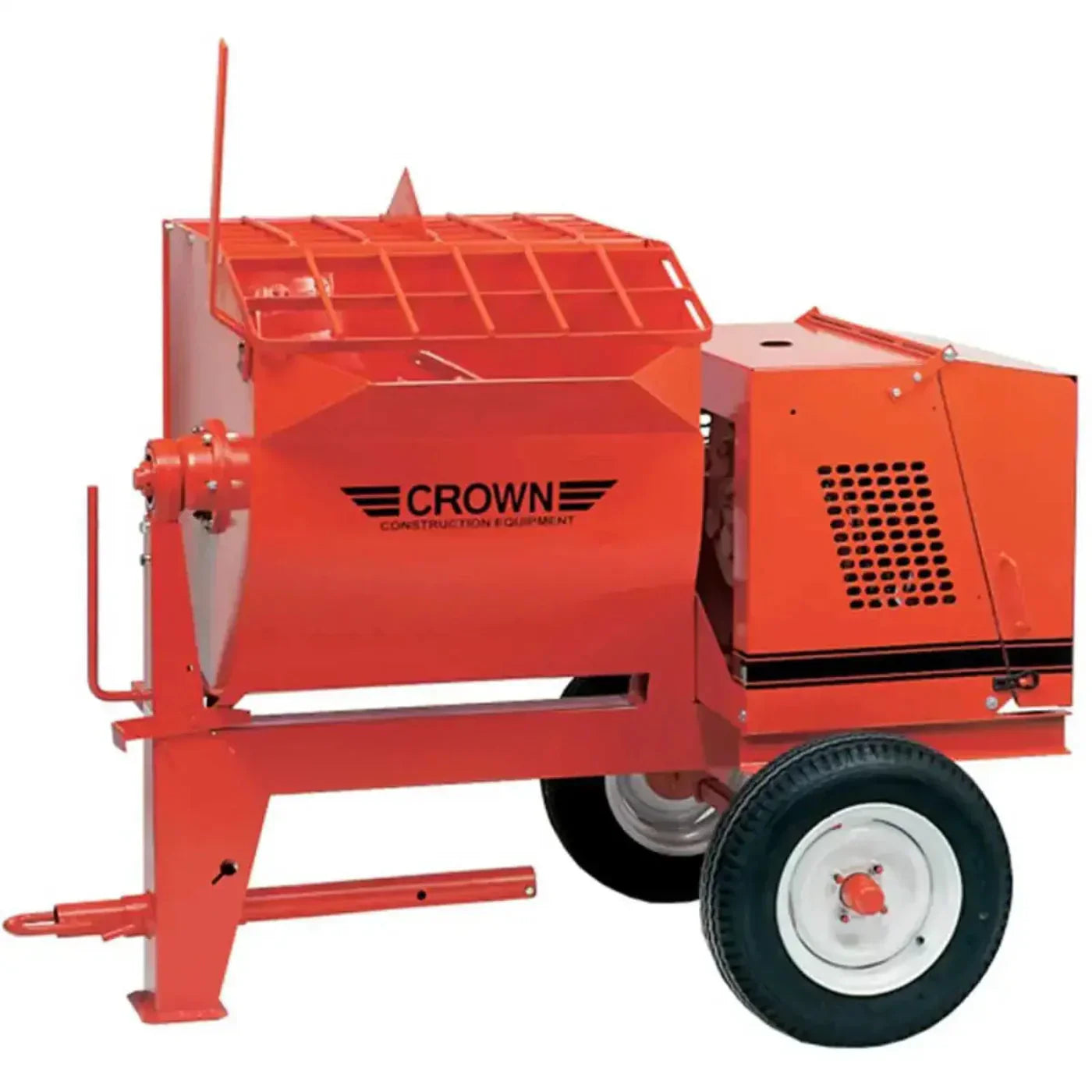

Crown 10S Towable Mortar Mixer - 1096-2hp Electric-Pintle
Crown 10S Highway Towable Mortar Mixer
Features
- 7 gauge steel for longer drum life
- Crowns exclusive Shear Pin Protection system shields the gear reducer and engine from potential damage should an engaged mixer be impeded by a shovel or other foreign object
- Crown's self-latching drum lock is knee operated, freeing both hands for optional dumping control
- Large 5.3 x 12" tires for smooth towing to your job
- 3 to 3-1/2 bags capacity, 10 cubic ft
- Highway tow-able comes with high speed taper roller bearings, and heavy duty axles for years of trouble-free towing
- High Strength Frame newly designed frame provides improved durability and stronger support in the areas where you need it
- The raised frame construction allows for convenient dumping for a wheel-barrow
- Charging Height 60"
- 2 pieces safety grill is stronger, safer and easier to use than a one pcs grill and will not damage the drum
- Lifetime Warranty, All Crown mixers feature a lifetime warranty on the drum bearing and seals

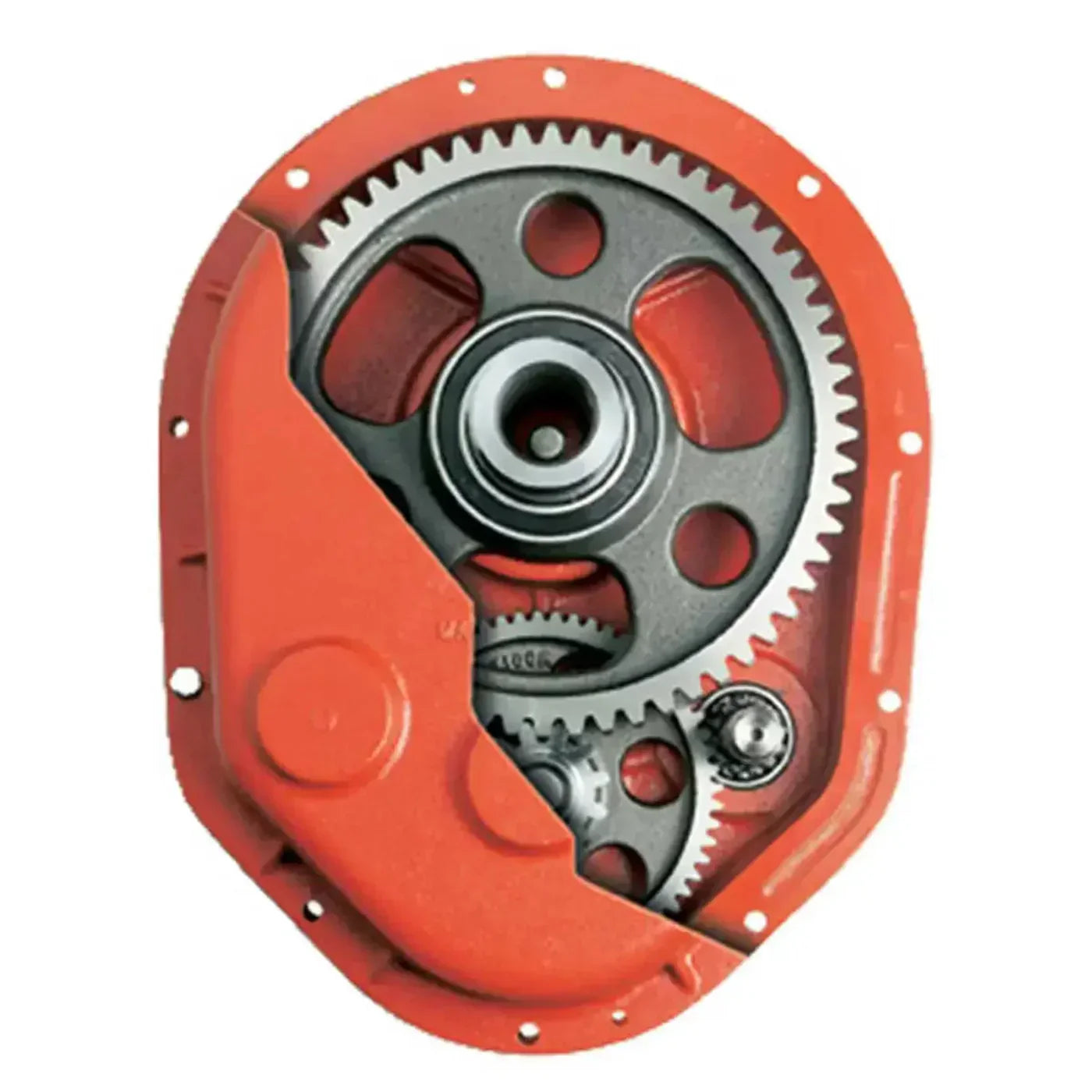

- Heavy-duty one-piece cast-iron ring gear for longer life
- Optional spiral mixing blade upgrade sold separately here
- Optional lighting kit sold separately here
- Free shipping from Crown warehouse
- Wheels are not installed prior to delivery; Wheel assembly is required on this unit prior to use
What's Included
- Crown 10S Towable Mortar Mixer
- 2" Ball Hitch or a Pintle Hitch (Chose Option During Checkout)
- Safety Chains
- Operator's manual
Specification
| Drum Capacity |
10 cu ft |
| Bag Capacity |
3-3.5 bags (88 lbs pre-mix) |
| Max RPM |
32 |
| Dimensions |
73 x 60 x 45 in |
| Weight |
650 lbs |
What Our Experts Think
-
2 HP Electric Motor – Delivers consistent power for mixing mortar and other materials effectively.
-
Towable Design – Easily moved around job sites, improving workflow and saving time on transportation.
-
Durable Construction – Built to last with strong materials, ideal for demanding construction environments.
-
Heavy-Duty Pintle Hitch – Ensures secure and stable towing, providing smooth operation during transport.
-
Versatile & Efficient – Great for small to mid-sized construction projects, providing reliable mixing for masonry work.
Q&A
Q: What is the Crown 10S Towable Mortar Mixer used for?
A: The 10S is a towable mortar mixer designed for mixing mortar, plaster, and concrete, ideal for medium-scale masonry and construction projects.
Q: What motor powers the 10S Mortar Mixer?
A: It is powered by a 2hp electric motor, providing reliable performance for efficient mixing of various materials.
Q: How does the towable feature benefit the user?
A: The towable design ensures easy transport across job sites, offering excellent mobility for moving the mixer and materials.
Q: Is the 10S easy to operate?
A: Yes, the 10S features user-friendly controls and a pintle hitch, making it simple to operate on-site, even with large material batches.
Q: Who benefits from using the 10S Towable Mortar Mixer?
A: Contractors, masons, and construction professionals who require a reliable, portable mixer for medium-sized jobs that need quick and efficient mixing.
Maintenance Tips
-
Clean After Use – Clean the drum, mixing blades, and all components thoroughly to remove mortar residue and prevent buildup.
-
Lubricate Moving Parts – Regularly lubricate the gearbox, axles, and bearings to ensure smooth operation and reduce wear.
-
Inspect Electrical Components – Check the motor, wiring, and power cord for any damage or wear, replacing any damaged parts as needed.
-
Examine Mixing Blades – Inspect the mixing blades for wear or damage, and replace them if necessary to maintain efficient mixing.
-
Check Tires & Axles – Ensure the tires are properly inflated and inspect the axles for damage to ensure safe and smooth towing.
-
Tighten Fasteners – Check and tighten any loose bolts, nuts, or fasteners to prevent vibrations and ensure safety.
-
Store Properly – When not in use, store the mixer in a clean, dry area to prevent rust and environmental damage.
