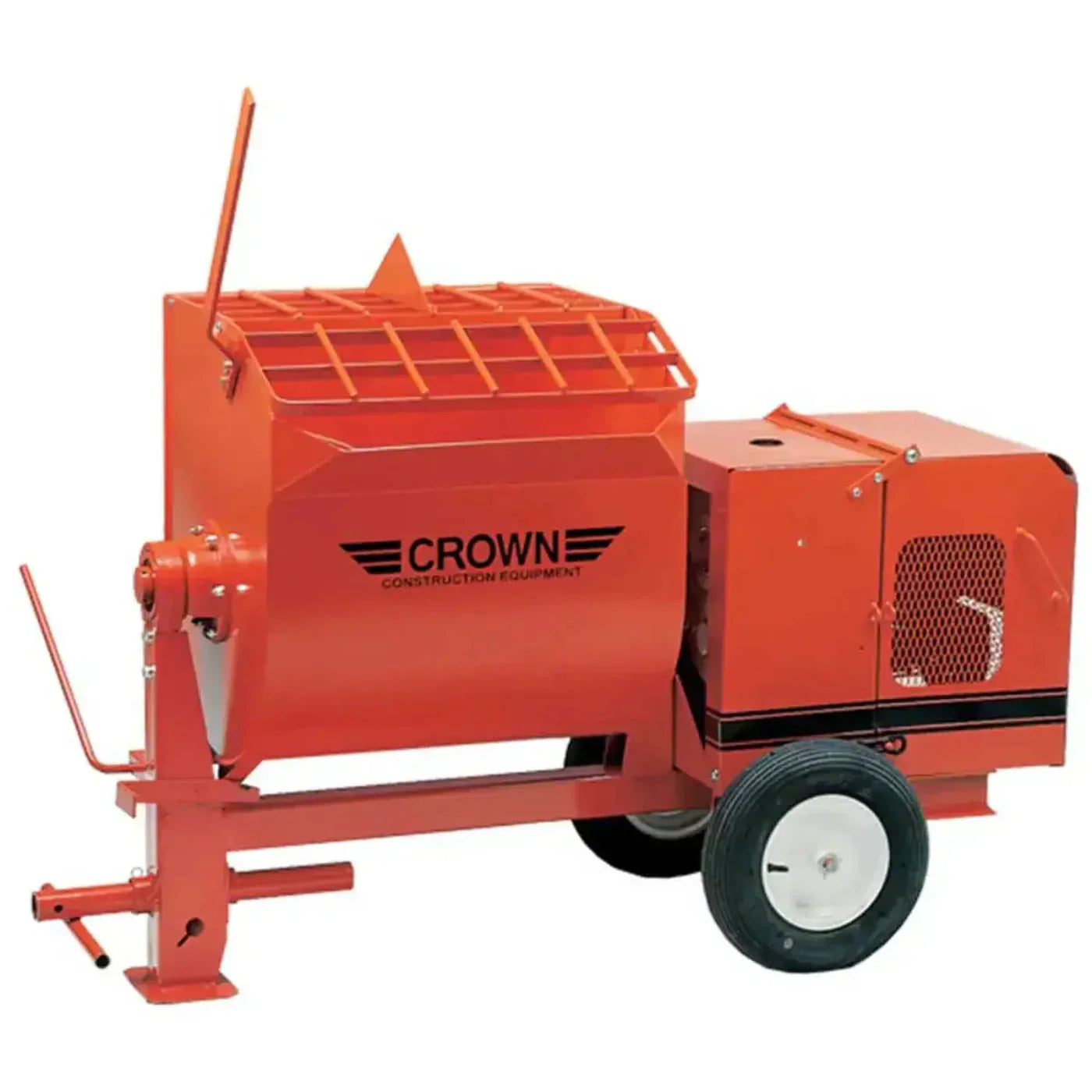

Crown 4S Mortar Mixer - 6696-1.5HP Electric-Pintle
Crown 4S Mortar Mixer
Features
- Choose between 4.8 hp Honda GX160 gas motor or single phase 1.5 hp electric motor (110/220 V, 12.4-6.2 amps)
- Crowns exclusive Shear Pin Protection system shields the gear reducer and engine from potential damage should an engaged mixer be impeded by a shovel or other foreign object
- Crown's self-latching drum lock is knee operated, freeing both hands for optional dumping control
- 1-1/2 bags capacity, 4 cubic ft
- Heavy-duty one-piece cast-iron ring gear for longer life
- Non tow able, optional highway towing package available
- High Strength Frame newly designed frame provides improved durability and stronger support in the areas where you need it
- The raised frame construction allows for convenient dumping for a wheel-barrow
- Charging Height 46"
- 2 pieces safety grill is stronger, safer and easier to use than a one piece grill and will not damage the drum
- Lifetime Warranty, All Crown mixers feature a lifetime warranty on the drum bearing and seals
- Optional spiral mixing blade upgrade sold separately here
- Optional lighting kit sold separately here
- Free shipping from Crown warehouse
- Wheels are not installed prior to delivery; Wheel assembly is required on this unit prior to use
What's Included
- Crown 4S Mortar Mixer
- 2" Ball Hitch or a Pintle Hitch (Chose Option During Checkout)
- Operator's manual
Specification
| Drum Capacity |
4 cu ft |
| Bag Capacity |
1-1.5 bags (88 lbs pre-mix) |
| Max RPM |
38 |
| Charging Height |
46 inch |
| Dimensions |
62 x 28 x 43 in |
| Weight |
450 lbs |
What Our Experts Think
-
Powerful 1.5 HP Electric Motor – Delivers efficient mixing performance for large or small mortar batches.
-
Durable Pintle Drive – Provides reliable and consistent power to the drum for smooth mixing.
-
Heavy-Duty Construction – Built with robust materials to withstand tough construction environments.
-
Easy to Transport – Designed with durable wheels for easy maneuverability around job sites.
-
Ideal for Masonry Work – Perfect for mixing mortar, cement, and other materials in construction applications.
Q&A
Q: What is the Crown 4S Mortar Mixer used for?
A: It is a heavy-duty electric mortar mixer designed for mixing mortar, concrete, and other materials on construction sites, ideal for masonry and plastering work.
Q: What is the motor power of the 4S Mortar Mixer?
A: It features a 1.5HP electric motor, providing reliable and consistent mixing performance for both small and large batches.
Q: What makes the Crown 4S Mortar Mixer unique?
A: Its pintle-style design allows for easy operation, while its durable construction ensures long-lasting reliability in demanding environments.
Q: Is the 4S Mortar Mixer easy to use?
A: Yes, it has user-friendly controls and a robust design, making it easy to mix materials efficiently and safely.
Q: Who benefits from using the 4S Mortar Mixer?
A: Contractors, masons, and construction professionals who need a reliable and efficient mortar mixer for various on-site mixing tasks.
Maintenance Tips
-
Clean After Each Use – Thoroughly clean the drum, blades, and other parts to prevent mortar buildup and rust.
-
Inspect & Lubricate Bearings – Check the bearings for wear and lubricate them regularly to ensure smooth operation.
-
Check Electrical Components – Inspect the power cord and motor for any visible wear or damage; replace if necessary.
-
Tighten Loose Parts – Ensure all nuts, bolts, and fasteners are secure to prevent vibrations and damage during use.
-
Inspect Mixer Blades – Check blades for wear and tear; replace them if they are damaged or worn down.
-
Maintain Motor & Gearbox – Regularly check the motor and gearbox for proper function and lubricate as recommended by the manufacturer.
-
Store in a Dry Area – When not in use, store the mixer in a dry, clean environment to avoid rust and corrosion.
