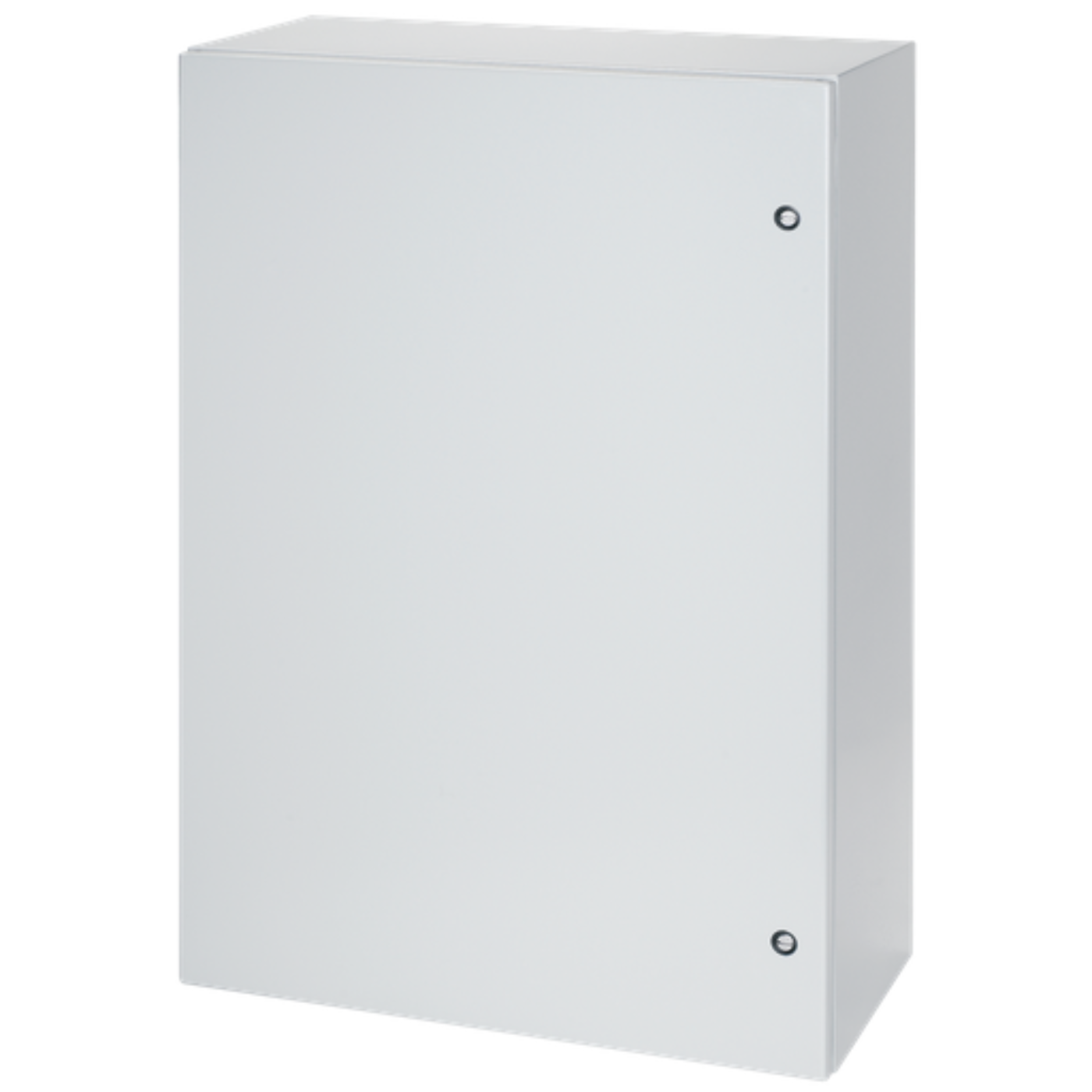

Nvent Hoffman Concept Single-Door Enclosure - CSD363612
The Nvent Hoffman CSD363612 is a Concept™ wall mount enclosure designed for secure housing of electrical and electronic equipment. Featuring a single-door design, this Type 4/12 enclosure provides superior protection in demanding industrial environments. Constructed from 14-gauge steel with a durable ANSI 61 grey polyester powder paint finish, this enclosure ensures long-term corrosion resistance and enhanced durability.
The CSD363612 Concept™ enclosure is ideal for machine control applications, offering robust protection for sensitive electrical components. Its quarter-turn latch design provides easy yet secure access to internal equipment. Built with seams that are continuously welded and ground smooth, this enclosure offers a sleek, streamlined appearance with no exposed edges for improved safety and aesthetics.
Features
- 14-Gauge Steel Construction: Ensures durability and robust protection.
- ANSI 61 Grey Polyester Powder Paint: Provides enhanced resistance against corrosion, scratches, and wear.
- Quarter-Turn Latch: Allows for secure closure and easy access to internal components.
- 210° Door Opening: Maximum accessibility for simplified maintenance and equipment adjustments.
- Hidden Hinges: Enhances security and provides a clean, streamlined aesthetic.
- Seamless Foam-in-Place Gasket: Ensures excellent sealing to protect against dust, water, and other environmental factors.
- Wall-Mount Design: Offers secure mounting for various machine control applications.
- Type 4/12 Enclosure Rating: Provides protection against water, dust, and oil, making it suitable for indoor and some outdoor environments.
What our Experts Think
-
Heavy‑Duty Industrial Protection: Steel construction with a durable powder‑coated finish offers strong resistance to dust, water spray and splashes, meeting NEMA 4/12 and IP66 ratings for tough environments.
-
Smooth, Streamlined Design: Flush quarter‑turn latches, hidden hinges and a ground‑smooth welded body give a professional finish and reliable sealing.
-
Wide, Easy Access: Door opens up to 210° for generous internal access during installation and maintenance.
-
Installation Flexibility: Back‑mounting holes and panel studs support optional accessories (panels, mounts) to customize setup.
-
Built‑In Safety Features: Seamless foam‑in‑place gasket and grounding provisions help protect internal components and wiring.
Q&A
Q: What is the CSD363612 enclosure?
A: A Concept series single‑door wall‑mount electrical enclosure from nVent Hoffman, sized 36″ × 36″ × 12″ and built for industrial protection.
Q: What protection ratings does it have?
A: Rated NEMA/UL Type 4, 12, 13 and IP66, offering strong defense against dust, water, and non‑corrosive liquids for indoor/outdoor use.
Q: What material and finish does it feature?
A: Made from steel with a gray polyester powder‑coated finish, providing durability and corrosion resistance.
Q: What are its key design features?
A: Includes seamless foam‑in‑place gasket, quarter‑turn flush latches, hidden hinges, removable door with 210° opening, and panel mounting studs for accessories.
Q: What applications is it ideal for?
A: Ideal for machine control panels, industrial automation, and electrical housing where robust environmental protection and easy access are needed.
Q: What are its practical benefits?
A: Provides secure protection for wiring and components, easy maintenance access, and compatibility with optional internal panels and accessories.
Maintenance Tips
-
Regular Inspection: Check the door, hinges, and enclosure body for dents, cracks, or corrosion.
-
Cleaning: Wipe interior and exterior surfaces with a soft, damp cloth; avoid abrasive cleaners.
-
Hinge Care: Lightly lubricate hinge pivots for smooth door operation.
-
Seal Check: Inspect gaskets for wear or damage; replace if needed to maintain proper protection.
-
Fastener Tightening: Ensure all screws and mounting hardware are secure.
-
Replacement: Replace any damaged or deformed components immediately to ensure safety and compliance.
