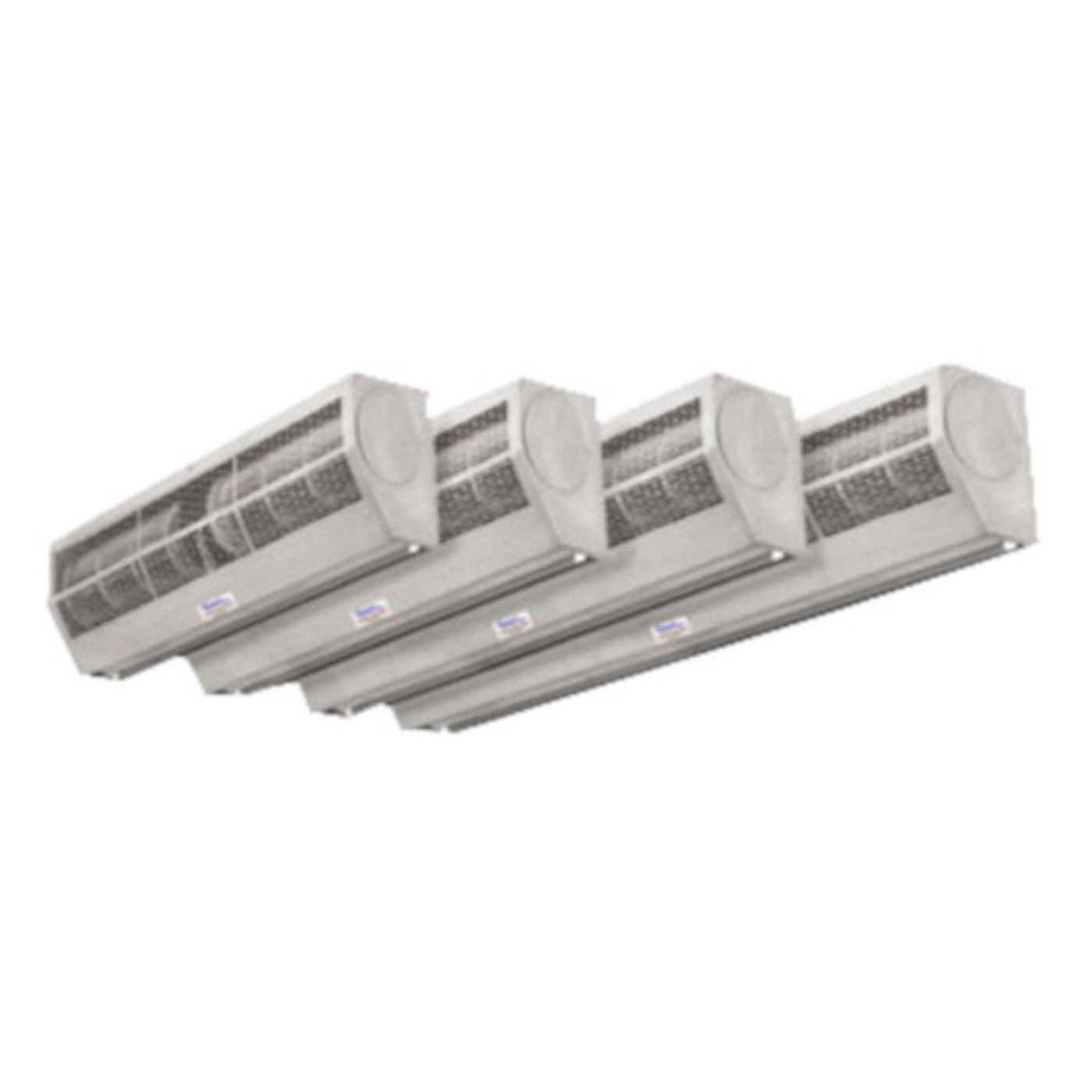

Curtron AP-2-60-1-SS Stainless Steel Air-Pro Air Door Curtain - CUAP2601SS
The Curtron AP-2-60-1-SS air curtain is perfect for a variety of applications, including - but not limited to- bakeries, restaurants, hotels/motels, convenience stores, food processing plants, and employee entrances. It has a 1/3 horsepower motor with two speeds and a built-in high/low/off switch. The air curtain has been designed to produce the least amount of noise possible, ensuring it has a quiet operation. The heavy-duty directional vane pushes the air where it needs to go to stop the outside draft, flying insects and airborne pollutants. This substantially reduces energy costs.
The AP-2-60-1-SS has a stainless steel housing, grill, and nozzle. This increases its durability and makes it easy to maintain. It is NSF approved for interior use on openings up to 84" high.
Features
- 1/3 Horsepower motor
- Housing, grill, and nozzle are 300-grade stainless steel
- Aluminum blower wheels
- Built-in high/low switch for 2-speed motors
- Heavy duty directional vane
- Low noise levels
- Reduces energy costs substantially
- Stops outside drafts, flying insects and airborne pollutants
- Re-circulates warm air inside the building
Specifications
- Model: AP-2-60-1-SS
- Electrical Information:
- Volts: 120
- Hz: 60
- Phase: Single
- Cord: Included
- Plug: 3-Prong
- HP Motor: 1/3
- Dimensions: 10" H x 59" W x 8.5" D
- Approximate Weight: 72 lbs.
What our Experts Think
-
Effective Air Barrier: The Curtron AP-2-60-1-SS creates a high-velocity air stream over entryways to block insects, dust, and outside air, maintaining interior climate and hygiene.
-
Durable Construction: Stainless steel housing ensures long-lasting performance and easy cleaning in commercial environments.
-
Powerful Performance: Features a 1/3 hp two-speed motor with dual blower wheels, suitable for openings up to approximately 84″ high; dimensions roughly 59″ W × 10″ H × 8.5″ D.
-
Quiet & Efficient: Operates at moderate noise levels (~75 dBA), ideal for back-of-house or service areas rather than customer-facing zones.
-
Installation Ready: Includes a plug-in 120 V/1‑phase power cord and automatic door-plunger switch; mounts easily above the doorway.
Q&A
Q: What is the AP‑2‑60‑1‑SS air curtain?
A: A commercial-grade stainless steel unheated air curtain, 60″ wide, with a two-speed motor and built-in high/low/off control for energy-efficient operation.
Q: What are its key construction and performance features?
A: 300-series stainless steel housing, 1/3 hp two-speed motor, dual blower wheels, automatic door plunger activation, designed for openings up to 84″ in height.
Q: What are its typical applications?
A: Ideal for commercial entryways, restaurant service windows, convenience store doors, cold-room vestibules, and high-traffic openings requiring airflow control, insect and dust prevention.
Q: What are the size and power specifications?
A: Measures approximately 60″ wide × 10″ high × 8.5″ deep, weighs ~72 lbs, operates on 120 V single-phase, and produces ~75 dBA noise at full speed.
Q: What installation or usage tips should be considered?
A: Mount above the doorway with proper clearance, confirm power supply and switch wiring, select the appropriate speed based on traffic and weather, and clean blower wheels and nozzles regularly for optimal efficiency.
Maintenance Tips
-
Clean the Exterior: Wipe the stainless steel surface with a soft cloth and mild detergent to prevent dirt buildup and maintain appearance.
-
Check and Clean Filters: Inspect air filters regularly and clean or replace as needed for optimal airflow.
-
Inspect Fans and Motors: Ensure fan blades are free of debris and motors are running smoothly; lubricate if recommended by the manufacturer.
-
Secure Mounting: Periodically check brackets and fasteners to keep the unit firmly in place.
-
Test Operation: Regularly run the air curtain to confirm proper airflow and temperature control.
