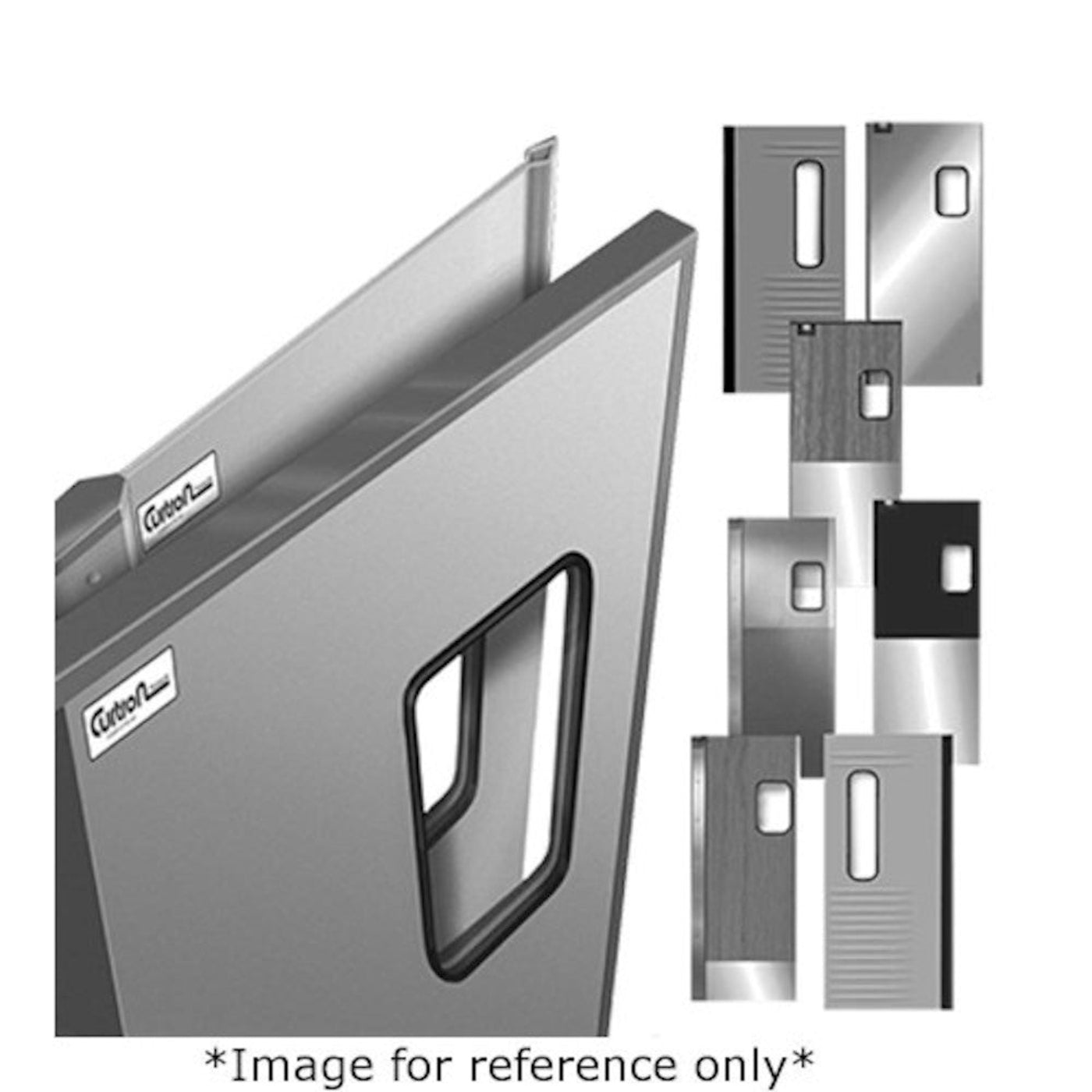

Curtron SPD-30-AL-GK-DBL-3696 36" x 96" Service-Pro Series 30 Double Swing Door - CUSPD30ALGKDBL3696
The Curtron SPD-30-AL-GK-DBL-3696 Service-Pro Swing Door creates a barrier between customers and kitchens, stock rooms, and warehouses to reduce noise. It is made of .032" tempered aluminum and has a satin anodized finish. The SPD-30-AL-GK-DBL-3696 comes with a full perimeter gasket and a 3/4" exterior grade solid wood core. It has two 18" x 96" door panels and two 9" x 14" windows. The Swing Door comes with a Save-T hinge assembly and bottom pin. It does not come with a kickplate or impact plate.
Features
- (2) 18" x 96" door panels
- .032" tempered aluminum with satin anodized finish exterior and full perimeter gasket
- 0.750" exterior grade solid wood core
- (2) 9" x 14" clear windows
- No kickplate / impact plate
- Save-T hinge assembly and bottom pin
Specifications
- Model: SPD-30-AL-GK-DBL-3696
- Dimensions: 96" H x 36" W
- Approximate Weight: 135 lbs.
What our Experts Think
-
Efficient Narrow Opening (36″ × 96″) — Ideal for restricted openings while providing full-height clearance for carts and personnel.
-
Durable Aluminum Finish — .032″ tempered aluminum panels with satin anodized finish offer corrosion resistance and easy cleaning.
-
Robust Core & Sealing (“GK” Variant) — 0.750″ exterior-grade wood core with full-perimeter gasket for enhanced durability, sealing, and performance in high-traffic areas.
-
Improved Visibility for Safety — Each panel includes a 9″ × 14″ clear window to reduce collisions and enhance sightlines in two-way traffic zones.
-
Smooth Bi-Directional Flow — Double-swing panels enable efficient movement of staff and carts in both directions, supporting streamlined operations.
Q&A
Q: What are the dimensions of this door?
A: Fits a rough opening of 36″ wide × 96″ high.
Q: What does the model code “AL‑GK‑DBL‑3696” mean?
A:
-
“AL” = Aluminum exterior finish
-
“GK” = Full‑perimeter gasket
-
“DBL” = Double swing (two panels)
-
“3696” = 36″ width × 96″ height
Q: How many panels does it have and what are their approximate sizes?
A: Two swing panels, each approximately 18″ wide × 96″ high.
Q: What are the construction materials?
A:
-
Exterior: Aluminum
-
Core: 0.75″ solid composite wood
-
Windows: Each panel has a 9″ × 14″ viewing window
-
Gasket: Full‑perimeter gasket
Q: Where is this door typically used?
A: Ideal for commercial kitchens, service corridors, stock rooms, and other high-traffic areas requiring two-way swing access and durable aluminum construction.
Q: What should be verified before installation?
A: Confirm rough opening is 36″ × 96″, allow adequate swing clearance, and ensure the supporting frame is compatible with an aluminum double-swing door with gasket.
Q: Is the door fire-rated?
A: No, this model is not fire-rated.
Q: Does the door include a frame?
A: No, the frame is typically supplied separately.
Q: Are kickplates or impact plates included?
A: No, these are optional and not included by default.
Q: What maintenance is recommended?
A: Clean aluminum surfaces with mild cleaners, inspect hinges and bottom pins, check gasket condition, and keep viewing windows clear.
Maintenance Tips
-
Clean regularly: Wipe aluminum panels and full-perimeter gasket with mild soap and warm water; dry thoroughly. Avoid harsh chemicals, solvents, or abrasives.
-
Inspect hinges and hardware every 3–6 months: Remove hinge covers if possible, clean old grease, apply light grease to hinge cams and pivot pins, and tighten any loose fasteners.
-
Check alignment and seals quarterly: Ensure both panels swing freely, close evenly, and gaskets maintain full contact to preserve sealing and energy efficiency.
-
Keep swing path clear: Remove debris, carts, or equipment from the door’s path to prevent impact damage or misalignment.
-
Use non-abrasive cleaning tools: Soft cloths help protect the aluminum finish and gasket integrity.
