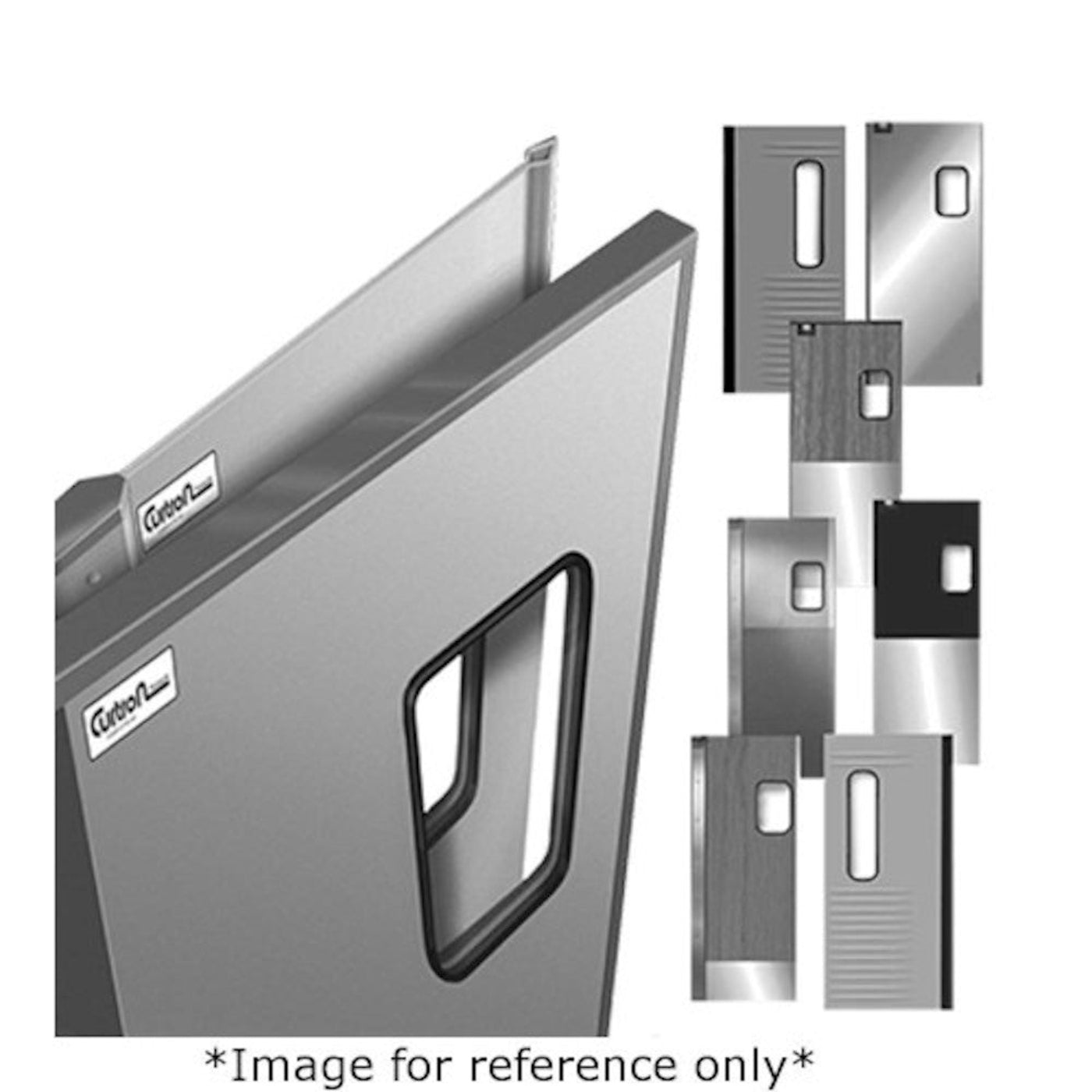

Curtron SPD-30-AL-GK-DBL-4296 42" x 96" Service-Pro Series 30 Double Swing Door - CUSPD30ALGKDBL4296
The Curtron SPD-30-AL-GK-DBL-4296 Service-Pro Swing Door creates a barrier between customers and kitchens, stock rooms, and warehouses to reduce noise. It is made of .032" tempered aluminum and has a satin anodized finish. The SPD-30-AL-GK-DBL-4296 comes with a full perimeter gasket and a 3/4" exterior grade solid wood core. It has two 21" x 96" door panels and two 9" x 14" windows. The Swing Door comes with a Save-T hinge assembly and bottom pin. It does not come with a kickplate or impact plate.
Features
- (2) 21" x 96" door panels
- .032" tempered aluminum with satin anodized finish exterior and full perimeter gasket
- 0.750" exterior grade solid wood core
- (2) 9" x 14" clear windows
- No kickplate / impact plate
- Save-T hinge assembly and bottom pin
Specifications
- Model: SPD-30-AL-GK-DBL-4296
- Dimensions: 96" H x 42" W
- Approximate Weight: 157 lbs.
What our Experts Think
-
Compact Yet Full-Height Access (42″ × 96″) — Ideal width for moderate-traffic zones while maintaining full height clearance.
-
Durable Aluminum Finish with Premium Core — .032″ tempered aluminum panels with a 0.750″ exterior-grade wood core, built for high-use commercial environments.
-
Full-Perimeter Gasket (“GK” Variant) — Reduces noise, improves sealing, and maintains separation between service and customer areas.
-
Safety & Visibility — Each panel includes a 9″ × 14″ window to enhance sightlines and reduce collisions in two-way traffic areas.
-
Efficient Two-Way Movement — Double-swing panels allow smooth passage of personnel and equipment, improving workflow in busy areas.
Q&A
Q: What are the dimensions of this door?
A: Fits a rough opening of 42″ wide × 96″ high.
Q: What does the model code “AL‑GK‑DBL‑4296” mean?
A:
-
“AL” = Aluminum exterior finish
-
“GK” = Full‑perimeter gasket
-
“DBL” = Double swing (two panels)
-
“4296” = 42″ width × 96″ height
Q: How many panels does it have and what are their approximate sizes?
A: Two swing panels, each approximately 21″ wide × 96″ high.
Q: What are the construction materials?
A:
-
Exterior: Aluminum
-
Core: 0.75″ solid composite wood
-
Windows: Each panel includes a 9″ × 14″ viewing window
-
Gasket: Full‑perimeter gasket for sealing
Q: Where is this door typically used?
A: Ideal for commercial kitchens, service corridors, stock rooms, and other high-traffic areas requiring two-way swing access and durable aluminum construction.
Q: What should be verified before installation?
A: Confirm rough opening is 42″ × 96″, allow adequate swing clearance, and ensure the supporting frame is compatible with an aluminum double-swing door with gasket.
Q: Is the door fire-rated?
A: No, this model is not fire-rated.
Q: Does the door include a frame?
A: No, the frame is typically supplied separately.
Q: Are kickplates or impact plates included?
A: No, these are optional and not included by default.
Q: What maintenance is recommended?
A: Clean aluminum surfaces with mild cleaners, inspect hinges and bottom pins, check gasket condition, and keep viewing windows clear.
Maintenance Tips
-
Clean panels & gaskets every 3–6 months: Use a soft cloth with mild soap and warm water, then dry thoroughly. Avoid harsh chemicals, solvents, or abrasives.
-
Inspect hinges & hardware every 6 months: Remove hinge covers, wipe off old grease, apply light wheel‑bearing type grease (do not over‑grease), and tighten any loose fasteners.
-
Check alignment & seals quarterly: Ensure both panels swing freely, close evenly, and that full‑perimeter gaskets are intact.
-
Keep the swing path clear of debris or heavy traffic to prevent impact damage or misalignment.
-
Use non‑abrasive cleaning tools: Protect the aluminum finish and gasket edges from scratches and damage.
