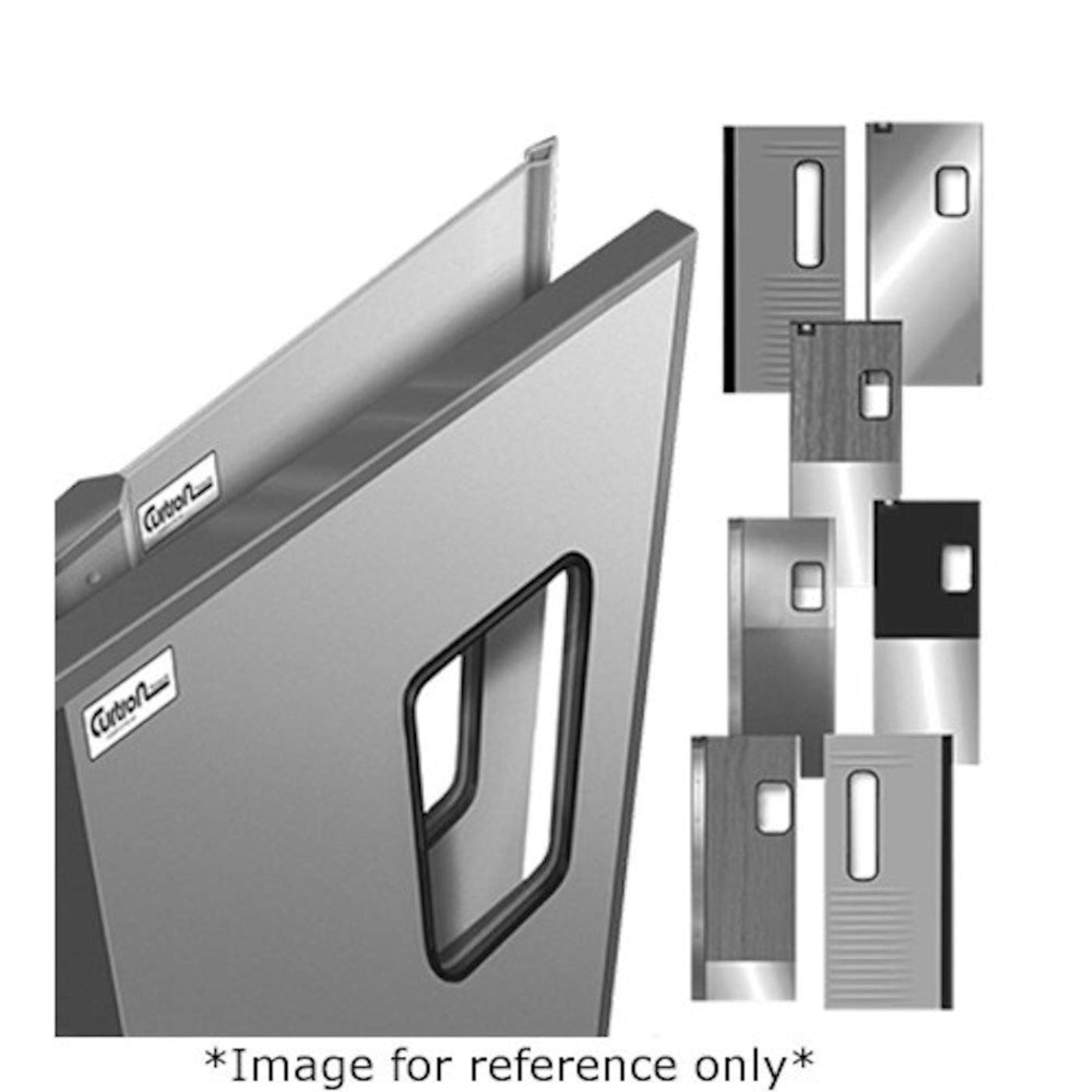

Curtron SPD-30-AL-GK-DBL-9684 96" x 84" Service-Pro Series 30 Double Swing Door - CUSPD30ALGKDBL9684
The Curtron SPD-30-AL-GK-DBL-9684 Service-Pro Swing Door creates a barrier between customers and kitchens, stock rooms, and warehouses to reduce noise. It is made of .032" tempered aluminum and has a satin anodized finish. The SPD-30-AL-GK-DBL-9684 comes with a full perimeter gasket and a 3/4" exterior grade solid wood core. It has two 48" x 84" door panels and two 9" x 14" windows. The Swing Door comes with a Save-T hinge assembly and bottom pin. It does not come with a kickplate or impact plate.
Features
- (2) 48" x 84" door panels
- .032" tempered aluminum with satin anodized finish exterior and full perimeter gasket
- 0.750" exterior grade solid wood core
- (2) 9" x 14" clear windows
- No kickplate / impact plate
- Save-T hinge assembly and bottom pin
Specifications
- Model: SPD-30-AL-GK-DBL-9684
- Dimensions: 84" H x 96" W
- Approximate Weight: 314 lbs.
What our Experts Think
-
Width & Height Optimized (60″ × 96″) — Ideal for medium-to-large service access, providing ample clearance for two-way traffic without oversized frames.
-
Durable Aluminum Build with Gasket Seal — .032″ tempered aluminum exterior with 0.750″ exterior-grade wood core and full-perimeter gasketing for durability and improved zone separation.
-
Standard Visibility Window — Each panel has a 9″ × 14″ window to enhance safety and sightlines in high-traffic environments.
-
Efficient Double-Swing Design — Two-panel design supports smooth movement of personnel and carts in both directions, reducing bottlenecks.
-
Hygiene & Maintenance Friendly — Aluminum finish is easy to clean, suitable for food-service, retail back-of-house, or industrial zones.
Q&A
Q: What is this product?
A: It’s a double‑swing traffic door sized for a 60″ wide × 96″ high opening, model SPD‑30‑AL‑GK‑DBL‑6096 in the Service‑Pro Series 30.
Q: What does the model designation “AL‑GK‑DBL‑6096” mean?
A:
-
“AL” = Aluminum finish exterior
-
“GK” = Full‑perimeter gasket version
-
“DBL” = Double‑panel swing (two panels)
-
“6096” = Width 60″ × Height 96″
Q: How many panels? What are their sizes?
A: There are two swing panels, each approximately 30″ wide × 96″ high.
Q: What are the core, surface and key components?
A:
-
Exterior finish: Aluminum (“AL”) with .032″ tempered aluminum or aluminum alloy finish
-
Core: 0.750″ (¾″) exterior‑grade wood composite
-
Standard windows: 9″ × 14″ clear viewing windows in each panel
-
Gasket: Full‑perimeter gasket sealing (the “GK” version)
Q: Where is this door typically used?
A: Suitable for commercial kitchens, back‑of‑house service areas, warehouses or other high‑traffic zones where two‑way swing access, durable aluminum construction, and environmental separation (via gasket) are desired.
Q: What installation/verification steps should I take?
A:
-
Confirm rough opening matches 60″ wide × 96″ high.
-
Ensure adequate swing clearance for both panels.
-
Verify that the surrounding frame and structure accommodate an aluminum‑finish double‑swing door with full‑perimeter gasket.
Q: Is the door fire‑rated?
A: No — this model is not listed as a fire‑rated door.
Q: Does the door include a frame?
A: No — typically the door unit arrives without the frame, which is ordered separately or provided on‑site.
Q: Are kickplates or impact plates included as standard?
A: Not guaranteed — these may be optional accessories for this model.
Maintenance Tips
-
Clean surfaces every 3–6 months: Wipe aluminum panels and full-perimeter gaskets with mild soap and warm water; dry thoroughly. Avoid harsh chemicals, solvents, or abrasives.
-
Inspect hinges & hardware semi-annually: Remove hinge covers, clean off old grease, apply light wheel-bearing type grease (do not over-grease), and tighten all fasteners.
-
Check alignment & sealing quarterly: Ensure both panels swing freely, close evenly, and that gaskets make full contact to maintain proper sealing and energy efficiency.
-
Keep traffic area clear: Remove carts, debris, or obstructions from the swing path to prevent impact damage or misalignment.
-
Use non-abrasive cleaning tools: Protect the aluminum finish and gasket edges from scratches or damage.
