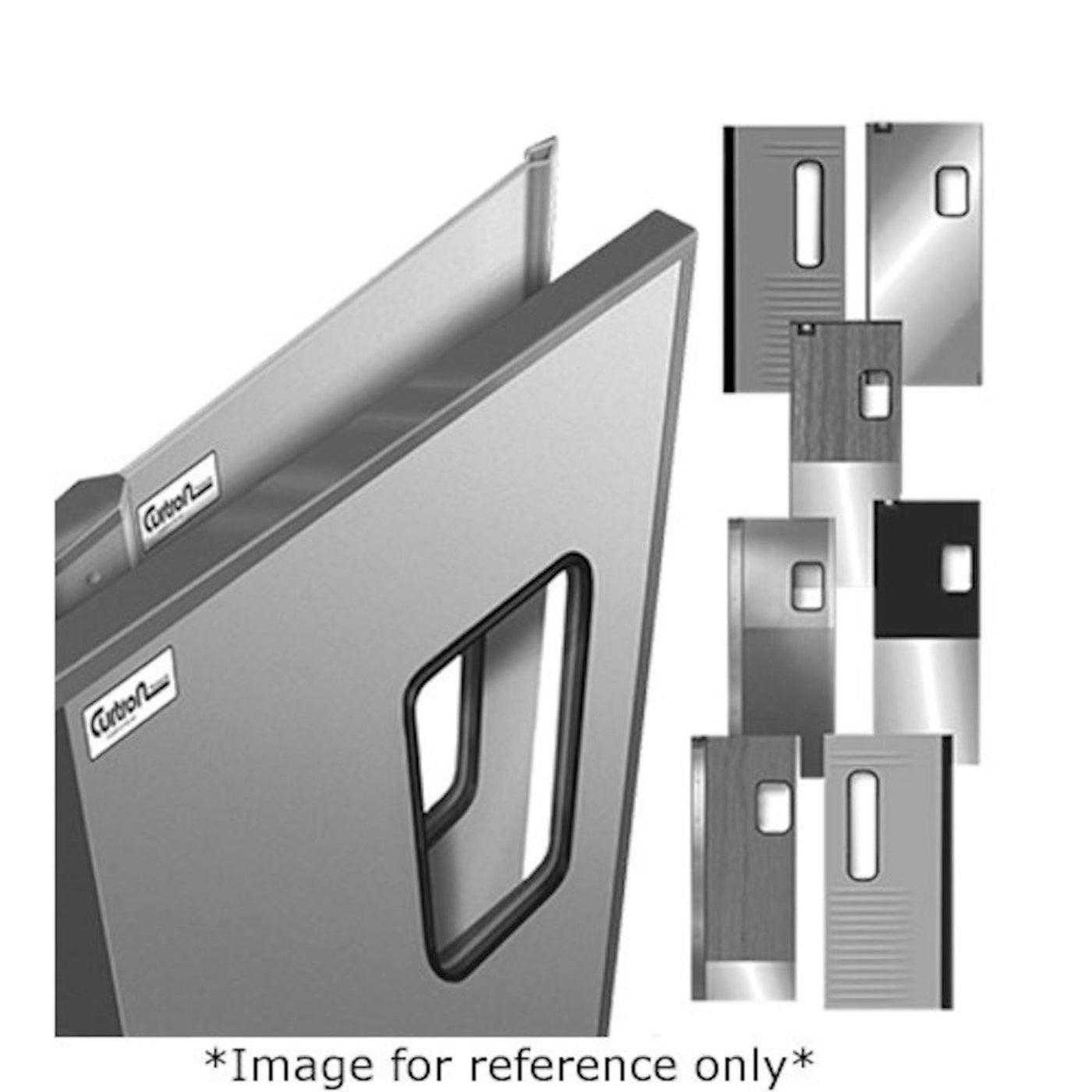

Curtron SPD-30-L-GK-DBL-4296 42" x 96" Service-Pro Series 30 Double Swing Door - CUSPD30LGKDBL4296
Durable and easy to use, the Curtron SPD-30-L-GK-DBL-4296 is a Service-Pro Series 30 Swing Door. It is made of .032" tempered aluminum and has a laminate finish. The Swing Door has an 0.750" exterior grade solid wood core and a full perimeter gasket. It comes with an 18" stainless steel kickplate, Save-T hinge assembly, and bottom pin. The SPD-30-L-GK-DBL-4296 has two 21" x 96" door panels and two 9" x 14" windows.
Features
- (2) 21" x 96" door panels
- .032" tempered aluminum with laminate finish exterior and full perimeter gasket
- 0.750" exterior grade solid wood core
- (2) 9" x 14" clear windows
- 18" stainless steel kickplate
- Save-T hinge assembly and bottom pin
Specifications
- Model: SPD-30-L-GK-DBL-4296
- Dimensions: 96" H x 42" W
- Approximate Weight: 157 lbs.
What our Experts Think
-
Smart Compact Access (42″ × 96″) — Full-height clearance with modest width, ideal for transitional areas without oversized openings.
-
Solid Construction for Service Use — 0.75″ exterior-grade wood core with laminate-wrapped finish provides durability and a clean appearance for commercial traffic zones.
-
Traffic-Friendly Design — Double-swing configuration supports smooth two-way movement of personnel and carts, reducing workflow bottlenecks.
-
Built for Safety & Visibility — Each panel includes a 9″ × 14″ clear vision window to help staff spot oncoming traffic and prevent collisions.
-
High-Impact Protection — Features edge caps and kick plates for durability in high-contact areas like kitchens, prep zones, or stockrooms.
Q&A
Q: What is this product?
A: The Curtron SPD‑30‑L‑GK‑DBL‑4296 is a 42″ wide × 96″ high double‑swing (two‑panel) traffic door from the Service‑Pro Series 30.
Q: What does the model code “L‑GK‑DBL‑4296” indicate?
A: “L” = laminate finish, “GK” = full‑perimeter gasket version, “DBL” = double swing panels, “4296” = 42″ width × 96″ height.
Q: How many panels and what are their sizes?
A: Two panels, each approximately 21″ wide × 96″ high.
Q: What are the key construction materials and core?
A: It features a laminate exterior over a .032″ tempered aluminum or similar substrate, a 0.750″ exterior‑grade composite wood core, and a full‑perimeter gasket. A 9″ × 14″ clear window is standard on each panel.
Q: Where is this door intended to be used?
A: Designed for medium‑duty commercial environments — such as restaurants, food‑service backrooms, retail stock areas, or other high‑traffic zones where two‑way access and durability are needed.
Q: What should be verified before installation?
A: Ensure your rough opening is 42″ wide × 96″ high, confirm adequate clearance for two‑way swing of both panels, and verify that your frame/support structure accommodates a laminate finish door with full gasket.
Q: Is the door fire‑rated?
A: No — this model is not fire‑rated and is not intended to replace a fire‑rated assembly.
Q: Does the door include a frame?
A: No — the frame is typically provided separately.
Q: Are kickplates or impact plates included?
A: Many units include standard stainless steel impact plates, but specific variants (like this gasketed version) should be confirmed for inclusion of kickplates or other accessories.
Maintenance Tips
-
Regular cleaning: Wipe vinyl and laminate panels with mild soap and warm water to remove dirt and grease.
-
Inspect hardware monthly: Check hinges, bolts, and mounting plates; tighten or adjust as needed.
-
Lubricate moving parts: Apply light silicone spray or oil to hinge pins and pivot points every 3–6 months.
-
Check alignment & seals: Ensure doors close evenly for safety, energy efficiency, and hygiene.
-
Avoid harsh chemicals: Use non-abrasive cleaners to protect the finish and extend door lifespan.
