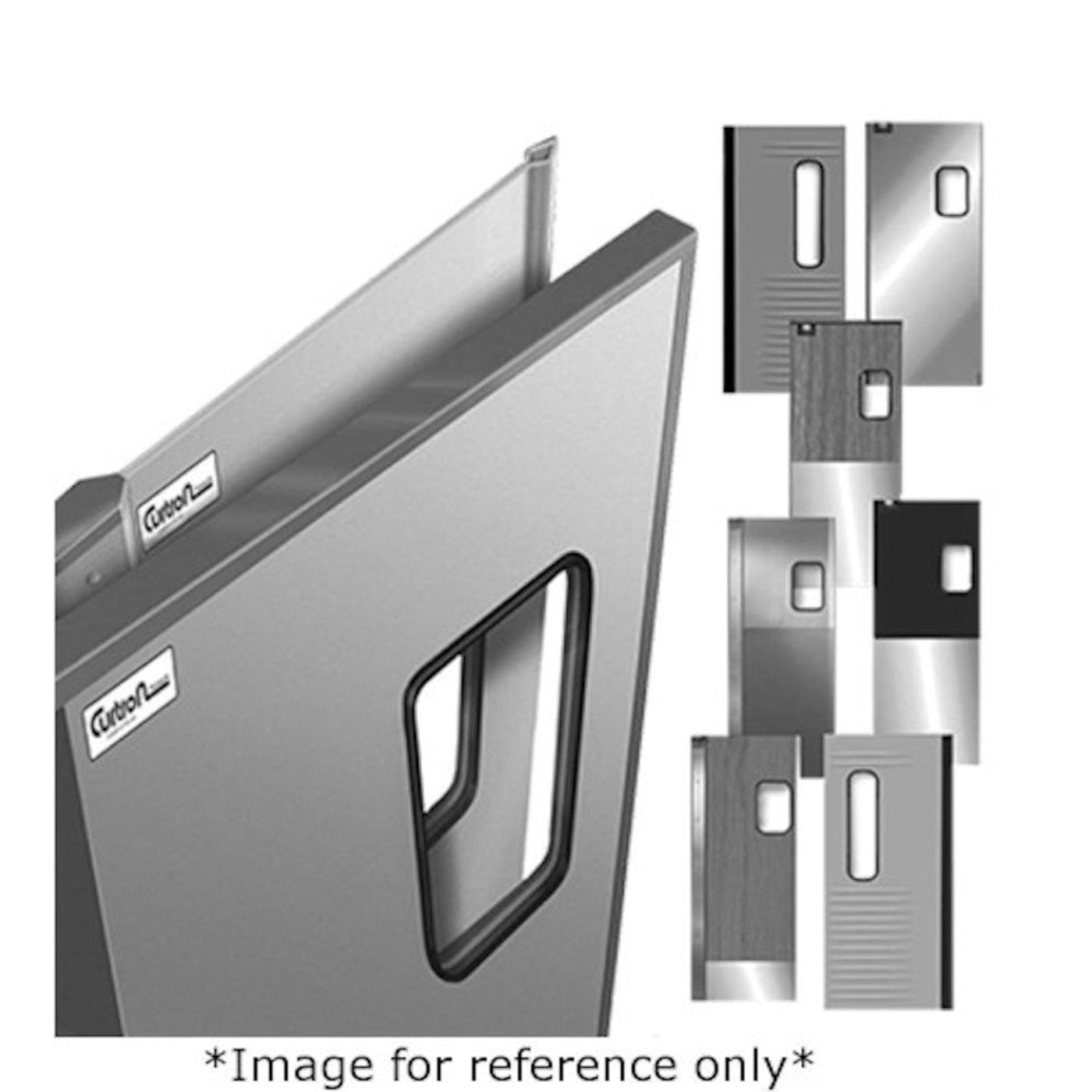

Curtron SPD-30-L-GK-DBL-4884 48" x 84" Service-Pro Series 30 Double Swing Door - CUSPD30LGKDBL4884
Durable and easy to use, the Curtron SPD-30-L-GK-DBL-4884 is a Service-Pro Series 30 Swing Door. It is made of .032" tempered aluminum and has a laminate finish. The Swing Door has an 0.750" exterior grade solid wood core and a full perimeter gasket. It comes with an 18" stainless steel kickplate, Save-T hinge assembly, and bottom pin. The SPD-30-L-GK-DBL-4884 has two 24" x 84" door panels and two 9" x 14" windows.
Features
- (2) 24" x 84" door panels
- .032" tempered aluminum with laminate finish exterior and full perimeter gasket
- 0.750" exterior grade solid wood core
- (2) 9" x 14" clear windows
- 18" stainless steel kickplate
- Save-T hinge assembly and bottom pin
Specifications
- Model: SPD-30-L-GK-DBL-4884
- Dimensions: 84" H x 48" W
- Approximate Weight: 157 lbs.
What our Experts Think
-
Efficient Dimensions (48″ × 84″) — Practical width and full-height opening suitable for service corridors, kitchens, or back-of-house access points without excessive framing.
-
Strong Core & Seal — 0.750″ exterior-grade wood core with full-perimeter gasketing (“GK” variant) for improved air sealing, noise control, and durability in commercial traffic zones.
-
Durable Exterior Finish — Laminate or aluminum/laminate finish provides a clean, sanitary surface designed for high-use environments and easy maintenance.
-
Enhanced Visibility & Safety — Each panel includes a 9″ × 14″ clear vision window to reduce collision risk in busy two-way traffic areas.
-
Bi-Directional Flow — Double-swing design allows smooth movement of personnel and carts in both directions, improving workflow efficiency.
Q&A
Q: What are the dimensions of this door?
A: Fits a rough opening 48″ wide × 84″ high.
Q: What does the model code “L‑GK‑DBL‑4884” mean?
A: “L” = Laminate finish exterior, “GK” = Full‑perimeter gasket, “DBL” = Double swing (two panels), “4884” = 48″ width × 84″ height.
Q: How many panels are included and what are their sizes?
A: Two swing panels, each approximately 24″ wide × 84″ high.
Q: What are the construction materials?
A:
-
Exterior: Laminate finish
-
Core: 0.75″ (¾″) composite wood
-
Windows: Each panel has a 9″ × 14″ viewing window
-
Gasket: Full‑perimeter gasket
Q: Where is this door typically used?
A: Suitable for commercial kitchens, service corridors, stock rooms, and warehouses where two-way swing access and durable finish are needed.
Q: What should be checked before installation?
A: Confirm the rough opening is 48″ × 84″, ensure enough swing clearance, and verify the surrounding frame supports a laminate double-swing door with full gasket.
Q: Is the door fire-rated?
A: No, this model is not fire-rated.
Q: Does the door include a frame?
A: No, the frame is typically supplied separately.
Q: Are kickplates or impact plates included?
A: Optional 18″ stainless steel kickplates or impact plates may be added; not included by default.
Q: What maintenance is recommended?
A: Clean laminate surfaces, inspect hinges and gasket, maintain swing clearance, and keep windows clean.
Maintenance Tips
-
Clean panels and gaskets every 6 months: use mild soap and warm water, wipe dry, avoid spray solvents or acetone.
-
Inspect hinges, cams and fasteners every 6 months: remove covers, wipe old grease, apply light wheel‑bearing type grease (do not over‑grease), tighten fasteners.
-
Check alignment and seals quarterly: ensure both panels close evenly, gasket maintains full contact, door swings freely.
-
Keep traffic path clear: remove debris or carts that could impact the door and cause misalignment or damage.
-
Use non‑abrasive cleaning solutions: protect laminate or metal finishes by avoiding harsh chemicals or scrubbing pads.
