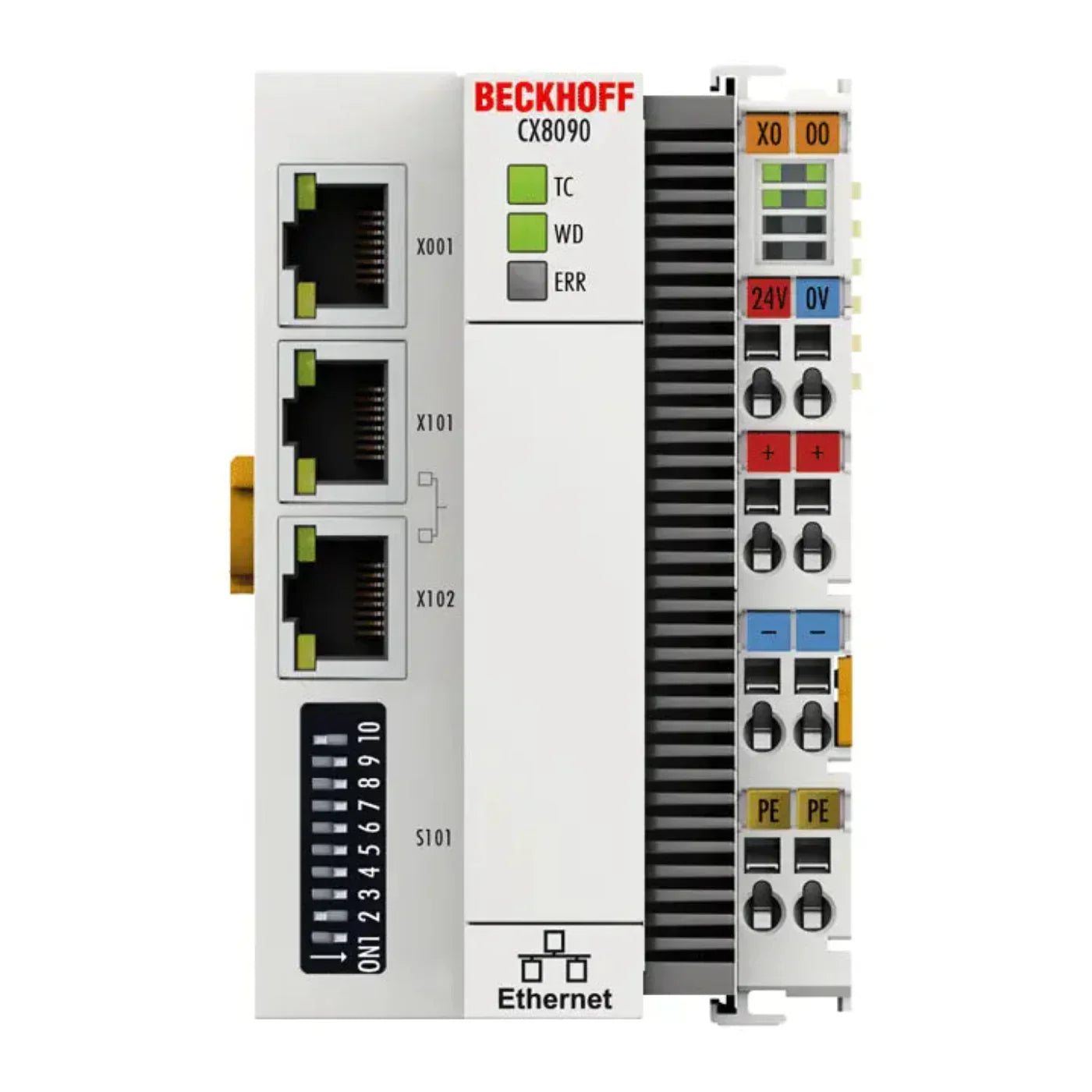

BECKHOFF Embedded PC with Ethernet - CX8090
The BECKHOFF CX8090 is a compact Embedded PC, integrating Ethernet connectivity for seamless communication in industrial automation. Its robust design and versatile features make it an ideal solution for a wide range of control and monitoring applications.
Specifications
| Manufacturer |
BECKHOFF
|
| Category |
PLCs/Machine Control |
| Subcategory |
Industrial Computer |
| Part Number |
CX8090 |
| Processor |
ARM9, 400 MHz |
| Number of cores |
1 |
| Flash memory |
512 MB microSD (optionally expandable) |
| Main memory |
64 MB DDR2 RAM (not expandable) |
| Persistent memory |
1-second UPS (for 1 MB persistent data) |
| Programming languages |
IEC 61131-3 |
| Web visualization |
yes |
| Up/down load code |
yes/yes |
| Interfaces |
1 x RJ45 10/100 Mbit/s, 1 x USB device (behind the front flap), 1 x bus interface |
| Bus interface |
2 x RJ45 (switched) |
| Diagnostics LED |
1 x TC status, 1 x WD, 1 x error |
| Clock |
internal battery-backed clock for time and date (battery behind the front flap, exchangeable) |
| Operating system |
Windows Embedded CE 6 |
| Control software |
TwinCAT 2 PLC |
| I/O connection |
E-bus or K-bus, automatic recognition |
| Web-based management |
yes |
| Current supply E-bus/K-bus |
2 A |
| Max. power consumption |
3 W |
| Dimensions (W x H x D) |
64 mm x 100 mm x 73 mm |
| Operating/storage temperature |
0…+55 °C/-25…+85 °C |
| Relative humidity |
95 %, no condensation |
| Vibration/shock resistance |
conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission |
conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection rating |
IP20 |
| Approvals/markings |
CE, UL, ATEX, IECEx, cFMus |
Information About CX8090
The CX8090 is a control system with a switched Ethernet port. It supports protocols such as real-time Ethernet, ADS UDP/TCP, Modbus TCP client/server or open TCP/IP-UDP/IP communication. K-Bus or E-Bus terminals can be attached as required; the CX8090 automatically recognizes the type of I/O system connected during the start-up phase. The control system is programmed with TwinCAT via the fieldbus interface or the additional Ethernet interface.
In the basic version the CX80xx contains a MicroSD card with 512 MB. Two Ethernet interfaces and a K-Bus respectively E-Bus interface belong to the basic version.
The shortest usable task time is 1 ms (for I/O data a task time from 1 to 50 ms is recommended, further tasks can also be set slower). For lower task times pay attention to the overall system load. If the task time is set to low web visualization and remote desktop may work very slowly or cause time outs. The customer is responsible on his own to project and configure his system in a way, that it will not be overloaded!
Manufacturer information
Beckhoff Automation is a German manufacturer of open automation systems, including industrial PCs, I/O and fieldbus components, drive technology, automation software, and hardware for machine vision. Beckhoff is known for its innovative and reliable automation technology, which is used in a wide range of industries. The company is committed to providing customers with the best possible automation solutions to help them succeed in their businesses.
What Our Experts Think
-
High Performance: Beckhoff control systems offer powerful computing capabilities for demanding industrial automation tasks.
-
Energy-Efficient: Designed with optimized power usage to support sustainable, low-energy operations.
-
Durable & Reliable: Built to withstand harsh industrial environments with high-quality components and rugged designs.
-
Quiet Operation: Fanless or low-noise cooling systems in many models ensure minimal disruption in sensitive areas.
-
Easy Installation: Modular design allows for quick and flexible setup in a wide range of industrial applications.
Q&A
Q: What is Beckhoff equipment used for?
A: Beckhoff products are used for industrial automation, providing control, motion, and communication solutions for a variety of industries.
Q: What features are included in Beckhoff automation systems?
A: Features include high-performance CPUs, modular I/O systems, compact form factors, and support for leading industrial communication standards like EtherCAT.
Q: Are Beckhoff products energy-efficient?
A: Yes, many Beckhoff systems are designed to reduce energy consumption while maintaining high-speed, precise control.
Q: How does Beckhoff compare to other automation brands?
A: Beckhoff stands out for its open automation systems, flexible designs, and strong performance in both small and large-scale industrial projects.
Maintenance Tips
-
Keep Units Clean: Regularly remove dust and debris from ventilation openings and surfaces.
-
Check Connections: Inspect cables and connectors periodically for wear or damage.
-
Monitor Software Updates: Keep firmware and software updated to ensure optimal performance and security.
-
Temperature Control: Ensure devices are operated within recommended temperature ranges to avoid overheating.
-
Annual System Check: Have a technician perform a full inspection and preventive maintenance annually.
