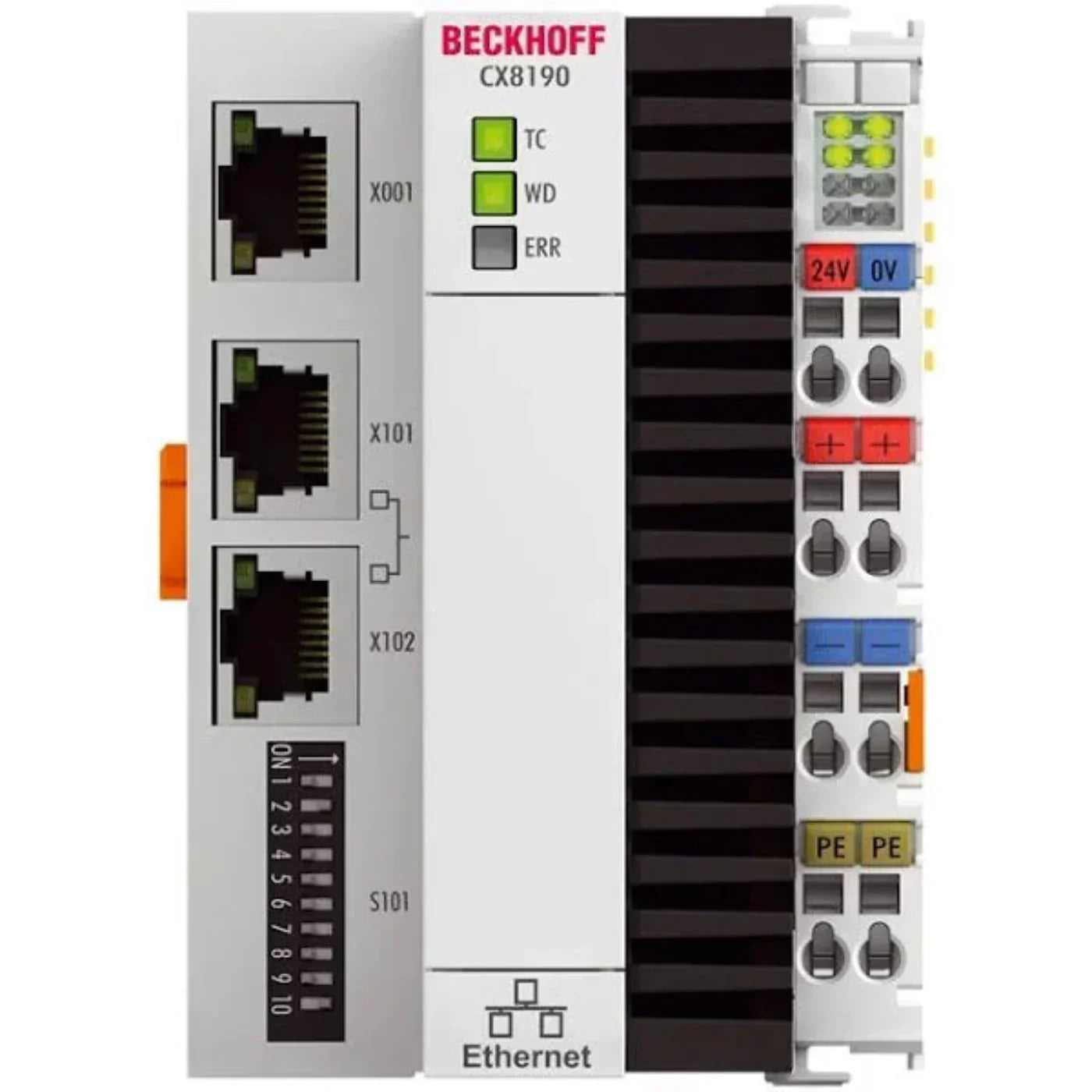

BECKHOFF Embedded PC with different Ethernet protocols - CX8190
The CX8190 is a controller with two Ethernet ports, one of which is switched to two RJ45 sockets. It supports protocols such as real-time Ethernet, ADS UDP/TCP or EAP (EtherCAT Automation Protocol). K-bus or E-bus terminals can be attached as required; the CX8190 automatically recognizes the type of I/O system connected during the start-up phase. The control system is programmed with TwinCAT 3 via the fieldbus interface or the additional Ethernet interface.
Specifications
| Manufacturer |
BECKHOFF
|
| Part Number |
CX8190 |
| Category |
PLCs/Machine Control |
| Subcategory |
Industrial Computer |
| Processor |
ARM Cortex -A9, 800 MHz (TC3: 20) |
| Number of cores |
1 |
| Flash memory |
slot for microSD card, 512 MB included (expandable) |
| Main memory |
512 MB DDR3 RAM (not expandable) |
| Persistent memory |
1-second UPS (for 1 MB persistent data) |
| Interfaces |
1 x RJ45 10/100 Mbit/s, 1 x bus interface |
| Bus interface |
2 x RJ45 (switched) |
| Data transfer rates |
100 Mbit/s |
| Diagnostics LED |
1 x TC status, 1 x WD, 1 x error |
| Clock |
internal battery-backed clock for time and date (battery behind the front flap, exchangeable) |
| Operating system |
Windows Embedded Compact 7 |
| Control software |
TwinCAT 3 runtime (XAR) |
| I/O connection |
E-bus or K-bus, automatic recognition |
| Power supply |
24 V DC (-15 %/+20 %) |
| Current supply E-bus/K-bus |
2 A |
| Max. power consumption |
4 W |
| Max. power consumption (with loading UPS) |
9 W |
| Dimensions (W x H x D) |
71 mm x 100 mm x 73 mm |
| Operating/storage temperature |
-25…+60 °C/-40…+85 °C |
| Relative humidity |
95%, no condensation |
| Vibration/shock resistance |
conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission |
conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection rating |
IP20 |
| Approvals/markings |
CE, UL |
Information About CX8190
The CX8190 for Ethernet communication is the first device in the series and is a PC-based controller in an ultra-compact “Bus Coupler format” for TwinCAT 3 automation software. The 32-bit, 600 MHz ARM Cortex-A9 processor offers three times the CPU performance compared to the existing CX8000 series, as well as 512 MB of RAM.
The Beckhoff CX8190 Embedded PC comes equipped with an Ethernet port and a 2-port switch for real-time Ethernet or EtherCAT Automation Protocol (EAP). Windows Embedded Compact 7 is used as the operating system, and the small controller is programmed with TwinCAT 3 via the fieldbus interface or the additional Ethernet interface. TwinCAT 3 I/O software provides the basic runtime functionality, but further TwinCAT 3 supplements can be added as options.
The CX8190 also offers a 1-second UPS for storing persistent data, a 512 MB microSD card which can be extended up to 8 GB, and an operating temperature range from -25 to +60 °C. EtherCAT Terminal (E-bus) and Bus Terminal (K-bus) I/O systems from Beckhoff can be directly connected to the CX8190 Embedded PC, providing instant access to an I/O product spectrum with more than 1,000 available terminals.
The CX81xx Embedded PC series is being introduced with the device for Ethernet first and will be expanded to cover additional fieldbuses in the near future.
