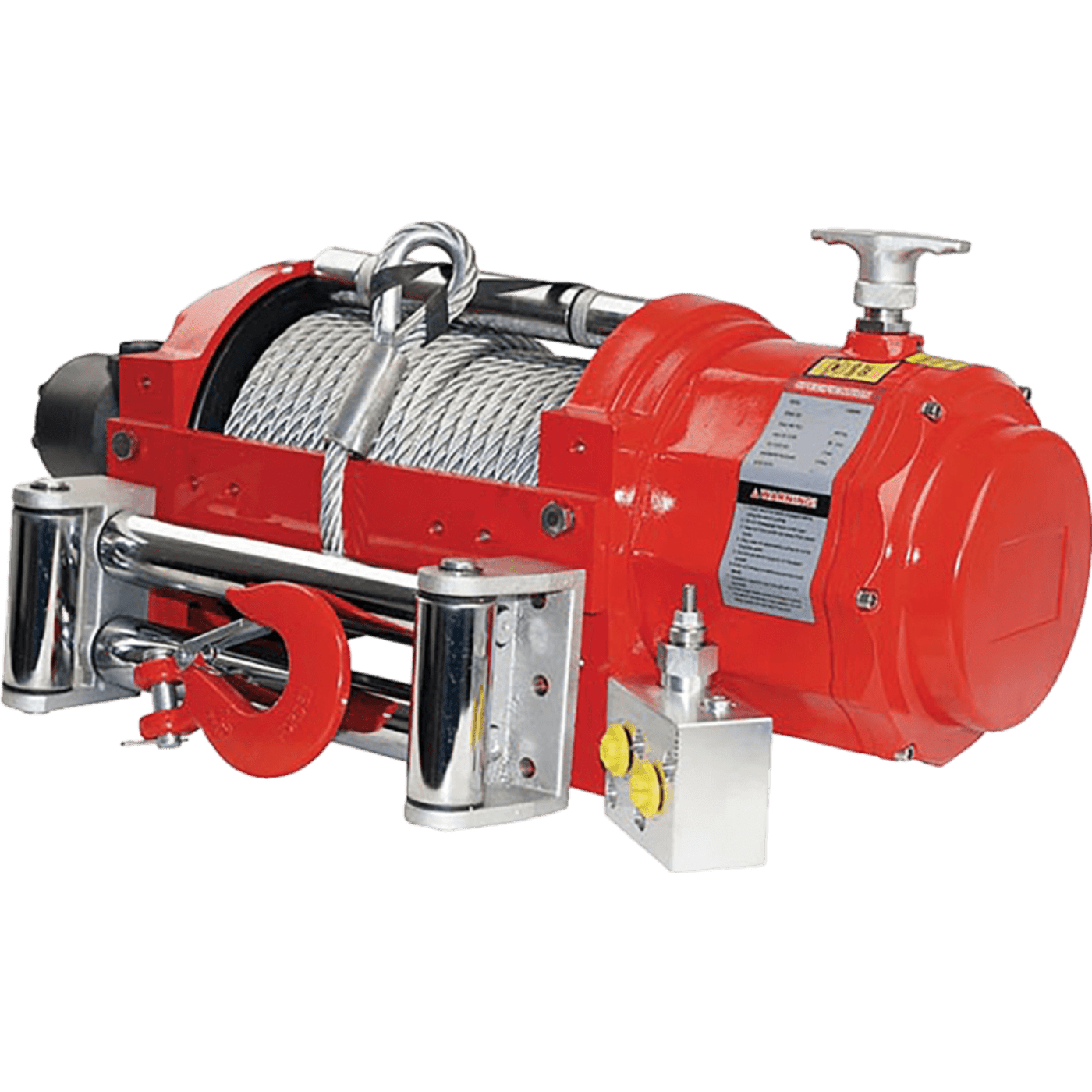

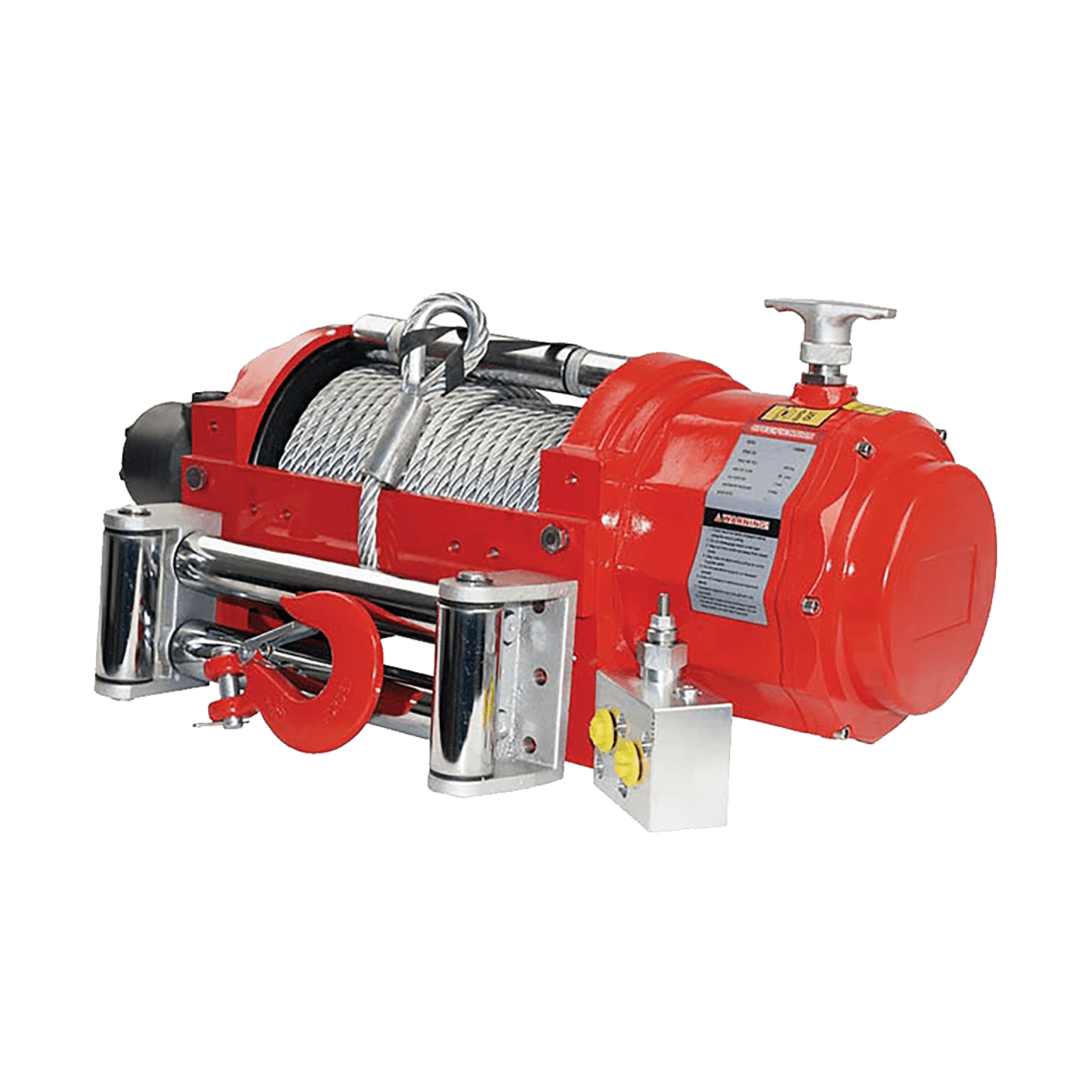

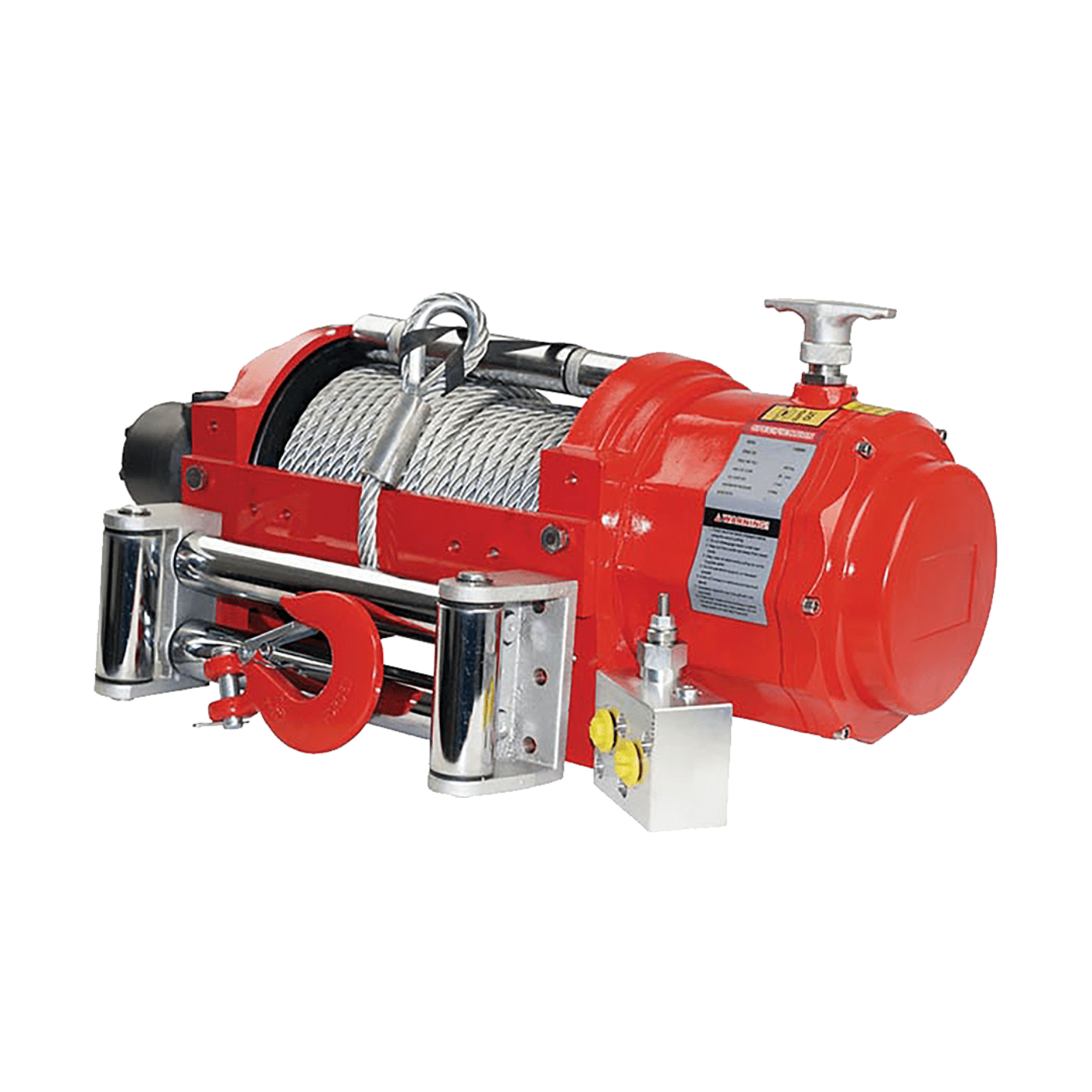

    DK2 10,000LB NW HYDRAULIC WINCH


    COMPACT & TOUGH. WARRIOR HYDRAULIC WINCHES FOR INDUSTRIAL AND COMMERCIAL APPLICATIONS. VALUE WITHOUT COMPROMISE.

    Hydraulic winches for industrial and commercial applications. The special heat treated planetary gearing system combined with a highly efficient and powerful hydraulic motor ensures maximum performance over the full load range. Complete with internal brake to ensure maximum control and load holding.

    Features
    • Patented heavy duty gearing

    • Integral, automatic failsafe brake

    • Spring engaged manual freespool

    • Stainless steel fairlead and fittings

    • Rugged and compact for long life

    • Meets the requirements of EN 14492:1

    Specification
    ITEM NUMBER 10000NW
    RATED LINE PULL 10000 LBS (4536 KG)
    MOTOR HYDRAULIC DIS 100.8 ML/R
    GEARING 16:1
    DRUM SIZE - DIAMETER x LENGTH 102 x 253mm (4.01 x 9.96')
    CABLE - DIAMETER x LENGTH 11mm x 26.5m (0.43' x 87')
    DIMENSIONS 643 x 265 x 241mm (25.3 x 10.4 x 9.5)
    MOUNTING PATTERN 374.2 x 114.3mm (14.73 x 4.5')
    WEIGHT 65 KG (143 LBS)
    MAX FLOW L/MIN 60
    MAX PRESSURE MPA 13.8
    CERTIFICATION CE CERTIFIED
    LAYER OF ROPE / CABLE LINE PULL: LBS (KGS)
    1 10000 (4536)
    2 7355 (3339)
    3 6780 (3078)
    4 5711 (2952)
    LINE PULL: LBS (KGS) LINE SPEED FT/MIN (M/MIN) FLOW L/MIN • PRESSURE MPA
    0 2.97 (0.9) 5 • 2
    3995 (1816) 5.94 (1.8) 10 • 5.6
    5992 (2724) 11.88 (3.6) 20 • 8.4
    7990 (3632) 23.76 (7.2) 40 • 11.2
    10000 (4536) 36.96 (11.2) 60 • 13.8
