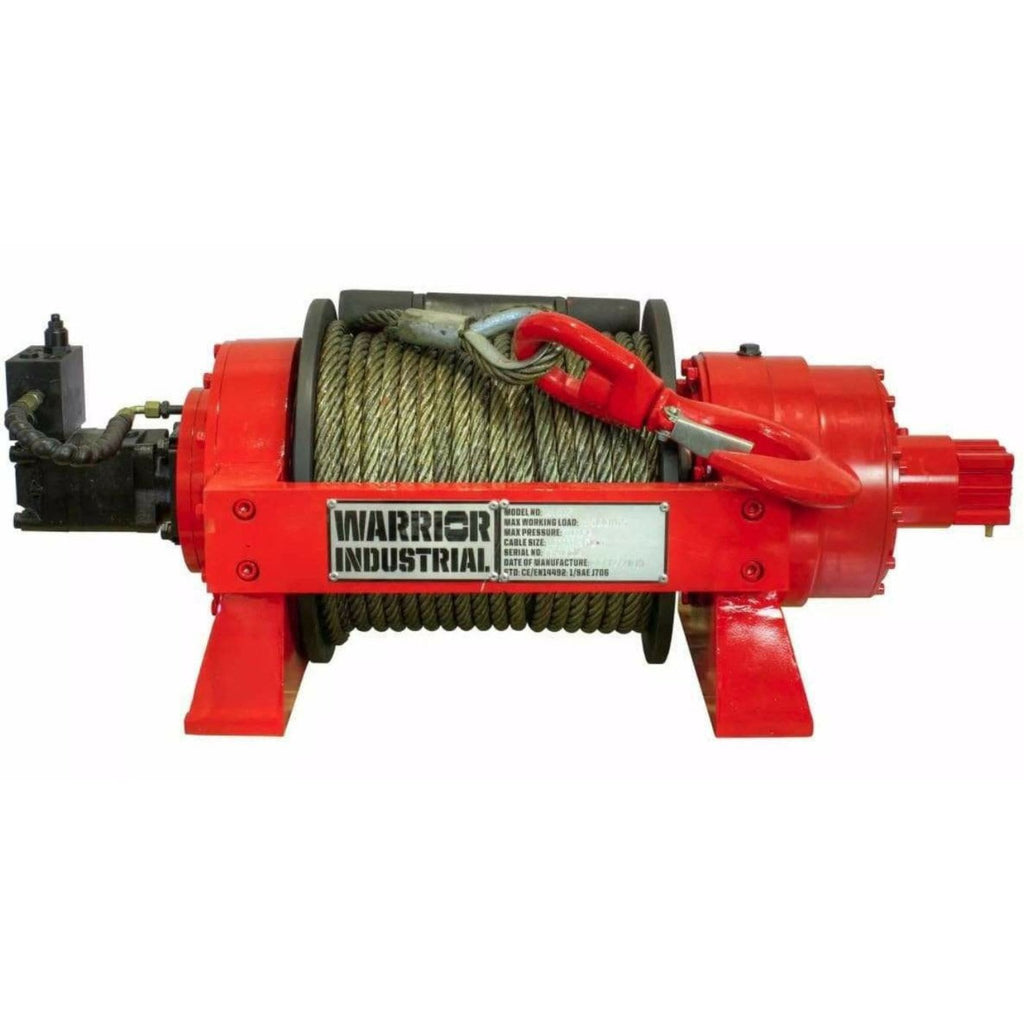

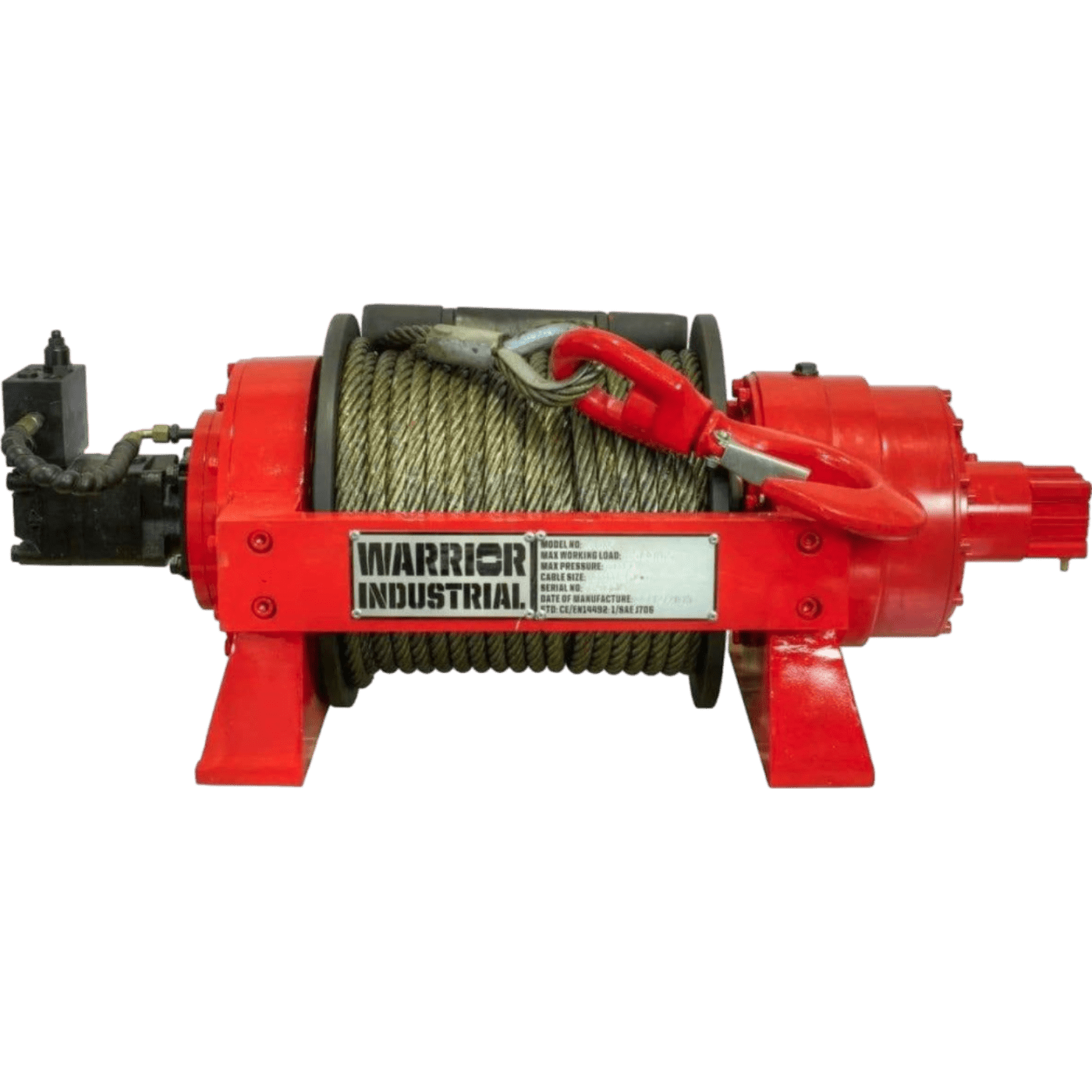

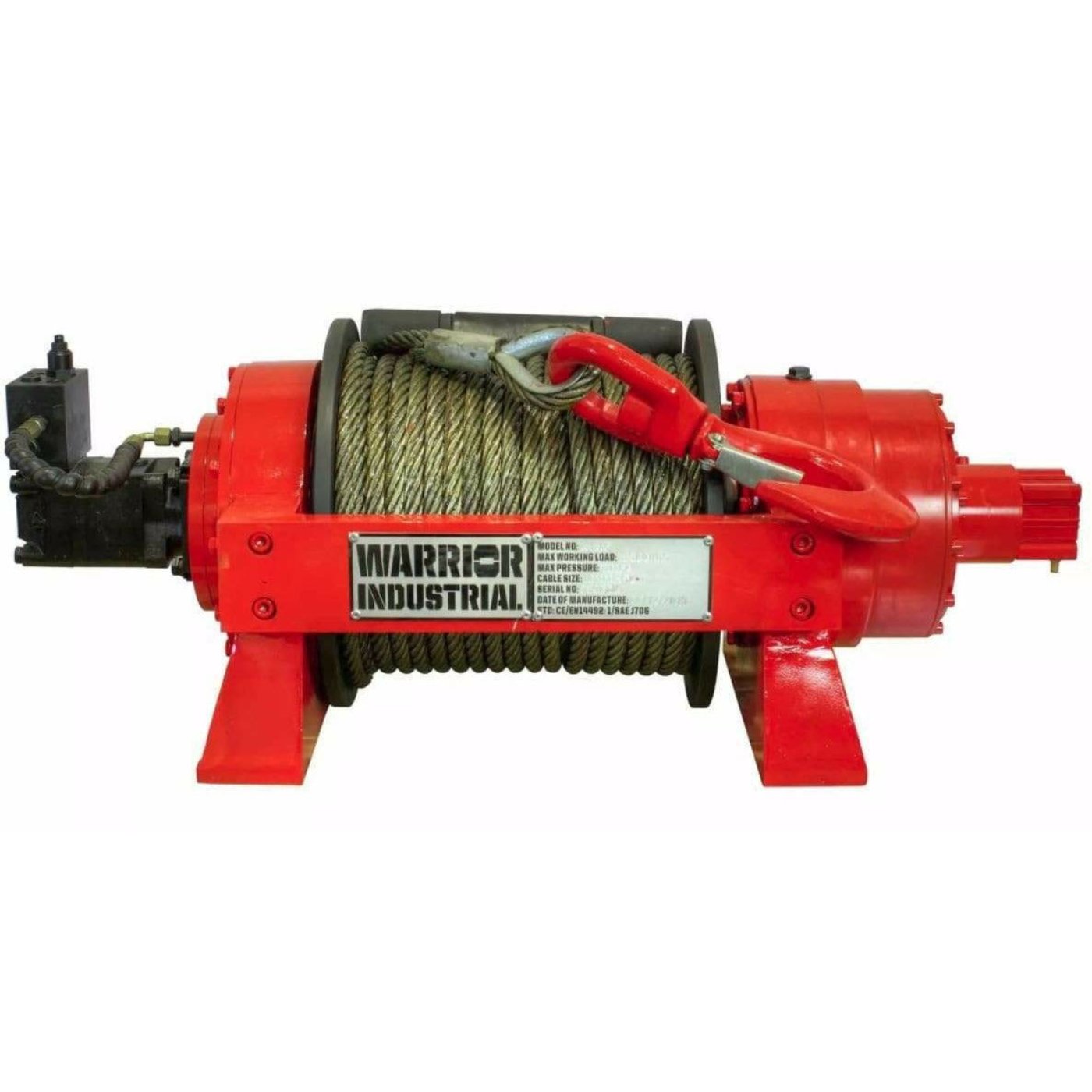

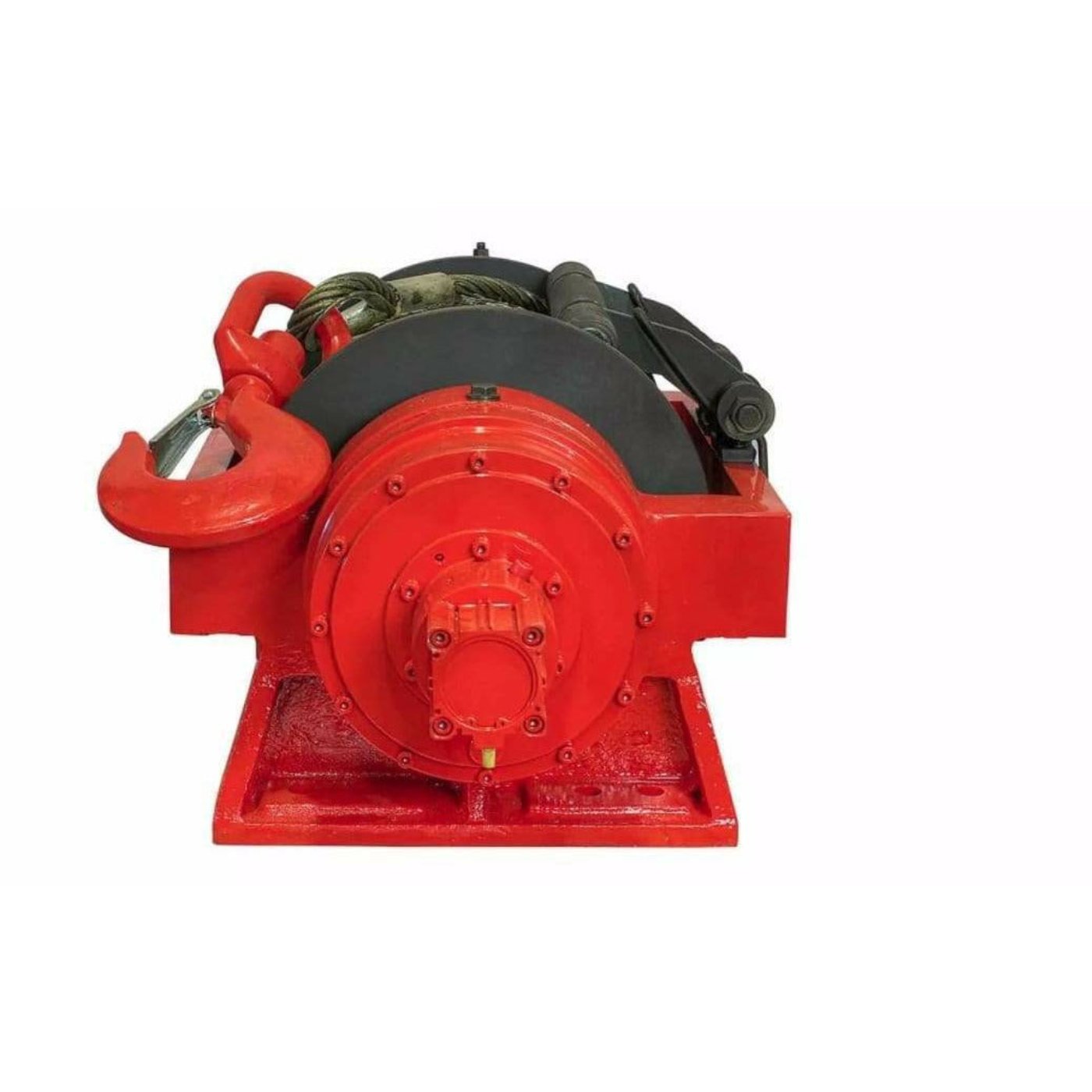

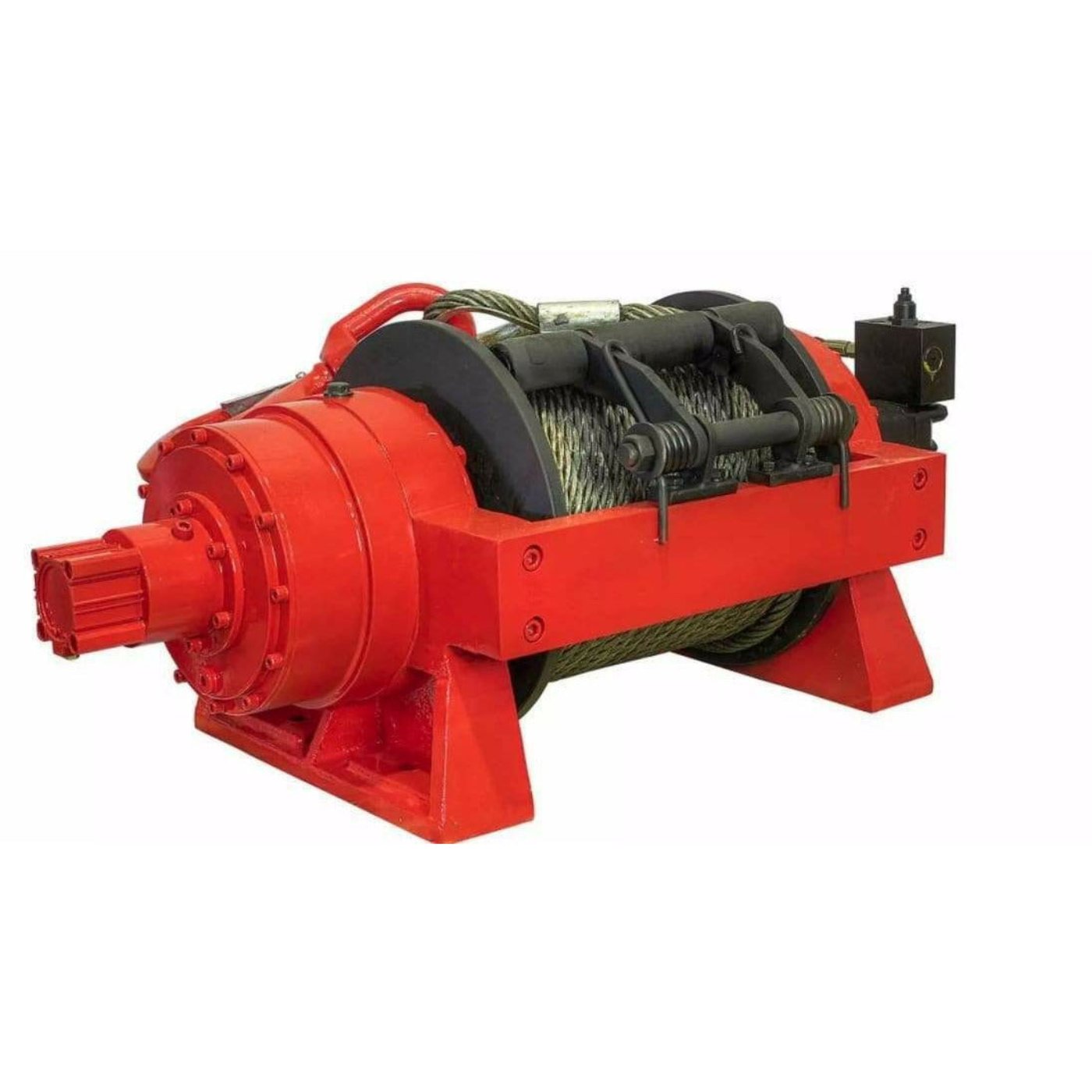

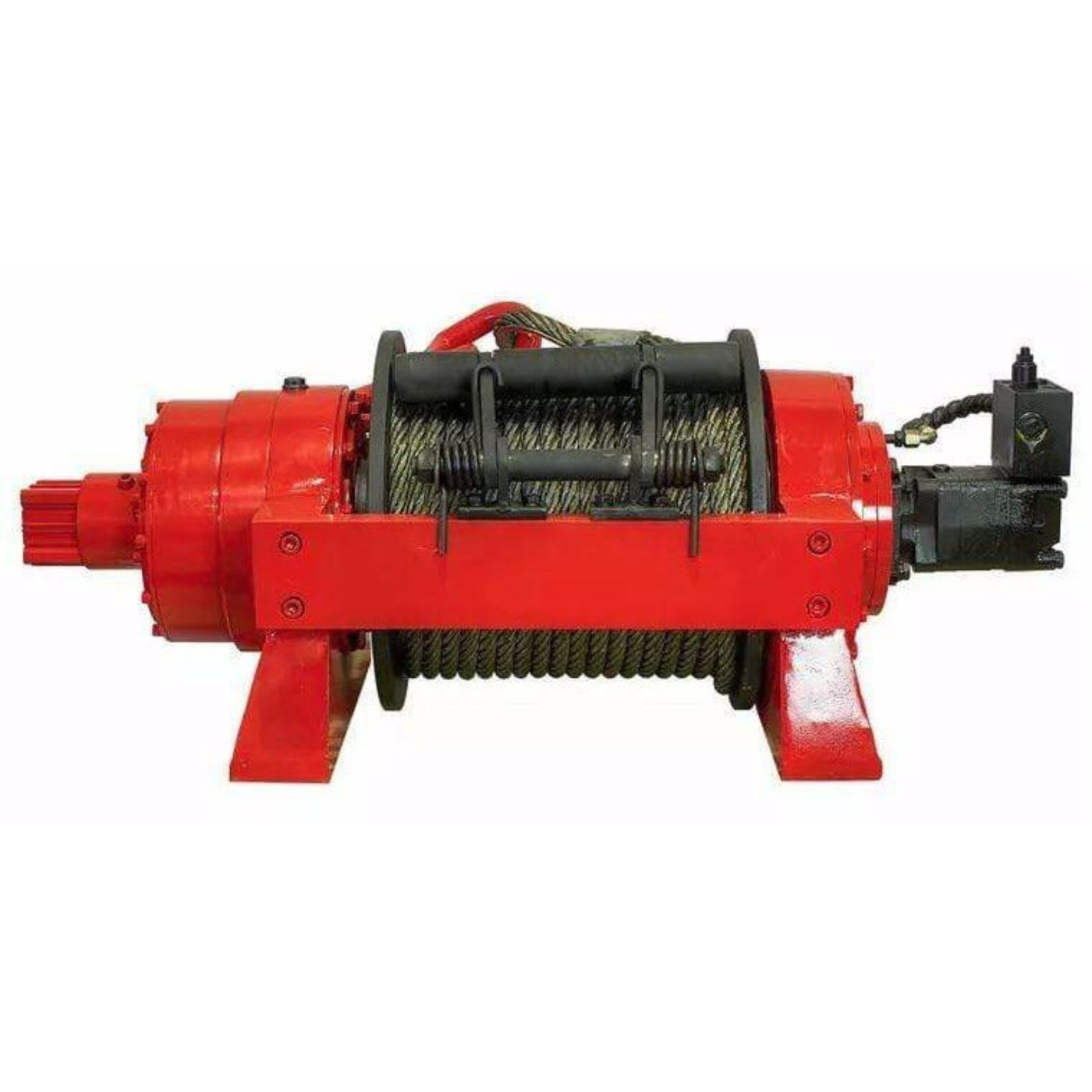

    DK2 30,000LB JP HYDRAULIC WINCH

    THE JP SERIES WINCHES HAVE BEEN DEVELOPED FOR THE PROFESSIONAL OPERATOR.

    BUILT SPECIFICALLY FOR MILITARY USE & ABLE TO WITHSTAND EXTREME CLIMATES AND TEMPERATURES.

    These winches have been designed to ensure that as a part of an installation solution they can meet the requirements of EN 14492 : 1. Superb heavy duty winches supplied complete with balance valve, cable and heavy duty tensioner. Standard features include air operated clutch, high precision 2 stage planetary gearing and a rugged high torque motor. The ultimate winch for heavy recovery and commercial applications.

    Features
    • Full float heavy duty planetary gearing

    • Multi disc friction brake

    • High torque industrial motor

    • Air and manual clutch operation

    • Heavy duty rope tensioner as standard

    • Minimum 10:1 rope/drum ratio

    • Balance valve as standard

    Specification
    ITEM NUMBER 13.5TJP
    RATED LINE PULL 29762 LBS (13500 KG)
    GEARING 36:1
    BRAKING ACTION AUTO HYDRAULIC
    DRUM SIZE - DIAMETER x LENGTH 190 x 340mm (7.48 x 13.39')
    CABLE - DIAMETER x LENGTH 18mm x 50m (0.71' x 164')
    DIMENSIONS 1050 x 640 x 405mm (41.34 x 25.2 x 15.9')
    MOUNTING PATTERN 522mm x 180 / 280mm (20.5' x 7 / 11')
    WEIGHT 271 KG (597 LBS)
    CERTIFICATION CE CERTIFIED
    MAX FLOW L/MIN 60 L/MIN
    MAX PRESSURE MPA 170 BAR
