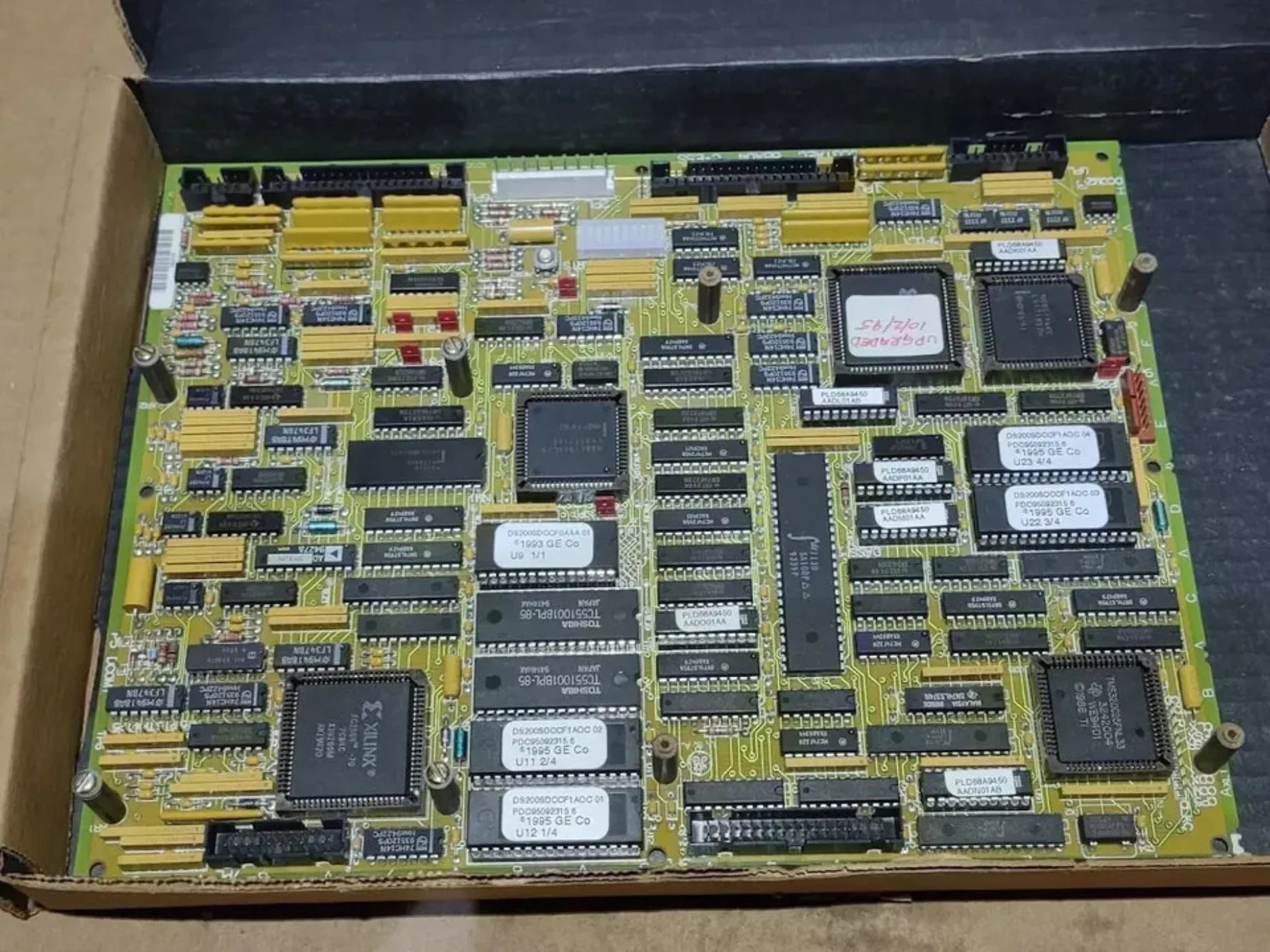

Fanuc Corporation| GE FANUC Drive Control Board - DS200SDCCG1AEC
The GE Drive Control Board DS200SDCCG1AEC serves as the primary controller within the Mark V Series automated drive system. This series, incorporating GE's Speedtronic technology, focuses on the control and management of steam, gas, and wind turbines. Although considered a legacy series no longer in active production, the Mark V Series retains significant industrial relevance.
The GE Drive Control Board DS200SDCCG1AEC serves as the primary controller designed for integration within the Mark V Series automated drive system. This series, originating with General Electric's introduction of Speedtronic technology alongside the Mark I Series in the late 1960s, focuses on managing and controlling steam, gas, and wind turbine applications. Notably, the Mark V Series represents a legacy line no longer actively manufactured by its original creator.
The DS200SDCCG1AEC PCB, distinct from its predecessor DS200SDCCG1, incorporates three significant product revisions, denoted by its alphanumeric product code. Essential hardware components include three microprocessors and RAM accessible to multiple processors concurrently. Test points on the board facilitate signal path testing using appropriate equipment, calibrated and operated by trained personnel.
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
Specifications
Part Number |
DS200SDCCG1AEC |
Functional Description |
Drive Control Card |
Functional Acronym |
SDCC |
Manufacturer |
GE General Electric |
Series |
Mark V |
Instruction Manual |
GEI-100029 |
PCB Coating |
Normal Coating |
Functional Revision 1 |
A |
Functional Revision 2 |
E |
Artwork Revision |
C |
What Our Experts Think
-
Precision Drive Control: Manages motor and drive systems with high accuracy for optimal performance.
-
Efficient Power Management: Ensures smooth regulation of power flow, enhancing system stability and efficiency.
-
Built for Tough Environments: Designed to endure the rigors of industrial applications with reliable, long-lasting operation.
-
Seamless Integration: Fully compatible with GE FANUC drive systems for easy installation and minimal downtime.
-
GE FANUC Reliability: Backed by industry-leading quality and engineering standards for consistent, trouble-free performance.
-
Optimized for Automation: Ideal for controlling complex machinery and automation processes in various industries.
