Fanuc Corporation| GE FANUC Analog Conversion Board Mark IV - DS3800HAIA

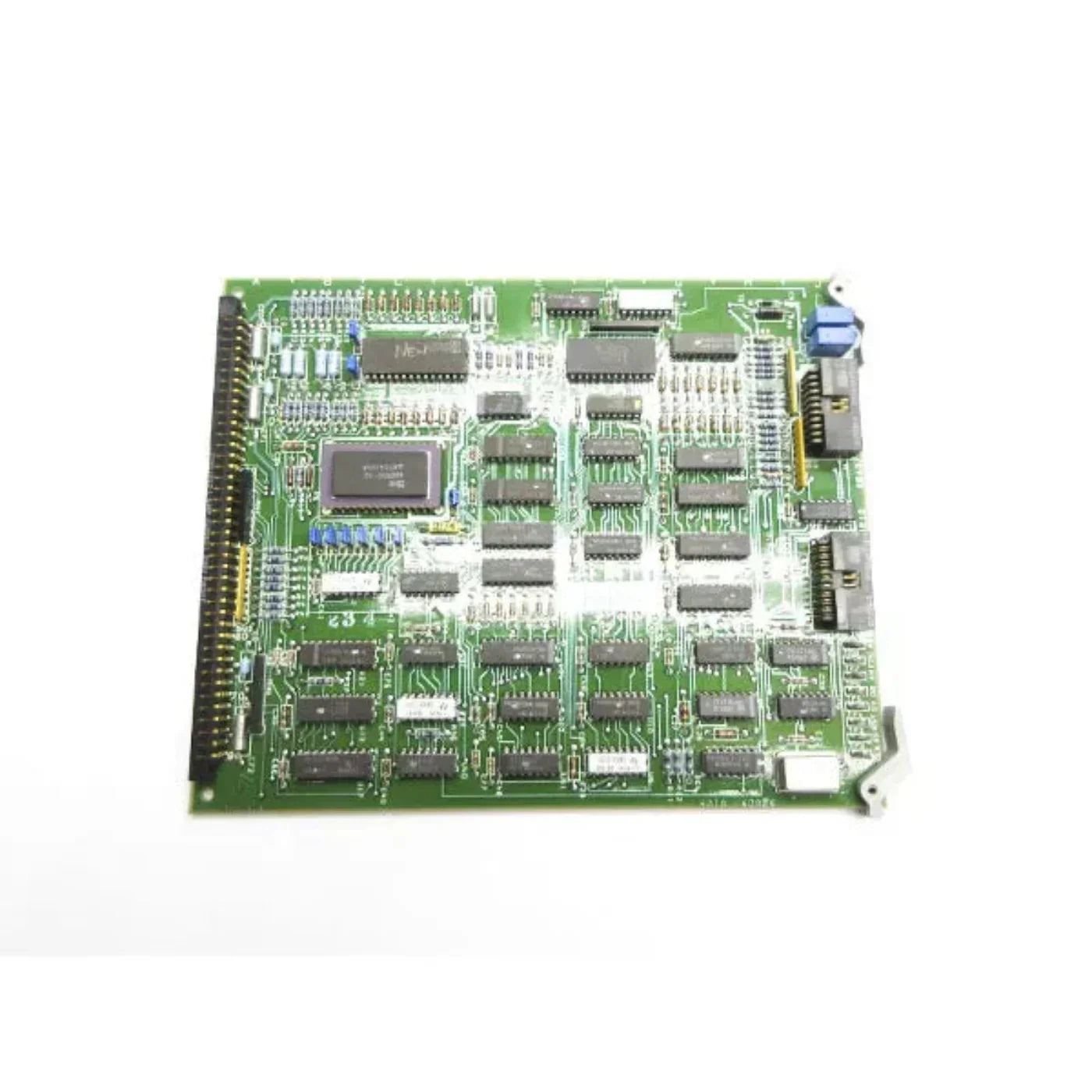

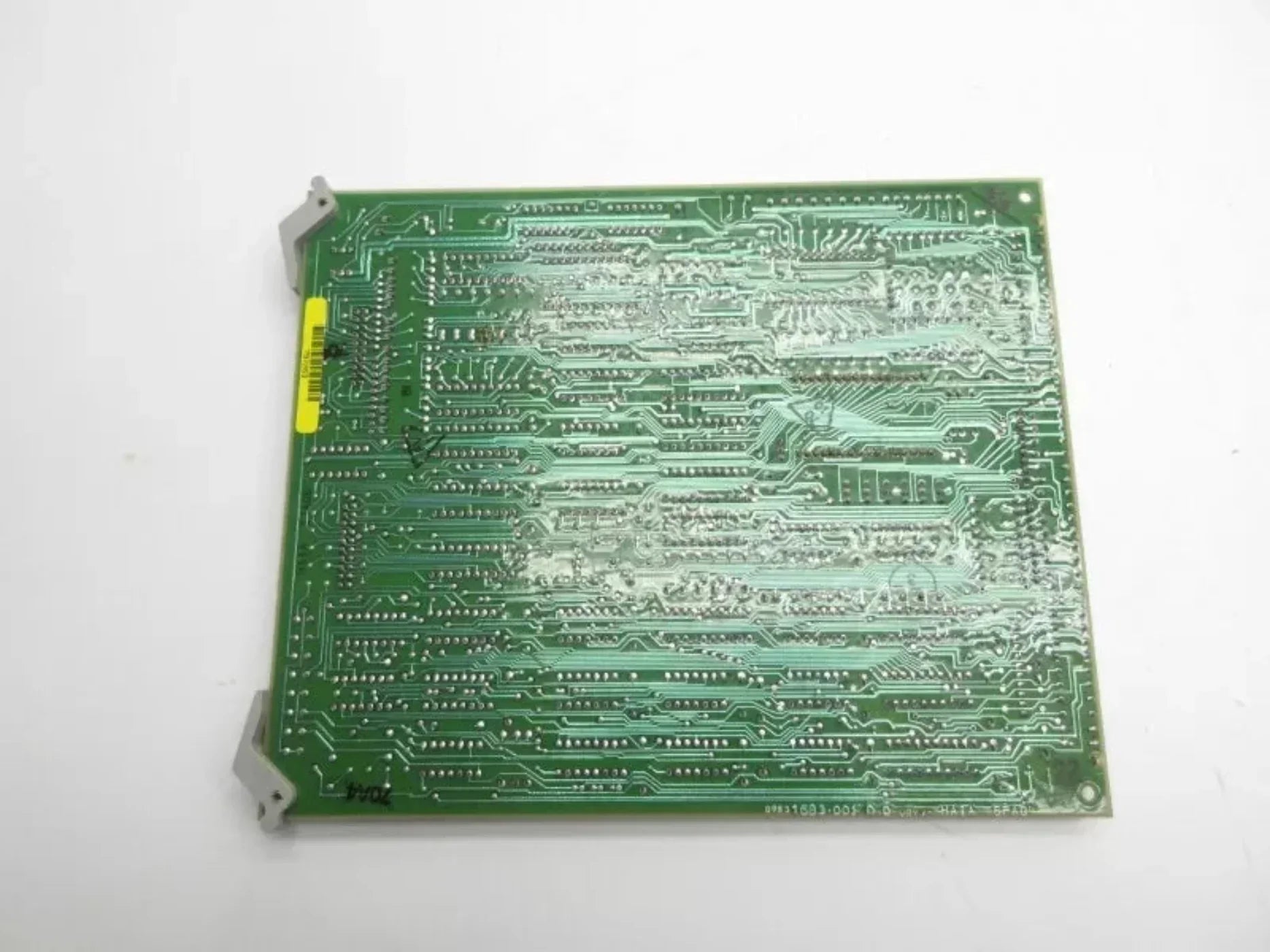

The GE Analog Conversion Board DS3800HAIA is designed for straightforward installation within drive systems. Featuring a modular connector on one end and retention levers on the other, the board includes 2 34-pin connectors positioned between the retention levers. It incorporates 2 trimmer resistors, 8 jumpers, and accommodates an electrically erasable programmable read-only memory (EEPROM) module via a dedicated socket.
The GE Analog Conversion Board DS3800HAIA, designed for efficient integration into drive systems, features a modular connector on one end and retention levers on the opposite end for secure attachment. Positioned between these retention levers are two 34-pin connectors, facilitating interface connections within the drive assembly. Additionally, the board includes two trimmer resistors and eight jumpers, enhancing configurability and functionality within the system.
Integral to the DS3800HAIA is an analog/digital converter that plays a pivotal role in transforming analog signals into a digital format. This digital data format is critical for comprehensive signal processing tasks across the drive system, ensuring accurate and reliable operational performance.
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
Specifications
Part Number |
DS3800HAIA |
Manufacturer |
General Electric |
Series |
Mark IV |
Product Type |
Analog Conversion Board |
Features |
Modular connector, retention levers |
Connectors |
2 x 34-pin connectors |
Components |
2 trimmer resistors, 8 jumpers, 1 socket for EEPROM module |
Embedded Component |
Analog/digital converter |
What Our Experts Think
-
Accurate Signal Conversion: Converts analog signals to digital for precise system control and monitoring.
-
Enhanced System Integration: Ensures seamless communication between analog and digital components in Mark IV systems.
-
Reliable Performance: Designed for continuous operation in industrial environments with minimal downtime.
-
Durable Construction: Built to withstand harsh conditions, ensuring long-term reliability and performance.
-
Optimized for Legacy Systems: Ideal for maintaining and upgrading existing Mark IV setups without disruption.
-
GE FANUC Quality: Backed by GE’s reputation for high precision, efficiency, and reliability.
Q&A
Q: What is the DS3800HAIA Analog Conversion Board?
A: It’s a GE Fanuc analog conversion board from the Mark IV series, used to convert and process analog signals for control systems in industrial applications.
Q: What systems is it compatible with?
A: This board is compatible with GE Fanuc Mark IV control systems, typically found in power generation and turbine control environments.
Q: What does the analog conversion board do?
A: It converts analog signals to digital data for processing by control systems, ensuring accurate monitoring and control of industrial equipment.
Q: Why choose the DS3800HAIA?
A: It offers reliable and precise signal conversion, ensuring seamless integration and optimal system performance in critical industrial and power generation systems.
Q: Is this an OEM product?
A: Yes, it’s a genuine GE Fanuc part, ensuring full compatibility, high reliability, and long-lasting durability in demanding industrial settings.
Maintenance Tips
-
Visual Inspection: Regularly inspect the board for visible damage such as burnt components, cracked solder joints, or physical wear, especially near analog input/output connectors.
-
Clean the Board: Use dry compressed air or an anti-static brush to remove dust and debris. Avoid using liquid cleaners or solvents that may damage sensitive components or cause short circuits.
-
Inspect Solder Joints: Check for any cold or cracked solder joints that could lead to intermittent connections or malfunctions. Reflow or rework damaged joints if necessary.
-
Verify Analog Signal Quality: Test the analog input and output signals for proper voltage and signal integrity. Look for noise or fluctuations that could indicate issues with the conversion process.
-
Check Power Supply: Ensure the board is receiving stable and correct power levels. Voltage instability can cause errors in analog-to-digital or digital-to-analog conversions.
-
Run Diagnostics: Use diagnostic tools or software to monitor the board’s performance and check for faults. Pay attention to any abnormal readings or error codes that may indicate malfunction.
-
Monitor Operating Temperature: Ensure the board is within its recommended temperature range. Overheating can damage sensitive components and affect performance.
-
Inspect Connectors and Terminals: Check for secure and clean connections. Ensure all input/output terminals and connectors are free from oxidation or corrosion that may affect signal quality.
-
ESD Protection: Always handle the board using electrostatic discharge (ESD) precautions, such as wrist straps and anti-static mats, to avoid damaging sensitive components.
-
Secure Mounting: Ensure the board is securely mounted and properly connected in its system to avoid physical stress, vibrations, or disconnections that could impact performance.
