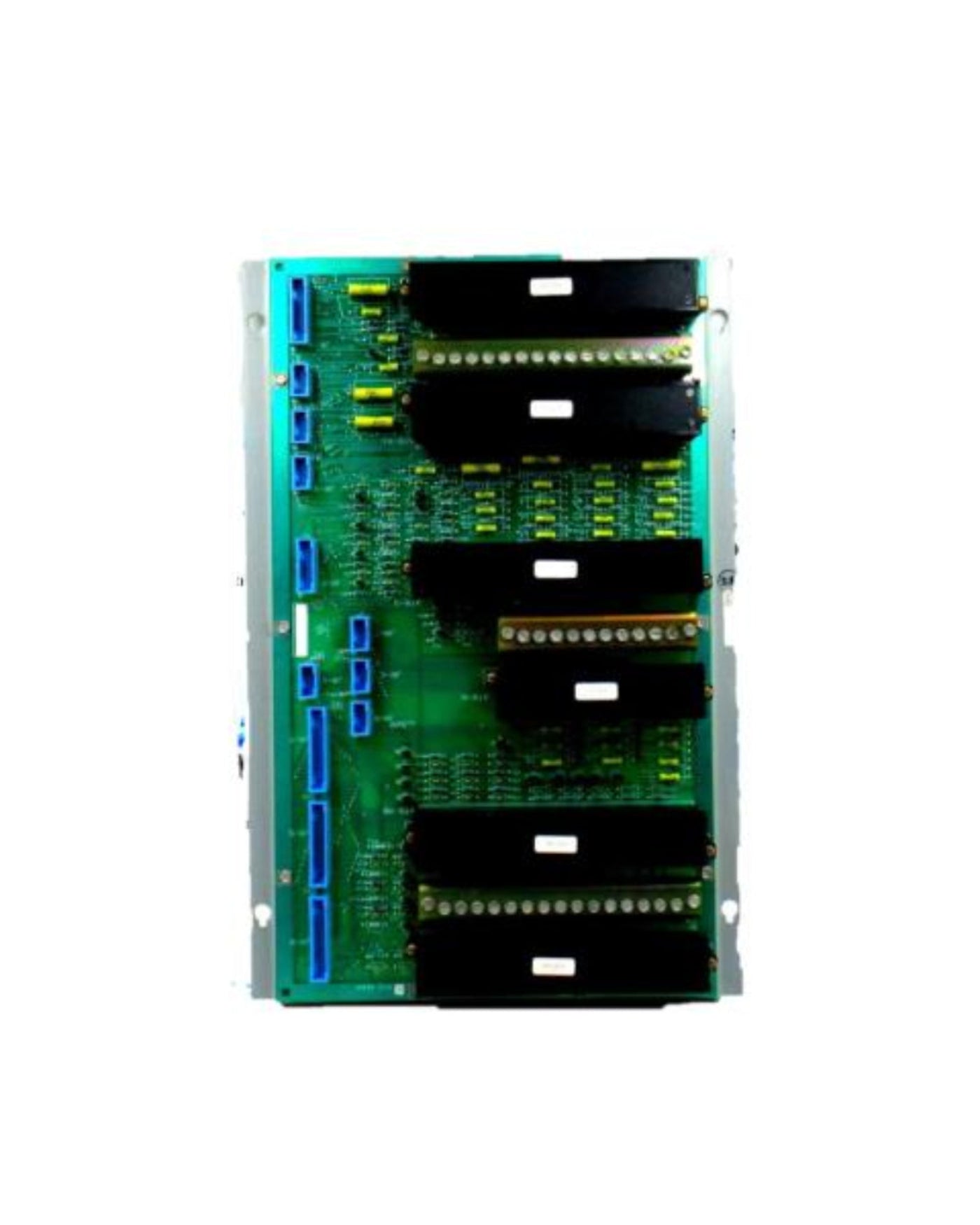

Fanuc Corporation| GE FANUC Circuit Board Mark IV - DS3820AIQA
The DS3820AIQA is a circuit board belonging to General Electric's Speedtronic Mark IV series. It features a configuration comprising thirty-two large bright red diodes, sixteen large bright yellow diodes, and sixty-five small teal blue diodes, all designed to control the flow of energy in a single direction. The board includes sixty-five small light-colored resistors and sixteen large black resistors, each marked with multiple colored rings indicating their energy restriction capabilities.
The DS3820AIQA is a component of General Electric’s Speedtronic Mark IV series, comprising a circuit board densely populated with electronic elements. It features thirty-two large bright red diodes, sixteen large bright yellow diodes, and sixty-five small teal blue diodes, each serving to allow energy flow in one direction only. Additionally, the board incorporates sixty-five tiny light-colored resistors and sixteen large black resistors, designed with multiple colored rings to denote their energy restriction capabilities, ranging up to five rings per resistor.
Among its components, the DS3820AIQA includes eleven small black half-circle transistors, pivotal in amplifying or modifying electrical signals within the system. The board is equipped with four small blue male connection terminals, each hosting ten metal pins, alongside six blue male terminals featuring twenty-six metal pins, facilitating connectivity with adjacent circuit boards.
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
Specifications
Model Number |
DS3820AIQA |
Product Type |
Circuit Board Mark IV |
Series |
Speedtronic Mark IV |
Manufacturer (OEM) |
General Electric |
Diodes |
32 large bright red, 16 large bright yellow, 65 small teal blue |
Resistors |
65 tiny light-colored, 16 large black |
Transistors |
11 small black half circles (transistors) |
What Our Experts Think
-
Core System Component: Essential for data processing and control in Mark IV automation systems.
-
Reliable Analog Input Handling: Accurately processes input signals for precise system feedback.
-
Designed for Legacy Support: Tailored for seamless operation within GE Mark IV control architectures.
-
Durable Industrial Design: Built to perform under tough operating conditions with long service life.
-
Minimal Downtime: Easy replacement helps maintain system uptime and reduce operational interruptions.
-
GE FANUC Quality Assurance: Manufactured to strict standards for performance and reliability.
Q&A
Q: What is the DS3820AIQA Circuit Board?
A: It’s a GE Fanuc circuit board from the Mark IV series, designed for signal processing and control in turbine and industrial automation systems.
Q: What systems is it compatible with?
A: This board is compatible with GE Fanuc Mark IV control systems, widely used in gas and steam turbine applications.
Q: What does the circuit board do?
A: It handles analog or digital signal input/output, supporting control logic and communication functions within the system.
Q: Why choose the DS3820AIQA?
A: It provides dependable performance, seamless integration with legacy systems, and is essential for maintaining the reliability of Mark IV controls.
Q: Is this an OEM product?
A: Yes, it’s a genuine GE Fanuc part, ensuring full compatibility, durability, and long-term operational stability.
Maintenance Tips
-
Visual Inspection: Regularly check for signs of wear, burnt components, or corrosion, especially around analog input areas.
-
Clean Carefully: Use dry compressed air or a soft anti-static brush to remove dust. Avoid moisture or chemical-based cleaners.
-
Check Input Channels: Periodically verify each analog input channel with a known reference signal to ensure accurate readings.
-
Inspect Connectors: Ensure connectors and edge pins are clean, secure, and free of oxidation.
-
Monitor Power Supply: Confirm stable voltage input; fluctuations can affect analog accuracy and damage components.
-
Temperature Control: Keep the operating environment within specified limits to prevent thermal drift in analog circuits.
-
Run Diagnostics: Use system tools to check signal integrity, input range consistency, and any fault codes.
-
ESD Precautions: Always handle the board using anti-static protection to avoid electrostatic damage.
-
Secure Installation: Make sure the board is properly mounted and free from vibration or physical stress.
