Fanuc Corporation| GE FANUC Printed Circuit Board - DS3820MAUD
The DS3820MAUD is a Human-Machine Interface (HMI) embedded on a printed circuit board (PCB) designed for use within the Mark IV series, primarily utilized in managing steam and gas turbine systems.
The DS3820MAUD is a Human-Machine Interface (HMI) integrated on a printed circuit board (PCB) designed for use within the Mark IV series, primarily employed in the management of steam and gas turbine systems.

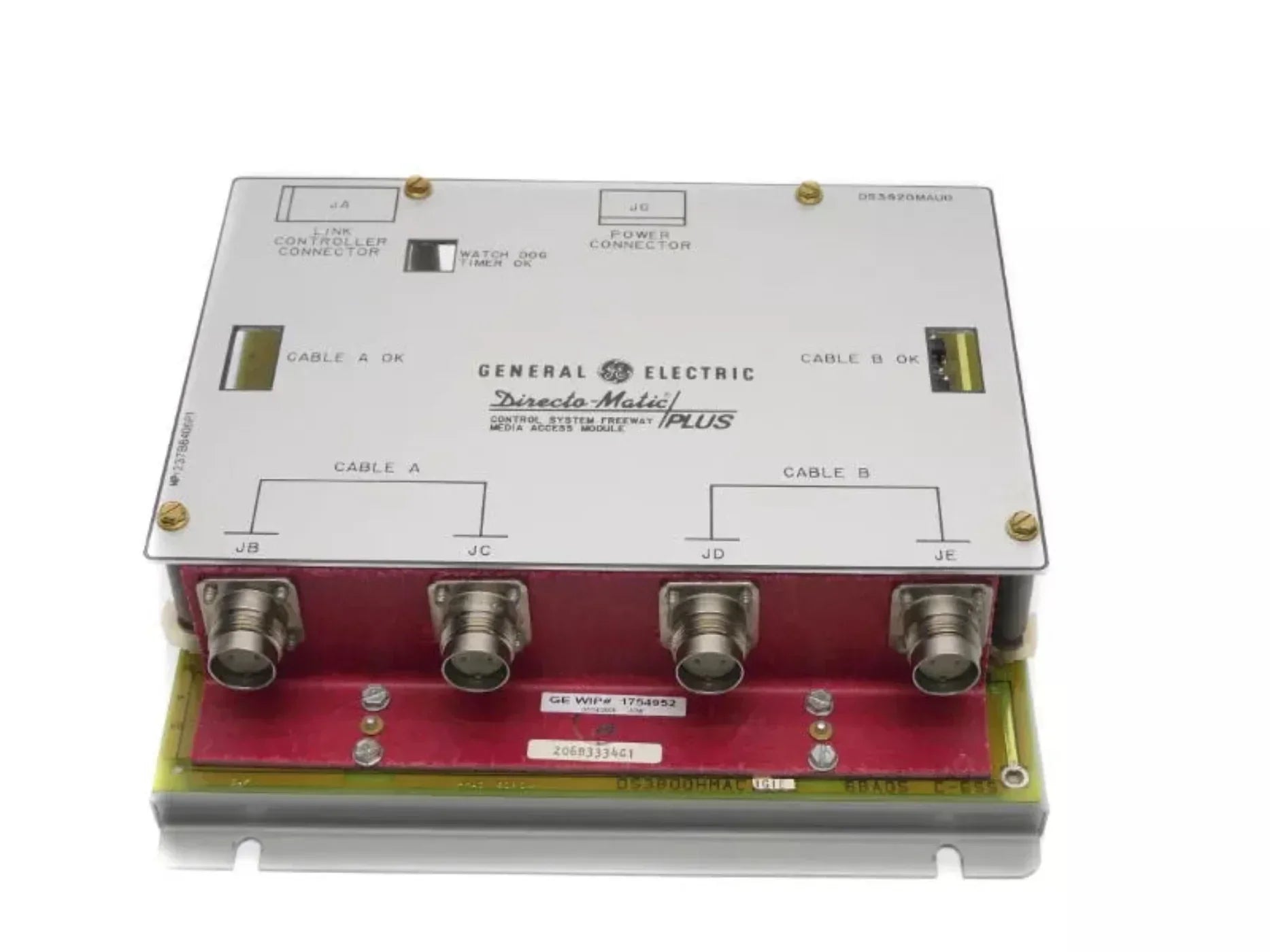

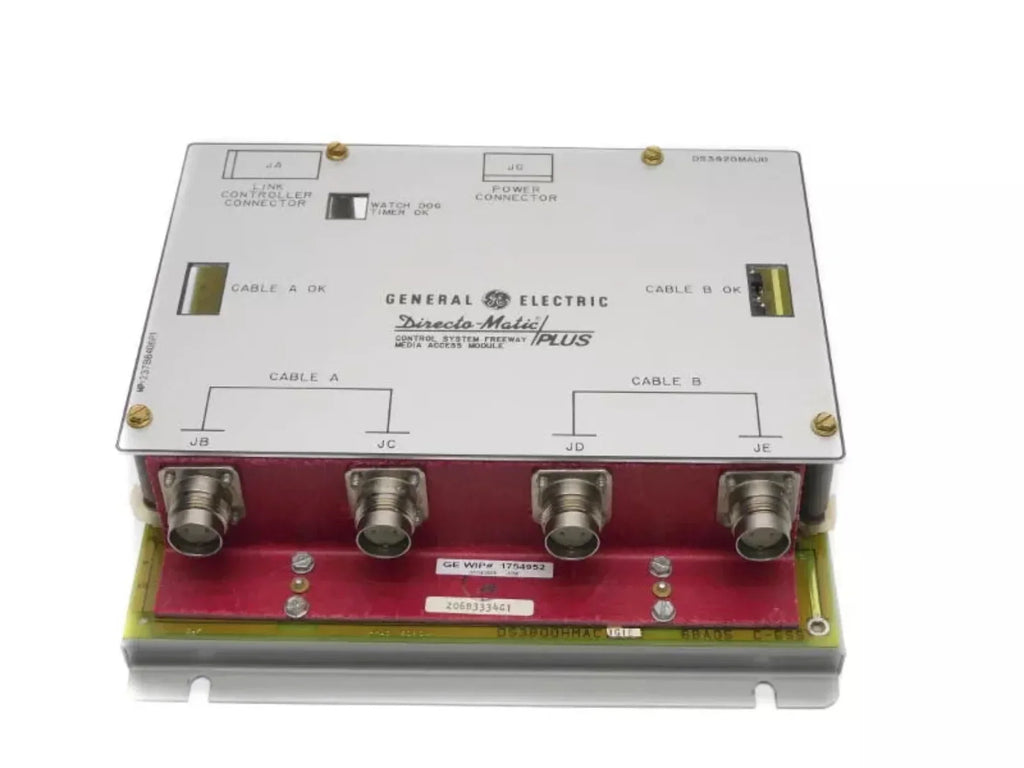

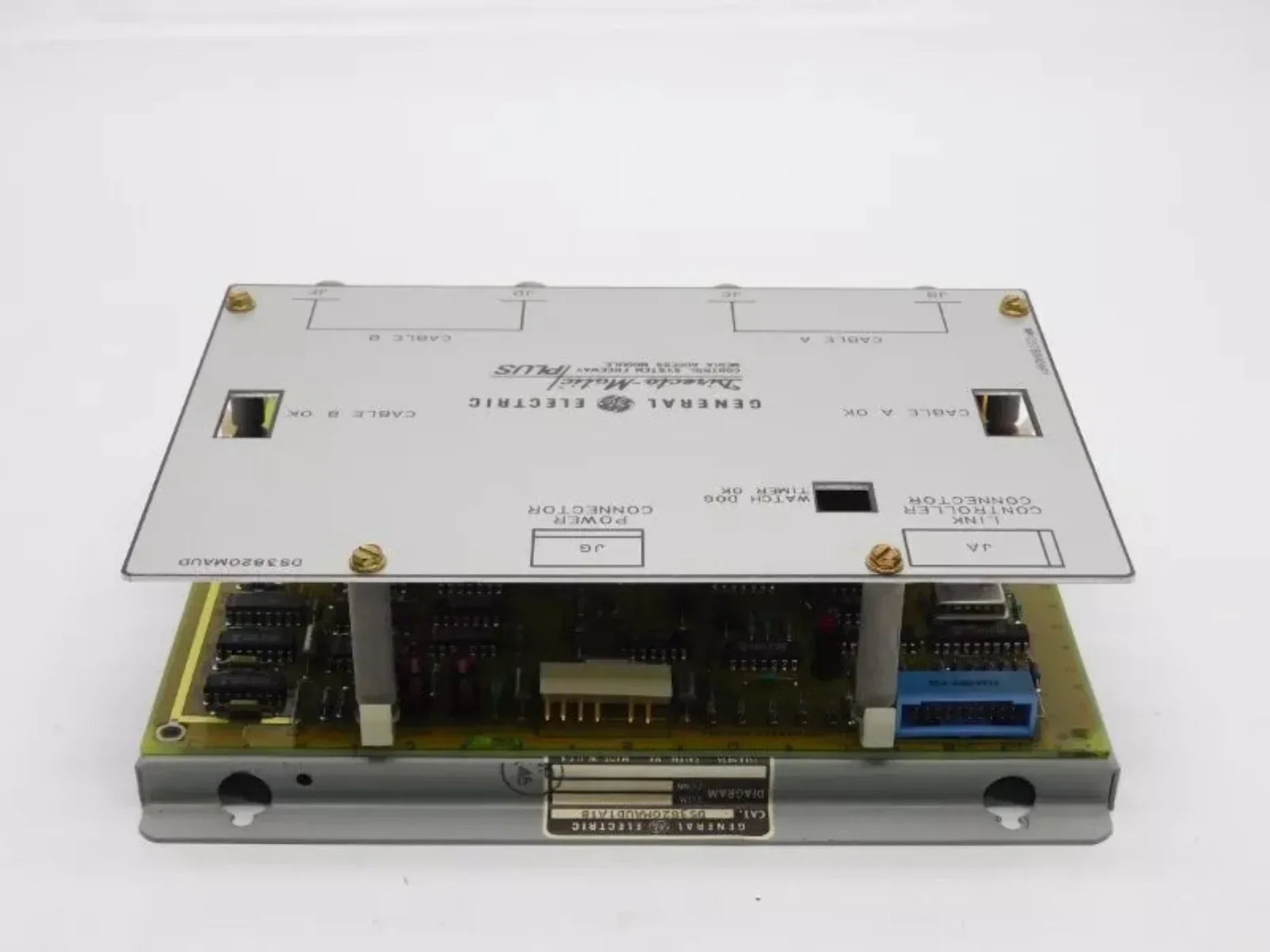

The DS3820MAUD features an interface panel that interfaces with the DS3800HMAC PCB. This panel includes three cutouts labeled Cable A OK, Cable B OK, and Watch Dog Timer OK. It also has labeled lines leading to ports JB, JC for Cable A, and JD, JE for Cable B. Two boxes labeled JA/Link Controller Connector and JG/Power Connector are positioned at the top of the panel. The panel itself bears the inscription "General Electric. Directo-Matic Plus. Control System Freeway Media Access Module.
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
Specifications
Part Number |
DS3820MAUD |
Category |
Controls & Indicators |
Subcategory |
CPU/Control Board |
Weight |
2.00 lbs |
Manufacturer |
General Electric |
Series |
Mark IV Speedtronic |
What Our Experts Think
-
Critical System Component: Essential for supporting the operation and control of GE FANUC systems.
-
Reliable Data Processing: Facilitates smooth data transmission and signal management for accurate control.
-
Built for Durability: Engineered to withstand harsh industrial environments with minimal maintenance needs.
-
Seamless Integration: Easily integrates with existing GE FANUC setups, ensuring system compatibility.
-
High-Quality Construction: Designed with precision for optimal performance and longevity.
-
GE FANUC Standard: Backed by GE’s reputation for reliability and engineering excellence.
Q&A
Q: What is the DS3820MAUD Printed Circuit Board?
A: It’s a GE Fanuc printed circuit board (PCB) used in industrial control systems, offering critical connections and facilitating communication between components.
Q: What systems is it compatible with?
A: This PCB is designed for use in GE Fanuc Mark IV control systems, often found in turbine and automation control applications.
Q: What does the printed circuit board do?
A: It provides essential signal processing and data communication, supporting the efficient operation of control systems and ensuring reliable performance in industrial settings.
Q: Why choose the DS3820MAUD?
A: It delivers high durability, precise signal handling, and seamless integration with GE Fanuc Mark IV systems, making it ideal for mission-critical applications.
Q: Is this an OEM product?
A: Yes, it’s a genuine GE Fanuc part, ensuring full compatibility, reliability, and longevity in demanding industrial environments.
Maintenance Tips
-
Visual Inspection: Regularly check for signs of wear, burnt areas, cracked components, or damaged traces. Pay attention to high-voltage or high-power areas that may be more prone to damage.
-
Clean the PCB: Use dry compressed air or an anti-static brush to remove any dust, dirt, or debris. Avoid liquid cleaners, which can cause short circuits.
-
Check for Solder Joint Integrity: Inspect the solder joints for any cracks, cold joints, or corrosion that could result in intermittent or faulty connections.
-
Verify Connections and Terminals: Ensure that all connectors, terminals, and input/output connections are secure, clean, and free of corrosion or oxidation.
-
Monitor Power Supply: Ensure the PCB is receiving stable power at the correct voltage. Voltage fluctuations can cause malfunction or damage to sensitive components.
-
Test for Signal Integrity: Use appropriate diagnostic tools to monitor signal integrity and ensure there is no signal distortion or interference in the PCB’s operation.
-
Temperature Control: Ensure that the PCB operates within its designated temperature range. Overheating could lead to component failure.
-
Run Diagnostics: Periodically check the performance of the PCB using diagnostic software or tools to detect faults and optimize its functionality.
-
Handle with ESD Protection: Always use anti-static wrist straps and mats when handling the PCB to prevent electrostatic discharge (ESD) from damaging the components.
-
Secure Mounting: Ensure the PCB is properly mounted and secured within its housing to avoid mechanical stress or vibration, which could damage the board.
