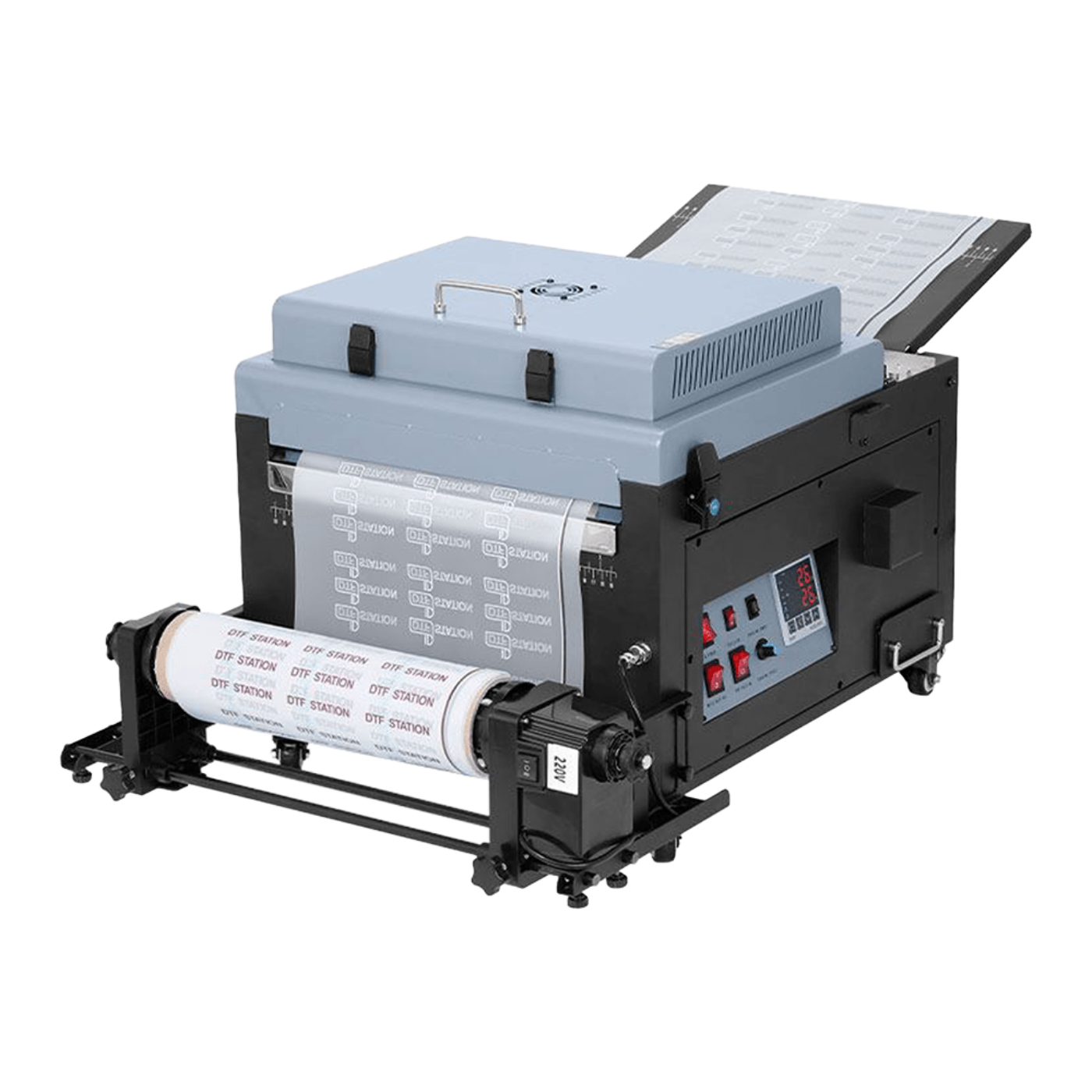

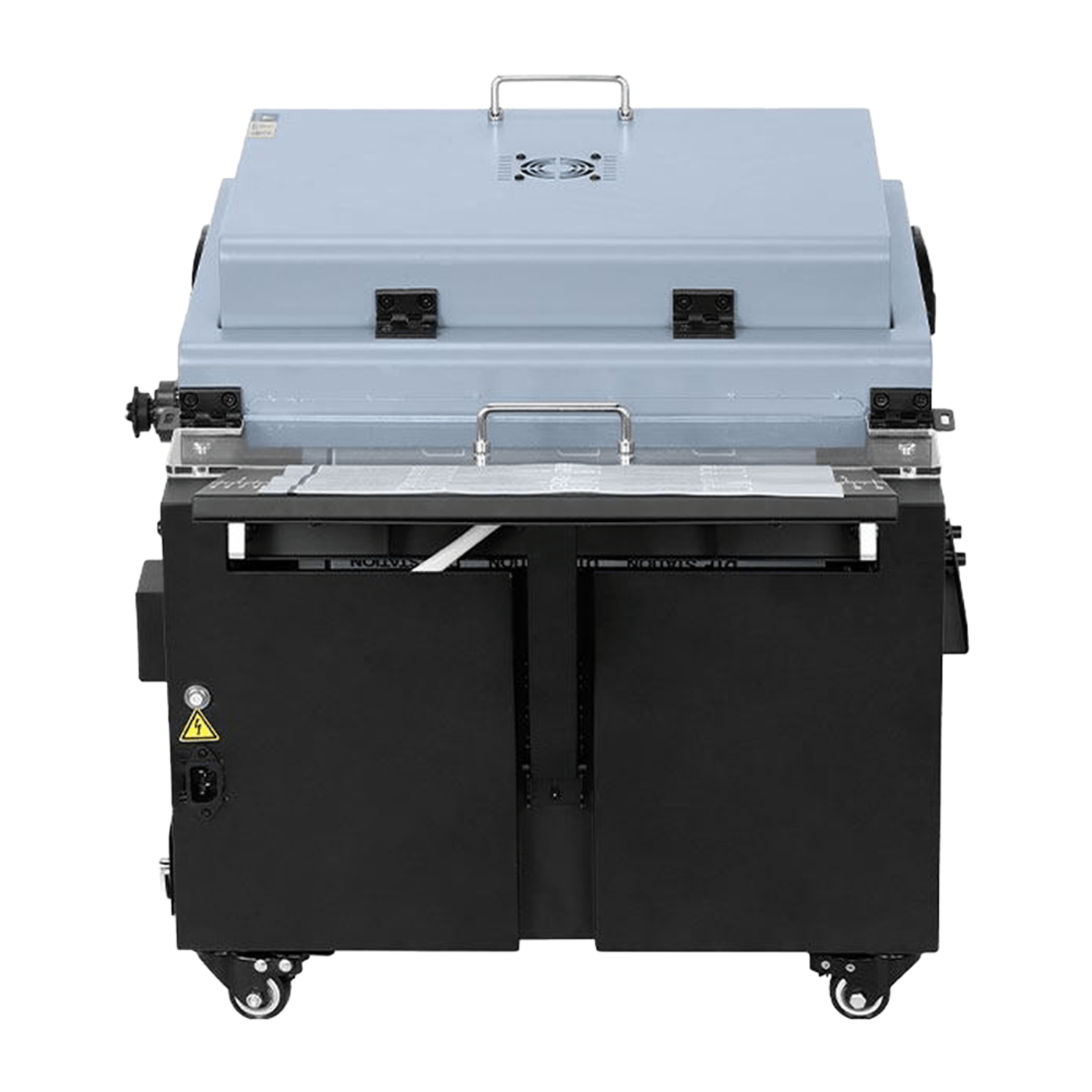

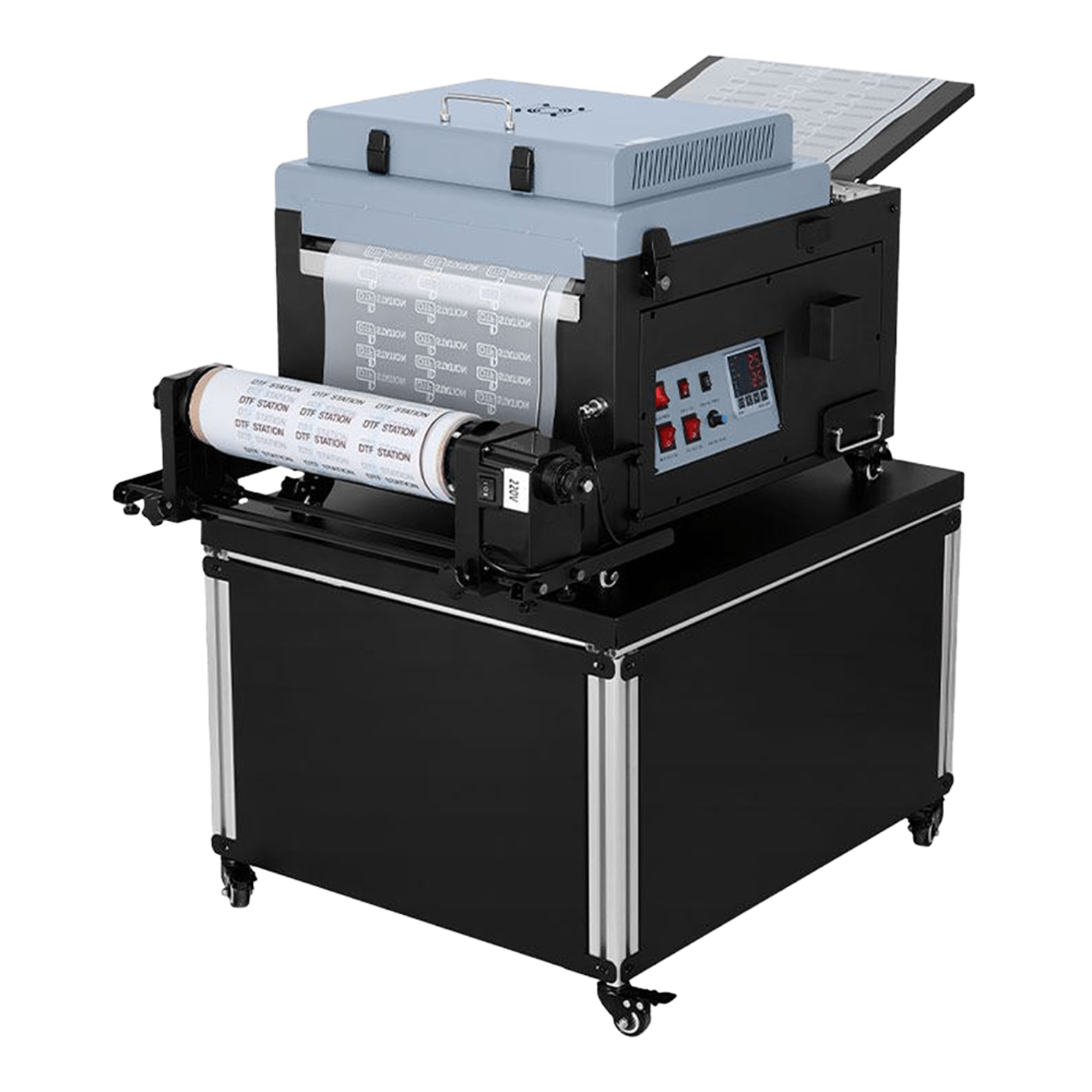

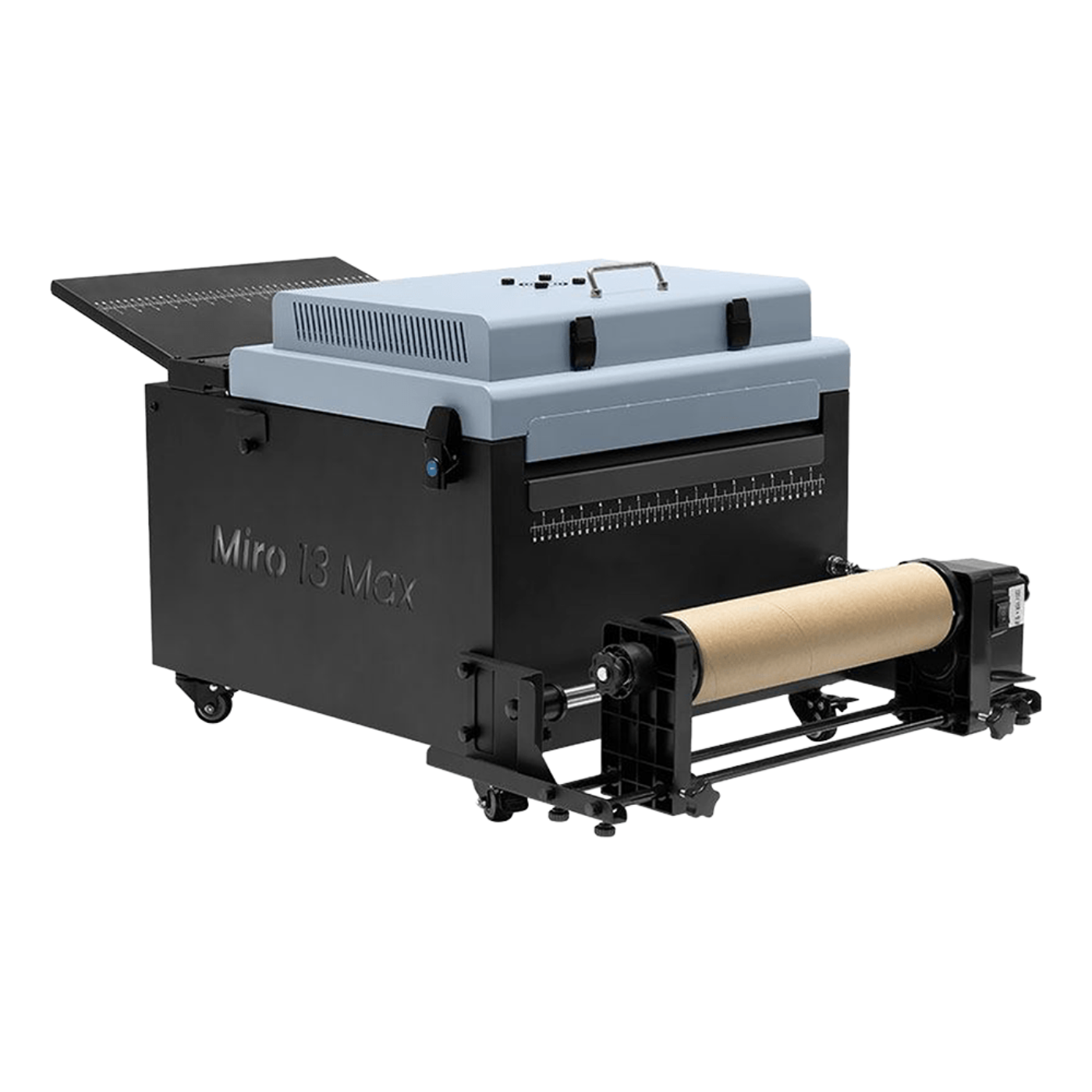

DTF Station Miro 13 Max DTF Powder Shaker and Dryer - DTFS-MIRO13-MAX
The Miro 13 Max is DTF Station's perfect powdering and curing solution for any A3 and A4 sized DTF printing setup.
With bottom platen heating for even, consistently cured transfers and a built-in air purifier for safer, more eco-friendly powdering, this shaker helps make powdering your DTF transfers a breeze. Plus, at just 1170W (1.17KW), this shaker requires no special electrical adjustments to install or use. Coupled with its intuitive interface and a suite of videos by DTF Station on how to install, use, and maintain the shaker, you'll be printing and powdering transfers in no time.
Features
-
Patented air purification system built-in: ensure your DTF print shop is safe and smoke-free without the hassle of an external purifier
-

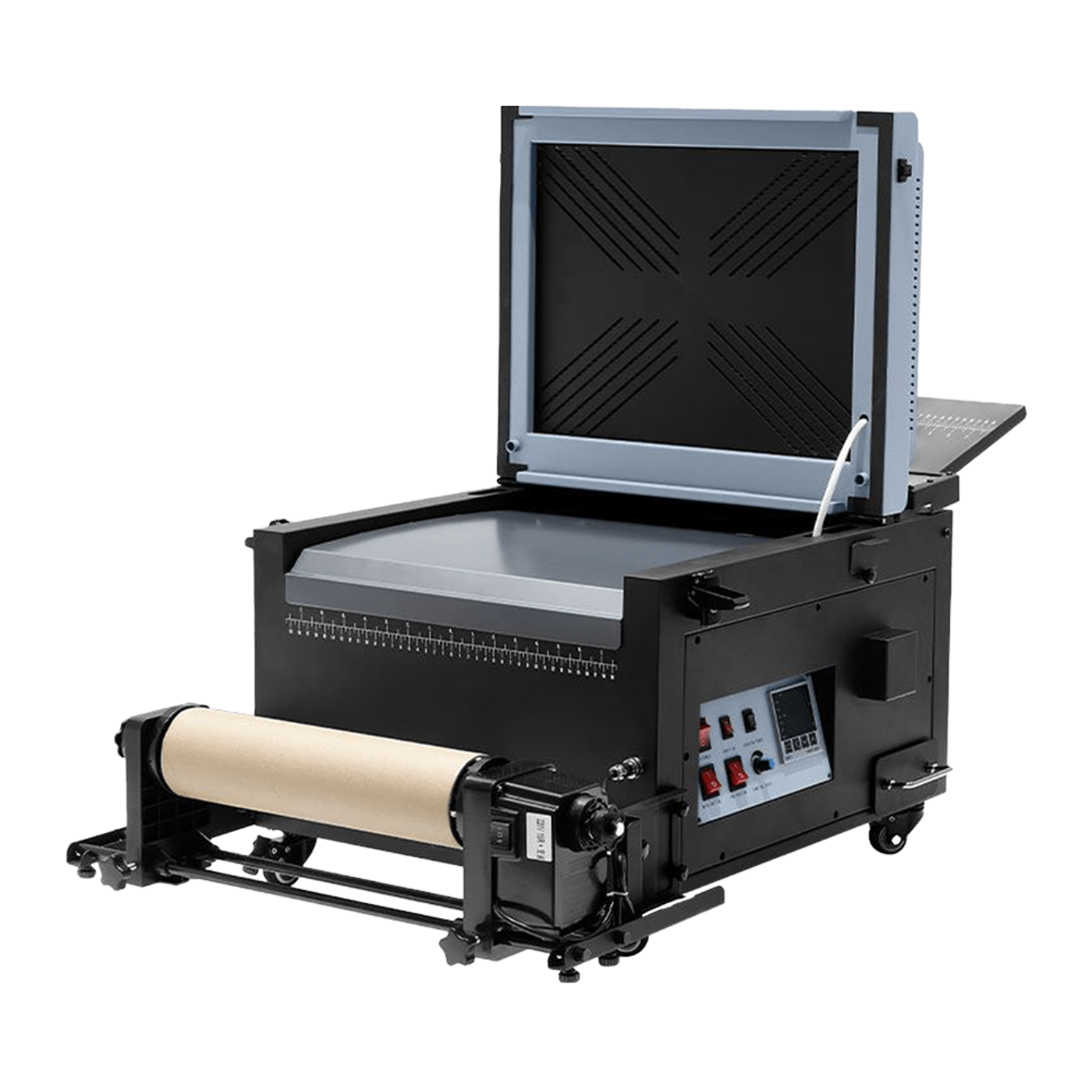

Bottom Platen Heating: even, consistently cured transfers every time
-
Curved Heating Platen: ensures media fits and flows through the shaker smoothly
-
Alignment markings: markings on the shaker help you ensure your media is feeding correctly
-
True A3 Width Prints: takes up to 13.78" (35cm) media
-
3-in-1: powdering, curing, and air purifying in one machine
-
Easy to use: intuitive control panel & a suite of videos on installation, use, and maintenance at your fingertips
-
Low power consumption: 1170W (1.17KW)
-
Full tech support: in addition to thorough videos, contact DTF Station techs at any time with their instant message tech support system
Specifications
| Max Film Width |
13.78" |
| Power Requirements |
110V, 1.17 kW, 10.6 A |
| Product Weight |
70.6 lb |
| Packaging Weight |
81.6 lb |
| Product Dimensions (D × W × H) |
40" × 23.6" × 18.5" |
| Packaging Dimensions (D × W × H) |
26.1" × 23" × 20.7" |
| Color Code |
BIX |
Manual
What our Experts Think
-
Performance Built for Speed
-
Efficient powder distribution with precise shaking mechanics
-
Rapid and even drying to reduce production bottlenecks
-
Superior Print Quality
-
Minimizes clumps and ensures consistent adhesion
-
Enhances vibrancy and durability of transfers
-
User-Focused Design
-
Intuitive controls reduce training time
-
Sturdy construction for high-volume workflows
-
Reliability & Maintenance
-
Easy access for cleaning and upkeep
-
Durable parts designed for long service life
-
Value & ROI
-
Balances professional features with cost-effectiveness
-
Ideal for small to mid-sized print shops aiming to scale
Q&A
Q1: What is the Miro 13 Max?
A: A 3-in-1 automatic DTF powder shaker, dryer, and air purifier designed to prep DTF prints for curing and transfer.
Q2: What size media does it support?
A: Handles up to 13.78″ (35 cm) wide films, ideal for A3/A4 workflows.
Q3: What are its key features?
A: Built-in air purification, bottom heating platen for even curing, curved heating platen for smooth media flow, and alignment markings for accuracy.
Q4: What are the workflow benefits?
A: Combines powdering, curing, and purification in one, with intuitive controls, low power use (≈1.17 kW), and full tech support including setup videos.
Q5: Is it easy to use?
A: Yes — plug-and-play operation with simple switch control and helpful instructional content.
Q6: Which machines is it compatible with?

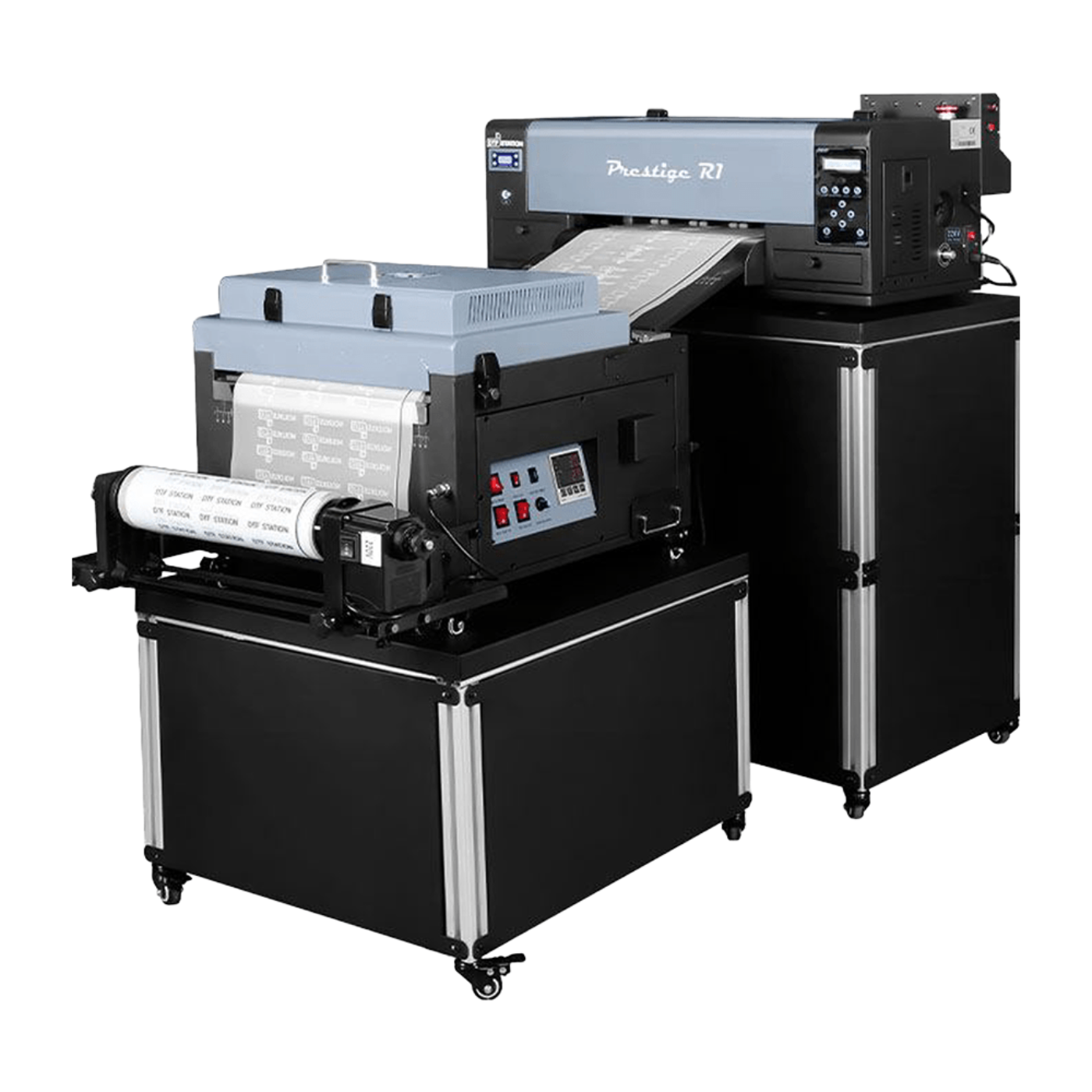

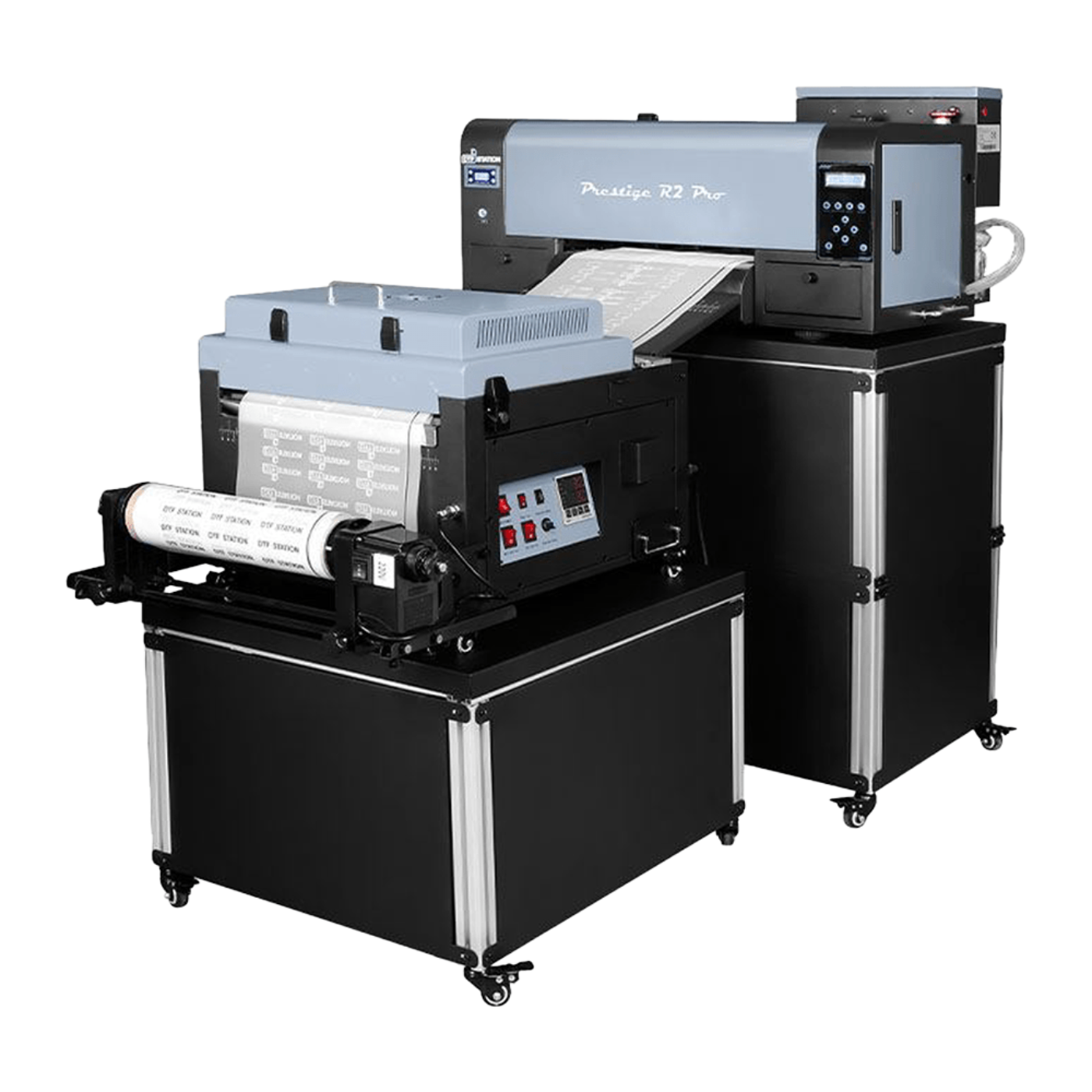

A: Works with DTF Station Prestige series printers (A4/R1/R2/R2 Pro).
Q7: What are the main specs?
A: ~1170 W power, 110 V/220 V support, ~70.6 lb weight, and compact dimensions ~40″ × 23.6″ × 18.5″.
Q8: What safety precautions are needed?
A: Avoid inhaling powder or fumes; wear protective gear when handling DTF powder.
Maintenance Tips
-
Daily Cleaning Routine
-
Empty and clean the powder hopper and collection tray after each batch to prevent buildup and clogs.
-
Wipe exterior surfaces and film path with a soft, dry cloth to remove powder residue.
-
Weekly Inspection & Care
-
Inspect heating elements and conveyor mechanism for dust or debris; ensure even heating.Check belt tension and moving parts, applying lubricant where recommended to avoid wear.
-
Clear air filters to maintain airflow and prevent overheating.
-
Temperature & Calibration Checks
-
Verify curing temperature and adjust settings for consistent powder melt and adhesion.Calibrate powder distribution and shake intensity to ensure even coating across film width.
-
Electrical & Safety Checks
-
Inspect electrical connections and wiring periodically; confirm safety switches and emergency stops function properly.Always power off and unplug before maintenance.
-
Powder Storage & Handling
-
Store DTF powder in airtight containers with desiccants to minimize moisture and clumping.Avoid excess humidity in the workspace to support smooth powder flow and reduce static.
